Plasma sheath — communications blackout: Question bank

Symbol reminders — read before you start

Nothing on this page uses a symbol you haven't met on the parent note, but here they all are, in plain words, so you never have to guess:

Definition The cast of symbols

$f_{radio}$ = the frequency your antenna transmits at — how many times per second the wave wiggles (in Hz).
$ω$ (Greek "omega") = angular frequency, the same wiggling counted in radians per second: $ω = 2 π f$ . It's just $f$ measured in a different unit; picture a point going around a circle, $ω$ is how fast the angle grows.
$f_{p}$ , $ω_{p}$ = the plasma frequency — the natural "sloshing" rate of the free electrons ( $ω_{p} = 2 π f_{p}$ ).
$n_{e}$ = free-electron number density (electrons per cubic metre).
$e = 1.6 \times 1 0^{- 19}$ C = the elementary charge, the amount of charge on one electron.
$m_{e} = 9.11 \times 1 0^{- 31}$ kg = the electron mass — how sluggish each electron is when pushed.
$ε_{0} = 8.85 \times 1 0^{- 12}$ = the vacuum permittivity, a constant of nature that sets how strong an electric field a given pile of charge makes.
$k$ = the wavenumber — how many radians of wave-phase fit into one metre of space ( $k = 2 π / λ$ ). A real $k$ means a travelling wave; an imaginary $k$ means no travelling wave at all.
The one inequality that rules everything: ==blackout happens when $f_{radio} < f_{p}$ ==.

The two engine-room results this page leans on

The parent note derived these; here is the why in one breath each, plus a picture, so every question below rests on solid ground.

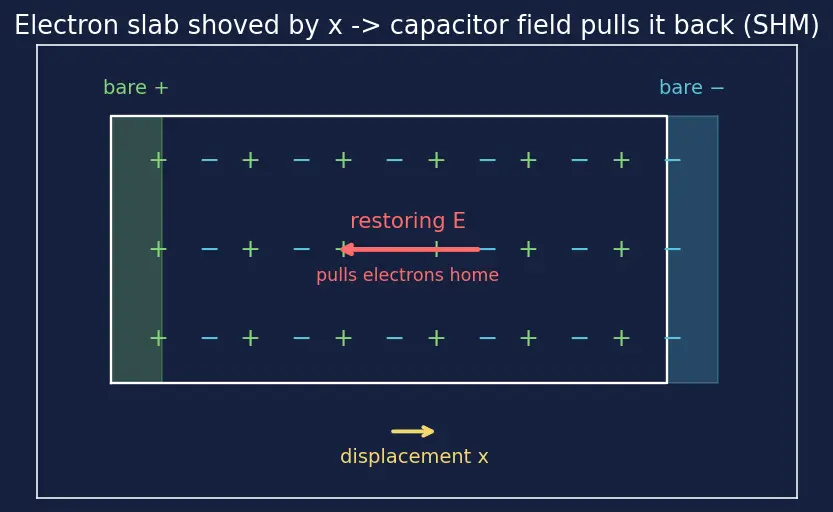

The electron-slab restoring force (source of $ω_{p}$ ). Shove all the free electrons sideways by a tiny distance $x$ . They uncover a sheet of positive charge on one side and pile up negative on the other — a mini parallel-plate capacitor. That capacitor's field $E = σ / ε_{0}$ points back, pulling the electrons home. Newton's law on one electron gives $m_{e} \overset{x}{¨} = - \frac{n _{e} e ^{2}}{ε _{0}} x,$ which is exactly the equation of a mass on a spring — simple harmonic motion — sloshing at $ω_{p} = n_{e} e^{2} / (ε_{0} m_{e})$ . Look at the charge separation in the figure:

Figure — Plasma sheath — communications blackout

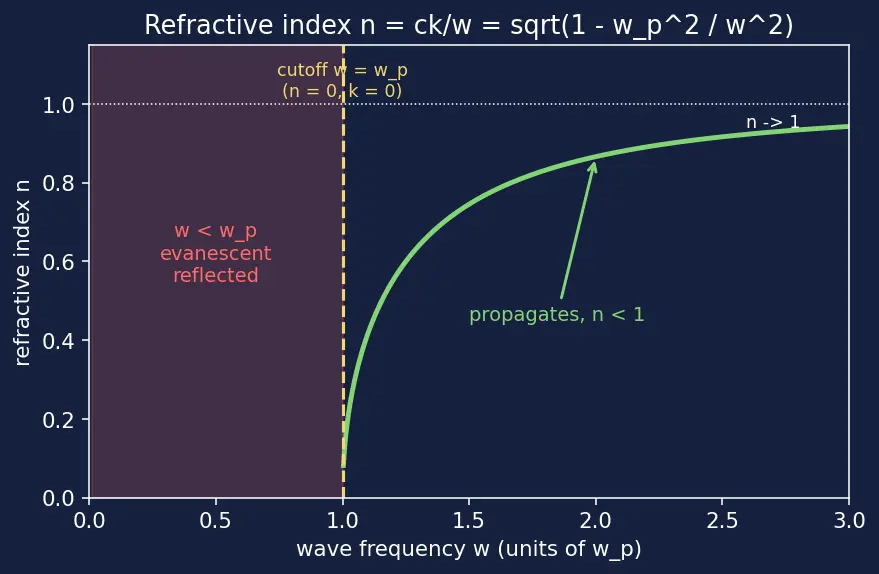

The dispersion relation and refractive index (source of the cutoff). When a wave of frequency $ω$ tries to cross the plasma, Maxwell's equations plus that sloshing give $ω^{2} = ω_{p}^{2} + c^{2} k^{2} \Rightarrow k = \frac{1}{c} ω^{2} - ω_{p}^{2} .$ Why this shape? The $ω_{p}^{2}$ term is the "energy cost" of shaking the electrons before any wave energy is left over to travel; only what remains, $ω^{2} - ω_{p}^{2}$ , funds real propagation. The refractive index is defined as the ratio of vacuum speed to the wave's phase speed, $n = c k / ω$ ; substituting $k$ gives $n = 1 - \frac{ω _{p}^{2}}{ω ^{2}} .$ Now read off the three regimes in the figure:

$ω > ω_{p}$ : the square root is a positive number less than 1, $k$ real → wave propagates.
$ω = ω_{p}$ : $k = 0$ , $n = 0$ → the cutoff knife-edge.
$ω < ω_{p}$ : the thing under the root is negative, $k$ imaginary → evanescent, the wave decays over a skin depth and is reflected.

True or false — justify

TF1. "A hot gas always blocks radio waves."

False — heat alone does nothing; the wave is blocked by free electrons. A hot but un-ionized gas (

n_{e} \approx 0

) is transparent. Heat only matters as the cause of ionization.

TF2. "Raising the transmitter frequency makes blackout worse."

False — the cutoff is a lower bound. Frequencies below

f_{p}

are blocked; going above

f_{p}

(e.g. Ka-band) is exactly how you punch through.

TF3. "The plasma frequency depends on the electron density but not on the electron mass

m_{e}

False —

ω_{p} = n_{e} e^{2} / (ε_{0} m_{e})

has

m_{e}

in the denominator. Lighter charges are less sluggish and slosh faster, so mass sets the frequency just as

n_{e}

does.

TF4. "If the radio wave is below cutoff, the electrons absorb its energy and turn it to heat."

Mostly false — below cutoff the wave is evanescent and mainly reflected, like off a mirror. The electrons rearrange to cancel the field; net energy is stored and turned back, not soaked up.

TF5. "Ions contribute to the sheath's cutoff frequency as much as electrons do."

False — ions are ~1836× heavier, so their sloshing frequency is ~43× lower and negligible. The electron plasma frequency dominates the cutoff.

TF6. "The refractive index of a plasma is always less than 1 for waves that get through."

True — from

n = c k / ω = 1 - ω_{p}^{2} / ω^{2}

, for

ω > ω_{p}

the term subtracted is positive, so

n < 1

. This makes the phase speed

c / n

exceed

c

, but the signal-carrying group speed

c n

stays below

c

— no relativity violation.

TF7. "A denser sheath is easier to talk through."

False — higher

n_{e}

raises

f_{p}

, pushing the cutoff up and blocking more frequencies. Denser = worse blackout.

TF8. "Blackout is caused by the metal heat shield shorting out the antenna."

False — it's the surrounding plasma sheath, not the shield hardware. Even a perfectly working antenna is blinded by the electron cloud in front of it.

Spot the error

SE1. "Using the shortcut,

f_{p} = 8.98 n_{e}

gives the angular frequency

ω_{p}

Error — the

8.98

constant already includes the

1/2 π

, so it gives

f_{p}

in Hz, not the angular

ω_{p} = 2 π f_{p}

. Don't stack an extra

2 π

SE2. "Since

n = 1 - ω_{p}^{2} / ω^{2}

, at exactly

ω = ω_{p}

the wave travels normally with

n = 1

Error — at

ω = ω_{p}

the index is

n = 0 = 0

(and

k = 0

), the cutoff itself. The wave neither propagates nor reflects cleanly; it's the knife-edge, not normal transmission.

SE3. "The dispersion relation

ω^{2} = ω_{p}^{2} + c^{2} k^{2}

shows waves slow down below the plasma frequency."

Error — below

f_{p}

the wavenumber

k

becomes imaginary, so there is no travelling wave to "slow down"; it decays exponentially (evanescent) over a skin depth and is reflected.

SE4. "To find the density that blocks 2 GHz, we need

n_{crit} = (2 π f /8.98)^{2}

Error — the

2 π

is already baked into

8.98

. Correct inversion of

f_{p} = 8.98 n_{e}

n_{crit} = (f /8.98)^{2}

, using

f

in Hz directly.

SE5. "Because the wave is reflected, none of the transmitter's power reaches the plasma at all."

Error — the field penetrates a thin skin depth as an evanescent field before being turned back; energy is briefly stored there and returned. It's near-total reflection, not a perfect zero-penetration wall.

SE6. "The plasma frequency is a property of the radio wave."

Error —

f_{p}

depends only on the medium (

n_{e}

m_{e}

e

ε_{0}

). The radio frequency is a separate choice; blackout is the comparison of the two.

Why questions

WHY1. Why does the restoring force in the derivation carry a minus sign, and what picture is behind it?

Displacing the electron slab (see figure s01) exposes charge sheets whose field points back toward neutrality:

m_{e} \overset{x}{¨} = - (n_{e} e^{2} / ε_{0}) x

. The minus makes it a spring — simple harmonic motion — rather than a runaway push.

WHY2. Why is the plasma a mirror for low frequencies specifically?

Slow-oscillating fields (

ω < ω_{p}

) give the electrons time to fully rearrange and cancel the incoming field each cycle, so

k

turns imaginary and the wave is reflected — like a metal. Fast fields flip before the sluggish electrons can respond, so the wave slips through.

WHY3. Why does raising

f_{radio}

to Ka-band beat blackout when it makes ordinary links "harder"?

The plasma only blocks

f < f_{p}

; a high enough frequency sits above

f_{p}

and sails through. The everyday "higher = harder" intuition is about antenna range, not the plasma cutoff.

WHY4. Why can a relay satellite talk to a capsule that ground stations can't?

The sheath is thinner in the wake behind the vehicle, where the plasma expands and cools. A satellite looking down the wake sees lower

n_{e}

, hence lower

f_{p}

, and gets a link.

WHY5. Why does injecting a cold electrophilic gas ("quenchant") help?

It mops up free electrons (they attach to the injected molecules), lowering

n_{e}

and therefore

f_{p}

below the radio frequency — flipping the inequality back in your favour.

WHY6. Why is

ε_{0}

(the vacuum permittivity) in the plasma frequency at all?

It sets how strong the restoring electric field is for a given charge sheet (

E = σ / ε_{0}

). A smaller

ε_{0}

would mean a stiffer spring and faster sloshing, so

ε_{0}

literally controls the stiffness of the electron oscillation.

WHY7. Why doesn't the sheath block sunlight (visible light) even though it blocks radio?

Visible light is ~

1 0^{14}

Hz, vastly above any re-entry

f_{p}

(~GHz). It's far past cutoff, so it passes; only the low-frequency radio band is trapped.

Edge cases

EC1. What happens to a wave sent at exactly the plasma frequency,

f_{radio} = f_{p}

It sits on the cutoff:

k = 0

n = 0

, infinite wavelength inside the plasma. The electrons store the wave's energy and hand it back rather than transporting it — the group speed

c n \to 0

, so no energy crosses. It's the exact boundary between transmit and reflect.

EC2. What is

f_{p}

in a region with zero free electrons (

n_{e} = 0

f_{p} = 8.98 0 = 0

. With no electrons there is nothing to slosh, cutoff is zero, and all frequencies pass — the sheath vanishes, so does blackout.

EC3. As re-entry ends and the vehicle slows, what happens to blackout?

Compression heating drops, ionization stops,

n_{e}

falls,

f_{p}

sinks below the radio frequency, and communication spontaneously returns — the classic "acquisition of signal."

EC4. Two links use the same power but frequencies

1

GHz and

30

GHz through a sheath with

f_{p} = 9

GHz — which survives, and why doesn't cranking the power save the weaker one?

The 30 GHz link survives (

f > f_{p}

, real

k

); the 1 GHz link is below cutoff, so its

k

is imaginary and the field is reflected no matter how loud you shout. Power sets amplitude, not whether

k

is real — the cutoff is a structural gate, not an energy threshold.

EC5. In the limit of an extremely dense sheath (

n_{e} \to \infty

), what does

f_{p}

do, and what physically happens to the wave?

f_{p} \to \infty

, so every finite frequency is below cutoff; the skin depth shrinks toward zero and the plasma behaves like a perfect conductor/mirror — total, unavoidable blackout. Denser electron cloud = shorter reach for the evanescent field = harder wall.

EC6. Two sheaths have the same temperature but one is denser. Same blackout?

No — temperature is not the deciding variable; the denser one has larger

n_{e}

, hence higher

f_{p}

, so it blacks out a wider band. Equal temperature ≠ equal cutoff.

Recall One-line self-test

The single inequality governing blackout? ::: $f_{radio} < f_{p}$ (equivalently $n_{e} > n_{crit}$ ).
Does heat or $n_{e}$ block the wave? ::: Free-electron density $n_{e}$ ; heat is only its cause.
Above cutoff, is $n < 1$ or $n > 1$ , and what saves relativity? ::: $n < 1$ ; the phase speed $c / n$ exceeds $c$ but the signal-carrying group speed $c n$ stays below $c$ .
What is $n$ defined as? ::: $n = c k / ω = 1 - ω_{p}^{2} / ω^{2}$ .
