Visual walkthrough — Plasma sheath — communications blackout

---

Step 0 — What is a plasma, as a picture?

WHAT. A plasma is a gas where the atoms have been torn into two clouds: a cloud of tiny negative electrons and a cloud of heavy positive ions (atoms that lost an electron). Normally these two clouds sit exactly on top of each other, so from far away the gas looks electrically neutral — we call this quasi-neutral ("almost neutral").

WHY start here. Every symbol below describes how far the electron cloud slides off the ion cloud. So we must first see the two clouds sitting on top of each other, at rest.

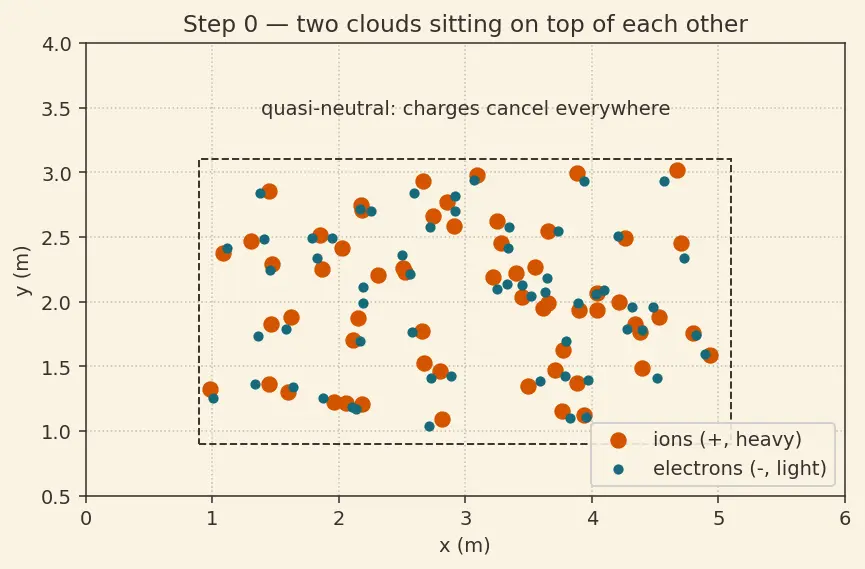

PICTURE. In the figure: teal dots are electrons, orange dots are ions, sitting in the same block. Zoom out and the block is grey (neutral) — the charges cancel everywhere.

Related vault ideas that make this plasma exist: Ionization and Saha equation (how heat frees the electrons) and Atmospheric re-entry heating (where the heat comes from).

---

Step 1 — Slide the whole electron cloud sideways

WHAT. Grab every electron and shift it to the right by a small distance we will call $x$. The heavy ions barely move, so leave them put. Now the two clouds no longer overlap perfectly.

WHY. Nature has a natural "sloshing" motion hidden inside the plasma. To find its frequency we do the physicist's standard trick: poke the system a little and watch how hard it snaps back. The poke is this displacement $x$.

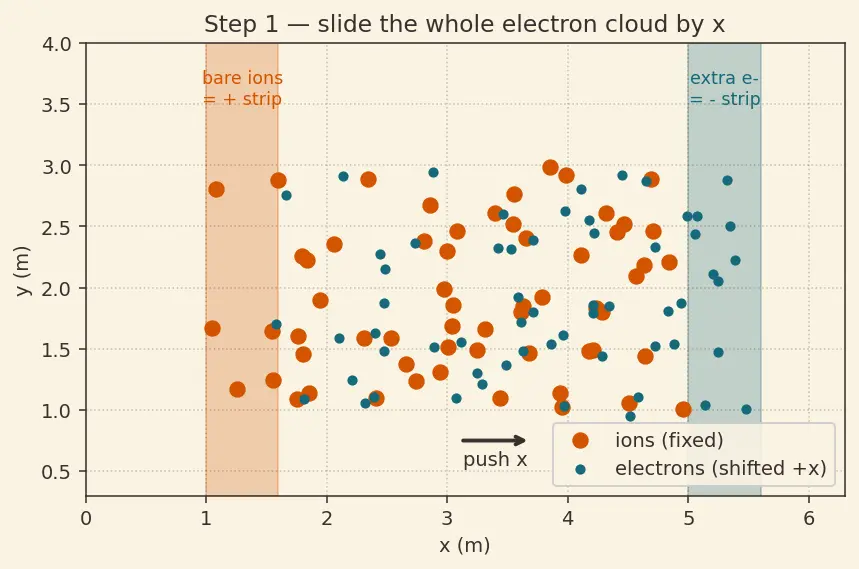

PICTURE. The electron block has slid right. Look at the two thin strips at the edges:

• On the left, ions are now uncovered → a strip of positive charge.
• On the right, electrons stick out past the ions → a strip of negative charge.

The bulk in the middle is still neutral (clouds still overlap there). Only the edges matter.

---

Step 2 — Count the exposed charge: build $\sigma$

WHAT. Measure how much charge got exposed on one edge, per square metre of face.

WHY. A charged strip creates an electric field (next step), and to get that field we first need the charge per area of the strip. Nothing about the field can be written until this number exists.

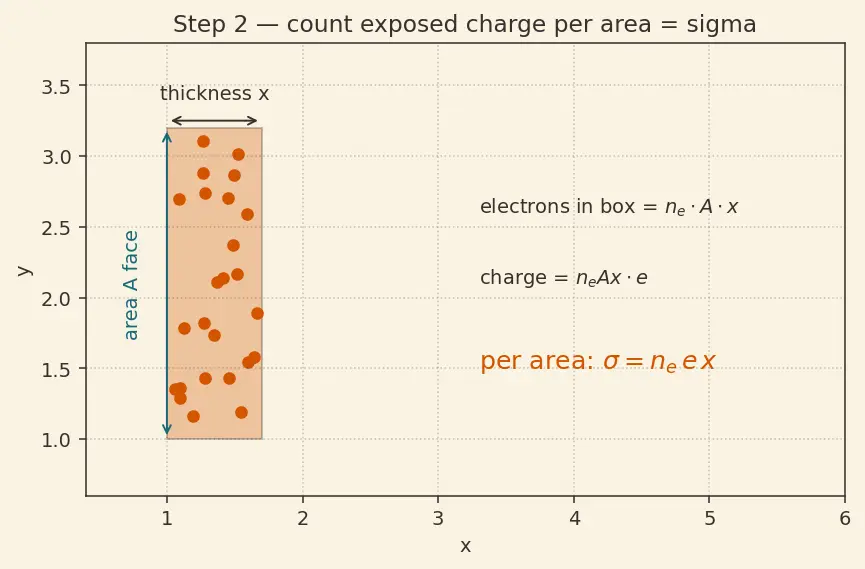

PICTURE. Take a face of area $A$ (the shaded square). The exposed slab behind it is a box: area $A$, thickness $x$. Every electron in that box slid across the boundary.

Number of electrons in the box $=n_e\times (\text{volume})=n_{e}Ax$. Each electron carries charge $e$ (a fixed tiny number, $e=1.6\times 10^{-19}$ coulombs). Total charge on the face $=n_{e}Axe$. Divide by the area $A$ to get charge per area:

---

Step 3 — Turn that charge into a field: build $E$

WHAT. The two charged strips (positive on one side, negative on the other) act exactly like the two plates of a parallel-plate capacitor. Between them sits a uniform electric field $E$.

WHY this tool — Gauss's law. We need "charge sheet ⇒ field." The tool built precisely for that is Gauss's law, which for an infinite sheet of surface charge $\sigma$ gives a field $E=\sigma /{\epsilon }_0$. We use it because it turns a charge we can count into a force we can feel, with no other assumptions.

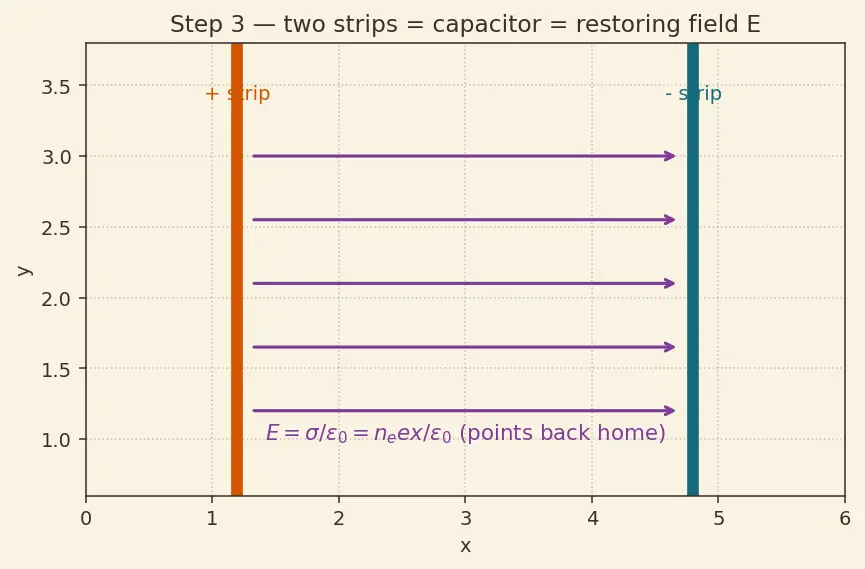

PICTURE. Field lines (plum arrows) run from the positive strip to the negative strip — i.e. they point in the direction that would push a positive test charge from + to −. Crucially they point back toward the electrons' original home, tugging the electron cloud to return.

---

Step 4 — Newton's law on one electron

WHAT. Zoom onto a single electron sitting in this field and write down its equation of motion — mass times acceleration equals force.

WHY. We want a frequency, and frequency is a statement about motion in time. The only law that turns "force" into "motion in time" is Newton's second law, $F=ma$. So we invoke it now.

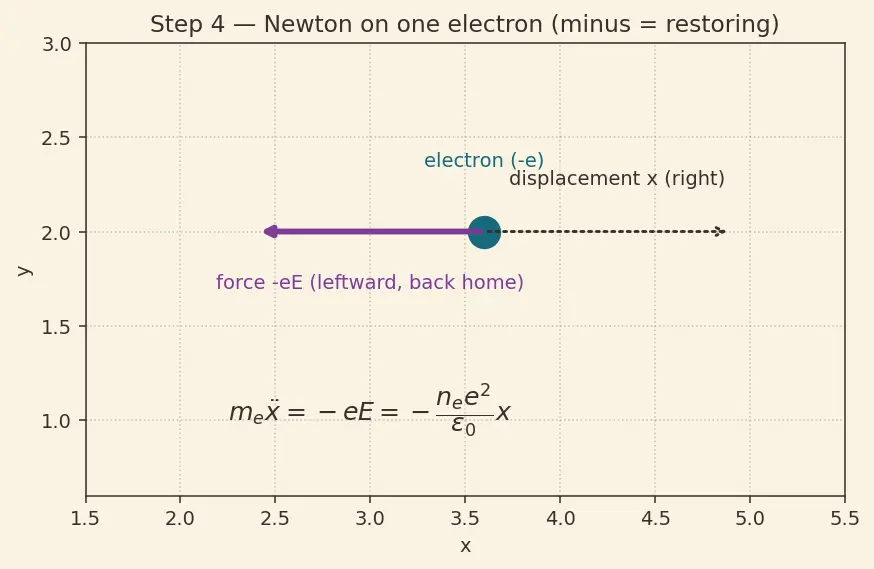

PICTURE. One electron, the plum field arrow pushing it left (back home), the electron accelerating leftward. Its position along the slide direction is that same $x$ from Step 1.

The force on a charge $-e$ (electron is negative) in field $E$ is $F=(-e)E$. Substitute the $E$ we built:

---

Step 5 — Recognise the spring, read off the frequency

WHAT. Compare our equation to the universal equation of a swinging spring / pendulum, and read the frequency straight off.

WHY this tool — the SHM template. Anything obeying $\ddot{x}=-(\text{constant})x$ is Simple Harmonic Motion (SHM): it wobbles back and forth at a fixed rate. Physicists memorise the template $\ddot{x}=-{\omega }^{2}x$, where $\omega$ (Greek "omega") is the angular frequency — the wobble rate in radians per second. We match our equation to this template so we never have to solve the motion by hand; the answer is pre-baked.

PICTURE. Our equation and the template, stacked, with the matching pieces coloured the same. Whatever sits in the constant slot is ${\omega }^2$.

$\ddot{x}=-\underset{\text{this is }{\omega }_p^2}{\underbrace{\left(\frac{n_e{e}^2}{{\epsilon }_0{m}_e}\right)}}x\text{vs.}\ddot{x}=-{\omega }^{2}x$

Match the boxes:

The engineering shortcut. Plug in the three constants $e,{\epsilon }_0,m_e$ once and for all: $f_p\approx 8.98\sqrt{n_e}\text{Hz}(n_e\text{ in }{\text{m}}^{-3}).$

---

Step 6 — Why the sloshing rate becomes a mirror: the two limits

WHAT. Now let a radio wave arrive, oscillating its own electric field at frequency $f$. The electrons must "keep up." Two cases, and we must cover both.

WHY. A formula is useless until we know what happens on each side of it. We check the fast limit and the slow limit explicitly so no scenario ambushes the reader.

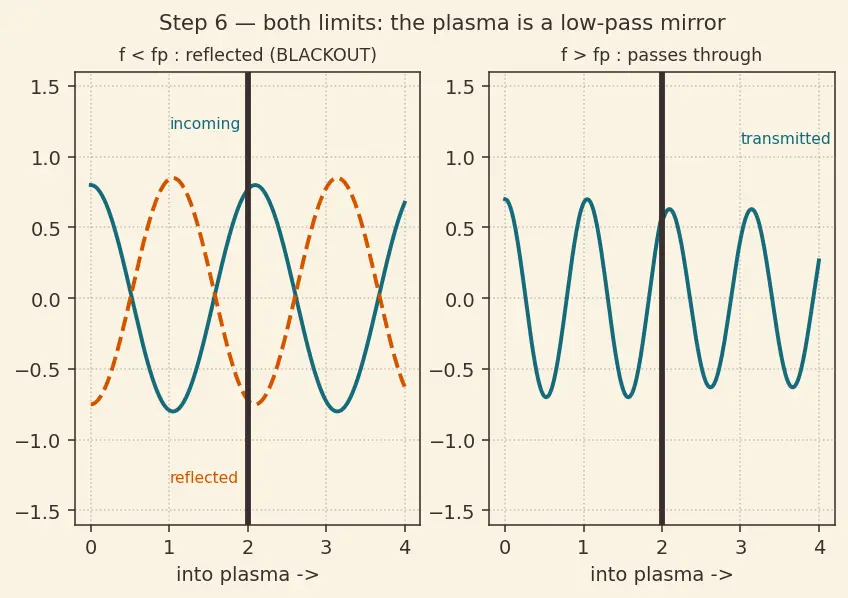

PICTURE (left panel). Wave slower than the cloud ($f<f_p$): the sluggish request lets electrons fully rearrange each cycle; they build up exactly the field needed to cancel the incoming wave. Net result: the wave cannot enter — it is reflected, like light off a metal mirror. This is the very same reflection that bounces shortwave radio off the ionosphere.

PICTURE (right panel). Wave faster than the cloud ($f>f_p$): the field reverses before the heavy-footed cloud finishes responding; the electrons can't cancel it in time, so the wave passes through.

---

Step 7 — The degenerate cases (never skip these)

WHAT. Test the extremes so the formula never surprises you.

• $n_e=0$ (no free electrons — an un-ionized hot gas). Then $f_p=8.98\sqrt{0}=0$. Every radio frequency is above $0$, so everything passes. This is why "the heat jams the radio" is wrong — a hot but un-ionized gas is transparent. Free electrons, not temperature, do the blocking.

• $m\to$ ion mass instead of $m_e$. Ions are ~1836× heavier. Since ${\omega }_p\propto 1/\sqrt{m}$, the ion sloshing frequency is $\sqrt{1836}\approx 43$ times lower — utterly negligible. That is exactly why $m_e$, not $m_{\text{ion}}$, sits in the formula.

• $f\to \infty$ (very high frequency). $n=\sqrt{1-f_p^2/f^2}\to 1$: the plasma becomes invisible, behaving like empty space. The wave doesn't even notice the electrons.

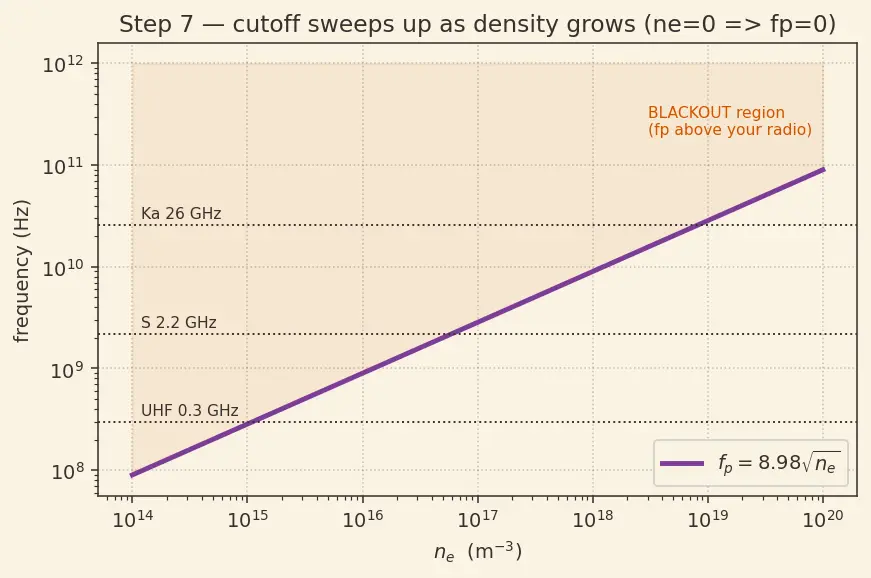

PICTURE. A little dial from $n_e=0$ (clear window, everything through) up to huge $n_e$ (solid mirror), with the cutoff line sweeping right as $n_e$ grows.

---

The one-picture summary

Everything above, in a single chain: poke the cloud → exposed charge → field → Newton → spring → frequency → mirror. Trace the arrows and you have re-derived $f_p$ end to end.

Recall Feynman retelling — say it in plain words

Imagine the plasma as two overlapping crowds: light electrons and heavy ions. Shove the electron crowd sideways a hair. Now the edges are bare — positive on one side, negative on the other — and that makes a field pulling the electrons straight back home. A pull that always points home and grows with distance is a spring, so the electrons bounce back and forth at one fixed rate: that's the plasma frequency $f_p$. When a radio wave knocks, the electrons try to keep up. If the wave is slower than their natural bounce, they cancel it perfectly and it bounces off — blackout. If it's faster, they can't keep up and it slips through. Denser cloud ⇒ faster bounce ⇒ blocks higher frequencies. Zero electrons ⇒ nothing blocked. That's the whole story, and the number is $f_p\approx 8.98\sqrt{n_e}$ hertz.

Recall Rebuild-it checklist

Order of the seven building blocks ::: displace $x$ → surface charge $\sigma =n_{e}ex$ → field $E=\sigma /{\epsilon }_0$ → Newton $m_e\ddot{x}=-eE$ → SHM template → ${\omega }_p=\sqrt{n_e{e}^2/{\epsilon }_0{m}_e}$ → cutoff $f\lessgtr f_p$. Where does the minus sign come from ::: the field points back home and the electron charge is $-e$; together they make acceleration oppose displacement — a restoring (spring) force. Why divide by $2\pi$ at the end ::: ${\omega }_p$ is radians/s; one cycle is $2\pi$ radians, so $f_p={\omega }_p/2\pi$ converts to cycles/s (Hz). What happens at $n_e=0$ ::: $f_p=0$, so every radio frequency is above cutoff — fully transparent; proves heat alone doesn't block waves.
