When a spacecraft slams back into the atmosphere at ~7–11 km/s, it must destroy its own kinetic energy . That energy has to go somewhere . The air in front of the vehicle is violently compressed into a shock layer at thousands of kelvin . The whole game of a Thermal Protection System (TPS) is: stop that heat from reaching the structure and payload . There are two philosophies: (1) sacrifice material to carry heat away (ablators), or (2) survive it by re-radiating and insulating (tiles, RCC). Ablators eat heat by dying; tiles and RCC survive by radiating.
Definition The reentry heating problemDuring reentry, the vehicle's enormous kinetic energy is converted (mostly) into heating of the surrounding gas via a bow shock . Only a fraction of that energy actually reaches the vehicle wall — but that fraction is still enough to vaporize unprotected metal.
Energy budget (WHY the numbers are scary). For low Earth orbit, orbital speed is
v orb = G M R ≈ 7.8 km/s . v_\text{orb}=\sqrt{\frac{GM}{R}}\approx 7.8\ \text{km/s}. v orb = R GM ≈ 7.8 km/s . e k = 1 2 v 2 = 1 2 ( 7800 ) 2 ≈ 3.0 × 10 7 J/kg = 30 MJ/kg . e_k=\tfrac12 v^2 = \tfrac12 (7800)^2 \approx 3.0\times10^7\ \text{J/kg} = 30\ \text{MJ/kg}. e k = 2 1 v 2 = 2 1 ( 7800 ) 2 ≈ 3.0 × 1 0 7 J/kg = 30 MJ/kg .
Intuition Why 30 MJ/kg is terrifyingMelting iron from room temperature and vaporizing it costs only ~7 7 7 ~4× the energy needed to boil a kilogram of steel . If even a modest fraction hit the structure, it would be destroyed. The TPS exists to make sure it doesn't.
Two heat-transfer channels dominate:
Convective heating q ˙ conv \dot q_\text{conv} q ˙ conv Radiative heating q ˙ rad \dot q_\text{rad} q ˙ rad
Intuition Why blunt bodies (the "why is a capsule round?" insight)Because q ˙ ∝ 1 / R n \dot q\propto 1/\sqrt{R_n} q ˙ ∝ 1/ R n big nose radius lowers heating . A blunt body also pushes the shock away from the wall so most heat is dumped into the air, not the vehicle. ==Sharp = fast but roasts; blunt = high drag but cool.==
An ablator is a material that absorbs heat by decomposing (pyrolysis), melting, and vaporizing. The gas it releases is blown into the boundary layer, physically blocking incoming heat (called transpiration / blockage ). The surface char re-radiates too.
HOW an ablator sheds heat (three simultaneous mechanisms):
Pyrolysis / phase change — chemical bonds break, absorbing latent heat.Blowing (blockage) — outgassing pushes the hot boundary layer away.Re-radiation — the black char surface radiates σ T 4 \sigma T^4 σ T 4
Worked example PICA — Phenolic Impregnated Carbon Ablator
What: carbon-fiber preform impregnated with phenolic resin; ultra-low density (~0.27 g/cm³).Why it's great: very low density → light TPS for a given thickness; handles high heat flux (used on Stardust — fastest human-made reentry — and SpaceX Dragon as PICA-X).Why this step matters: For deep-space return where q ˙ conv ∝ v 3 \dot q_\text{conv}\propto v^3 q ˙ conv ∝ v 3 must have a high-Q ∗ Q^* Q ∗
Worked example SLA-561V — Super Light-weight Ablator
What: cork/silicone-filled honeycomb, density ~0.26 g/cm³.Why: designed for lower heat-flux entries (Mars landers like Viking, MSL heatshield on the backshell / edges). Cheaper, easily bonded to honeycomb.Why this step: you match the ablator's Q ∗ Q^* Q ∗
Definition Radiative / insulating TPSInstead of consuming mass, these materials re-radiate most incoming heat and insulate the structure. They are reusable but limited to lower heat fluxes.
Worked example Metallic / ceramic Space Shuttle tiles (LI-900, HRSI)
What: silica-fiber tiles, ~94% air, density ~0.14 g/cm³.Why they work: extremely low thermal conductivity + high emissivity black coating. Surface glows and radiates while the back stays cool. A glowing tile could be held by its edges seconds after removal from a furnace.Steady-state balance: if all incoming heat is re-radiated,
q ˙ conv = ε σ T w 4 ⇒ T w = ( q ˙ conv ε σ ) 1 / 4 . \dot q_\text{conv}=\varepsilon\sigma T_w^4 \Rightarrow T_w=\left(\frac{\dot q_\text{conv}}{\varepsilon\sigma}\right)^{1/4}. q ˙ conv = ε σ T w 4 ⇒ T w = ( ε σ q ˙ conv ) 1/4 . ε \varepsilon ε lower the equilibrium wall temperature — hence the black high-ε \varepsilon ε
Worked example RCC — Reinforced Carbon–Carbon
What: carbon fiber in a carbon matrix; withstands >1600 °C.Where: the Shuttle nose cap and wing leading edges — the hottest points (smallest R n R_n R n q ˙ \dot q q ˙ Why: those spots exceed what silica tiles can survive, so you use the highest-temperature reusable material. The 2003 Columbia loss was an RCC panel breach — proof of how critical the leading edge is.
Environment
Best choice
Why
Very high q ˙ \dot q q ˙
PICA ablatorhigh Q ∗ Q^* Q ∗
Moderate q ˙ \dot q q ˙
SLA-561V cheap, matched Q ∗ Q^* Q ∗
Moderate q ˙ \dot q q ˙ reusable (Shuttle belly)
Silica tiles re-radiate, no mass loss
Extreme localized q ˙ \dot q q ˙
RCC highest survive temperature
Common mistake Steel-man: "Reusable tiles are always better than ablators."Why it feels right: ablators are consumed — that seems wasteful, and reusability sounds strictly superior.
The fix: at high heat flux, T w = ( q ˙ / ε σ ) 1 / 4 T_w=(\dot q/\varepsilon\sigma)^{1/4} T w = ( q ˙ / ε σ ) 1/4 any solid — no reusable material survives. Ablation's blocking + phase change (m ˙ Q ∗ \dot m Q^* m ˙ Q ∗ heat-flux and total heat load , not by "reusable = good".
Common mistake Steel-man: "A sharp nose reduces heating because it cuts through air."Why it feels right: intuitively a knife cuts easier than a spoon.
The fix: q ˙ ∝ 1 / R n \dot q\propto 1/\sqrt{R_n} q ˙ ∝ 1/ R n sharp (small R n R_n R n enormous heating. Blunt bodies stand the shock off and dump heat into the air. That's why capsules are round.
Common mistake "All the reentry kinetic energy heats the vehicle."Why it feels right: energy conservation — the KE must go somewhere.
The fix: It goes mostly into the air (shock heating + wake). Only a small convective/radiative fraction reaches the wall. The TPS manages that fraction.
Recall Explain to a 12-year-oldWhen a spaceship falls back to Earth super fast, the air in front of it gets squished so hard it becomes hotter than lava. The spaceship needs a heat shield or it burns up. There are two tricks: (1) a shield made of stuff that slowly burns away on purpose , carrying the heat off with the smoke it makes — like how sweat cools you by evaporating (that's PICA and SLA). Or (2) a shield made of special fluffy tiles or carbon that gets red-hot and glows the heat back out into space without melting, so you can use it again (Shuttle tiles and RCC). Round noses are used because they push the hot air away instead of hugging it.
"PICA Puffs, SLA is Simple, Tiles Twinkle, RCC Rules the Edges."
P ICA = P uffy carbon, high flux, deep space.SLA = S imple cheap cork, Mars/moderate.T iles = T winkle (glow, re-radiate), reusable belly.RCC = R ules the hottest edges (nose, wings).
What are the two fundamental TPS philosophies? Ablate (sacrifice mass, absorb heat by pyrolysis+blowing+radiation) vs survive (radiative/insulating tiles & RCC, reusable).

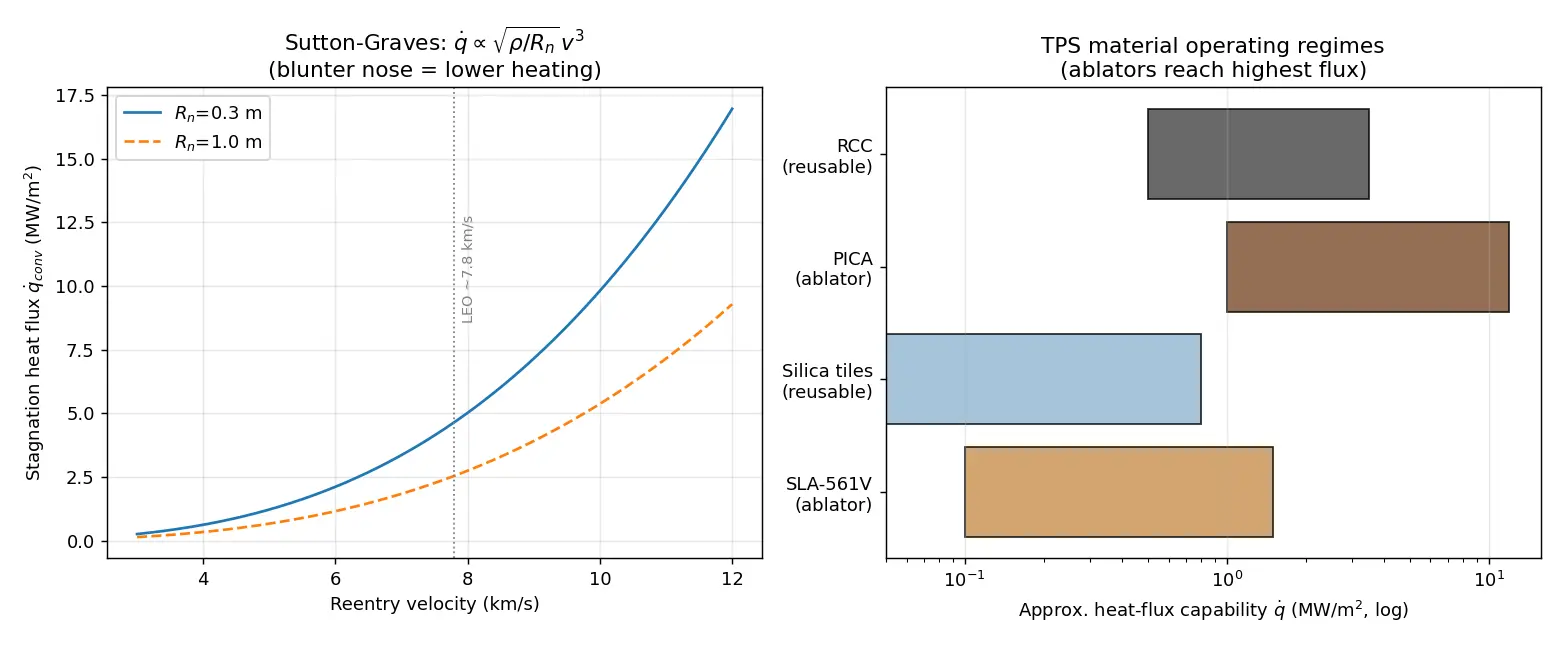

Write the Sutton–Graves stagnation heating relation. q ˙ conv = k ρ / R n v 3 \dot q_\text{conv}=k\sqrt{\rho/R_n}\,v^3 q ˙ conv = k ρ / R n v 3 .
Why are reentry capsules blunt? q ˙ ∝ 1 / R n \dot q\propto 1/\sqrt{R_n} q ˙ ∝ 1/ R n , so a large nose radius lowers heating and stands the shock off, dumping heat into the air.
Roughly what is the specific kinetic energy for LEO reentry? 1 2 ( 7.8 km/s ) 2 ≈ 30 \tfrac12(7.8\text{ km/s})^2\approx 30 2 1 ( 7.8 km/s ) 2 ≈ 30 MJ/kg.
What three mechanisms let an ablator shed heat? Pyrolysis/phase change (absorbs latent heat), blowing/blockage of the boundary layer, and re-radiation from the char.
What is PICA and where is it used? Phenolic Impregnated Carbon Ablator, low density (~0.27 g/cm³), high heat flux — Stardust, Dragon (PICA-X).
What is SLA-561V and its niche? Super Light-weight Ablator (cork/silicone honeycomb), lower heat-flux, cheaper — Mars landers (Viking, MSL).
What are Shuttle silica tiles made of and how do they work? ~94% air silica fibers, very low conductivity + high-emissivity black coating; re-radiate heat while staying cool, reusable.
Where is RCC used and why? Nose cap and wing leading edges (smallest
R n R_n R n → highest heating); it's carbon-carbon, survives >1600 °C where tiles can't.
Give the radiative equilibrium wall temperature. T w = ( q ˙ conv / ε σ ) 1 / 4 T_w=(\dot q_\text{conv}/\varepsilon\sigma)^{1/4} T w = ( q ˙ conv / ε σ ) 1/4 ; higher
ε \varepsilon ε lowers
T w T_w T w .
Write the ablator recession-rate equation. s ˙ = ( q ˙ net − ε σ T w 4 ) / ( ρ abl Q ∗ ) \dot s=(\dot q_\text{net}-\varepsilon\sigma T_w^4)/(\rho_\text{abl}Q^*) s ˙ = ( q ˙ net − ε σ T w 4 ) / ( ρ abl Q ∗ ) ; high
Q ∗ Q^* Q ∗ → slow recession.
Why can't reusable tiles replace ablators everywhere? At very high
q ˙ \dot q q ˙ , equilibrium
T w T_w T w exceeds any solid's melting point; ablation removes energy via mass loss that no solid can survive.
Reentry Aerothermodynamics Bow Shock and Stagnation Point Radiative Heat Transfer and Stefan–Boltzmann Law Blunt Body Aerodynamics Space Shuttle Columbia Accident Mars Entry Descent and Landing Specific Impulse and Energy Budgets
Reentry kinetic energy 30 MJ/kg
Thermal protection system
Sutton-Graves q ~ sqrt rho/Rn times v^3
Pyrolysis and vaporization
Re-radiation and insulation
Intuition Hinglish mein samjhoDekho, jab spacecraft wapas Earth ke atmosphere mein ghusta hai to uski speed hoti hai around 7.8 km/s (LEO se) ya usse bhi zyada. Itni speed pe uski kinetic energy nikalti hai lagbhag 30 MJ/kg — matlab itni energy se to steel ka ek kilo boil ho jaye 4 baar! Ye energy saamne ki hawa ko squeeze karke ek bow shock banati hai jo hazaaron kelvin garam ho jaata hai. Thermal Protection System (TPS) ka pura kaam yahi hai — is heat ko structure aur payload tak pahunchne se rokna.
Do main strategies hain. Pehli — ablators (PICA aur SLA). Ye jaan-boojh ke apne aap ko jala dete hain : material pyrolysis se decompose hota hai, gas bahar nikalti hai jo hot boundary layer ko dhakel deti hai (blowing/blockage), aur char surface heat wapas radiate karta hai. Yaani "mar ke bacha lete hain". PICA bahut light aur high heat-flux ke liye (Dragon, Stardust), SLA sasta aur moderate flux ke liye (Mars landers). Dusri strategy — reusable tiles aur RCC . Ye jalte nahi, balki red-hot hoke heat ko ε σ T 4 \varepsilon\sigma T^4 ε σ T 4 wapas space mein radiate kar dete hain. Shuttle ke belly pe silica tiles, aur sabse garam jagah (nose, wing leading edge) pe RCC.
Ek important cheez — capsule round/blunt kyun hota hai? Kyunki q ˙ ∝ 1 / R n \dot q\propto 1/\sqrt{R_n} q ˙ ∝ 1/ R n
Exam/intuition ke liye 80/20: yaad rakho — high heat-flux + single use = ablator (PICA) , reusable + moderate flux = tiles , hottest localized spot = RCC . Aur samajh lo ki reusable hamesha best nahi hai — bahut zyada flux pe koi bhi solid melt ho jayega, wahan ablation ki mass-loss trick hi kaam karti hai.
