Aerodynamic heating during reentry — stagnation point heat flux Chapman equation

1. What is the stagnation point, really?

WHAT we want: the heat flux $\dot q$ (units $\text{W/m}^2$ ) into the surface at that point.

WHY the nose and not the sides? A blunt nose creates a strong detached bow shock. Behind it the gas is compressed and superheated, and at the stagnation streamline it decelerates completely, so the enthalpy dumped there is maximal. (Blunt bodies are used on purpose: a sharp nose would concentrate this even more and melt.)

2. Deriving the scaling from first principles

We don't just memorize Chapman's numbers — we build the form of the equation.

Step 1 — Energy available. The total (stagnation) enthalpy of the gas relative to the vehicle is $h_0 = h_\infty + \tfrac{1}{2}V^2 \approx \tfrac12 V^2$

Why this step? At hypersonic speed the ordered kinetic energy $\tfrac12 V^2$ dwarfs the ambient thermal enthalpy $h_\infty$ , so the heat "budget" scales as $V^2$ .

Step 2 — How fast heat crosses the boundary layer. Heat reaches the wall by conduction/diffusion through a thin boundary layer of thickness $\delta$ . Fourier-style, $\dot q \sim k\,\frac{T_0 - T_w}{\delta} \sim \rho_e u_e c_p \frac{(T_0-T_w)}{\text{(some Reynolds factor)}}$

Why this step? The driving potential is the enthalpy difference between the hot stagnation gas and the cooler wall; the resistance is the boundary-layer diffusion length.

Step 3 — Boundary-layer thickness scaling. For the stagnation region the velocity gradient $\beta = (du_e/dx)_{s}$ sets the flow. Solving the self-similar stagnation boundary layer gives $\dot q \propto \sqrt{\rho_e \,\beta}\;(h_0-h_w),\qquad \beta \propto \frac{1}{R_n}\sqrt{\tfrac{p_0-p_\infty}{\rho}}\;\; \propto \frac{V}{R_n}$

Why this step? A bigger nose radius $R_n$ stretches the flow over a longer distance $\Rightarrow$ gentler gradient $\Rightarrow$ thicker boundary layer $\Rightarrow$ less heat flux. This is why blunt noses survive.

Step 4 — Collect the scaling. Putting $\beta\propto V/R_n$ , $\rho_e\propto\rho_\infty$ , and $(h_0-h_w)\propto V^2$ : $\dot q \;\propto\; \sqrt{\frac{\rho_\infty}{R_n}}\;V^{3}$

That $V^3$ (three powers!) and the $1/\sqrt{R_n}$ are the fingerprints of stagnation heating.

3. When is heating worst? (Forecast-then-Verify)

Worked example Where does peak heating occur along the trajectory?

Forecast first: As the capsule descends, $V$ drops (drag brakes it) but $\rho$ rises (thicker air). $\dot q\propto\rho^{1/2}V^3$ is a product of a falling and a rising factor → there must be a peak at intermediate altitude, not at the top or the bottom.

Verify: For an exponential atmosphere $\rho=\rho_0 e^{-h/H}$ and a ballistic entry, differentiating $\dot q$ and setting $d\dot q/dt=0$ gives peak heating at density $\rho_{\text{peak}} = \frac{\beta\,\sin\gamma}{3H}\quad\text{(ballistic-coeff. }\beta\text{ form)}$ i.e. high in the atmosphere, well before peak deceleration (which occurs deeper, at higher $\rho$ ). ✔ Matches the "intermediate altitude" forecast.

Worked example Numeric estimate — Apollo-like reentry

Given $V=11\times10^3\ \text{m/s}$ , $R_n=4.7\ \text{m}$ , $\rho_\infty=1\times10^{-4}\ \text{kg/m}^3$ , $C=1.83\times10^{-4}$ . $\dot q_s=\frac{1.83\times10^{-4}}{\sqrt{4.7}}\sqrt{10^{-4}}\,(11000)^3$

$\sqrt{4.7}=2.168$ , $\sqrt{10^{-4}}=10^{-2}$ , $(11000)^3=1.331\times10^{12}$ .
$\dot q_s = \dfrac{1.83\times10^{-4}}{2.168}\times10^{-2}\times1.331\times10^{12}$
$=8.44\times10^{-5}\times10^{-2}\times1.331\times10^{12}\approx 1.1\times10^{6}\ \text{W/m}^2 = 110\ \text{W/cm}^2.$

Why each step? We factor $\sqrt{}$ terms separately to keep the arithmetic honest, and cube the whole speed because $V$ enters as $V^3$ . Result (~100 W/cm²) is the right order for lunar-return entry. ✔

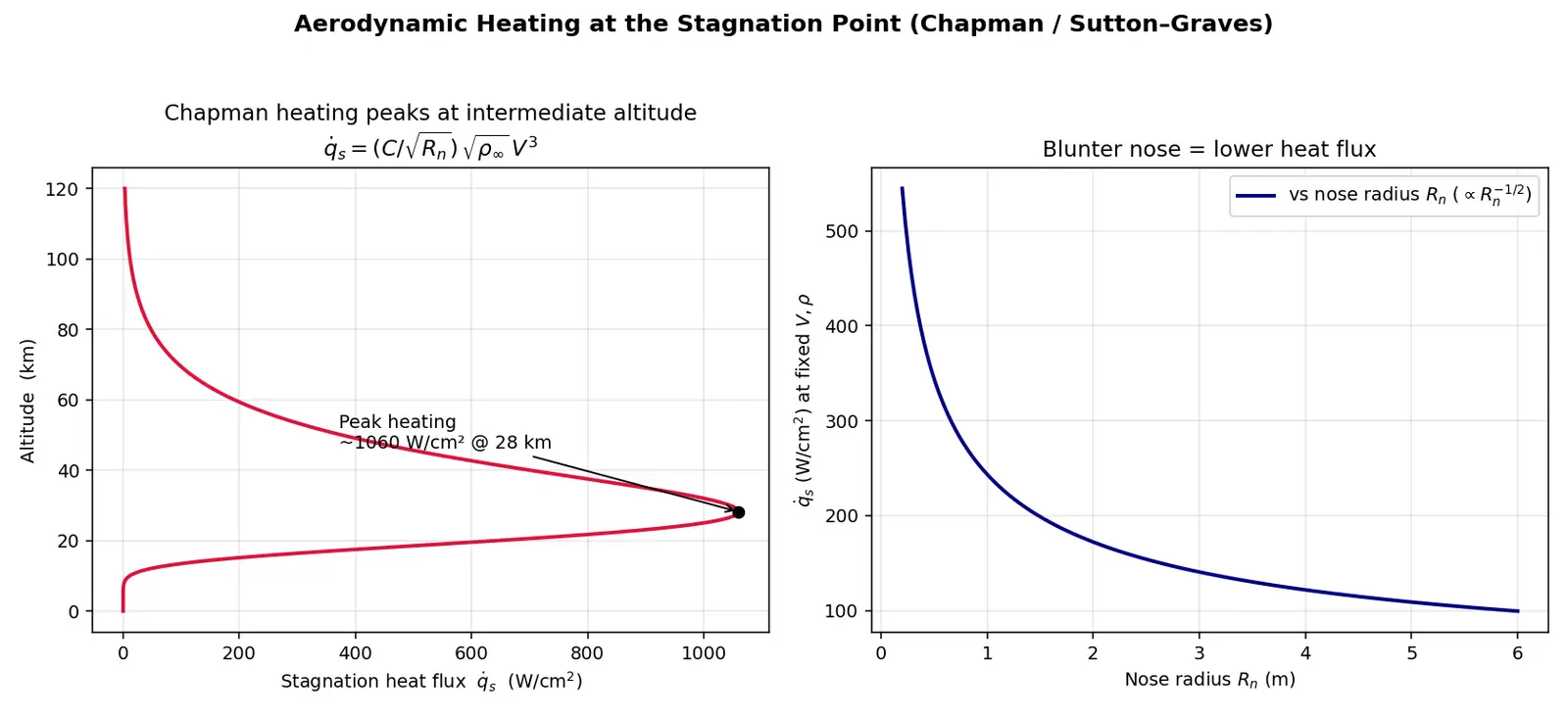

Figure — Aerodynamic heating during reentry — stagnation point heat flux Chapman equation

4. Common mistakes (Steel-manned)

5. Radiative heating footnote

Chapman/Sutton–Graves covers convective heating. At very high speeds ( $V\gtrsim 10$ km/s, e.g. Mars/lunar return) the shocked gas glows and adds radiative flux that scales roughly as $\dot q_{rad}\propto R_n\,\rho^{a}V^{b}$ with $b\sim 8$ –15 — note it grows with $R_n$ , the opposite of convective. So a super-blunt nose trades convective relief for radiative penalty. That tension shapes real heat-shield design.

Flashcards

What does the stagnation point refer to on a reentry vehicle?

The nose point where the incoming flow is brought fully to rest; site of maximum temperature, pressure, and convective heat flux.

State the Chapman/Sutton–Graves stagnation heat-flux formula.

\dot q_s = \dfrac{C}{\sqrt{R_n}}\sqrt{\rho_\infty}\,V^3

, with

C\approx1.83\times10^{-4}

(SI, Earth air).

How does stagnation heat flux scale with velocity?

V^3

— doubling speed gives 8× heating.

How does stagnation heat flux scale with nose radius?

R_n^{-1/2}

— a bigger (blunter) nose lowers the flux; 4× radius halves the flux.

Why are reentry capsules blunt, not sharp?

Larger

R_n

reduces

\dot q\propto R_n^{-1/2}

; the detached bow shock dumps energy into the air and thickens the boundary layer, protecting the surface.

Why is the exponent on

V

three, not two?

Energy content scales as

V^2

, but the boundary-layer mass flux adds another factor

\propto V

, giving

V^3

for the transfer rate.

Does peak heating coincide with peak deceleration?

No — peak heating occurs at higher altitude (lower

\rho

); peak g-load occurs deeper.

At what density does ballistic peak heating occur?

\rho_{\text{peak}}=\beta\sin\gamma/(3H)

, i.e. relatively high in the atmosphere.

Chapman covers which heating mode, and what's missing at very high speed?

Convective heating; radiative heating (from glowing shock gas) becomes important above ~10 km/s and scales oppositely with

R_n

Recall Feynman: explain to a 12-year-old

Imagine rubbing your hands super fast — they get warm. A returning spaceship rubs against the air thousands of times faster, so the air in front of its nose gets fiery hot. The very tip, where the air stops dead, is the hottest spot. A round, fat nose is actually cooler than a pointy one, because it shoves the burning-hot air away from the ship like a snowplow. The rule for how hot the tip gets: it depends on the speed very strongly (three times over — a bit faster is a LOT hotter), a little on how thick the air is, and it gets cooler if the nose is bigger and rounder.

Connections

Reentry trajectory dynamics — supplies $V(t)$ and $\rho(h)$ needed to plug into Chapman.
Ballistic coefficient and deceleration — sets where peak-heating vs peak-g occur.
Bow shock and blunt-body theory — the physics behind the $R_n^{-1/2}$ dependence.
Boundary layer theory — origin of the $\sqrt{\rho u}$ heat-transfer factor.
Thermal Protection Systems (ablatives, tiles) — how $\dot q_s$ sizes the heat shield.
Radiative heating at hypersonic speeds — the complementary mode Chapman omits.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab koi capsule space se wapas aata hai, uski speed hoti hai lagbhag 7 se 11 km/s. Itni kinetic energy kahin toh jaayegi na — zyada energy toh hawa ko garam kar deti hai, lekin thodi si energy capsule ke naak (nose) me ghus jaati hai. Sabse garam point wahi hota hai jahaan flow bilkul ruk jaata hai — usko stagnation point kehte hain. Yahi heat flux hamein predict karna hota hai, warna heat shield ka size galat ho jaayega aur mission fail.

Chapman ka formula bolta hai: $\dot q_s = (C/\sqrt{R_n})\sqrt{\rho_\infty}\,V^3$ . Sabse important cheez yaad rakho — V ki power 3 hai! Matlab speed double karo toh heating 8 guna badh jaati hai. Density $\rho$ ka effect sirf square-root jitna hai, aur nose radius $R_n$ jitna bada (blunt) rakhoge, heating utni kam hogi kyunki $R_n^{-1/2}$ hai. Isiliye Apollo aur SpaceX capsule sab mote gol naak wale hote hain, pointy nahi — yeh galatfehmi mat rakhna ki nukili naak hawa ko cheer degi. Blunt nose bow shock ko door dhakel deta hai, isliye garmi hawa me jaati hai, capsule me nahi.

Ek aur important point: peak heating aur peak deceleration alag-alag altitude par hote hain. Heating pehle, upar ki taraf, jab hawa patli hoti hai lekin speed abhi bahut zyada hai (kyunki $V^3$ dominate karta hai). Deceleration baad me, neeche, jab hawa moti ho jaati hai. Exam me yeh confuse mat karna. Aur haan — Chapman sirf convective heating deta hai; bahut high speed (Mars/Moon return) par gas glow karke radiative heating bhi deti hai, jo ulta $R_n$ ke saath badhti hai. Isliye real design me trade-off hota hai.
