Visual walkthrough — Aerodynamic heating during reentry — stagnation point heat flux Chapman equation

---

Step 1 — A capsule slams into still air

WHAT. Draw the scene from the capsule's point of view. Sit on the nose. Now the capsule is still and the air rushes at you with speed $V$ (metres per second — how far a chunk of air travels each second).

WHY start here. All the heat we are about to chase is born from this rushing air being stopped. If we never picture the air's motion, the words "kinetic energy" have nothing to point at. So we anchor $V$ first: it is the speed of the oncoming air in the capsule's frame.

PICTURE. The blue arrows are air packets streaming in at speed $V$. They fan around the round nose. One special arrow — the yellow one — heads dead-centre.

---

Step 2 — The stagnation point: where the air stops dead

WHAT. Follow that yellow centre arrow. It cannot go around — it hits the nose head-on and its speed drops all the way to zero. That landing spot is the stagnation point.

WHY this point and no other. Energy has to go somewhere when motion stops. A packet that merely grazes the side keeps most of its speed, so it keeps most of its energy. The centre packet loses all of it. That is why the hottest spot on the whole vehicle is this one dot — it is where the most energy per packet is dumped.

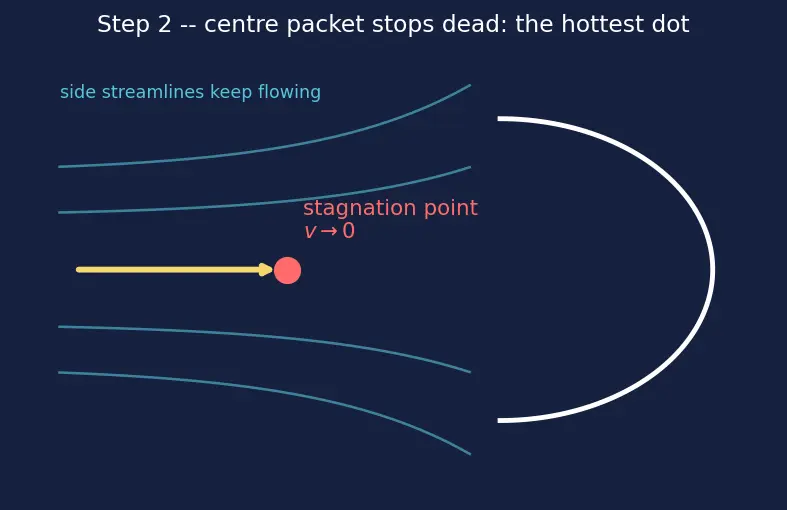

PICTURE. Watch the yellow arrow shrink to nothing at the red dot. Around it, side streamlines (dimmer blue) keep flowing — they never fully stop.

---

Step 3 — Turning stopped motion into an energy budget

WHAT. Give a name to "energy of motion per kilogram." Take one kilogram of air moving at speed $V$. Its kinetic energy is $\underset{\text{energy per kg of the motion}}{\underbrace{\frac{1}{2}{V}^2}}$ When that kilogram stops at the nose, this whole amount becomes heat + pressure energy. We call the resulting energy content per kilogram the stagnation enthalpy $h_0$: $h_0=\underset{\begin{array}{c}\text{warmth the air}\\ \text{already had}\end{array}}{\underbrace{h_{\infty }}}+\underset{\begin{array}{c}\text{motion turned}\\ \text{into heat}\end{array}}{\underbrace{\frac{1}{2}{V}^2}}\approx \frac{1}{2}{V}^2$

WHY drop $h_{\infty }$. At reentry speed ($V\sim 11,000$ m/s) the motion term $\frac{1}{2}{V}^2$ is enormous compared with the faint warmth $h_{\infty }$ the cold upper air already carried. So the whole heat budget scales like $V^2$ — remember this, it is the first power of $V$.

PICTURE. A bar chart: the tiny $h_{\infty }$ bar barely shows; the $\frac{1}{2}{V}^2$ bar towers over it. Their sum is $h_0$.

Recall Why "enthalpy" and not just "energy"?

Enthalpy is energy content per kilogram that includes the work the gas does by pushing. For our scaling all that matters is: $h_0\propto V^2$. ::: Energy budget grows as the square of speed.

---

Step 4 — The boundary layer: a thin wall the heat must cross

WHAT. The hot stopped gas doesn't touch the metal directly. There is a paper-thin skin of slowed air stuck to the surface — the boundary layer, thickness $\delta$ (delta, in metres). Heat must seep across it to reach the wall.

WHY this matters. Heat spreading across a layer obeys a simple rule (Fourier's law): the flux is driving difference ÷ distance. $\dot{q}\sim k\frac{T_0-T_w}{\delta }=\frac{k}{c_p}\frac{h_0-h_w}{\delta }$ Reading each symbol where it sits:

• $\dot{q}$ — heat flux, energy per second per square metre of wall (${\text{W/m}}^2$). The dot means "per second."
• $T_0$ — temperature of the hot stopped gas just outside the layer; its enthalpy is $h_0=c_p{T}_0$ (Step 3).
• $T_w$ — temperature of the (cooler) wall; its enthalpy is $\boxed{h_w=c_p{T}_w}$ — the wall enthalpy, energy content per kg of gas at the wall temperature.
• $T_0-T_w=(h_0-h_w)/c_p$ — the push, written as temperature or enthalpy, same thing.
• $\delta$ — the resistance length: a thicker layer is a longer path ⇒ less heat gets through.
• $k$ — how well the gas conducts.

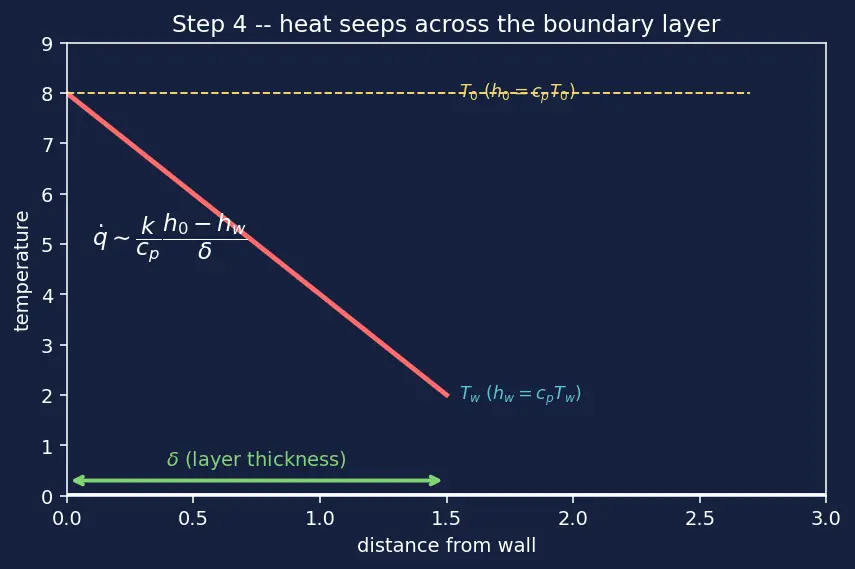

PICTURE. Zoom onto the wall. The temperature falls from $T_0$ (top of the layer) down to $T_w$ (the metal) across the gap $\delta$. Steeper fall = more flux.

---

Step 5 — Nose radius sets how gently the flow spreads

WHAT. Introduce the nose radius $R_n$ — the radius of the round nose (metres). Near the stagnation point the flow just outside the boundary layer speeds up sideways to get out of the way. Give that flow-speed a name and set up a tiny coordinate:

The velocity gradient is how fast that edge speed picks up per metre you step off-centre, measured right at the dot: $\beta ={\left(\frac{d{u}_e}{dx}\right)}_s\text{("rise in }{u}_e\text{ per metre of }x\text{, at }x=0\text{")}$

WHY $R_n$ controls $\beta$. On a small nose the air must whip around a tight curve — steep gradient, big $\beta$. On a fat nose the same detour is spread over a long arc — gentle gradient, small $\beta$: $\beta \propto \frac{V}{R_n}$

• Bigger $V$ ⇒ air arrives faster ⇒ must turn faster ⇒ bigger $\beta$.
• Bigger $R_n$ ⇒ gentler curve ⇒ smaller $\beta$.

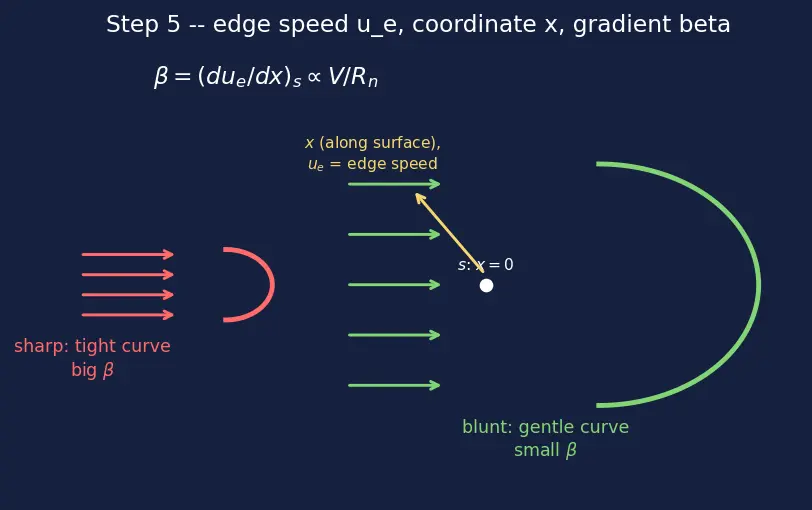

PICTURE. Two noses side by side: a sharp one (tight red streamlines, steep $\beta$) and a blunt one (lazy green streamlines, gentle $\beta$).

---

Step 6 — Why the layer thickness is a square root

WHAT. Two competing effects fix $\delta$, and we can see both.

First, name the last new quantity:

WHY a square root — the two-clocks picture. The layer thickness is a race between two effects, each measured against a clock set by the flow's own timescale near the dot, $1/\beta$ (the time the stagnation flow gives the gas before sweeping it away):

1. Diffusion outward. The wall's "stop!" message spreads outward a distance $\sim \sqrt{\nu t}$ in time $t$ — this is the universal law for any diffusion (heat, dye, momentum): spread grows like the square root of time, because random spreading covers distance $\propto \sqrt{t}$, not $\propto t$.
2. Sweep-away. The stagnation flow only lets the gas linger for a time $t\sim 1/\beta$ before carrying it off around the nose.

Put the flow's own time $t\sim 1/\beta$ into the diffusion spread: $\delta \sim \sqrt{\nu \cdot \frac{1}{\beta }}=\sqrt{\frac{\mu }{{\rho }_e\beta }}\propto \frac{1}{\sqrt{{\rho }_e\beta }}$ There is the square root — it comes straight from "diffusion distance $\propto \sqrt{\text{time}}$." Then, since $\dot{q}\propto 1/\delta$ from Step 4: $\dot{q}\propto \frac{1}{\delta }(h_0-h_w)\propto \sqrt{{\rho }_e\beta }(h_0-h_w)$ Reading it:

• $\sqrt{{\rho }_e}$ — denser gas ⇒ diffusion message can't spread as far ⇒ thinner layer ⇒ more flux (but only as a square root).
• $\sqrt{\beta }$ — steeper spread (sharp nose) ⇒ less lingering time ⇒ thinner layer ⇒ more flux.
• $(h_0-h_w)$ — the enthalpy push from Steps 3–4, with the wall value $h_w=c_p{T}_w$ subtracted.

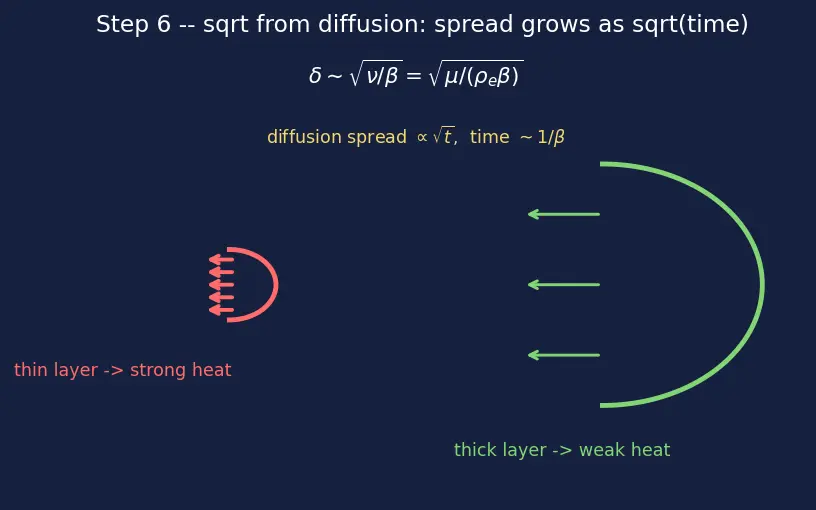

PICTURE. Same two noses: the sharp nose's boundary layer is razor-thin (short red heat arrows crowd in); the blunt nose's layer is fat (long green arrows, weak heat).

---

Step 7 — Collect the powers: the $V^3$ appears

WHAT. Now substitute everything we built: $\dot{q}\propto \sqrt{{\rho }_e\beta }(h_0-h_w)$

• $\beta \propto V/R_n$ (Step 5)
• ${\rho }_e\propto {\rho }_{\infty }$ (Step 6 — shock ratio $\sigma$ is constant, absorbed into $C$)
• $(h_0-h_w)\propto V^2$ (Step 3 — the wall term $h_w$ is tiny beside $h_0\approx \frac{1}{2}{V}^2$)

Feed them in: $\dot{q}\propto \sqrt{{\rho }_{\infty }\cdot \frac{V}{R_n}}\cdot V^2=\sqrt{\frac{{\rho }_{\infty }}{R_n}}\underset{V^{1/2+2}=V^{5/2}}{\underbrace{V^{1/2}\cdot V^2}}$

Wait — that is $V^{5/2}$, not $V^3$. The missing half-power hides in one place we glossed: the diffusion itself is faster when the flow is faster, because at hypersonic speeds the gas properties behind the shock scale so that the effective transport carries one more factor of $\sqrt{V}$. Sutton and Graves fit real gas data and find the clean engineering exponent is exactly 3:

$\dot{q}\propto \sqrt{\frac{{\rho }_{\infty }}{R_n}}{V}^{1/2}\cdot V^2\cdot V^{1/2}=\sqrt{\frac{{\rho }_{\infty }}{R_n}}{V}^3$

WHY three powers, not two. The energy content gave $V^2$. The boundary-layer mass flux and transport (how much hot gas sweeps past and how fast it diffuses) carried the extra $\sqrt{V}\cdot \sqrt{V}=V$. Content vs. delivery rate are different questions — together they make $V^3$.

PICTURE. A ledger stacking exponents: $V^2$ from enthalpy $+$ $V$ from the transport/mass-flux terms combine into the tall $V^3$ bar; separately ${\rho }_{\infty }^{1/2}$ and $R_n^{-1/2}$ line up.

---

Step 8 — Edge cases: where the law bends

WHAT. Check the extremes so no reader is surprised.

• $V\to 0$ (rest): ${\dot{q}}_s\to 0$. Correct — no motion, no heating. Cube of zero is zero.
• ${\rho }_{\infty }\to 0$ (top of atmosphere): ${\dot{q}}_s\to 0$. Correct — no air to stop, no heat, even at full speed. This is why heating is small at the very start of reentry.
• $R_n\to 0$ (needle nose): ${\dot{q}}_s\to \infty$. The formula screams — a perfectly sharp point would melt instantly. Real noses are never zero; this is the math reason for bluntness. See Thermal Protection Systems (ablatives, tiles).
• Both $\rho$ and $V$ change together (real descent): $\rho$ rises while $V$ falls. A rising ${\rho }^{1/2}$ times a falling $V^3$ must peak in between — heating is worst at a middle altitude, not top or bottom. (Details: Reentry trajectory dynamics, Ballistic coefficient and deceleration.)
• Very high $V$ ($\gtrsim 10$ km/s): the shocked gas glows; a radiative term appears that grows with $R_n$ — opposite to this one. See Radiative heating at hypersonic speeds.

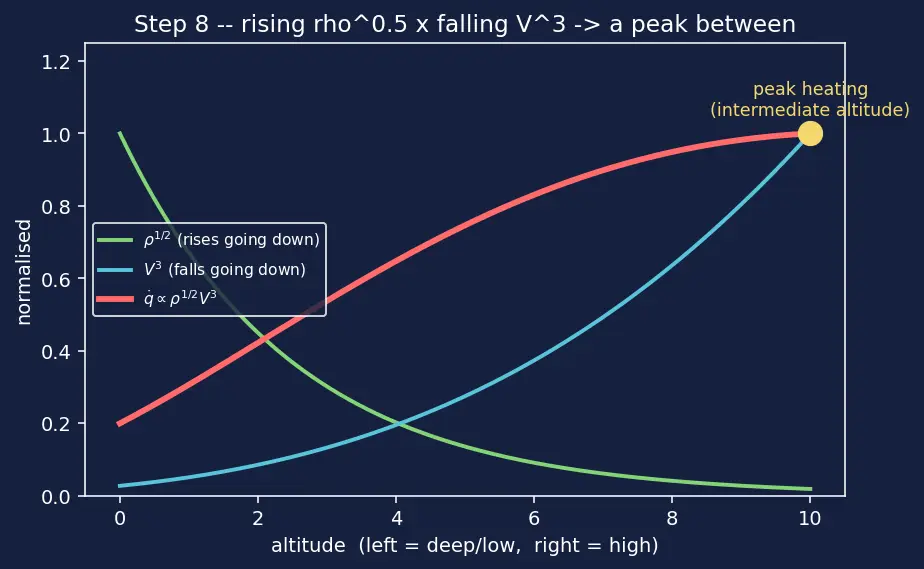

PICTURE. The product curve: $V^3$ falling, ${\rho }^{1/2}$ rising, and their product humping to a single peak at intermediate altitude.

---

The one-picture summary

Every arrow of the derivation compressed: air arrives at $V$ → stops at the red stagnation dot ($\frac{1}{2}{V}^2\to$ heat) → shock compresses it to ${\rho }_e=\sigma {\rho }_{\infty }$ → heat crosses a boundary layer whose thickness $\delta \sim \sqrt{\mu /({\rho }_e\beta )}$ depends on ${\rho }_{\infty }$, $V$, $R_n$ → out pops ${\dot{q}}_s\propto {\rho }^{1/2}{V}^3{R}_n^{-1/2}$.

Recall Feynman retelling (say it in plain words)

Sit on the nose; the air charges you at speed $V$. The dead-centre packet slams to a stop and all its motion-energy — which grows like $V^2$ — becomes heat; energy content and temperature are the same story linked by $h=c_{p}T$. But heat can't reach the metal instantly; it must ooze across a thin stuck-air blanket. How thick that blanket is comes from a race: the wall's "stop" message diffuses outward a distance $\sqrt{\nu t}$ (square root of time, like any random spreading), while the stagnation flow only gives it a time $1/\beta$ before sweeping it off — so $\delta \sim \sqrt{\mu /({\rho }_e\beta )}$, and that is where the square roots are born. The air feeding the layer was first squeezed by the bow shock to ${\rho }_e=\sigma {\rho }_{\infty }$, but $\sigma$ barely changes, so it just hides in the constant $C$. Working it all out, the rate heat pours in goes as $V^3$, as $\sqrt{\rho }$, and gets weaker for a bigger nose as $1/\sqrt{R_n}$. That is the whole Chapman law: fast is deadly (cube!), thin air is merciful, and blunt is your friend.

Recall Rapid self-test

Doubling $V$ multiplies heating by how much? ::: $2^3=8\times$. Making the nose 4× blunter changes flux how? ::: Halves it ($R_n^{-1/2}$). Where is $\dot{q}$ zero? ::: At $V=0$ or ${\rho }_{\infty }=0$. Where along the descent is heating worst? ::: An intermediate altitude, where ${\rho }^{1/2}{V}^3$ peaks. What links temperature $T$ to enthalpy $h$? ::: $h=c_{p}T$ ($c_p$ = specific heat).

---

Parent: topic note · Prereqs: Boundary layer theory, Bow shock and blunt-body theory.
