WHAT we want: a single number that tells us how much heat each kilogram of shield can absorb.
Set up an energy balance on the surface over time dt. Incoming convective+radiative heat flux is q˙in (W/m²). Let m˙′′ be the surface mass-loss rate per area (kg/m²·s). Define the effective heat of ablationQ∗ (J/kg) so that the mass loss "uses up" energy at rate m˙′′Q∗.
Energy not removed by ablation is re-radiated or conducted in:
q˙in=carried away by mass lossm˙′′Q∗+re-radiatedεσTw4+into structureq˙cond
Why this step? Conservation of energy at the wall: what comes in must be stored, radiated, conducted, or carried off by departing mass. Solving for the protective benefit:
These light gases percolate outward — transpiration cooling. At very high T the carbon char itself can oxidize/sublime: C+21O2→CO, and C(s)→C(g) near ~3900 K, each absorbing more energy.
Imagine running through a doorway that's on fire. Instead of wearing a metal suit that slowly gets hot until you cook, you wear a coat made of marshmallow-foam. As you pass through, the outside of the coat burns and puffs out smoke. Burning the coat eats up the fire's heat, and the smoke blows outward and pushes the flames away from you. By the time you're through, the coat is thinner and crispy — but you stayed cool. That's an ablative heat shield: it protects you by destroying itself in a smart, controlled way. PICA is the super-light carbon coat (for the fastest, hottest trips), AVCOAT is the tough honeycomb coat (the Moon coat), and SLA is the feather-light rubber-and-cork coat (the Mars coat).

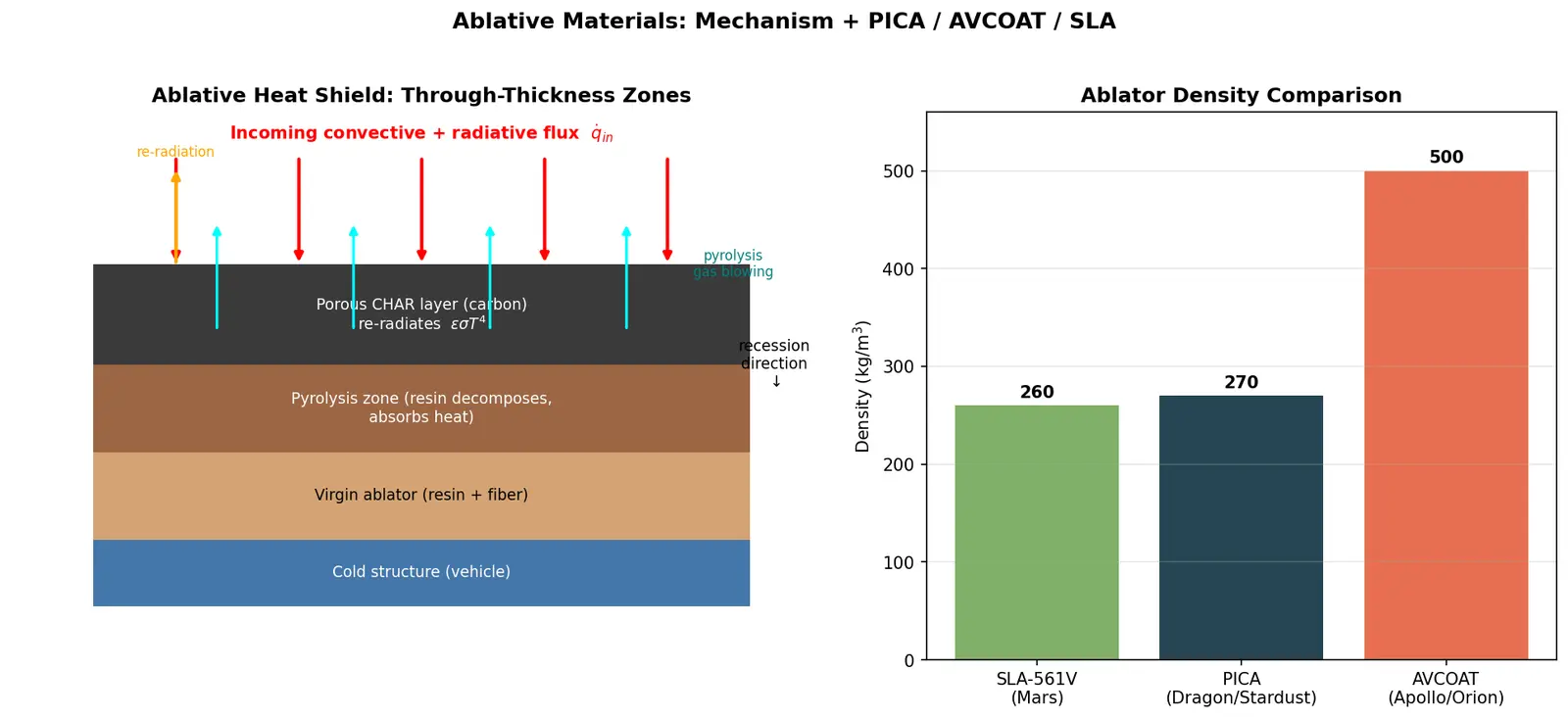

Dekho, jab spacecraft atmosphere mein wapas ghusta hai 7–11 km/s par, to saamne ki hawa itni tezi se compress hoti hai ki ek shock layer ban jaati hai jiska temperature hazaaron kelvin tak chala jaata hai. Itni garmi ko sirf insulation se rokna mushkil hai. Isliye engineers ek chalaaki karte hain: heat shield ko aise banate hain ki wo khud control mein jal/decompose ho jaaye. Isko ablation kehte hain — material apni mass kurbaan karke heat ko le jaata hai. Teen cheezein ek saath hoti hain: phenolic resin ki endothermic pyrolysis (bonds todne mein heat absorb), pyrolysis se nikli gases ka bahar bahna (blowing/transpiration jo flame ko door push karti hai), aur ek char layer jo black carbon ki tarah heat ko wapas space mein radiate (σT4) karti hai.
Sabse important number hai Q∗ — effective heat of ablation. Energy balance se nikalta hai: q˙in=m˙′′Q∗+εσTw4+q˙cond. Jitna bada Q∗, utni kam material lose hoti hai per unit heat — yaani shield patla aur halka, jo aerospace mein gold hai kyunki har kilogram launch cost badhata hai.
Teen famous materials yaad rakho: PICA (Phenolic-Impregnated Carbon Ablator) — carbon fiber skeleton + phenolic resin, bahut halka (~270 kg/m³), Stardust aur SpaceX Dragon mein. AVCOAT — honeycomb mein resin+silica bhara hua, thoda heavy (~500 kg/m³), Apollo aur Orion (Moon return) mein. SLA-561V — silicone + cork + microspheres, ultralight (~260 kg/m³), Mars missions (Viking, Curiosity) mein. Mnemonic: Mars aur comet ke liye light coat, Moon ke liye heavier honeycomb coat.
Ek galti se bacho: char ko "jala hua waste" mat samjho — char hi asli hero hai, wo re-radiate aur insulate karta hai. Aur density zyada = better nahi hota; PICA halka hone par bhi top performer hai kyunki uska Q∗ high hai aur carbon skeleton apni shape maintain karta hai.
