Polymer-matrix composites — CFRP, GFRP; ply lay-up, laminate theory

WHAT are we talking about?

WHY two phases? (Feynman first principles)

HOW stiff is one ply? — Rule of Mixtures (derive it!)

We want the ply's Young's modulus along the fibres, $E_1$ .

Formula Longitudinal modulus (iso-strain) — derivation

Why this model? Pull along the fibres. Fibre and matrix are bonded, so they stretch the same amount → same strain $\varepsilon$ (iso-strain). Total force = fibre force + matrix force: $F = \sigma_1 A = \sigma_f A_f + \sigma_m A_m$ Divide by total area $A$ , and since same thickness/length, area fractions = volume fractions $V_f, V_m$ : $\sigma_1 = \sigma_f V_f + \sigma_m V_m$ Each phase is elastic: $\sigma = E\varepsilon$ , and $\varepsilon$ is common, so divide by $\varepsilon$ : $\boxed{E_1 = E_f V_f + E_m V_m},\qquad V_f + V_m = 1$ This is the Rule of Mixtures. It is an upper bound — load shares stiffness in parallel (like springs in parallel).

HOW a ply behaves off-axis — and why we lay up at angles

A ply's stiffness in the global frame depends on $\theta$ . Loading a $0^\circ$ ply at $45^\circ$ gives a low, shear-coupled stiffness. To get balanced strength we combine plies:

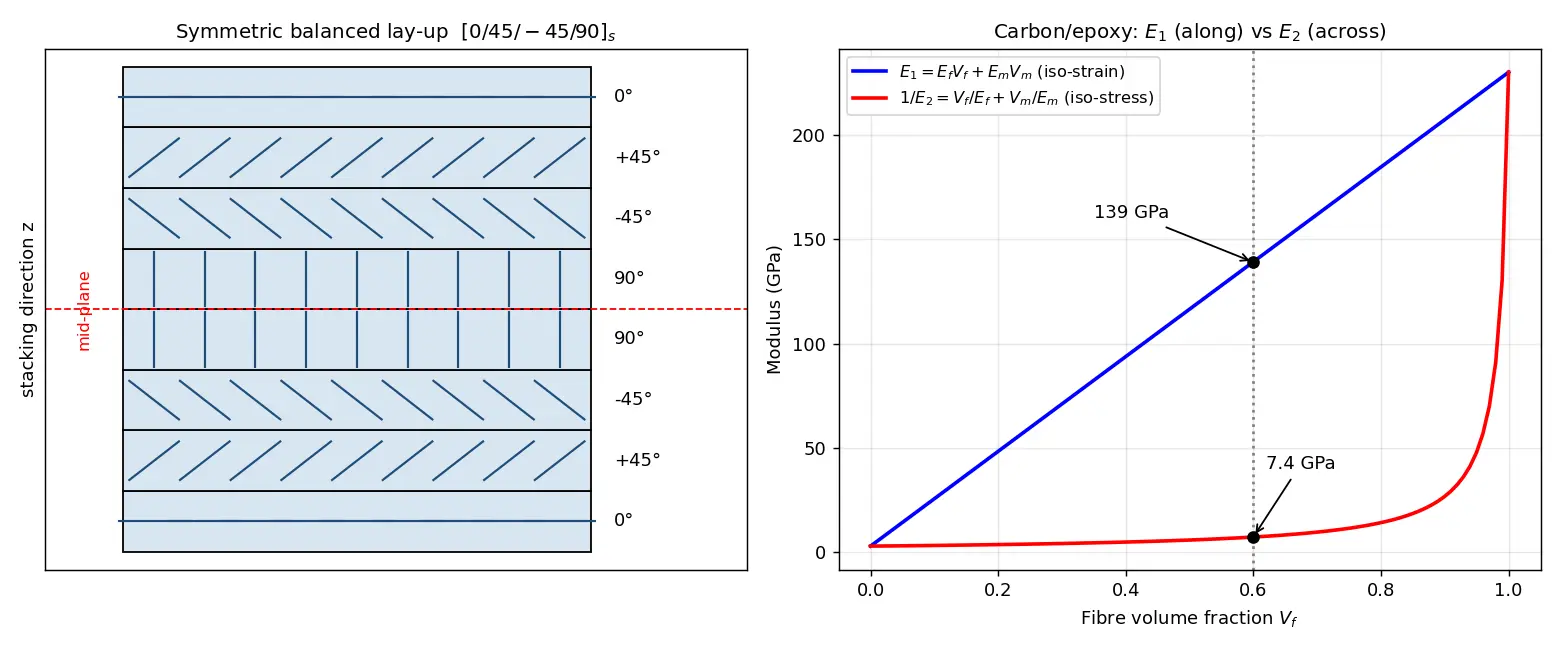

Figure — Polymer-matrix composites — CFRP, GFRP; ply lay-up, laminate theory

Classical Laminate Theory (CLT) — the bookkeeping

Formula ABD matrix (concept + why)

Kirchhoff assumption: the laminate is thin; a straight line normal to the mid-plane stays straight after bending. So strain varies linearly through thickness: $\varepsilon(z) = \varepsilon^0 + z\,\kappa$ where $\varepsilon^0$ = mid-plane strain, $\kappa$ = curvature, $z$ = distance from mid-plane. Each ply $k$ has stiffness $\bar{Q}_k$ (its $Q$ rotated to global angle). Integrating stress through thickness gives forces $N$ and moments $M$ : $\begin{bmatrix} N \\ M \end{bmatrix} = \begin{bmatrix} A & B \\ B & D \end{bmatrix}\begin{bmatrix} \varepsilon^0 \\ \kappa \end{bmatrix}$ $A_{ij}=\sum_k \bar{Q}_{ij,k}(z_k-z_{k-1}),\quad B_{ij}=\tfrac12\sum_k \bar{Q}_{ij,k}(z_k^2-z_{k-1}^2),\quad D_{ij}=\tfrac13\sum_k \bar{Q}_{ij,k}(z_k^3-z_{k-1}^3)$

$A$ = extensional stiffness (in-plane).
$D$ = bending stiffness ( $z^2$ weighting in the integrand → outer plies dominate bending; put stiff plies on the outside!).
$B$ = coupling between stretch & bend. For a symmetric lay-up, $B=0$ because positive and negative $z$ terms cancel — this is why we always design symmetric.

Common mistakes (steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine a stack of dry spaghetti. One strand snaps easily sideways but is hard to pull apart end-to-end. Now glue all the strands with jelly — the jelly holds them straight and shares the pull so no single strand breaks alone. That glued bundle is super strong lengthwise but weak sideways. So we make several thin glued sheets and turn each one a different way — some pointing up–down, some left–right, some diagonal — and stack them. Now it's strong no matter which way you pull. That stack is a composite laminate, and it's lighter than metal, which is why planes are made of it.

Connections

Anisotropy and crystal directions
Thermoset vs thermoplastic polymers (epoxy curing)
Stress, strain and Young's modulus
Fibre–matrix interface and load transfer
Specific strength and stiffness in aerospace materials
Fracture and fatigue in composites

What does CFRP stand for and its key advantage?

Carbon Fibre Reinforced Polymer; very high stiffness-to-weight (low density ~1.6 g/cm³).

Role of the polymer matrix?

Bonds and aligns fibres, transfers load between them, resists compression/shear, protects fibres and blunts cracks.

Rule of mixtures for longitudinal modulus and the assumption behind it?

E_1=E_fV_f+E_mV_m

; iso-strain (fibre & matrix stretch equally, springs in parallel).

Transverse modulus formula and its assumption?

1/E_2=V_f/E_f+V_m/E_m

; iso-stress (series), giving a much lower value.

Why is a single ply unsuitable alone for structures?

It is highly anisotropic — stiff along fibres but ~10–20× weaker across them.

What does a symmetric lay-up guarantee in CLT?

The coupling matrix B = 0, so no bending–stretching coupling (panel won't warp).

What does 'balanced' lay-up remove?

Tension–shear coupling (each +θ ply paired with a −θ ply).

Meaning of the A, B, D matrices?

A = extensional (in-plane) stiffness, D = bending stiffness, B = stretch–bend coupling.

Why put stiff 0° plies near the outer surfaces?

D scales with z³, so outer plies dominate bending stiffness (they see largest strain zκ).

What is a quasi-isotropic laminate?

Plies evenly spread in angle (e.g. [0/±45/90]s) giving equal in-plane stiffness in all directions.

Typical optimum fibre volume fraction and why not higher?

~0.55–0.65; above ~0.7 matrix can't wet all fibres → voids and poor load transfer.

GFRP vs CFRP trade-off?

GFRP cheaper, tougher, lower stiffness; CFRP stiffer and lighter but costlier.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, composite ka funda simple hai: strong fibres (carbon ya glass) ko ek soft polymer matrix (jaise epoxy) me daal dete hain. Fibre akela strong hota hai sirf apni length ke direction me — jaise dry spaghetti, lambai me khinchna mushkil par side se aasani se tut jaata hai. Matrix ka kaam hai sab fibres ko jodna, load ko ek fibre se doosre tak transfer karna, aur compression/shear sambhalna. Isliye dono ka team metal se bhi halka aur strong banta hai — aerospace me weight hi sab kuch hai.

Ek single sheet (ply) ko along the fibres khinchoge to stiffness = $E_1 = E_fV_f + E_mV_m$ (iso-strain, springs parallel me). Lekin across fibres khinchoge to fibre aur matrix series me aa jaate hain, same stress feel karte hain, aur formula ban jaata hai $1/E_2 = V_f/E_f + V_m/E_m$ — ye bahut chhota nikalta hai. Yani ek ply ek direction me ~19 guna zyada stiff hota hai! Isliye ek ply structure ke liye useless hai.

Solution: plies ko alag-alag angles par stack karo — kuch $0°$ , kuch $\pm45°$ , kuch $90°$ . Isse laminate har direction me strong ho jaata hai (quasi-isotropic). Do golden rules: lay-up balanced rakho (har $+\theta$ ke saath $-\theta$ ) taaki tension-shear coupling na ho, aur symmetric rakho (mid-plane ke around mirror) taaki $B$ matrix zero ho jaaye aur panel warp na kare.

Classical Laminate Theory me hum ABD matrix banate hain: $A$ = in-plane stretching, $D$ = bending, $B$ = coupling. Yaad rakho $D$ me $z^3$ aata hai, isliye bahar wale (outer) plies bending me sabse zyada contribute karte hain — isliye stiff $0°$ plies ko surface ke paas rakhte hain. Bas itna samjho to poora chapter clear hai!
