Stress and strain — σ = F - A, ε = ΔL - L, Young's modulus E

WHY do we need stress and strain at all?

WHAT is the problem? A spacecraft engineer must guarantee a strut won't break or deform too much under launch loads. Force alone ( $F$ in newtons) is not enough information — a 1000 N pull snaps a hair but does nothing to a girder.

WHY normalize? Because failure and stretching depend on concentration and proportion, not the raw force. Doubling the cross-section area halves the internal "crowding" of force. So we invent quantities that strip away the part's size and leave only the material's behavior.

Stress — deriving σ = F/A

HOW we build it (from scratch):

Pull a bar with force $F$ . In equilibrium, any imaginary cut across the bar must have the material on each side pulling back with the same $F$ (Newton's 3rd law).
That internal force is spread over the cut area $A$ .
Define intensity of force = force ÷ area:

$\sigma = \frac{F}{A}$

Why this step? We divide by $A$ because the same force through a bigger area is "less crowded" — fewer bonds each carry a smaller share.

Strain — deriving ε = ΔL/L

HOW we build it:

Original length $L$ . Under load it becomes $L + \Delta L$ .
A 2 m bar stretching 1 mm is "less strained" than a 1 mm bar stretching 1 mm. So we compare the stretch to the original length:

$\varepsilon = \frac{\Delta L}{L}$

Why dimensionless? Length ÷ length cancels units. Strain is a pure ratio — a percentage of stretch.

Young's Modulus E — linking the two

HOW we get $E$ from first principles:

Observed linearity: $\sigma \propto \varepsilon$ .
Introduce a constant of proportionality $E$ :

$\boxed{\sigma = E\,\varepsilon}$

Substitute definitions to see the "engineer's stretch formula":

$\frac{F}{A} = E\,\frac{\Delta L}{L} \;\Longrightarrow\; \Delta L = \frac{F L}{A E}$

WHY is stiff good AND bad? High $E$ = small deflection for a given load (good for pointing a telescope). But stiffness ≠ strength — a stiff material can still be brittle. $E$ is a slope, strength is a ceiling.

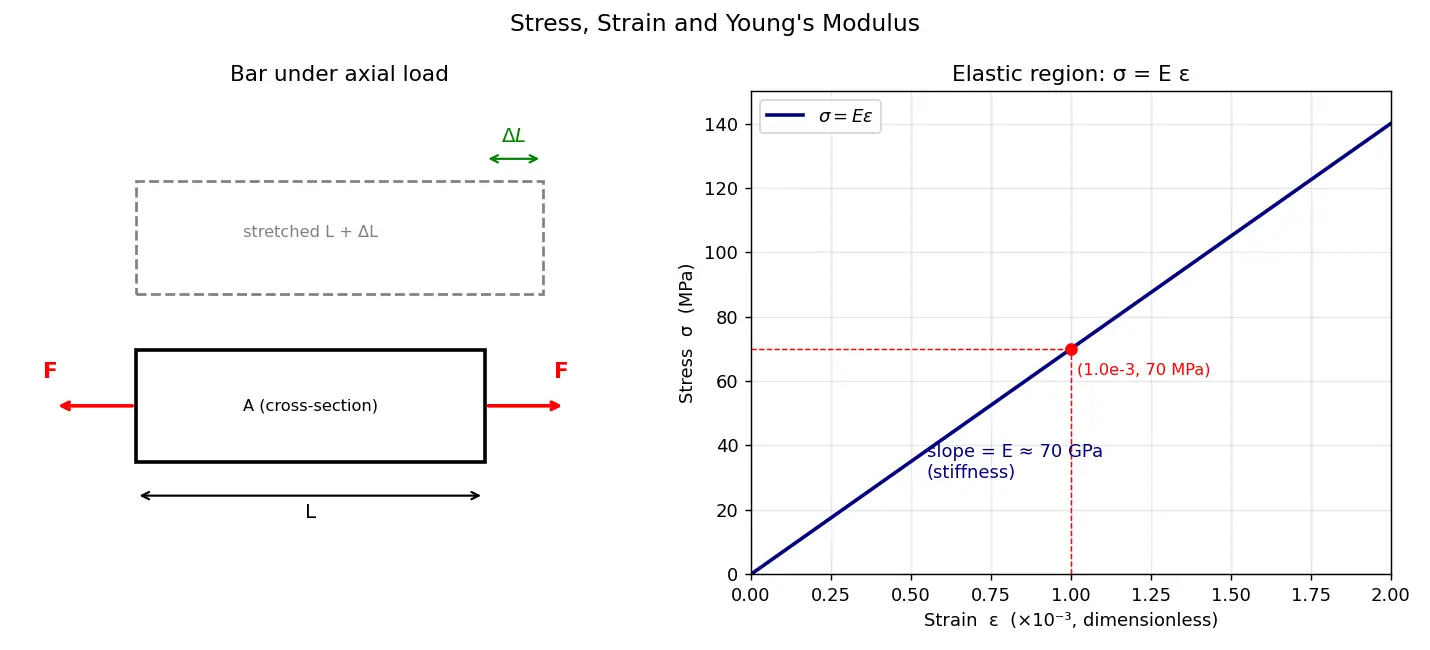

Figure — Stress and strain — σ = F - A, ε = ΔL - L, Young's modulus E

Worked examples

Worked example 1 — Deflection of a launch strut

An aluminium strut ( $E = 70$ GPa) is $L = 2$ m long, cross-section $A = 4\times10^{-4}$ m², carries $F = 2.8\times10^4$ N. Find stress, strain, and stretch.

Stress: $\sigma = F/A = 2.8\times10^4 / 4\times10^{-4} = 7\times10^7$ Pa $= 70$ MPa. Why? Force per area is our first normalized quantity.

Strain: $\varepsilon = \sigma/E = 7\times10^7 / 7\times10^{10} = 10^{-3}$ . Why? Rearranged Hooke's law; strain is stress ÷ stiffness.

Stretch: $\Delta L = \varepsilon L = 10^{-3}\times 2 = 2\times10^{-3}$ m $= 2$ mm. Why? Undo the "divide by L" that defined strain.

Worked example 2 — Sizing a cable (Forecast-then-Verify)

A titanium tie-rod ( $E=110$ GPa) must not stretch more than $0.5$ mm over $L = 1$ m under $F = 5500$ N. What minimum area?

Forecast: stiffer/less stretch needs bigger area — expect a small but finite $A$ .

Use $\Delta L = FL/(AE)\Rightarrow A = \dfrac{FL}{E\,\Delta L}$ . $A = \dfrac{5500 \times 1}{110\times10^{9}\times 0.5\times10^{-3}} = \dfrac{5500}{5.5\times10^{7}} = 1\times10^{-4}\text{ m}^2 = 1\text{ cm}^2.$ Why this step? We solved the deflection equation for the unknown geometry $A$ . Verify: plug back → $\Delta L = 5500\cdot1/(1\times10^{-4}\cdot1.1\times10^{11}) = 0.5$ mm ✓.

Common mistakes (Steel-manned)

Flashcards

What is stress and its formula?

Internal force per unit cross-sectional area,

\sigma = F/A

, in pascals (N/m²).

What is strain and its formula?

Fractional change in length,

\varepsilon = \Delta L / L

, dimensionless.

Why is strain dimensionless?

It is length divided by length, so units cancel.

Define Young's modulus.

The ratio of stress to strain in the elastic region:

E = \sigma/\varepsilon

, units Pa.

Give the deflection formula derived from Hooke's law.

\Delta L = FL/(AE)

Does high E mean high strength?

No —

E

is stiffness (slope of σ–ε curve); strength is the stress at which it fails.

Approx E for aluminium and steel?

Al ≈ 70 GPa, steel ≈ 200 GPa.

When does σ = Eε fail to hold?

Beyond the elastic/linear region, i.e. above the yield stress.

Same stress on Al vs steel — which strains more and why?

Aluminium, because it has lower E (strain = σ/E).

How does doubling cross-sectional area affect stress for fixed force?

It halves the stress.

Recall Feynman: explain to a 12-year-old

Imagine pulling a rubber band. Stress is like asking "how squished together is the pull?" — if the band is fat, the pull is shared by lots of rubber, so it's chill; if it's thin, the pull is crowded and it strains harder. Strain is "how much longer did it get compared to how long it started?" — stretching 1 cm is a big deal for a short band but nothing for a long one. Young's modulus is just "how stubborn is this stuff?" A high number means it barely stretches; a low number means it stretches easily. Divide the crowding (stress) by the stretchiness (strain) and you get the stubbornness (E).

Connections

Hooke's Law — the spring-scale version, $F = kx$ , that this generalizes to materials.
Yield Strength and Plastic Deformation — where $\sigma = E\varepsilon$ stops working.
Poisson's Ratio — sideways strain that accompanies axial strain.
Stress-Strain Curve — the full graph; $E$ is its initial slope.
Spacecraft Load Paths and Struts — where these numbers size real hardware.
Thermal Stress — $\Delta L$ from temperature instead of force ( $\alpha \Delta T$ ).
Factor of Safety — design margin between working stress and yield stress.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab hum kisi spacecraft ke strut ya rod ko kheenchte hain, do cheezein important hoti hain. Pehli — stress — matlab force ko area se divide karo: $\sigma = F/A$ . Kyun? Kyunki same force agar mota bar pe lage toh andar ka "crowding" kam hota hai, aur patli wire pe lage toh zyada. Isliye force ko area se normalize karke hum material ki asli halat samajhte hain, part ke size ko hata ke.

Doosri — strain — matlab kitna stretch hua original length ke comparison mein: $\varepsilon = \Delta L / L$ . 1 mm stretch 2 meter ke bar ke liye chhoti baat hai, par 1 mm ke sample ke liye bahut badi. Isliy hamesha original length se divide karna. Ye ek pure ratio hai, iska koi unit nahi hota.

Ab jodne wala hero hai Young's modulus $E = \sigma / \varepsilon$ . Experiment se pata chalta hai ki chhote loads pe stress aur strain proportional hote hain (Hooke's law), aur $E$ us line ka slope hai — matlab material kitna "stubborn" ya stiff hai. High $E$ (jaise steel, 200 GPa) matlab kam stretch; low $E$ (aluminium, 70 GPa) matlab zyada stretch. Inko mila ke milta hai design formula $\Delta L = FL/(AE)$ — isse engineer decide karta hai ki strut kitni moti honi chahiye taaki launch ke time zyada na khiche ya toote.

Ek important trap: stiff ka matlab strong nahi hota. Stiffness slope hai, strength woh point hai jahan cheez toot-ti hai — dono alag concepts hain. Aur yaad rakho $\sigma = E\varepsilon$ sirf elastic (linear) region mein chalta hai, yield point ke baad nahi.
