Fluid definition — shear stress, no fixed shape

WHAT is a fluid?

WHAT is stress? (build it from scratch)

When a force $\vec F$ acts on a surface of area $A$ , we split it into two parts:

The part perpendicular to the surface → normal force $F_n$ .
The part parallel (tangential) to the surface → shear force $F_t$ .

WHY divide by area? Because the intensity of the push is what matters for deformation, not the total force. The same force on a tiny patch causes a huge stress; spread over a big area it's gentle.

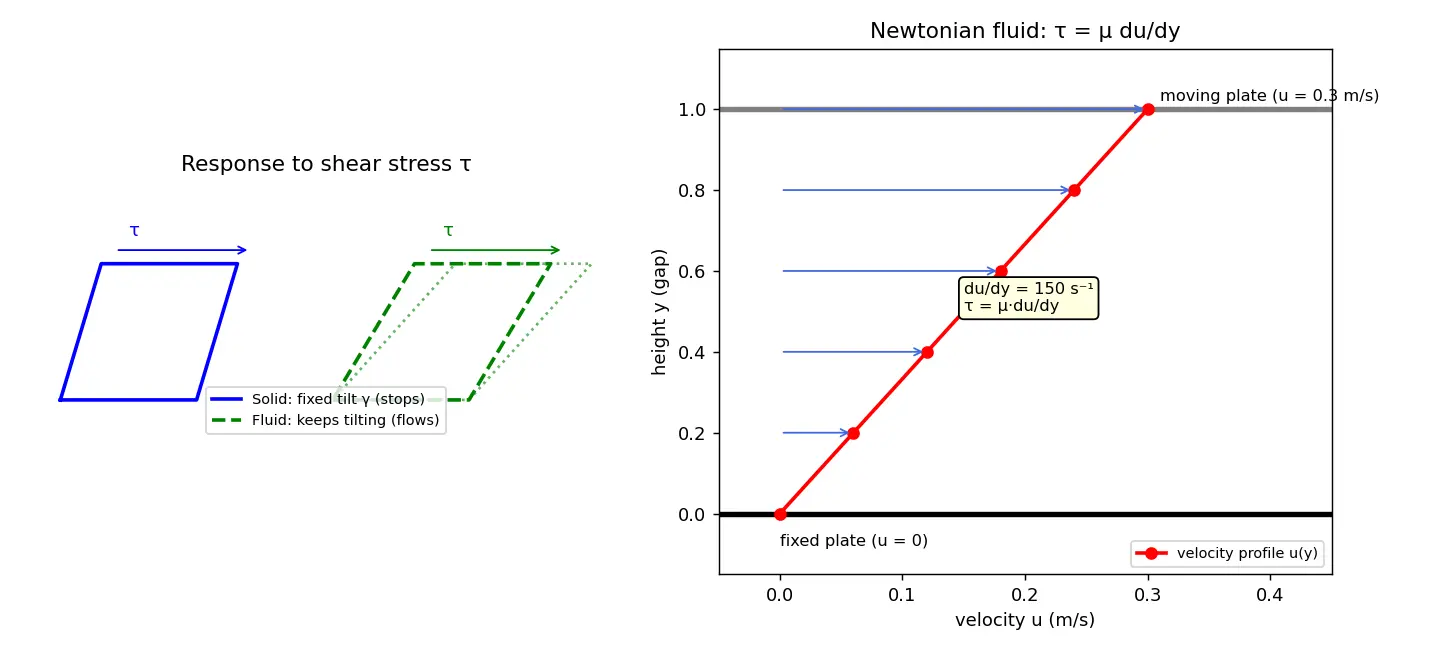

Figure — Fluid definition — shear stress, no fixed shape

HOW a fluid responds: rate of strain, not strain

For a Newtonian fluid (water, air, oil), the shear stress is proportional to the velocity gradient:

Formula Newton's law of viscosity (derived)

Consider fluid between two plates a distance $y$ apart. Top plate moves with speed $u$ , bottom is fixed. The fluid layer at height $y'$ moves with speed $u(y')$ . In time $dt$ the top moves $du\,dt$ while the bottom stays, shearing the layer. The shear strain is $d\gamma = \frac{du\,dt}{dy}\ \Rightarrow\ \frac{d\gamma}{dt} = \frac{du}{dy}.$ Experiment shows stress $\propto$ rate of strain, with constant $\mu$ (viscosity): $\boxed{\tau = \mu\,\frac{du}{dy}}$

$\mu$ = dynamic viscosity (Pa·s). Larger $\mu$ ⇒ "thicker" fluid (honey > water).
$\dfrac{du}{dy}$ = velocity gradient = rate of shear strain (units $\text{s}^{-1}$ ).

Worked Examples

Common Mistakes (Steel-manned)

Flashcards

What defines a fluid?

A substance that deforms continuously under any shear stress, however small.

Why does a fluid have no fixed shape?

It cannot sustain shear at rest, so it can't hold its surfaces against gravity — it flows to fill the container.

Normal stress formula and meaning?

\sigma = F_n/A

; force component perpendicular to surface per unit area.

Shear stress formula?

\tau = F_t/A

; tangential force per unit area, units Pa.

Newton's law of viscosity?

\tau = \mu\,\dfrac{du}{dy}

— shear stress equals viscosity times velocity gradient.

Solid vs fluid stress law?

Solid

\tau=G\gamma

(stress ∝ strain); fluid

\tau=\mu\dot\gamma

(stress ∝ rate of strain).

Units of dynamic viscosity

\mu

Pa·s (pascal-second).

Is a gas a fluid?

Yes — both liquids and gases are fluids.

At static rest, what is the shear stress in a fluid?

Zero — that is the defining property.

What is

du/dy

physically?

The velocity gradient = rate of shear strain, units

\text{s}^{-1}

Recall Feynman: explain to a 12-year-old

Imagine pushing the top of a stack of paper sideways. Paper (a solid-ish thing) tilts a bit and stops. Now imagine the stack is made of slippery water layers: push the top and the layers just keep sliding over each other forever — they never stop. That "never stops sliding when you push it sideways" is exactly what makes something a fluid. And because it can't hold itself up against a sideways push, it just flops down and fills whatever cup you pour it into. Thicker fluids (honey) slide slowly, thin ones (water) slide fast — that "slowness" is viscosity.

Connections

Pressure in Fluids — normal stress $\sigma$ becomes pressure $p$ .
Viscosity and Newtonian vs Non-Newtonian Fluids — deeper look at $\mu$ .
Hydrostatics — Fluids at Rest — why static fluids have only normal forces.
Stress and Strain in Solids — contrast law $\tau = G\gamma$ .
Velocity Profile and No-Slip Condition — where $du/dy$ comes from.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, fluid ki definition simple hai: koi bhi cheez jo shear stress ko sah nahi sakti jab woh rest pe ho, woh fluid hai. Shear stress matlab surface ke parallel (slant me) lagne wala force per unit area. Solid ko side se dhakka do toh thoda tilt hoke ruk jaata hai (jaise rubber). Lekin fluid ko side se halka sa bhi dhakka do toh woh ruk-ta hi nahi — continuously deform karta rehta hai, yani flow karta hai. Isi wajah se fluid ka koi fixed shape nahi hota; jis bartan me daalo, uska shape le leta hai.

Ab important baat: solid me stress kitna deform hua (strain γ) uspe depend karta hai, $\tau = G\gamma$ . Lekin fluid me stress kitni tezi se deform ho raha hai (rate of strain, $du/dy$ ) uspe depend karta hai. Yahi Newton ka viscosity law hai: $\tau = \mu\,\dfrac{du}{dy}$ . Yahan $\mu$ viscosity hai — honey ka $\mu$ bada (motha fluid), paani ka chhota (patla). Velocity gradient $du/dy$ batata hai ki ek layer doosri ke upar kitni speed se slide kar rahi hai.

Yaad rakho — fluid me shear stress zero hota hai sirf jab woh rest pe ho. Jab fluid move karta hai (jaise pipe me), tab shear stress bilkul hota hai. Aur gases bhi fluids hain, sirf liquids nahi — kyunki gas bhi shear sah nahi sakti aur container ka shape le leti hai. Bas yahi do cheezein clear rakho aur poora chapter aasaan lagega.
