Fluid definition — shear stress, no fixed shape: Visual walkthrough

This is the picture-story behind the parent note. If a word here feels unfamiliar, it will be drawn before it is used.

Step 1 — Split a force into two honest pieces

WHAT. A force is just a push (or pull) with a direction, drawn as an arrow. When that arrow lands on a flat surface, it almost never points straight into the surface. So we chop the one slanted arrow into two arrows that do have clean directions:

one that points straight into the surface — call its size $F_{n}$ (the letter $n$ is for normal, meaning "perpendicular"),
one that points flat along the surface — call its size $F_{t}$ (the letter $t$ is for tangential, meaning "sliding along").

WHY. These two pieces do completely different jobs. The perpendicular piece $F_{n}$ tries to squash the surface. The along-the-surface piece $F_{t}$ tries to smear it sideways. A fluid reacts to squashing and smearing in totally different ways, so we must separate them before we can say anything true.

PICTURE. The blue slanted arrow is the real force $F$ . The orange arrow is $F_{t}$ (sliding along), the green arrow is $F_{n}$ (pressing in). Together the orange and green arrows add up (tip-to-tail) to the blue one.

Figure — Fluid definition — shear stress, no fixed shape

Step 2 — Turn force into stress by dividing by area

WHAT. We take each force piece and divide it by the area $A$ of the surface it acts on. That gives two new quantities: $normal stress σ = \frac{F _{n}}{A}, shear stress τ = \frac{F _{t}}{A} .$

Here every symbol earns its place:

$σ$ (Greek letter "sigma") is the normal stress — how hard the surface is being pressed, per unit of area.
$τ$ (Greek letter "tau", rhymes with "cow") is the shear stress — how hard the surface is being smeared sideways, per unit of area.
$A$ is the flat surface area the force lands on, measured in square metres $m^{2}$ .
Both $σ$ and $τ$ are measured in pascals: $1 Pa = 1 N/m^{2}$ (one newton spread over one square metre).

WHY divide by area? Because intensity is what deforms a material, not raw force. Press your thumb on a table: gentle. Press the same force through a needle tip: it punctures. Same $F$ , tiny $A$ , enormous stress. So to talk about how much a fluid gives way, we must talk in stress (force per area), not in force alone.

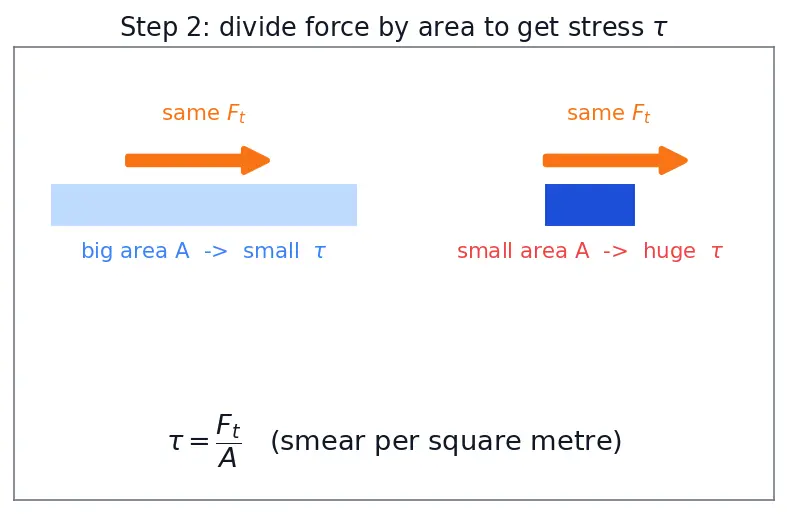

PICTURE. The same orange smearing force spread over a big plate is a small $τ$ (pale); squeezed onto a small plate it is a huge $τ$ (deep). The arrows keep their length (same force) but the density of the smear changes.

From now on we only track $τ$ , the shear stress — because shear is the thing a fluid cannot resist.

Step 3 — The experiment: two plates and a trapped film

WHAT. Trap a thin film of fluid between two flat plates. The bottom plate is bolted still. The top plate is dragged sideways with a steady speed we call $u$ (a speed, in metres per second, $m/s$ ). The plates are a distance $y$ apart, measured straight up from bottom to top (in metres).

WHY this setup? It is the cleanest way to apply pure shear — only sideways smearing, no squashing. If we can measure how the fluid fights back here, we have isolated exactly the property that defines a fluid. Every other flow is a mix of these simple shears.

PICTURE. Bottom plate grey and fixed (little hatching = "held"). Top plate moving right with a blue speed arrow labelled $u$ . The gap height $y$ is marked with a vertical measuring bar. The fluid fills the gap.

Step 4 — The no-slip rule sets up a velocity profile

WHAT. The fluid touching a plate moves with that plate — it does not slide against it. This is the no-slip condition. So:

fluid at the bottom (height $0$ ) moves at speed $0$ ,
fluid at the top (height $y$ ) moves at speed $u$ ,
fluid in between moves at some in-between speed that grows smoothly as you climb.

We write the speed of the layer sitting at height $y^{'}$ as $u (y^{'})$ — read " $u$ of $y^{'}$ ", meaning "the speed you find at height $y^{'}$ ." The little prime on $y^{'}$ just says "a height somewhere inside the gap," to keep it separate from the total gap $y$ .

WHY does this matter? Because it tells us the fluid does not move as one lump — it moves in layers that slide over each other, fast on top, slow at the bottom. That layered sliding is the shearing. The picture of speeds stacked by height is called the velocity profile.

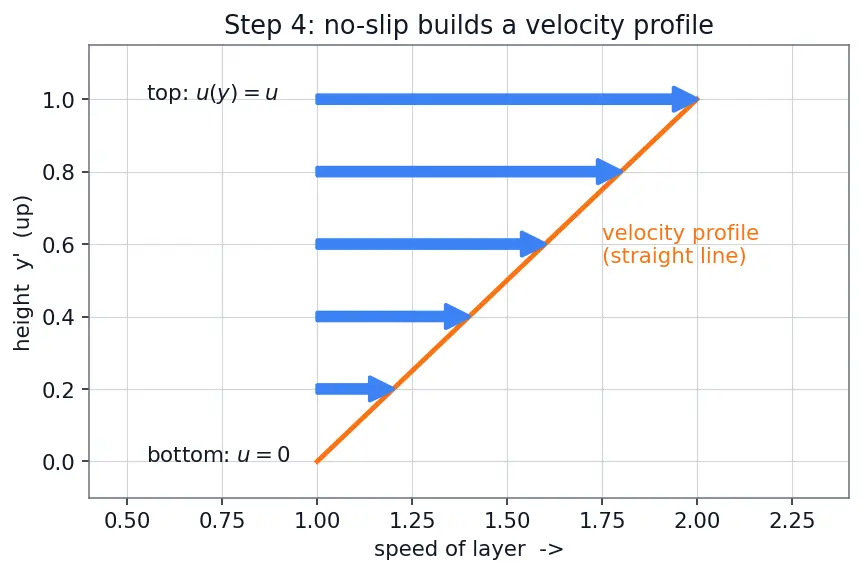

PICTURE. A vertical stack of horizontal arrows: zero length at the bottom, longest at the top, growing evenly. Their tips trace a straight slanted line — that straight line is the velocity profile for a simple fluid.

Step 5 — Watch the film deform: what "strain" means here

WHAT. Freeze a tall thin rectangle of fluid painted across the gap. Wait a tiny time $d t$ (a very short moment). In that moment the top edge slides forward while the bottom stays put, so the rectangle tilts into a parallelogram. The top slides forward by a small distance $how far the top crept d u d t,$ where $d u$ is the extra speed the top has over the bottom, and $d t$ is the short time.

The tilt is measured by a small angle $d γ$ ( $γ$ is Greek "gamma"). For a tiny tilt, the angle equals sideways slide ÷ height: $d γ = \frac{d u d t}{d y},$ where $d y$ is the (small) height of our fluid rectangle.

WHY an angle? Because "how sheared is it?" is naturally a tilt. A tall thin book pushed at the top leans by an angle — that lean angle is the shear strain $γ$ . Using slide-over-height turns the messy geometry into one clean number.

PICTURE. The green rectangle (before) tilts into the orange parallelogram (after $d t$ ). The top-edge slide $d u d t$ is marked horizontally; the height $d y$ vertically; the small lean angle $d γ$ sits in the corner.

Step 6 — The crucial move: rate of strain, not strain

WHAT. Take the tilt equation and divide both sides by the time $d t$ . The $d t$ on the right cancels: $\frac{d γ}{d t} = \frac{d u}{d y} .$ Read the left side as "how fast the tilt angle grows per second." Read the right side as velocity gradient: how quickly speed changes as you climb — the steepness of the velocity profile from Step 4.

WHY divide by time? This is the heart of what makes a fluid a fluid. Push a solid and it tilts to a fixed angle and stops — so a solid's stress cares about the angle $γ$ itself. Push a fluid and it never stops tilting — the angle grows forever — so asking "what is the final angle?" has no answer. The only sensible question is "how fast is it tilting?" That is why we divide by $d t$ : we trade the useless total angle for the meaningful rate.

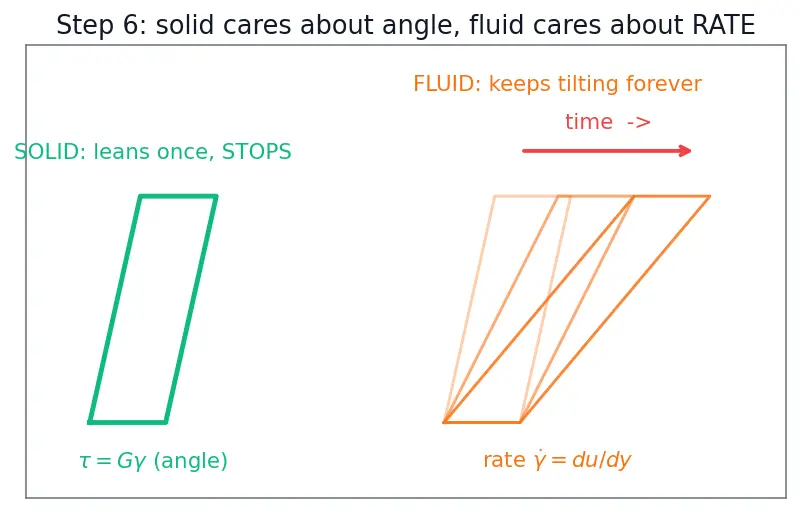

PICTURE. Two side-by-side stories. Left: a solid block leans once and freezes (single tilted shape, a "stop" sign). Right: a fluid block keeps leaning more and more each moment (a fan of ever-greater tilts, arrows of time). The fluid's answer lives in the rate, marked $\overset{γ}{˙} = d u / d y$ .

Step 7 — Experiment supplies the missing constant $μ$

WHAT. Nature (measured in the lab, not derived) says: the shear stress you must apply is proportional to how fast the fluid is being smeared: $τ \propto \frac{d u}{d y} .$ Turn "proportional" into "equals" by inserting a constant of proportionality, called $μ$ (Greek "mu"): $τ = μ \frac{d u}{d y}$

$τ$ = the shear stress (Pa) — the smear intensity from Step 2.
$μ$ = the dynamic viscosity (Pa·s) — the fluid's "thickness." Big $μ$ = honey (fights hard), small $μ$ = water (gives easily), measured for each fluid.
$d u / d y$ = the velocity gradient (per second) — the steepness from Step 6.

WHY a constant and not a formula? Because $μ$ cannot be reasoned out from geometry — it depends on the substance. Geometry gave us the shape of the law ( $τ$ ∝ steepness); experiment supplies the number $μ$ that fits a particular fluid. Fluids that obey this straight-line law are called Newtonian.

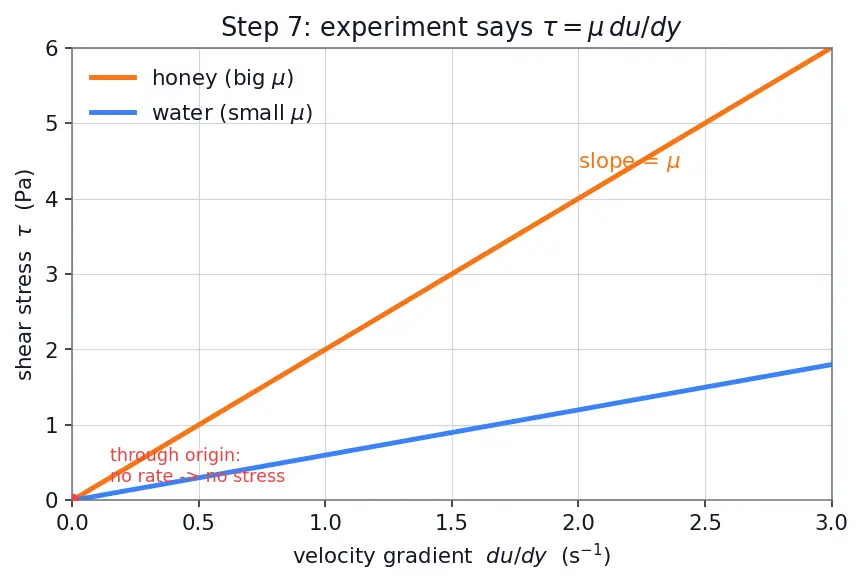

PICTURE. A graph: horizontal axis is the gradient $d u / d y$ , vertical axis is stress $τ$ . Each fluid is a straight line through the origin; its slope is $μ$ . Honey (steep, orange), water (shallow, blue). Through the origin means: no smear rate ⇒ no stress.

Step 8 — The degenerate case: fluid at rest ( $d u / d y = 0$ )

WHAT. Now shut off the motion. Both plates are still, nothing slides, so every layer has the same (zero) speed: the velocity gradient is $d u / d y = 0$ . Put that into the law: $τ = μ \times 0 = 0.$

WHY this case is the whole point. This single line is the definition of a fluid. At rest, a fluid carries zero shear stress, no matter how thick it is — because $μ$ is finite and it multiplies zero. A solid does not do this: even at rest a solid holds a leftover shear $τ = G γ$ from its stored tilt. This is why a fluid cannot hold its own shape (any tiny leftover shear would make it flow) and instead slumps to fill its container — exactly the "no fixed shape" fact the parent note starts from.

PICTURE. The velocity profile collapses to a single vertical line (all speeds zero). The stress readout drops to $0$ . A blob of fluid, unable to sustain any shear, spreads flat to fill a bowl.

The one-picture summary

Everything above, compressed into one diagram: force → split off shear → per-area gives $τ$ → no-slip makes a velocity profile → tilting per second gives $d u / d y$ → multiply by $μ$ → and at rest it all switches off to zero.

Recall Feynman retelling of the whole walkthrough

A force hitting a surface almost always leans, so first we chop it into a "press-straight-in" part and a "slide-along" part. The slide-along part, shared out over the area it touches, is the shear stress $τ$ — a smear per square metre. To see what a fluid does with a smear, we trap it between two plates and drag the top one. Because fluid sticks to whatever it touches (no-slip), the bottom layer sits still, the top layer races along, and the layers in between form a smooth staircase of speeds — the velocity profile. Now paint a tall block in the fluid and blink: the top has crept forward, so the block has leaned into a parallelogram. For a solid that lean would stop at some angle and freeze, so a solid cares about the angle. For a fluid the lean never stops — it just keeps leaning — so the only fair question is how fast it leans, which is the steepness of the speed-staircase, $d u / d y$ . Experiment then whispers the last ingredient: the smear you must push with is that steepness times a number $μ$ , the fluid's thickness. That gives $τ = μ d u / d y$ . And the punchline: stop everything, the staircase flattens, $d u / d y$ becomes zero, so $τ$ becomes zero — a fluid at rest carries no shear at all, which is exactly why it can never hold its own shape and always slumps to fill the cup.

Recall Quick self-check

Why do we divide the shear force by area? ::: To get intensity per unit area; the same force is gentle on a big patch and fierce on a tiny one. Why do we divide the tilt by time (use rate, not angle)? ::: Because a fluid never stops tilting, so the total angle has no fixed value — only the rate $d u / d y$ is meaningful. Where does $μ$ come from — geometry or experiment? ::: Experiment; geometry only gives the shape $τ \propto d u / d y$ , and $μ$ is the measured slope for each fluid. Why is $τ = 0$ at rest for any fluid? ::: At rest $d u / d y = 0$ , and $μ \times 0 = 0$ no matter how large $μ$ is.
