WHY these two dominate design: Yield tells you when the part is permanently ruined (a bent
strut won't return to spec). Ultimate tells you when the part is gone. Structures must survive
both with margin.

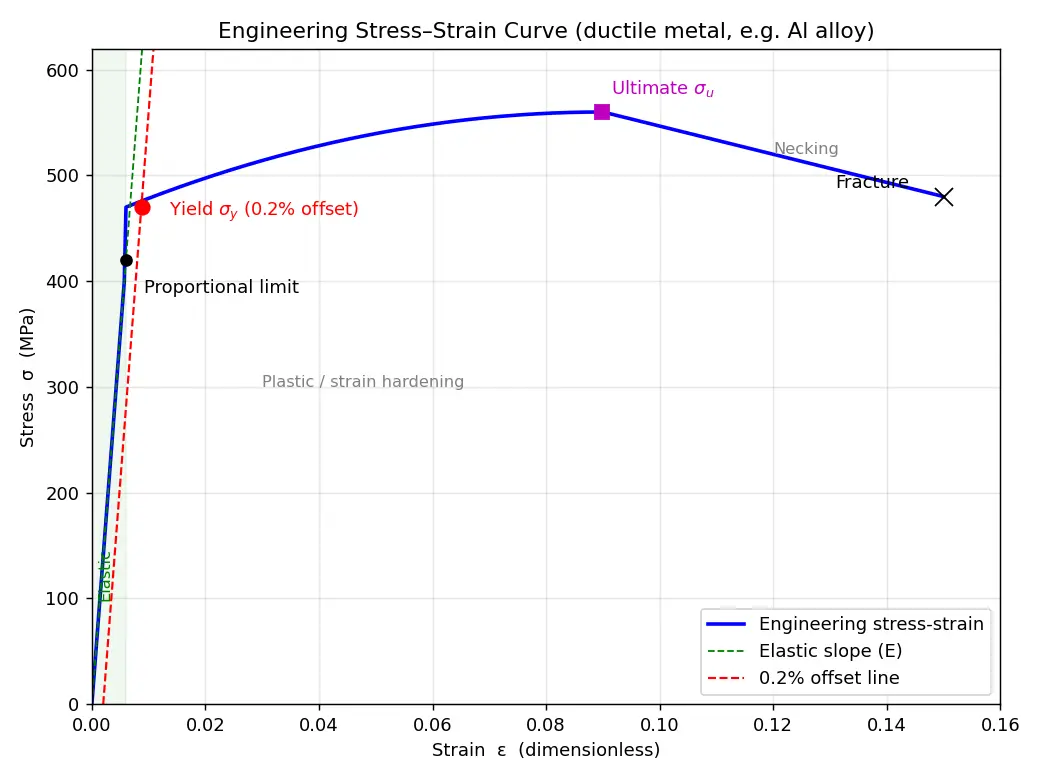

Step 1 — Elastic region. Atoms are bonded like tiny springs. Stretch each bond a little and the
restoring force is linear in displacement. Summing over all bonds in a cross-section gives a linear
relation between stress and strain:
σ=EεWhy this step? Linear atomic-bond restoring force ⇒ linear macroscopic response. E = Young's
modulus, the slope, and it's the constant of proportionality up to the proportional limit.
Step 2 — Yield. Push past a critical shear on the atomic planes and dislocations start to
glide — planes of atoms slip permanently. Now some strain does not come back on unloading.
Why this step? Slip is irreversible, so the curve peels away from the straight line.
Step 3 — Strain hardening. As dislocations pile up and tangle, the material gets harder to
deform, so stress keeps rising with strain but along a shallow curve up to the peak σu.
Step 4 — Necking & fracture. At σu the specimen forms a local thin "neck"; true area
shrinks fast, engineering stress falls, and it fractures.
The elastic slope σ=Eε; stiffness against elastic deformation.
Define yield stress.
Stress at which permanent (plastic) deformation begins.
Define ultimate tensile stress.
The maximum engineering stress the material sustains before load drops.
Why use the 0.2% offset?
Alloys yield gradually; the offset pins yield to a fixed 0.2% permanent strain so it's repeatable.
Yield vs fracture difference?
Yield = onset of permanent set (part intact); fracture = actual separation.
Formula for margin of safety?
MoS=σallow/(FoSreqσapp)−1≥0.
Typical spacecraft FoS for yield and ultimate?
~1.25 (yield), ~1.5 (ultimate).
What physically causes yielding?
Irreversible glide of dislocations (atomic planes slipping).
Does doubling area change σy?
No — it's a material property; only the failing force changes.
Engineering vs true stress after necking?
Engineering drops (uses A0); true rises (uses shrinking real area).
Recall Feynman: explain to a 12-year-old
Imagine a paperclip. Bend it a tiny bit and let go — it springs straight again (elastic). Bend
it more and it stays crooked — you passed the "yield" point, it's permanently changed. Bend it
back and forth a lot and it snaps — that's the "ultimate/break" point. Engineers building
spacecraft measure exactly how hard you can pull the metal before it goes crooked (yield) and
before it snaps (ultimate), then they never let the real forces get close to those.
Dekho, jab tum kisi metal rod ko kheechte ho to woh thoda stretch hota hai. Shuruaat mein woh
spring jaisa behave karta hai — force hatao to wapas apni length pe aa jaata hai. Isko elastic
region kehte hain, aur yahan σ=Eε chalता hai, jahan E = Young's modulus, yani
material ki stiffness. Stress ka matlab hai force per unit area (σ=F/A0), sirf force nahi.
Agar aur zor se kheencho, ek point aata hai jahan rod wapas nahi aati — permanently lambi ho jaati
hai. Yeh yield stress (σy) hai — yahan se dislocations slip karne lagti hain (atomic
planes khisak jaate hain). Kuch alloys mein yield sharp nahi hota, isliye engineers 0.2% offset
line se yield define karte hain taaki har lab mein same number mile. Aur zyada kheencho to material
peak stress tak pahunchta hai — yeh ultimate stress (σu) hai — uske baad "necking" hoke
rod tootti hai (fracture).
Spacecraft design mein yeh do numbers sabse important hain. Yield batata hai part kab permanently
kharab ho jayega, ultimate batata hai kab toot jayega. Engineers real stress ko in dono se neeche
rakhte hain factor of safety laga ke (yield ke liye ~1.25, ultimate ke liye ~1.5) — kyunki loads
aur material mein scatter hota hai, aur space mein failure ka matlab mission khatam. Yaad rakho:
σy aur σu material properties hain — area badalne se force badalta hai, stress limit
nahi.
