Buckling — Euler column buckling load derivation

---

What are we deriving?

WHAT we assume (the "ideal Euler column"):

• Material is linearly elastic (obeys $\sigma = E\varepsilon$), no yielding.
• Column is initially perfectly straight, load acts along the centroidal axis.
• Deflections are small (small-slope approximation).
• Bending governed by beam theory: moment $\propto$ curvature.

---

The derivation from first principles

Step 1 — Set up the bent column

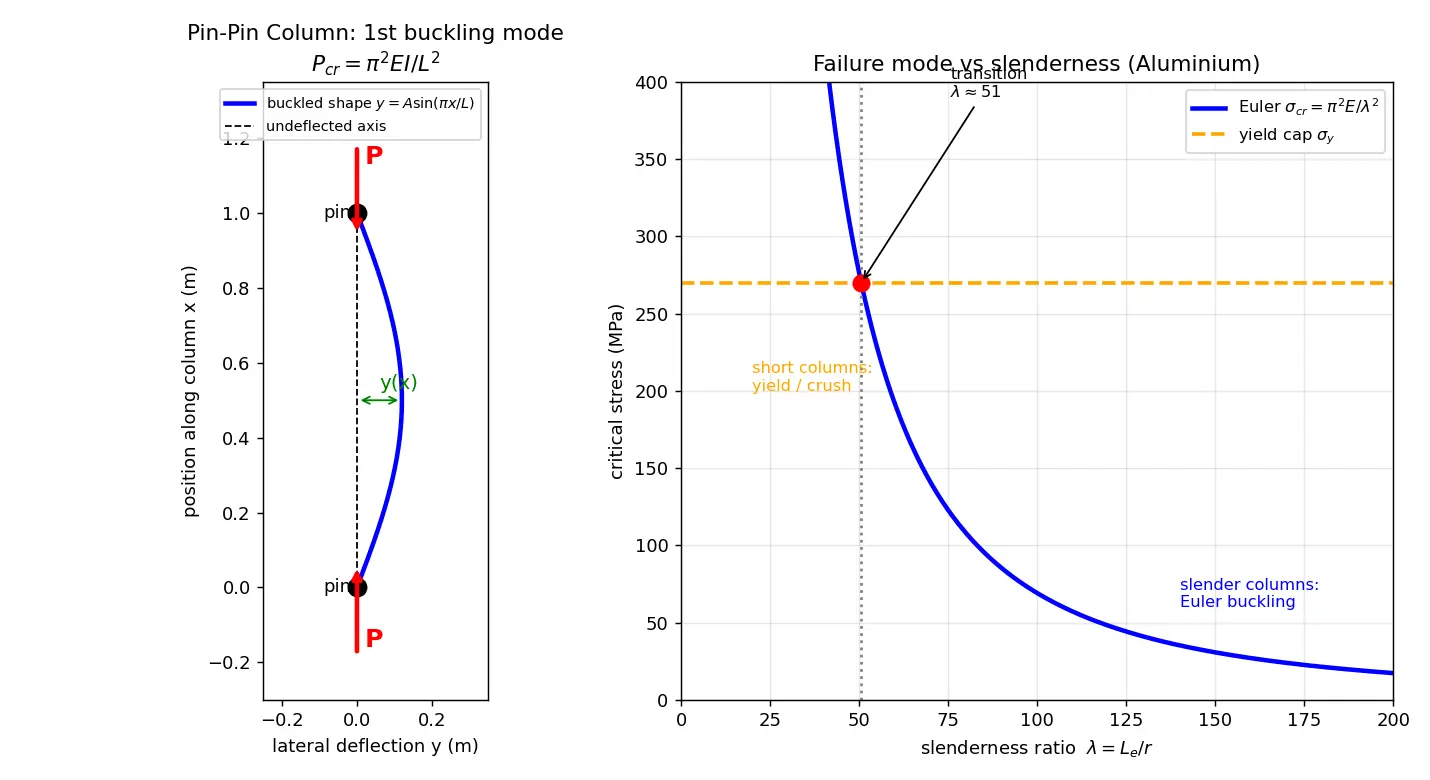

Consider a pin-pin column of length $L$, buckled into a slight curve. Let $y(x)$ be the sideways deflection at position $x$ along the column.

Why this step? Buckling is the appearance of a nonzero $y(x)$. We hunt for the load that makes such a $y(x)$ possible.

Step 2 — Internal bending moment from the axial load

Cut the column at position $x$. The external compressive load $P$ acts along the original axis, but the material at $x$ has moved sideways by $y$. That offset creates a moment about the cut: $M(x) = -P\,y(x)$

Why this step? The moment arm is the deflection $y$ itself. The minus sign encodes that the moment tends to increase the deflection (positive feedback → instability). This coupling of axial load to bending through deflection is the entire essence of buckling.

Step 3 — Beam bending relation (constitutive law)

From Euler–Bernoulli beam theory, curvature relates to internal moment: $EI\,\frac{d^2y}{dx^2} = M(x)$

Why this step? This is Hooke's law dressed for beams: bending a stiffer beam ($EI$ large) needs more moment for the same curvature. Curvature $\approx d^2y/dx^2$ under the small-slope assumption.

Step 4 — The governing differential equation

Combine Steps 2 and 3:

\quad\Longrightarrow\quad \frac{d^2y}{dx^2} + k^2 y = 0,\qquad k^2 \equiv \frac{P}{EI}$$ **Why this step?** We've turned a physics problem into a clean ODE — the equation of simple harmonic motion, but in *space* not time. Its solutions are sines and cosines, hinting the buckled shape is a wave. ### Step 5 — General solution $$y(x) = A\sin(kx) + B\cos(kx)$$ **Why this step?** Standard solution of $y'' + k^2y = 0$. Now the boundary conditions decide which constants survive. ### Step 6 — Apply boundary conditions (pin-pin: no deflection at ends) $$y(0)=0 \Rightarrow B=0. \qquad y(L)=0 \Rightarrow A\sin(kL)=0.$$ **Why this step?** Pins hold the ends fixed in position (but free to rotate), so deflection is zero there. $B=0$ kills the cosine. For a *nontrivial* buckled shape we need $A\neq 0$, so we must force $\sin(kL)=0$. ### Step 7 — The eigenvalue condition $$\sin(kL)=0 \quad\Longrightarrow\quad kL = n\pi,\quad n=1,2,3,\dots$$ So $k = n\pi/L$. Recall $k^2 = P/EI$: $$P = \frac{n^2\pi^2 EI}{L^2}$$ **Why this step?** Only discrete loads permit a bent equilibrium — buckling is an **eigenvalue problem**. The buckled shapes ($\sin(n\pi x/L)$) are the *eigenmodes*. ### Step 8 — Take the lowest load The column buckles at the *first* opportunity, $n=1$: $$\boxed{P_{cr} = \frac{\pi^2 EI}{L^2}}$$ **Why this step?** Higher $n$ needs *more* load, so nature reaches $n=1$ first. The mode shape is a single half sine wave: $y = A\sin(\pi x/L)$. Note $A$ stays undetermined — linear theory gives the *load* but not the amplitude. --- ## Boundary conditions → effective length Different end supports change the boundary conditions and hence the "wave that fits". We package this as an **effective length** $L_e = KL$: $$P_{cr} = \frac{\pi^2 EI}{L_e^2} = \frac{\pi^2 EI}{(KL)^2}$$ | End conditions | $K$ | Why (physical) | |---|---|---| | Pin – Pin | $1.0$ | half sine wave fits over full $L$ | | Fixed – Free (cantilever) | $2.0$ | only quarter wave fits → weakest | | Fixed – Fixed | $0.5$ | ends clamped → stiffest, strongest | | Fixed – Pin | $\approx 0.7$ | intermediate | > [!formula] Critical stress & slenderness > Divide by area $A$, and use radius of gyration $r=\sqrt{I/A}$: > $$\sigma_{cr}=\frac{P_{cr}}{A}=\frac{\pi^2 E}{(L_e/r)^2}$$ > The ratio $\lambda = L_e/r$ is the **slenderness ratio**. **WHY it matters:** buckling stress falls off as $1/\lambda^2$. Long thin columns ($\lambda$ large) buckle far below the yield stress — Euler governs. Short stubby columns yield/crush first. --- ## Worked examples > [!example] Example 1 — Basic pin-pin strut > Aluminium strut: $E = 70\text{ GPa}$, circular solid rod radius $r_0 = 5\text{ mm}$, $L = 1.0\text{ m}$, pinned ends. > 1. $I = \frac{\pi r_0^4}{4} = \frac{\pi (0.005)^4}{4} = 4.91\times10^{-10}\ \text{m}^4$. > *Why?* $I$ for a solid circle — sets the bending stiffness. > 2. $K=1 \Rightarrow L_e = 1.0$ m. > 3. $P_{cr} = \dfrac{\pi^2 (70\times10^9)(4.91\times10^{-10})}{1.0^2} \approx 339\ \text{N}$. > *Why?* Direct substitution into Euler's formula. > **Sanity check:** yield force $\approx \sigma_y A \approx (270\times10^6)(\pi\cdot0.005^2)\approx 21\,200$ N. Buckling (339 N) hits *way* first → correctly a slender-column (Euler) case. > [!example] Example 2 — Effect of end fixity > Same strut, now **fixed–free** (a mast bolted at the base). $K = 2$, so $L_e = 2$ m. > $$P_{cr} = \frac{\pi^2 EI}{(2)^2} = \frac{339}{4} \approx 85\ \text{N}$$ > *Why?* $P_{cr}\propto 1/L_e^2$, and $L_e$ doubled → load drops by factor 4. **Lesson:** how you *support* the column matters as much as the column itself. > [!example] Example 3 — Spacecraft context: sizing a lander leg > A lander leg must carry $P = 2000$ N without buckling; steel tube, $E = 200$ GPa, $L = 0.8$ m, pin-pin. Find required $I$. > Set $P_{cr} = P$: $I \ge \dfrac{P L^2}{\pi^2 E} = \dfrac{2000 (0.8)^2}{\pi^2 (200\times10^9)} = 6.5\times10^{-10}\ \text{m}^4$. > *Why?* Rearrange Euler for the *design* unknown $I$; then pick a tube geometry giving at least this $I$. Add a **safety factor** (e.g. require $P_{cr} = 1.5P$) in real design. --- ## Common mistakes (steel-manned) > [!mistake] "Buckling depends on the material's yield strength." > **Why it feels right:** every other failure we learn (crushing, tension) uses $\sigma_y$. So students plug in $\sigma_y$. > **The fix:** Euler buckling has **no $\sigma_y$ in it** — it's a *stiffness* ($E$) and *geometry* ($I,L$) phenomenon. A column can buckle while every fibre is still elastic. Yield only enters as an *upper cap* (short columns). > [!mistake] "Use area $A$ in the buckling formula, not $I$." > **Why it feels right:** stress = force/area, so area seems central. > **The fix:** Resistance to *bending* is governed by $I$ (how far material sits from the neutral axis), not $A$. That's why a thin-walled tube buckles far better than a solid rod of equal area — it pushes material outward, raising $I$. > [!mistake] "The buckled amplitude $A$ can be found from the equation." > **Why it feels right:** we solved an ODE, surely it gives full $y(x)$. > **The fix:** Linear (small-deflection) theory gives only the *critical load* and *mode shape*; amplitude is indeterminate. You need nonlinear post-buckling theory (elastica) for amplitude. > [!mistake] "Longer columns are stronger because more material." > **Why it feels right:** more material = tougher, intuitively. > **The fix:** $P_{cr}\propto 1/L^2$. Doubling length *quarters* the buckling load. Slenderness is the enemy. --- ## #flashcards/physics Euler critical load for a pin-pin column ::: $P_{cr} = \pi^2 EI / L^2$ The governing ODE for a buckling column ::: $y'' + k^2 y = 0$ with $k^2 = P/EI$ Physical origin of the bending moment in a buckled column ::: The axial load $P$ acts at the deflected offset $y$, giving $M=-Py$ (positive feedback) Why buckling is an eigenvalue problem ::: Nontrivial bent shape needs $\sin(kL)=0 \Rightarrow kL=n\pi$; only discrete loads/modes allowed Buckling mode shape for pin-pin, lowest mode ::: Half sine wave $y = A\sin(\pi x/L)$ Which material property governs Euler buckling? ::: Young's modulus $E$ (stiffness) — NOT yield strength Effective length factor $K$ for fixed-free ::: $K = 2$ (weakest common case) Effective length factor $K$ for fixed-fixed ::: $K = 0.5$ (strongest) Critical buckling stress in terms of slenderness ::: $\sigma_{cr} = \pi^2 E/(L_e/r)^2$ Definition of slenderness ratio ::: $\lambda = L_e/r$, with $r=\sqrt{I/A}$ Effect of doubling column length on $P_{cr}$ ::: Drops to one quarter ($P_{cr}\propto 1/L^2$) Why a hollow tube buckles better than solid rod of equal area ::: It has larger $I$ (material further from neutral axis) --- > [!recall]- Feynman: explain to a 12-year-old > Take a dry spaghetti strand and push its ends together. For a gentle push nothing happens — it stays straight. Push a bit harder and *suddenly* it bows out to the side and snaps. It never gets crushed; it bends and gives up. That sudden bow-out is buckling. The push where it happens is bigger if the spaghetti is **short**, **thick**, and **stiff**, and smaller if it's **long** and **thin**. Euler's formula is just the maths for exactly *when* the spaghetti decides to bow. > [!mnemonic] Remember the formula > **"π² E I over L²"** → chant *"Pie-squared Eee-Eye over Ell-squared."* > And for what matters: **S**tiffness ($E$), **S**hape ($I$), **S**lenderness ($L$) — the **3 S's**, no strength. --- ## Connections - [[Second Moment of Area]] — the $I$ that sets bending stiffness. - [[Euler-Bernoulli Beam Theory]] — source of $EI\,y'' = M$. - [[Column End Conditions and Effective Length]] — the $K$ factors. - [[Yield vs Buckling — Failure Mode Selection]] — short vs slender columns. - [[Eigenvalue Problems in Mechanics]] — same math as vibration modes. - [[Spacecraft Load Paths & Launch Loads]] — where compressive buckling limits mass. - [[Safety Factors in Structural Design]] — applying $P_{cr}$ safely. ## 🖼️ Concept Map ```mermaid flowchart TD A[Slender column under load P] -->|fails by| B[Sideways bowing not crushing] B -->|above| C[Critical load P_cr] C -->|is| D[Tipping point of instability] E[Ideal Euler assumptions] -->|enable| F[Bent equilibrium shape y of x] F -->|axial P offset by y| G[Moment M = -P y] G -->|positive feedback| B H[Euler-Bernoulli beam theory] -->|gives| I[EI y'' = M] G -->|combined with| I I -->|yields ODE| J[y'' + k^2 y = 0, k^2 = P/EI] J -->|sine solutions| K[P_cr = pi^2 EI / L^2] K -->|defines| C ``` ## 🔊 Hinglish (regional understanding) > [!intuition]- Hinglish mein samjho > Dekho, buckling ka matlab hai ki ek lamba patla column (jaise pencil ya spaghetti) jab compress karo, toh wo crush hoke nahi tootta — wo achanak side me *mud* jaata hai aur collapse ho jaata hai. Jab tak load chhota hai, straight shape stable hai; ek certain load ke baad straight shape unstable ho jaati hai aur zara sa nudge dete hi column bend kar leta hai. Us tipping-point load ko hum **critical buckling load** $P_{cr}$ bolte hain. > > Euler ne ye kaise nikala? Simple: maan lo column thoda bend hai, deflection $y(x)$. Axial load $P$ ab deflected position pe lag raha hai, toh moment banta hai $M=-Py$. Beam theory se $EI\,y'' = M$. Dono ko jodo toh milta hai $y'' + (P/EI)\,y = 0$ — bilkul SHM jaisa equation, par space me. Iska solution sine-cosine hota hai. Pin-pin ends pe deflection zero, toh condition banti hai $\sin(kL)=0$, yaani $kL = n\pi$. Sabse chhote load ($n=1$) pe column pehle buckle karega: $P_{cr} = \pi^2 EI / L^2$. Shape ek half sine wave hoti hai. > > Yaad rakhne wali baat: buckling me **yield strength ka koi role nahi** — sirf $E$ (stiffness), $I$ (cross-section shape), aur $L$ (length) matter karte hain. Length double karo toh $P_{cr}$ char guna kam ho jaata hai (kyunki $1/L^2$). Isiliye hollow tube solid rod se better hota hai — same material me $I$ zyada milta hai kyunki material bahar hota hai. End conditions ke liye hum $L_e = KL$ use karte hain: pin-pin $K=1$, fixed-free $K=2$ (sabse weak), fixed-fixed $K=0.5$ (sabse strong). > > Spacecraft aur launch structures me ye bahut critical hai: rocket ke launch ke time huge compressive loads aate hain, aur har gram bachana hota hai. Engineer ko column ko itna hi patla banana hai ki weight kam ho par buckle na ho — isliye Euler formula se $I$ size karte hain aur upar se safety factor lagate hain. Yahi "80/20" idea hai: bas $P_{cr}=\pi^2 EI/L^2$ aur "$E,I,L$ matter, not strength" — ye do cheezein samajh lo toh 80% kaam ho gaya. ![[audio/3.6.06-Buckling-—-Euler-column-buckling-load-derivation.mp3]]
