Foundations — Buckling — Euler column buckling load derivation

Before you can read the derivation, you need the vocabulary. Below is every symbol and idea the parent uses, ordered so each one leans only on the ones above it. Read top to bottom once and the derivation will feel like plain English.

1. The column and its length $L$

Picture it: a pencil standing on a desk, or a drinking straw held upright between two fingers. The push comes from the top and bottom, squeezing along the straw.

Why the topic needs it: buckling is all about slenderness — length compared to thickness. $L$ is the "length" half of that comparison. As you will see, the buckling load shrinks like $1/L^2$, so $L$ is the single most important number.

2. Sideways deflection $y(x)$ and position $x$

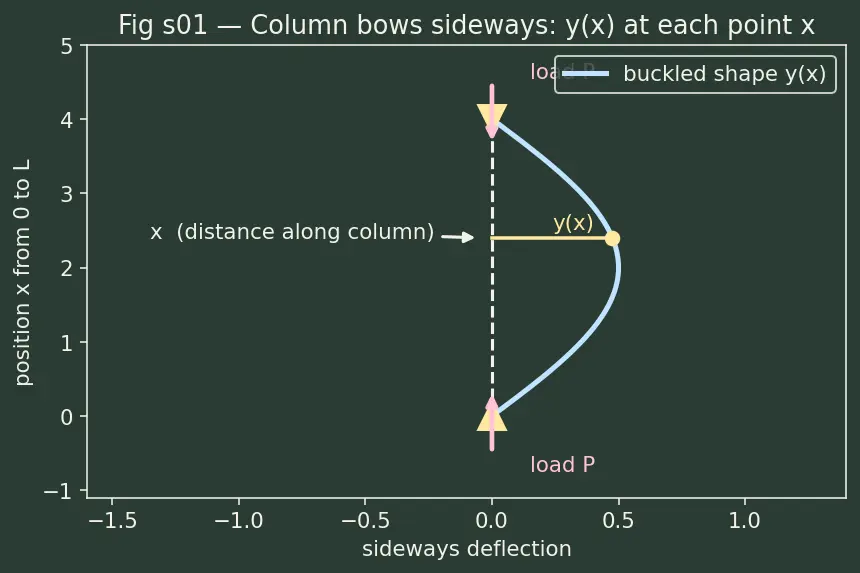

Look at the figure. We lay a ruler ($x$-axis) along the column's original straight line, and measure how far the column has drifted sideways at each point.

Why the topic needs it: "Buckling has happened" literally means "$y(x)$ is no longer zero". The whole hunt is: for what push $P$ can a non-zero $y(x)$ exist and just sit there in balance?

3. The load $P$

Picture it: your two hands pressing the ends of the straw toward each other.

Why the topic needs it: $P$ is the villain. Small $P$ → column stays straight. Cross the critical value → it bows. The parent's goal is one number: $P_{cr}$, the value of $P$ where bowing first becomes possible.

4. Turning force into twist: the bending moment $M$

Push on the column when it is already slightly bent. The push $P$ no longer lines up with the material — the material has slid sideways by $y$. A force acting at a sideways offset produces a turning effect.

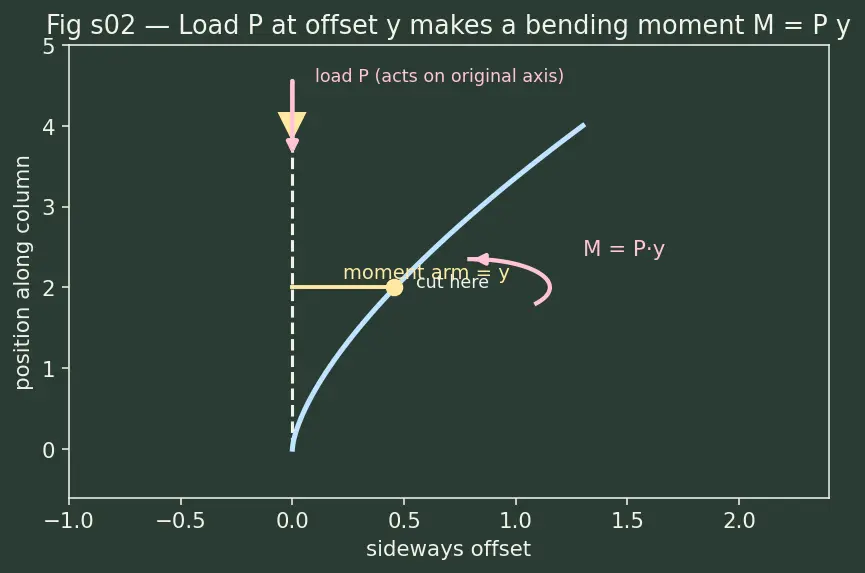

In the picture the red arrow is the load $P$; the offset $y$ is the moment arm. So the turning effect at that cut is $M=P\times y.$

The parent writes $M=-Py$; the minus sign is a bookkeeping choice saying "this moment bends the column further in the direction it already leaned" — a positive feedback loop that makes buckling run away.

5. How hard is it to bend? Stiffness $E$ and shape $I$

Two different quantities decide how much a given moment $M$ actually bends the bar.

See Euler-Bernoulli Beam Theory and the failure comparison in Yield vs Buckling — Failure Mode Selection.

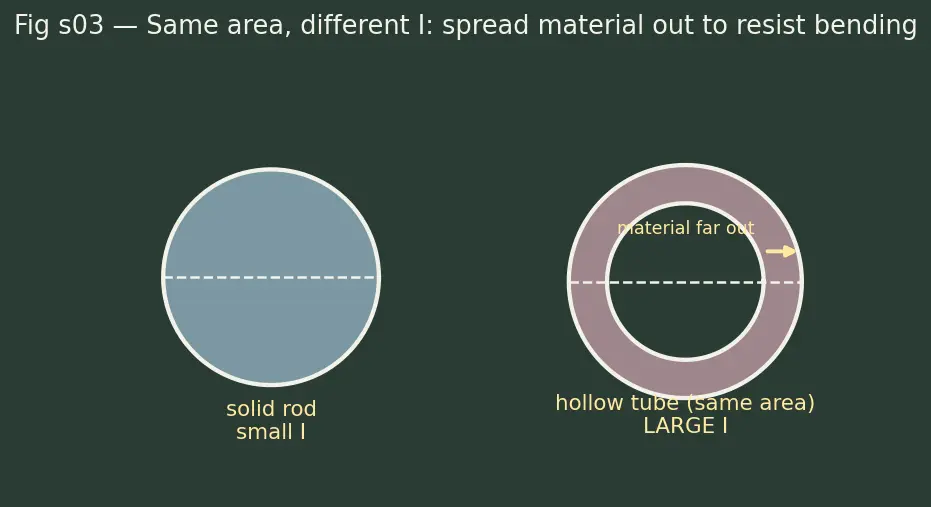

The figure shows two shapes of the same area: a solid rod versus a hollow tube. The tube pushes its material outward, so it has a much larger $I$ and resists bending far better — the parent's third "mistake" in disguise.

Why the topic needs both: bending resistance is the product $EI$. A stiff material ($E$ big) or a well-spread shape ($I$ big) both make the column harder to bow. Deep dive on shape lives in Second Moment of Area.

6. Curvature and the symbol $\frac{d^{2}y}{d{x}^2}$

The bending law contains $\frac{d^{2}y}{d{x}^2}$. Here's what that means from zero.

The parent uses the small-slope approximation: when the bow is gentle, curvature $\approx d^{2}y/d{x}^2$ exactly (no messy correction terms). That's why the equation stays simple and linear.

7. Boundary conditions and the constant $k$

Why the topic needs it: it collapses three symbols ($P$, $E$, $I$) into one, turning the governing equation into the clean, recognisable form $y^{\prime \prime }+k^{2}y=0$.

8. Eigenvalue problem (the punchline vocabulary)

Picture it: a guitar string only rings at certain frequencies — one hump, two humps, three humps. A column only buckles at certain loads, with matching sine-wave shapes. See Eigenvalue Problems in Mechanics.

Why the topic needs it: it explains why the answer isn't a smooth range but a discrete list $P=n^2{\pi }^{2}EI/L^2$, and why we pick the smallest one ($n=1$): the column buckles at the first load that permits a bent shape.

How the foundations feed the topic

Equipment checklist

Test yourself — you're ready when each reveal feels obvious.
