Intuition The one core ideaWhen you pull on a solid rod, it stretches — and the story of how much it stretches for how hard you pull is the entire subject. This page builds every letter and picture you need to read that story: force per area on one axis, fractional stretch on the other, and the two danger lines (permanent bend, then break) drawn across it.
Before you can read a stress–strain curve you must own every symbol on it. We build them one at a time, each one earning its place with a plain-words meaning, a picture, and a reason the topic can't do without it. Nothing below assumes you have seen any of it before.
Everything starts with a single object: a straight rod of metal being pulled at both ends. Look at the figure — this is the picture that every symbol on this page hangs off.
Definition The four things you can point at
The rod has an original length L 0 A 0
You pull it with a force F
It gets longer by a small amount Δ L Δ
"Cross-sectional area" = the area of the cut face, perpendicular to the pull. For a round rod of radius r A 0 = π r 2 A 0 = width × thickness
Why start here? Because the whole topic is two numbers measured on this one experiment. If the rod is clear, every symbol is just a label on part of it.
Force is a push or a pull. Its unit is the newton (N
Picture: the amber arrows in Figure 1. Longer arrow = harder pull = bigger F
Why the topic needs it: F cause . The rod stretches because you pull it. But — and this is the whole reason the next symbol exists — force alone does not tell you whether the rod is in danger.
Definition Original cross-sectional areaA 0 before you pull (the little subscript 0 m 2
Picture: the shaded disc in Figure 2 — the face you'd see if you cut the rod cleanly.
Intuition Why area matters as much as forceImagine two ropes, thick and thin, pulled by the same force. The thin one is closer to snapping. The same pull is "concentrated" in less material. That word concentration is exactly what the next symbol captures.
Now we combine the last two. The Greek letter σ
Definition Stress (engineering stress)Stress = force divided by the original area.
σ = A 0 F pascal (Pa N/m 2
Common mistake Pascals are tiny — expect big prefixesOne pascal is a very small stress. Real metals fail at millions of pascals, so the topic uses:
kilopascal 1 kPa = 1 0 3 Pa
megapascal 1 MPa = 1 0 6 Pa
gigapascal 1 GPa = 1 0 9 Pa
The parent note's "80 MPa 80 × 1 0 6
Why the topic needs it: σ σ Stress and strain fundamentals for the fuller treatment.
Strain (Greek letter ε ε = L 0 Δ L no units — it's a length divided by a length. A strain of 0.001 0.1%
Picture: in Figure 1, Δ L ε compared to the whole rod?"
Intuition Why fractional, not absoluteA 1 mm stretch on a 10 mm bolt is huge; the same 1 mm on a 10 m beam is nothing. Dividing by L 0 material , not the size of the sample . That's why two different-sized rods of the same metal share the same strain-at-yield.
Now we have both axes: σ ε
Definition Young's modulusYoung's modulus E σ = E ε ε E GPa
Common mistake Stiff is not strongE σ y σ u different ideas . A stiff material resists elastic stretch; a strong one resists breaking . See Young's modulus and elasticity .
These are just special values of σ
Definition Yield and ultimate stress
Yield stress σ y y Ultimate tensile stress σ u u

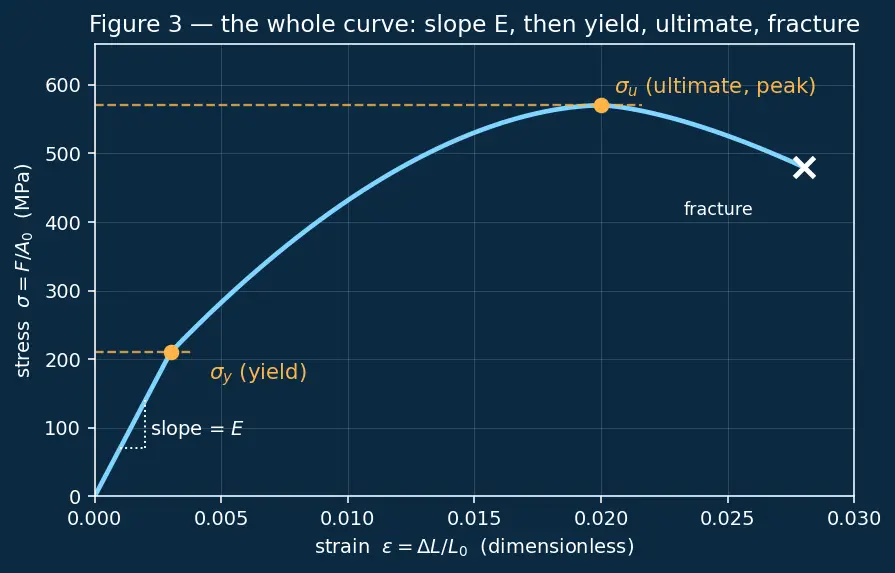

Picture: on Figure 3, σ y σ u
Intuition Why two numbers, not oneσ y "the part is now permanently bent — ruined for precision work." σ u "the part is about to break apart." Spacecraft design keeps the real stress below both , with room to spare. This feeds Factor of safety and margins and Material selection for spacecraft .
Two tiny bits of notation appear everywhere; don't let them trip you.
Definition Reading the small print
Δ "change in that quantity." So Δ L = L after − L before A subscript 0 A 0 L 0 "the original, undeformed value" — measured before any pulling.
Why the topic needs it: the whole subject compares before and after . Without the 0 starting area (that choice is what makes it "engineering" stress rather than "true" stress).
The last symbols aren't physics of the metal; they're how engineers use the numbers.
Definition Safety numbers
Factor of safety FoS Margin of safety MoS MoS ≥ 0 FoS = σ a pp σ allow , MoS = F o S r e q ⋅ σ a pp σ allow − 1
Intuition Why a ratio and why subtract oneA ratio answers "how much headroom, in multiples?" — a factor of 2 means "twice as much as we need." Subtracting one turns "we have 1.27× the required strength" into "+ 0.27 Factor of safety and margins , and the loads that set σ a pp Structural load cases and launch loads .
Stress sigma equals F over A0
Strain epsilon equals delta L over L0
Young modulus E is the slope
Design margins FoS and MoS
Material behavior for spacecraft
Read it top to bottom: force and area make stress; length-change and length make strain; those two axes plus the slope E σ y σ u parent topic is really about.
Self-test: cover the right side and answer each before revealing.
What does the symbol F Force (a push/pull); unit newton, N
What is A 0 0 The original (undeformed) cross-sectional area of the cut face; the 0
Write the definition of stress and its unit. σ = F / A 0 Pa = N/m 2
How many pascals is 1 MPa 1 0 6
Write the definition of strain and its units. ε = Δ L / L 0
What does Δ "Change in" — the after value minus the before value.
What is Young's modulus E The slope of the straight (elastic) part of the stress–strain graph; σ = E ε
Is a stiffer material (bigger E No — E σ y σ u
What does σ y The stress where permanent deformation begins — the line leaves the straight track.
What does σ u The peak — the maximum engineering stress the material sustains.
What does FoS How many times bigger the allowable stress is than the applied stress (a dimensionless ratio).
What does MoS ≥ 0 The part passes — it survives with the required safety factor built in.
Mnemonic Two axes, two dangersAcross = strain (how much it stretched), up = stress (how hard, per area). The two danger lines up the stress axis are yield (bends for good) then ultimate (breaks).
