Three independent reasons, all from atomic structure:
No melting point — it sublimes. Graphite goes solid → gas at ~3640 °C without a liquid phase. There is never a soft molten stage that loses shape.
Strength increases with temperature (up to ~2000 °C) because thermal vibrations relieve internal flaws and graphitic bonds tighten — the opposite of metals, which weaken.
Low thermal expansion + high conductivity → it sheds heat sideways and barely changes size, so it doesn't crack from thermal shock.
Why is RCC made of carbon and carbon? → both phases survive >3000 °C; nothing low-melting remains.
What single property makes it oxidation-prone? → carbon oxidises in air above ~400 °C.

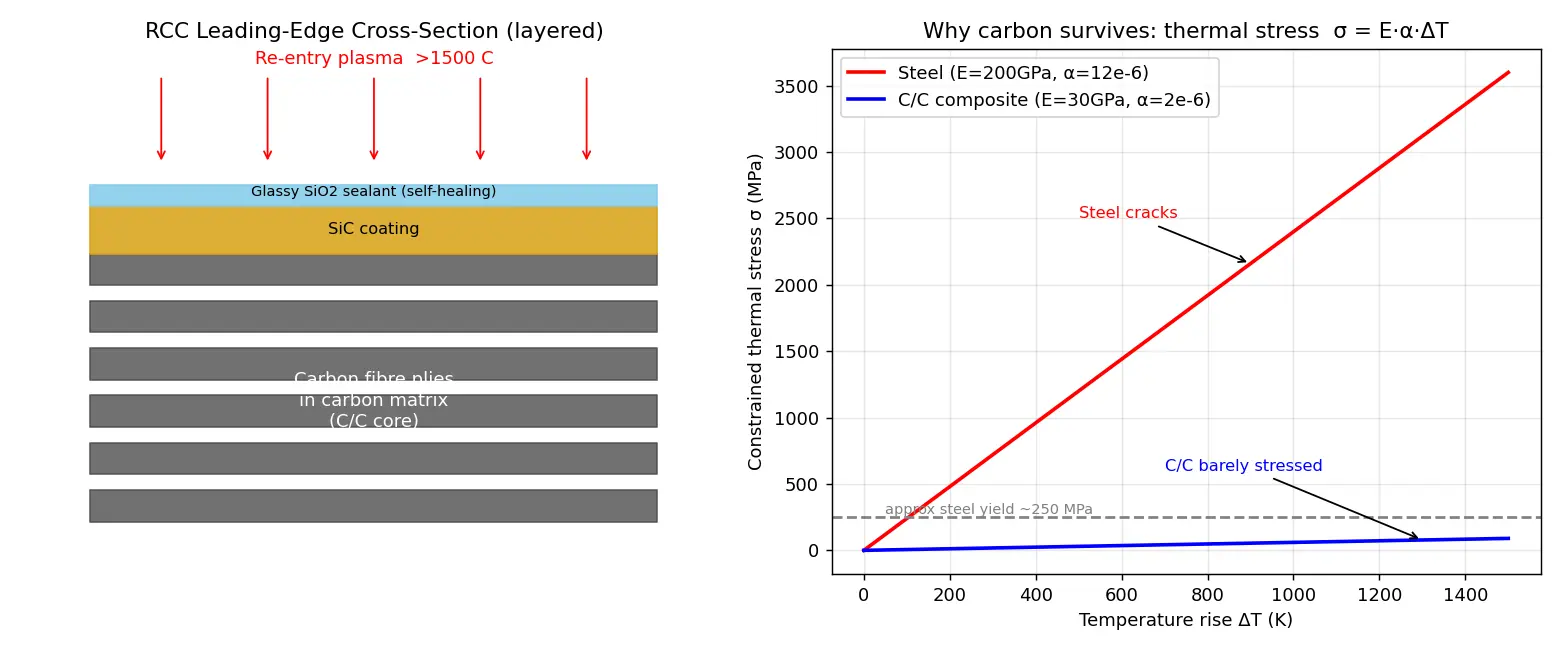

Equation that explains crack resistance? → σ=EαΔT, small α.
What coating protects it and how does it self-heal? → SiC oxidising to glassy SiO₂ that flows into cracks.
Why multiple densification cycles? → to fill porosity left by pyrolysis volatiles.
Recall Feynman: explain to a 12-year-old
Imagine the front of a spaceship coming back to Earth — the air rubbing on it gets hotter than lava. Metal would melt like an ice cube. So engineers make the nose out of pencil-lead stuff (carbon) — strings of carbon cloth glued with more carbon. Carbon never turns into a puddle; it just goes straight to gas at insanely high temperatures, so it keeps its shape. The only trouble is carbon burns in air, like charcoal in a BBQ. So they paint it with a special glassy coating that melts a little and plugs any tiny crack, like self-healing skin. If that coating gets a hole, the carbon underneath starts to burn — and that's exactly what doomed the Columbia shuttle.
Dekho, jab spacecraft wapas Earth ke atmosphere mein ghusta hai, to nose cone aur wing ke aage wale kinare (leading edges) pe air itni garam ho jaati hai ki temperature 1500 °C se bhi upar chala jaata hai. Normal metal to pighal jaayega, aur ceramic crack kar jaayega. Isliye engineers ek mast material use karte hain — Carbon–Carbon composite (RCC). Ismein carbon fibre ka cloth hota hai jo carbon ke matrix mein bandha hota hai. Dono cheezein carbon hain — aur carbon kabhi pighalta nahi, seedha gas ban jaata hai (~3600 °C pe sublimation). Isliye shape kabhi bigadta nahi.
Sabse important reason hai thermal stress ka formula: σ=EαΔT. Carbon ka α (expansion coefficient) bahut chhota hai, isliye bahut garam hone par bhi usme stress kam banta hai aur wo crack nahi karta. Aur ek interesting baat — carbon garam hone par strong hota hai (~2000 °C tak), jabki metal kamzor ho jaata hai. Ye opposite behaviour hi isko special banata hai.
Banane ka process simple casting se nahi hota, kyunki carbon ko pighla ke daal nahi sakte. Pehle phenolic resin ke saath fibre cloth ka layup karte hain, phir pyrolysis (inert gas mein heat) se resin char ban jaata hai — par pores reh jaate hain. Phir baar-baar densification karke (resin dobara bhar ke ya methane gas se carbon deposit karke: CH4→C+2H2) un pores ko bharte hain.
Lekin ek badi problem hai: carbon air mein jal jaata hai 400 °C ke upar! Isliye upar SiC coating lagate hain jo oxidise hoke glassy SiO2 banata hai aur chhoti cracks ko khud bhar deta hai (self-healing). Agar ye coating tut jaaye to neeche ka carbon jalne lagta hai — yahi Columbia shuttle disaster (2003) mein hua tha. Toh yaad rakho: RCC garmi jhel leta hai, par oxygen se bachana padta hai.
