Ceramics — alumina, zirconia, silicon carbide, silicon nitride; properties at high T

The four workhorses

Definition The roster

Ceramic	Formula	Bond type	Star property	Aerospace use
Alumina	$Al_2O_3$	mostly ionic	cheap, hard, insulating	spark-plug insulators, substrates, wear parts
Zirconia	$ZrO_2$	ionic	toughest ceramic, low $k$	thermal barrier coatings (TBCs) on turbine blades
Silicon carbide	$SiC$	covalent	high $T$ strength, high $k$ , low density	CMC engine parts, heat shields
Silicon nitride	$Si_3N_4$	covalent	best thermal-shock resistance	bearings, turbine rotors

HOW high-T behaviour comes from bonding (derive the key ideas)

1. Melting point from bond energy

2. Why ceramics expand little (low thermal expansion $\alpha$ )

Formula Thermal expansion from an asymmetric bond well

Model the bond as a potential $U(x)$ around equilibrium $x=0$ : $U(x) = \tfrac{1}{2}c x^2 - g x^3$ The $c x^2$ term is the spring (stiffness); the $-g x^3$ term is anharmonicity — the well is steeper on the squeeze side than the stretch side. At temperature $T$ , the thermal average displacement is $\langle x\rangle \approx \frac{3 g}{4 c^2}\,k_B T$ so the linear expansion coefficient is $\alpha = \frac{1}{x_0}\frac{d\langle x\rangle}{dT}=\frac{3 g k_B}{4 c^2 x_0}.$ WHY this matters: stiff deep bonds = large $c$ , small $g/c^2$ → small $\alpha$ . Ceramics keep their shape when heated. (Derivation sketch: $\langle x\rangle=\frac{\int x\,e^{-U/k_BT}dx}{\int e^{-U/k_BT}dx}$ ; expand $e^{-U/k_BT}\approx e^{-cx^2/2k_BT}(1+\frac{gx^3}{k_BT})$ , do the Gaussian integrals, keep leading term.)

3. Why low $\alpha$ → great thermal-shock resistance

Formula Thermal stress and the shock parameter

Heat one face fast; it wants to expand by strain $\varepsilon=\alpha\,\Delta T$ but the cold interior restrains it. The constrained thermal stress is $\sigma_{th}=\frac{E\,\alpha\,\Delta T}{1-\nu}$ Fracture occurs when $\sigma_{th}=\sigma_f$ (fracture strength). Solving for the survivable temperature jump defines the thermal-shock figure of merit: $\boxed{R=\Delta T_{max}=\frac{\sigma_f(1-\nu)}{E\,\alpha}}$ WHY: want high strength $\sigma_f$ , low stiffness $E$ , low expansion $\alpha$ . Silicon nitride wins because its $\alpha$ is tiny (~ $3\times10^{-6}$ /K) → biggest $R$ . (Add the $k$ /conductivity term for severe shock: $R'=R\cdot k$ .)

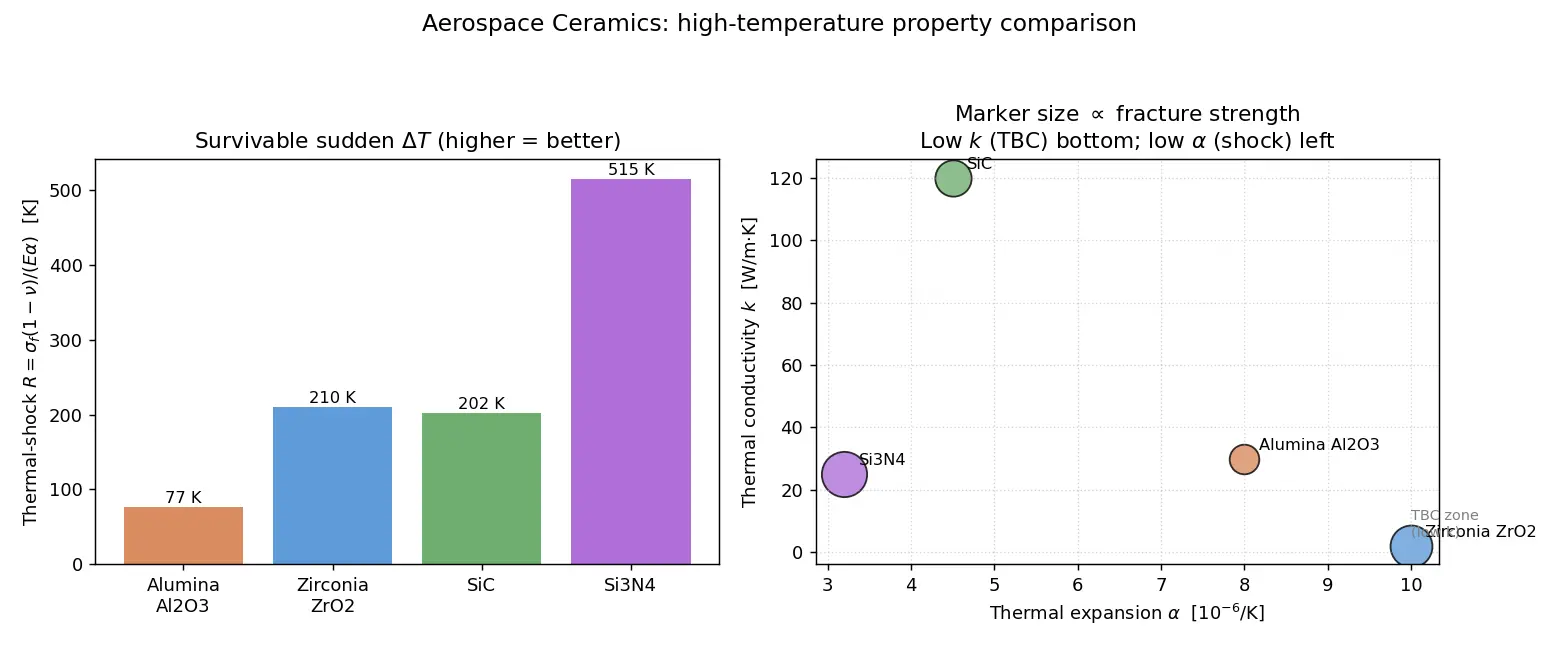

Figure — Ceramics — alumina, zirconia, silicon carbide, silicon nitride; properties at high T

4. Why we make thermal barrier coatings from zirconia

The toughness trick: transformation toughening in zirconia

Intuition WHY zirconia is the toughest ceramic

Pure $ZrO_2$ changes crystal shape (tetragonal → monoclinic) on cooling, with a ~4% volume increase. If you "freeze" the tetragonal phase at room $T$ (by adding ~3% $Y_2O_3$ — partially stabilised zirconia, PSZ), then a passing crack's stress triggers the transformation locally at the crack tip. The 4% expansion squeezes the crack shut (compressive stress), so the crack must do extra work to advance. $K_{Ic}(\text{toughened}) = K_{Ic}(\text{matrix}) + \Delta K_{transformation}$ Result: zirconia's $K_{Ic}\approx 8$ – $12\ \text{MPa·m}^{1/2}$ , several times tougher than alumina (~4). HOW to remember: the crack tries to open the door, the crystal slams a bigger door in its face.

Worked examples

Worked example (1) Will alumina survive a thermal shock

$\Delta T=200$ K? Data: $\sigma_f=300$ MPa, $E=380$ GPa, $\alpha=8\times10^{-6}$ /K, $\nu=0.22$ . Step — induced stress: $\sigma_{th}=\dfrac{E\alpha\Delta T}{1-\nu}=\dfrac{380\times10^{9}\cdot8\times10^{-6}\cdot200}{0.78}$ . Why this step? The constrained part can't expand, so the strain $\alpha\Delta T$ converts to stress via Hooke's law (with $1-\nu$ for biaxial constraint). $\sigma_{th}=\dfrac{608\times10^{6}}{0.78}\approx 7.8\times10^{8}$ Pa $=780$ MPa. Step — compare: $780 > 300$ MPa $=\sigma_f$ → it cracks. The safe limit is $\Delta T_{max}=R=\dfrac{\sigma_f(1-\nu)}{E\alpha}=\dfrac{300\times10^{6}\cdot0.78}{380\times10^{9}\cdot8\times10^{-6}}\approx 77$ K. Why: tells the designer alumina tolerates only ~77 K sudden jumps — hence not for thermal-shock duty.

Common mistakes (steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine LEGO where every brick is glued super-hard to its neighbours in a fixed direction. You can't bend it — push too hard and it snaps. But because the glue is so strong, it stays solid even in a fire that would melt metal. We use these "fire bricks" inside jet engines. One special one (zirconia) is sneaky: when a crack tries to grow, tiny crystals nearby puff up bigger and squeeze the crack shut, so it's super tough. Another (zirconia again) is a great blanket that keeps heat out, so we paint it on engine blades.

Connections

Thermal Stress and Fracture Mechanics — origin of $R=\sigma_f(1-\nu)/E\alpha$
Ceramic Matrix Composites (CMCs) — how SiC fibres fix brittleness
Thermal Barrier Coatings on Superalloys — zirconia in engines
Nickel Superalloys — the metal these ceramics protect
Crystal Bonding — Ionic vs Covalent — why directional bonds → brittle
Phase Transformations — tetragonal↔monoclinic in zirconia

Flashcards

Why are ceramics brittle while metals are ductile?

Directional ionic/covalent bonds resist dislocation motion (sliding brings like charges together / breaks rigid bonds), so cracks propagate instead of the lattice flowing.

Write the thermal-shock figure of merit and what each term should be for good resistance.

R=\dfrac{\sigma_f(1-\nu)}{E\alpha}

; want high

\sigma_f

, low

E

, low

\alpha

Which ceramic is the best thermal-shock resistor and why?

Silicon nitride — very low

\alpha

(~3×10⁻⁶/K) and moderate strength maximise

R

Which ceramic is used as a thermal barrier coating and why?

Zirconia (Y-stabilised) — very low

k

(~2 W/m·K) blocks heat, and

\alpha

matched to the metal blade so it doesn't spall.

What is transformation toughening?

In partially-stabilised zirconia, crack-tip stress triggers tetragonal→monoclinic transformation with ~4% volume expansion that compresses and closes the crack, raising

K_{Ic}

Why is yttria added to zirconia?

To stabilise the tetragonal phase at room T, enabling transformation toughening and preventing the destructive volume change on cooling.

Why does low thermal expansion give high melting point character?

Both stem from deep, stiff (low-anharmonicity) bonds: small

g/c^2

→ small

\alpha

; large bond energy → high

T_m

How does SiC survive hot air despite being a non-oxide?

Passive oxidation forms a protective, self-healing SiO₂ glass layer (up to ~1600 °C).

In which loading mode are ceramics strong vs weak?

Strong in compression, weak in tension (cracks open under tension).

Formula for constrained thermal stress in a heated ceramic.

\sigma_{th}=\dfrac{E\,\alpha\,\Delta T}{1-\nu}

Why does zirconia have low thermal conductivity?

Heavy disordered (doped) lattice scatters phonons strongly, giving k≈2 W/m·K.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jet engine ke andar gases 1500 °C se upar chali jaati hain — yahan steel aur nickel superalloys bhi pighal jaate ya soft ho jaate hain. Isliye humein ceramics chahiye: ye inorganic, non-metallic solids hain jinmein atoms ionic + covalent bonds se bandhe hote hain. Ye bonds bahut deep aur directional hote hain, isliye atoms slip nahi karte — result: high melting point, high hardness, aur low thermal expansion. Lekin yahi directional bonds ek problem bhi dete hain: ceramics ductile nahi hote, wo crack se toot-te hain (brittle). Ye tension mein weak par compression mein bahut strong hote hain.

Char main ceramics yaad rakho. Alumina (Al2O3) — sasta, hard, insulator, spark-plug aur substrates ke liye. Zirconia (ZrO2) — sabse tough ceramic kyunki "transformation toughening" hota hai (crack tip pe crystal 4% phool kar crack ko band kar deta hai), aur iska thermal conductivity bahut low hai isliye turbine blades pe Thermal Barrier Coating (TBC) ke roop mein lagta hai. Silicon carbide (SiC) — high temperature pe strong, light, heat conduct karta hai. Silicon nitride (Si3N4) — thermal shock ka raja, kyunki iska alpha (expansion) sabse kam hai.

Thermal shock ka funda simple hai: jab ek face ko jaldi garam karte ho, wo expand karna chahta hai par andar ka thanda part roknta hai, isse stress banta hai: $\sigma_{th}=E\alpha\Delta T/(1-\nu)$ . Jab ye stress fracture strength se zyada ho jaye, crack aa jaata hai. Isliye survival ka formula hai $R=\sigma_f(1-\nu)/(E\alpha)$ — high strength, low stiffness, low expansion chahiye. Yaad rakhna: high melting point ka matlab high shock resistance nahi hota — ye alag baat hai. SiC aur Si3N4 hawa mein bhi survive karte hain kyunki upar protective SiO2 glass ki layer ban jaati hai jo khud heal hoti hai. Bas yahi core intuition hai — deep bonds se sab properties nikalti hain.
