Thermal protection — silica tiles (Shuttle), UHTCs (ZrB₂, HfB₂)

WHY thermal protection is hard

WHY this form? (derive from first principles):

The vehicle dissipates kinetic energy at a rate set by the air mass flux into the shock, $\dot m \propto \rho V$ , and the energy per unit mass it must absorb $\propto V^2$ (kinetic energy term). Multiply: power flux $\propto \rho V \cdot V^2 = \rho V^3$ . → the $V^3$ dependence.
The $\rho^{1/2}$ and $R_n^{-1/2}$ come from boundary-layer theory (Fay–Riddell): a thinner boundary layer (smaller nose) conducts heat faster, hence sharp edges are punished.

Philosophy 1 — Silica tiles (insulate / "block the heat")

WHY silica?

Amorphous SiO₂ has a very low thermal conductivity $k$ — the random network + huge porosity means few continuous conduction paths.
It has a low coefficient of thermal expansion, so it doesn't crack on rapid heating/cooling.
High melting/softening point (~1700 °C) — enough for windward Shuttle surfaces (~1260 °C).

Philosophy 2 — UHTCs (survive / "take the heat")

Material	Melting point	Role
ZrB₂	~3245 °C	sharp-edge structural ceramic
HfB₂	~3380 °C	highest-T leading edges
SiC (additive)	~2700 °C	forms protective glass, see below

WHY do diborides melt so high?

Strong covalent + metallic mixed bonding: a Zr/Hf metal sublattice (metallic, gives conductivity) interleaved with strong covalent B–B sheets. Breaking this network costs enormous energy ⇒ high melting point and high hardness.
High thermal conductivity (unlike silica!) spreads heat from the sharp tip, avoiding local hotspots.

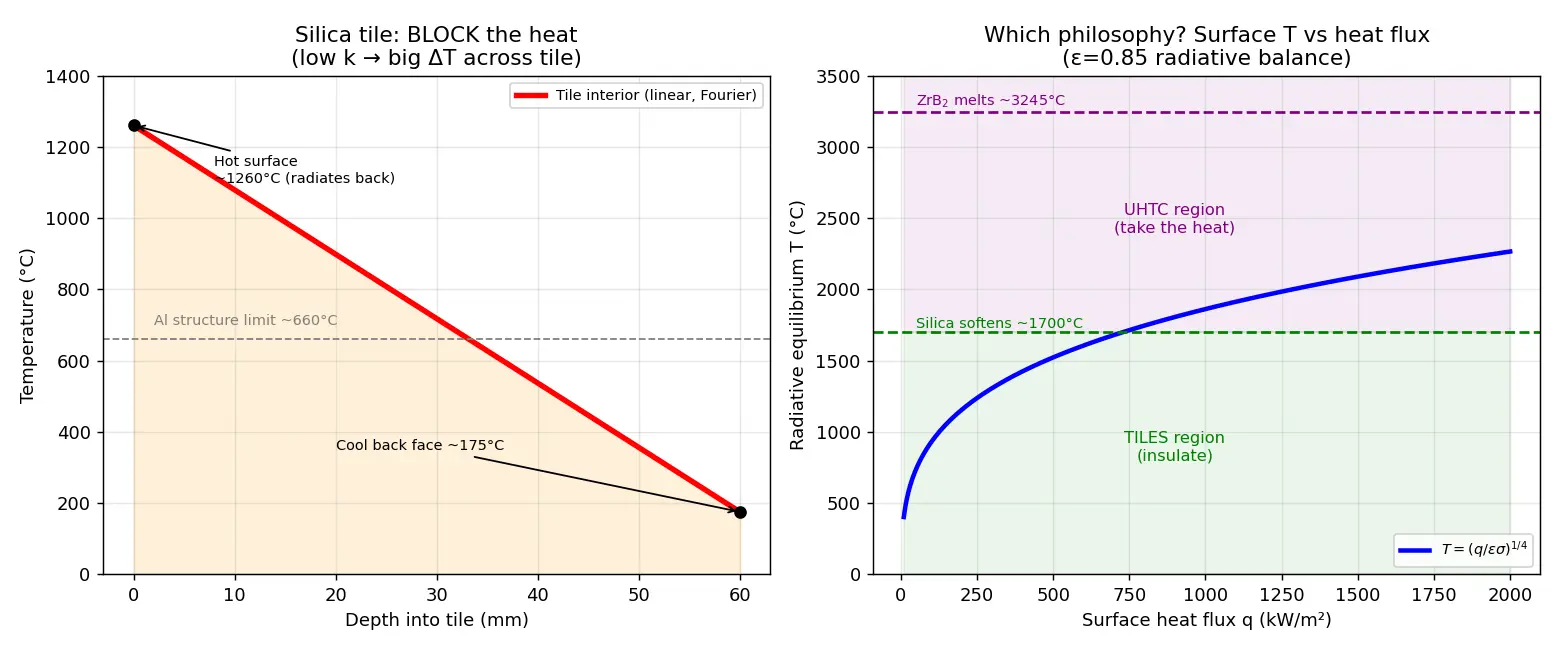

Figure — Thermal protection — silica tiles (Shuttle), UHTCs (ZrB₂, HfB₂)

Worked examples

Worked example 2 — Radiative equilibrium surface temperature

A leading edge receives $q=1.0\times10^{6}\ \mathrm{W/m^2}$ and re-radiates with $\varepsilon=0.85$ . Find equilibrium $T$ . Set incoming = radiated: $q=\varepsilon\sigma T^4$ , $\sigma=5.67\times10^{-8}$ . $T=\left(\frac{q}{\varepsilon\sigma}\right)^{1/4}=\left(\frac{10^6}{0.85\times5.67\times10^{-8}}\right)^{1/4}$ $=\left(2.07\times10^{13}\right)^{1/4}\approx 2135\ \mathrm{K}\;(\approx1860\,^\circ\mathrm{C})$ Why this step? Balance is justified because at steady state the only escape for the heat is radiation. $T\approx2135$ K exceeds silica's ~1700 °C limit → you need a UHTC here. This single calculation tells you which philosophy to use.

Common mistakes

Active recall

Recall Quick self-test (cover the answers)

What two opposite philosophies do silica tiles and UHTCs represent? → block/insulate vs take/survive.
Why does $q$ scale as $V^3$ ? → mass flux $\rho V$ × kinetic energy $V^2$ .
Why add SiC to ZrB₂? → forms protective self-healing SiO₂/borosilicate glass.
Why are sharp noses hot? → $q\propto R_n^{-1/2}$ .
What role does the black glaze play? → high $\varepsilon$ for radiative cooling, $q_\text{rad}=\varepsilon\sigma T^4$ .

Recall Feynman: explain to a 12-year-old

Coming back from space is like sliding down a giant slide so fast the air in front of you turns into fire. To not get burned you have two tricks. Trick one: wear a fluffy fireproof sweater that's mostly air (the Shuttle's white-and-black tiles) — heat can't sneak through fluff, and the outside glows and throws the heat back like a mirror. Trick two: for the pointy tip of your nose-cone, the sweater's no good because it's too thin there, so you make the tip out of a super-ceramic that simply doesn't mind being 3000 degrees and even grows its own glassy band-aid when air tries to rust it. Fluffy blanket for the big flat parts, tough magic ceramic for the sharp points.

Flashcards

Why does stagnation heat flux scale as

V^3

Mass flux of air into shock

\propto \rho V

, energy per mass

\propto V^2

; product

\propto \rho V^3

What is LI-900?

Shuttle reusable surface insulation: ~94% porous amorphous silica fibre tile, density 144 kg/m³, RCG black glaze.

Why is amorphous silica a good insulator?

Random disordered network + huge porosity → very low thermal conductivity

k

, plus low thermal expansion (no cracking).

Why does a black glaze help?

High emissivity

\varepsilon\approx0.9

→ strong radiative cooling

q_\text{rad}=\varepsilon\sigma T^4

, dumping heat back to space.

Two example UHTCs and their melting points?

ZrB₂ (~3245 °C) and HfB₂ (~3380 °C).

Why do diborides melt so high?

Mixed strong covalent (B–B) + metallic (Zr/Hf) bonding network needs huge energy to break.

Why add SiC to ZrB₂?

It oxidises to SiO₂ forming a self-healing borosilicate glass that seals against O₂ diffusion.

What's wrong with relying on B₂O₃ alone for protection?

B₂O₃ is volatile and evaporates above ~1100 °C, leaving porous ZrO₂; needs SiC-derived glass for stability.

Formula for back-face temperature of a tile?

T_\text{cold}=T_\text{hot}-qL/k

(steady 1-D Fourier conduction).

Why use UHTCs on sharp leading edges instead of tiles?

q\propto R_n^{-1/2}

: sharp edges get extreme flux with no volume to insulate, so you need a material stable at the equilibrium temperature.

Equilibrium surface temperature from radiation balance?

T=(q/\varepsilon\sigma)^{1/4}

Connections

Fourier's Law of Heat Conduction
Stefan-Boltzmann Radiation Law
Covalent vs Metallic Bonding
Oxidation Kinetics and Protective Oxide Layers
Ablative Heat Shields (Apollo, PICA)
Amorphous vs Crystalline Solids
Refractory Ceramics and Carbides
Re-entry Aerodynamics & Boundary Layers

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab koi spacecraft atmosphere mein wapas ghusta hai, woh itni tezi se aata hai ki saamne ki air compress hokar hazaaron degree tak garam ho jaati hai. Yeh heat flux velocity ke cube ke proportional hota hai — yaani $q \propto V^3$ — isiliye Moon se wapas aana (11 km/s) LEO se aane (7.8 km/s) se kareeb 3× zyada garam hota hai. Aur ek important baat: sharp nose pe heat zyada concentrate hota hai kyunki $q\propto R_n^{-1/2}$ .

Ab do alag philosophies hain. Pehli — silica tiles (Shuttle wali). Yeh amorphous SiO₂ ki bani hoti hain, 94% air, matlab bahut porous aur bahut low thermal conductivity $k$ . Kaam: heat ko block karo. Fourier's law se $\Delta T = qL/k$ — low $k$ matlab tile ke aar-paar bohot bada temperature drop, to bahar 1260°C aur andar aluminium thanda (~175°C). Upar black glaze hota hai jiska emissivity high hota hai, to woh $\varepsilon\sigma T^4$ ke through heat wapas space mein radiate kar deta hai. Yeh "garam ho jao aur chamak ke heat wapas phenk do" wala trick hai.

Doosri philosophy — UHTCs jaise ZrB₂ aur HfB₂, jinka melting point 3000°C ke upar hai. Sharp leading edges pe heat itna zyada hota hai ki insulate karne ki jagah hi nahi bachti, to wahan aisa material chahiye jo sach mein 3000°C bear kar sake. Inka melting point itna high isliye hai kyunki bonding mixed covalent + metallic hoti hai — todna mushkil. Inke saath SiC milaate hain: hot air mein SiC oxidise hokar SiO₂ glass banata hai jo ek self-healing band-aid ki tarah surface ko seal kar deta hai aur oxygen ko andar nahi jaane deta. Yaad rakho: tiles block karte hain, borides bear karte hain.
