Symbols you need first (read before the traps)

Every trap below uses a handful of letters. If any symbol is unfamiliar, none of the reasoning will land — so here is the whole alphabet of this page, each in plain words with its units.

Definition The five symbols on this page

$q$ = heat flux: the amount of heat energy crossing one square metre of surface every second. Units: watts per square metre, $W/ m^{2}$ . Picture a stream of heat pouring through a window one metre on a side — $q$ counts how fast it flows.
$k$ = thermal conductivity: how easily a material lets heat flow through it. Units: $W m^{- 1} K^{- 1}$ . Big $k$ = heat sprints through (metals, UHTCs); tiny $k$ = heat crawls (silica foam). It is the material's "openness" to heat.
$L$ = thickness of the shielding layer, measured straight through it from the hot outer face to the cool inner face. Units: metres, $m$ . It is simply how far the heat has to travel to reach the structure.
$ε$ = emissivity: a pure number between $0$ and $1$ saying how good a surface is at radiating heat away as light. A perfect radiator (black body) has $ε = 1$ ; a shiny mirror is near $0$ . The black glaze pushes $ε \approx 0.9$ .
$σ$ = Stefan–Boltzmann constant, a fixed number of nature: $σ = 5.67 \times 1 0^{- 8} W m^{- 2} K^{- 4}$ . It is the exchange rate that converts a surface's temperature into radiated power (defined by the law below).
$R_{n}$ = nose radius: the radius of the imaginary sphere that best fits the vehicle's blunt front. Units: metres, $m$ . A beach-ball nose has large $R_{n}$ ; a needle tip has $R_{n} \to 0$ . It measures how blunt vs sharp the leading point is.

Formula The two laws these symbols live in

Fourier's law of conduction (positive convention first). The magnitude of heat flux through a slab is $q = k \frac{Δ T}{L}, Δ T = T_{hot} - T_{cold}$ i.e. flux = conductivity × temperature drop ÷ thickness. The full directional form carries a minus sign, $q = - k \frac{d T}{d x},$ and the minus is not a typo: it says heat always flows down the temperature slope, from hot toward cold. When we only want the size of the flow (as in every calculation here) we use the positive form; when we care about direction we keep the minus. Same law, two dresses — see Fourier's Law of Heat Conduction.

Stefan–Boltzmann law of radiation. Any surface at absolute temperature $T$ (in kelvin) radiates heat as $q_{rad} = ε σ T^{4}$ — power per square metre grows like the fourth power of temperature, so a surface that gets twice as hot radiates $2^{4} = 16 \times$ as much. See Stefan-Boltzmann Radiation Law.

Intuition WHY sharper noses burn hotter — the

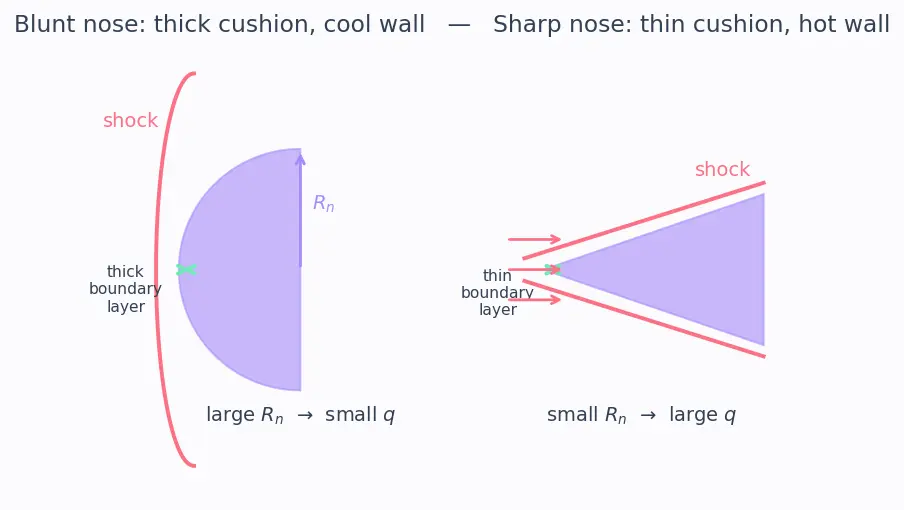

$R_{n}^{- 1/2}$ scaling, felt not memorised Look at the sketch. A blunt nose (large $R_{n}$ ) pushes the super-hot shock gas far out in front and grows a thick cushion of slower gas — the boundary layer — between that shock and the wall. Heat must crawl across this thick cushion to reach the surface, so little arrives. A sharp nose (small $R_{n}$ ) hugs the shock right against the skin: the boundary layer is thin, so heat has almost no cushion to cross and pours straight in. Boundary-layer theory makes this precise — the layer thickness grows roughly like $R_{n}$ , and conducted flux goes like $1/ (thickness)$ , giving $q \propto \frac{1}{R _{n}} = R_{n}^{- 1/2} .$ So halving the nose radius multiplies the flux by $2 \approx 1.4$ ; a true point ( $R_{n} \to 0$ ) predicts infinite flux. That single fact is why UHTCs exist — see Re-entry Aerodynamics & Boundary Layers.

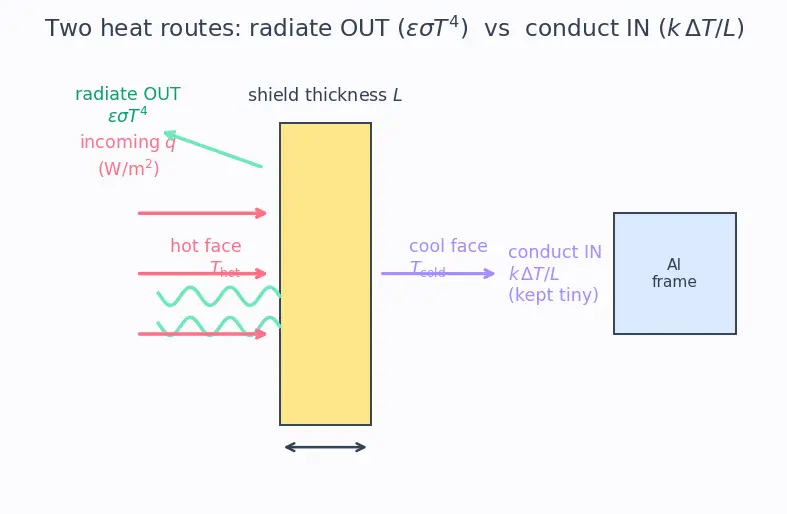

The next figure sums up the two escape routes every heat shield juggles — conduction inward (bad, governed by $k, L$ ) versus radiation back out (good, governed by $ε, σ, T^{4}$ ).

Figure — Thermal protection — silica tiles (Shuttle), UHTCs (ZrB₂, HfB₂)

True or false — justify

Recall Cover the answers

A material with a higher melting point is always the better heat shield. ::: False — for the Shuttle's broad windward surfaces the winner is low-melting silica, because there the job is insulate + re-radiate, not survive 3000 °C. Melting point only decides on sharp edges where insulation is impossible. Silica tiles work mainly by storing the incoming heat inside their mass. ::: False — they work by low conductivity (blocking inward flow) plus radiating most of the heat straight back to space via the black glaze; storage in ~144 kg/m³ foam is negligible. UHTCs are chosen for leading edges because they have a very low thermal conductivity. ::: False — the opposite. Leading edges want high $k$ to spread heat away from the tiny hot tip so no local spot exceeds the material limit; there's no volume to insulate with. Because ceramics are chemically inert, ZrB₂ does not oxidise in hot air. ::: False — ZrB₂ readily oxidises to $Zr O_{2} + B_{2} O_{3}$ . Its protection is kinetic: a glassy oxide slows further O₂ diffusion, not thermodynamic inertness. Doubling re-entry velocity roughly doubles the peak heat flux. ::: False — flux scales as $V^{3}$ , so doubling $V$ gives $2^{3} = 8 \times$ the flux. This is why lunar return is far harsher than low-orbit return. A sharper (smaller nose radius $R_{n}$ ) vehicle experiences less stagnation heating because it presents less area. ::: False — $q \propto R_{n}^{- 1/2}$ , so a sharper nose gives a thinner boundary layer that conducts heat faster and concentrates it, making the tip hotter. Adding SiC to ZrB₂ raises its melting point, and that is why SiC is added. ::: False — SiC actually melts lower (~2700 °C) than ZrB₂ (~3245 °C). It is added because on oxidation it forms a stable, self-healing borosilicate glass that seals the surface. The black RCG glaze on a Shuttle tile is there mainly for appearance and toughness. ::: False — its main function is high emissivity ( $ε \approx 0.9$ ) so the surface radiates a large fraction of incoming heat back to space; toughness against rain/erosion is secondary. Amorphous silica insulates well largely because it is crystalline and ordered. ::: False — it insulates because it is amorphous plus ~94% porous: the random network and air-filled voids give few continuous conduction paths (see Amorphous vs Crystalline Solids).

Spot the error

Recall Cover the answers

"In steady state the tile conducts $q = 12, 000 W/ m^{2}$ and drops the temperature by 14,400 K across its 6 cm." — what's wrong? ::: The 14,400 K is a capacity figure, not a real temperature drop; it shows the tile could block essentially all of $q$ . In reality the surface radiates most of $q$ away, so the conducted flux is tiny. "Since $q = ε σ T^{4}$ balances the incoming flux, a lower emissivity $ε$ gives a lower equilibrium surface temperature." — spot the flaw. ::: Backwards: lower $ε$ means the surface radiates less efficiently, so it must run hotter to dump the same $q$ . $T = (q / ε σ)^{1/4}$ rises as $ε$ falls. "Fourier's law says $q = + k d T / d x$ , so as long as $q$ is positive heat can climb from cold to hot." — find the error. ::: The directional form is $q = - k d T / d x$ ; the minus sign forces heat to flow down the gradient, hot to cold. The positive form $q = k Δ T / L$ we use in calculations is just the magnitude, with $Δ T$ already taken as hot minus cold. " $Zr B_{2} + \frac{5}{2} O_{2} \to Zr O_{2} + B_{2} O_{3}$ gives a permanent protective coat, so bare ZrB₂ is fine above 1100 °C." — what's overlooked? ::: $B_{2} O_{3}$ is volatile and evaporates above ~1100 °C, leaving porous $Zr O_{2}$ that no longer protects. That's precisely why SiC is added. "Apollo used silica tiles because returning from the Moon needed the best insulator." — correct the claim. ::: Apollo used an ablative shield (see Ablative Heat Shields (Apollo, PICA)), not reusable tiles, because lunar-return flux (~3× LEO from the $V^{3}$ scaling) was too severe for insulate-and-reuse. "Because $q \propto ρ^{1/2}$ , re-entry is worst deep in the dense lower atmosphere." — where's the trap? ::: Peak heating occurs high up where the vehicle is still very fast; by the time density is high, $V$ has already dropped sharply, and the $V^{3}$ term dominates the product $ρ^{1/2} V^{3}$ .

Why questions

Recall Cover the answers

Why does heat flux scale as $V^{3}$ and not $V^{2}$ , even though kinetic energy is $\frac{1}{2} m V^{2}$ ? ::: One factor of $V$ comes from the rate air is swept into the shock (mass flux $\propto ρ V$ ); the $V^{2}$ comes from the energy each unit of that mass carries. Their product gives $ρ V^{3}$ (see Re-entry Aerodynamics & Boundary Layers). Why does the flux climb as the nose radius $R_{n}$ shrinks? ::: A smaller $R_{n}$ means a thinner boundary-layer cushion between shock and wall (thickness grows like $R_{n}$ ), and heat crosses a thinner cushion faster, so $q \propto R_{n}^{- 1/2}$ — sharp tips are punished with the highest flux. Why do metal diborides like ZrB₂ melt above 3000 °C? ::: They combine a metallic Zr/Hf sublattice with strong covalent B–B sheets (Covalent vs Metallic Bonding); breaking this mixed network costs enormous energy, giving very high melting points and hardness. Why can UHTCs afford to conduct heat well (high $k$ ) while silica must not? ::: A UHTC leading edge is genuinely stable at the equilibrium temperature, so spreading heat away prevents hotspots. Silica is not stable at those temperatures, so it must block inward flow (low $k$ ) and let radiation do the dumping. Why is the SiC → SiO₂ oxide "self-healing"? ::: The $Si O_{2}$ forms a glassy layer; where cracks or gaps appear, fresh oxidation flows glass into them and re-seals, continuously restoring the O₂ diffusion barrier (Oxidation Kinetics and Protective Oxide Layers). Why does a low coefficient of thermal expansion matter for silica tiles, separate from low $k$ ? ::: Rapid heating/cooling creates steep temperature differences; a low expansion coefficient means the tile barely changes size, so it resists cracking from thermal stress even when the outside is glowing and the inside is cool. Why does the equilibrium-temperature calculation immediately tell you which philosophy to use? ::: If the radiative equilibrium $T = (q / ε σ)^{1/4}$ exceeds silica's ~1700 °C limit, insulation-and-radiation cannot survive it, so you must switch to a UHTC that is stable at that temperature.

Edge cases

Recall Cover the answers

What happens to the stagnation-heating formula as $R_{n} \to 0$ (a perfectly sharp tip)? ::: $q \propto R_{n}^{- 1/2} \to \infty$ , so an ideal sharp point predicts infinite flux. This is exactly why real sharp edges demand UHTCs — the flux blows up faster than any insulator can cope with. What is the back-face temperature limit as $k \to 0$ for a fixed conducted $q$ and thickness $L$ ? ::: $T_{cold} = T_{hot} - q L / k$ , so as $k \to 0$ the drop $q L / k \to \infty$ : a perfect insulator would fully protect the structure — the idealised best case for the "block the heat" philosophy. As surface temperature $T \to 0$ , what does the radiated flux $ε σ T^{4}$ do, and why does that matter for re-entry? ::: It vanishes ( $T^{4} \to 0$ ), meaning a cold surface radiates almost nothing. Radiative cooling only "turns on" once the surface is hot — the shield must get hot to shed heat, which is why glowing is survival, not failure. In the zero-oxygen limit (e.g. a vacuum arc-jet with inert gas), does the SiC glass mechanism still protect a UHTC? ::: No — with no O₂ there is no $Si O_{2}$ formed, so no protective glass. Here survival rests purely on the intrinsic melting point and thermal conductivity of the diboride, not oxidation kinetics. If a Shuttle tile lost its black glaze on one patch (emissivity $ε$ drops toward that of bare white silica), what happens locally? ::: Radiative dumping falls, so that spot must run hotter to reach balance, and more heat is forced to conduct inward. A local emissivity defect becomes a local hotspot — why glaze integrity was safety-critical. What limits the "take the heat" philosophy at the very highest fluxes, even for HfB₂? ::: Once equilibrium $T = (q / ε σ)^{1/4}$ approaches ~3380 °C the diboride itself nears melting and the oxide glass becomes too fluid/volatile to protect; beyond that you must fall back to an ablative shield that sacrifices mass to carry heat away.
