Reentry mechanics — ballistic coefficient β = m - (C_D A)

WHAT is $\beta$?

WHY does this exact grouping appear? Because in the equation of motion, mass and drag terms always enter combined in this ratio — never separately. Let's derive it.

HOW: derive the reentry deceleration from first principles

Consider a body entering the atmosphere along a straight-line path (a common first approximation for a steep ballistic entry). Newton's second law along the flight direction, keeping only drag (ignore gravity component for the peak-deceleration argument):

$m\frac{dv}{dt} = -D = -\tfrac{1}{2}\rho v^2 C_D A$

Why this step? Drag force is $D=\tfrac12 \rho v^2 C_D A$ — it grows with air density $\rho$ and with $v^2$. The minus sign: drag opposes motion.

Divide both sides by $m$:

$\frac{dv}{dt} = -\frac{\rho v^2}{2}\cdot\frac{C_D A}{m} = -\frac{\rho v^2}{2\beta}$

Why this step? Dividing by $m$ makes $\beta = m/(C_D A)$ pop out naturally. This is the proof that only the combination $\beta$ matters, not $m$, $C_D$, $A$ individually.

Bring in altitude via an isothermal atmosphere

Density falls off exponentially: $\rho = \rho_0 e^{-h/H}$, where $H$ is the scale height (~7–8 km for Earth). Use the chain rule with entry angle $\gamma$ (flight path below horizontal), so $dh/dt = -v\sin\gamma$:

$\frac{dv}{dh} = \frac{dv/dt}{dh/dt} = \frac{-\rho v^2/(2\beta)}{-v\sin\gamma} = \frac{\rho\, v}{2\beta\sin\gamma}$

Rearrange and integrate ($v\,$ vs $\rho$):

$\frac{dv}{v} = \frac{\rho\,dh}{2\beta\sin\gamma}\quad\Rightarrow\quad \ln\frac{v}{v_e} = \frac{1}{2\beta\sin\gamma}\int_{\infty}^{h}\rho\,dh$

With $\int_{h}^{\infty}\rho\,dh = \rho H$ (integral of the exponential):

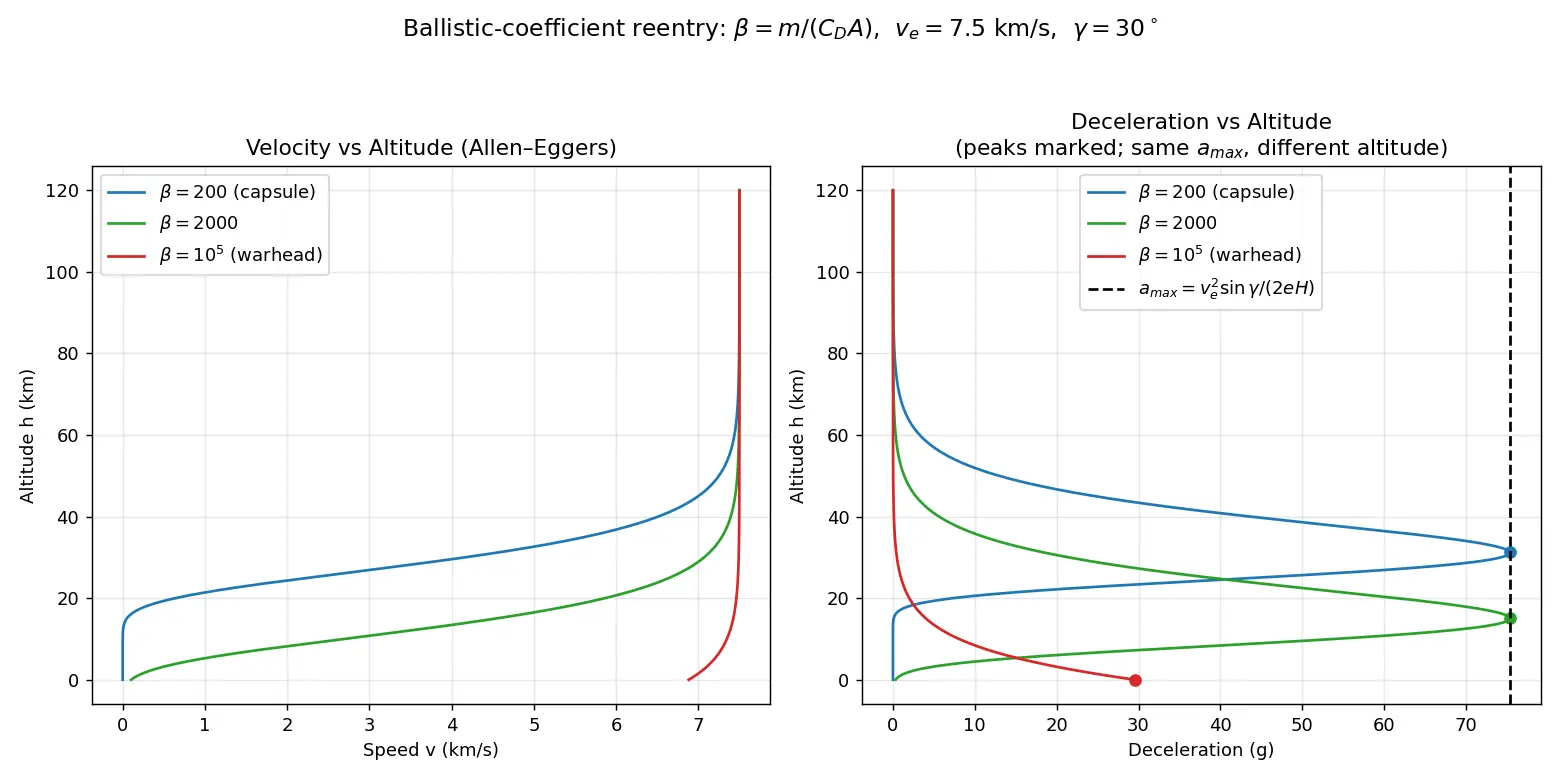

Peak deceleration (why blunt = survivable)

Deceleration magnitude $a = \dfrac{\rho v^2}{2\beta}$. Substitute $v(h)$ and maximize over $\rho$ (take $\tfrac{da}{d\rho}=0$):

$a(\rho) = \frac{\rho v_e^2}{2\beta}\exp\!\left(-\frac{\rho H}{\beta\sin\gamma}\right)$

Setting derivative to zero gives the peak at $\rho^* = \dfrac{\beta\sin\gamma}{H}$, and:

WORKED EXAMPLES

COMMON MISTAKES

Active Recall

Connections

• Drag force and drag coefficient
• Exponential atmosphere and scale height H
• Allen–Eggers approximation
• Aerodynamic heating and thermal protection systems
• Terminal velocity (same $\rho v^2$ vs $\beta$ balance, but at equilibrium)
• Skip vs ballistic vs lifting reentry
• Newton's second law
