Visual walkthrough — Reentry mechanics — ballistic coefficient β = m - (C_D A)

We are deepening the parent topic. If a word feels new, it is defined here first.

Step 1 — Draw the falling body and the one force that matters

WHAT. A capsule (or warhead) is diving into the atmosphere. It moves along a straight slanted line. The only push we care about right now is the air resistance, called drag, which points backward along the path.

WHY drag and not gravity yet? Near the moment of hardest braking the body is moving thousands of metres per second. Drag grows with the square of speed, so at these speeds it utterly swamps gravity's steady pull. To find the peak jolt we may temporarily ignore gravity — we add it back mentally later. This is the standard peak-deceleration approximation.

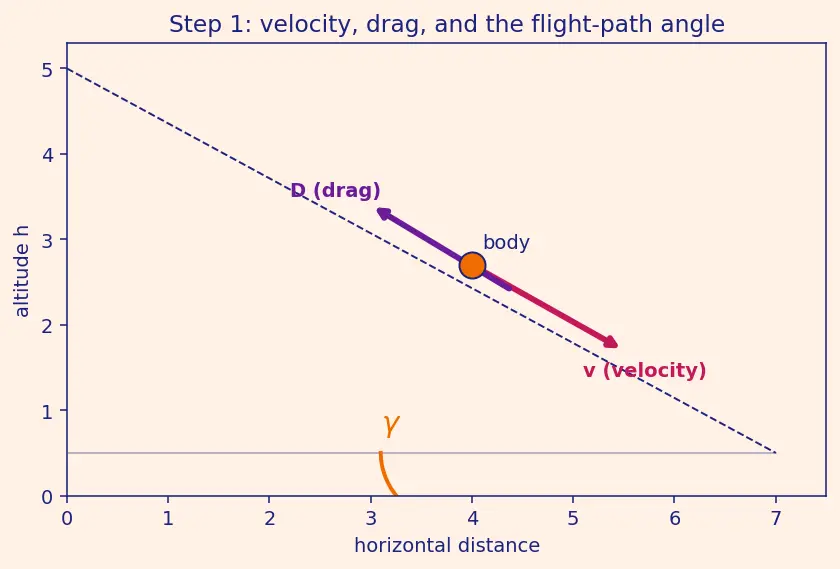

PICTURE. The red arrow is the velocity $v$ (which way and how fast the body goes). The violet arrow is drag $D$, pointing exactly opposite. The angle $\gamma$ (the Greek letter "gamma") is the flight-path angle: how steeply below the horizon the body dives.

Step 2 — Write down the drag force, term by term

WHAT. We turn the violet arrow into a number. The measured law of air resistance is:

$D=\underset{\text{constant}}{\underbrace{\frac{1}{2}}}\underset{\begin{array}{c}\text{air}\\ \text{density}\end{array}}{\underbrace{\rho }}\underset{\begin{array}{c}\text{speed}\\ \text{squared}\end{array}}{\underbrace{v^2}}\underset{\begin{array}{c}\text{shape}\\ \text{factor}\end{array}}{\underbrace{C_D}}\underset{\begin{array}{c}\text{frontal}\\ \text{area}\end{array}}{\underbrace{A}}$

WHY each piece is there.

• $\rho$ (Greek "rho") = air density, kilograms per cubic metre. Thicker air pushes harder — so $D$ is proportional to $\rho$.
• $v^2$ — double the speed and you slam into twice as much air and each hit is twice as hard; the two multiply, giving the square. This is why drag explodes at reentry speeds.
• $C_D$ — the drag coefficient, a pure number (no units) capturing shape: a blunt capsule has a big $C_D$, a sleek needle a small one.
• $A$ — the reference frontal area: the cross-section the air "sees" head-on.

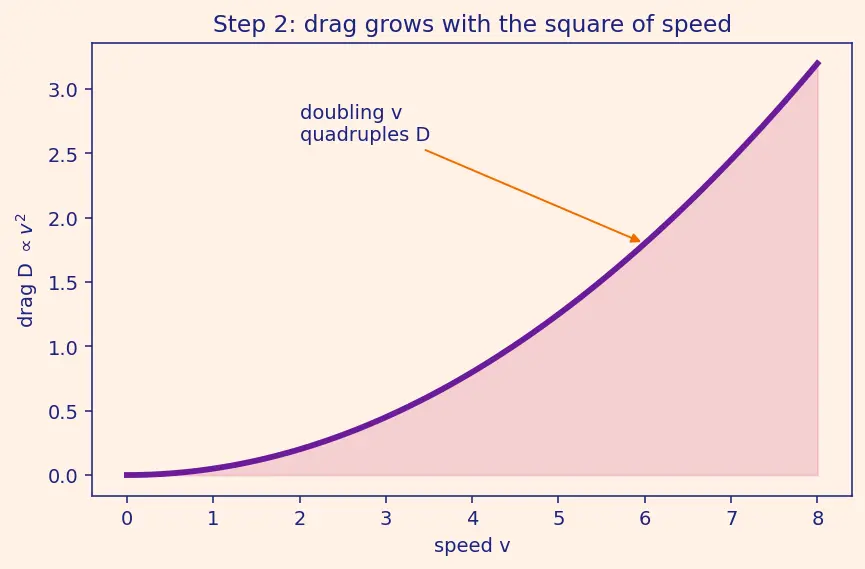

PICTURE. The bars below show how $D$ climbs steeply as $v$ increases — a parabola, because of the $v^2$. That steep climb is the whole reason reentry braking is so violent.

Step 3 — Apply Newton's second law and watch $\beta$ appear

WHAT. Newton's second law says force equals mass times acceleration. Along the path, the only force is drag (Step 1), pointing backward:

$\underset{\text{mass}}{\underbrace{m}}\underset{\begin{array}{c}\text{rate speed}\\ \text{changes}\end{array}}{\underbrace{\frac{dv}{dt}}}=-D=-\frac{1}{2}\rho v^2{C}_{D}A$

The symbol $\frac{dv}{dt}$ (a derivative) simply means "how fast $v$ is changing each second." The minus sign says: drag makes $v$ shrink.

WHY divide by $m$? We want the acceleration $\frac{dv}{dt}$ alone, so we divide both sides by mass:

$\frac{dv}{dt}=-\frac{\rho v^2}{2}\cdot \underset{=1/\beta }{\underbrace{\frac{C_{D}A}{m}}}=-\frac{\rho v^2}{2\beta }$

And there it is: mass, shape, and area collapse into a single number,

$\beta =\frac{m}{C_{D}A}({\text{kg/m}}^2),$

the ballistic coefficient. Nothing else about $m$, $C_D$, $A$ ever matters separately — only this ratio.

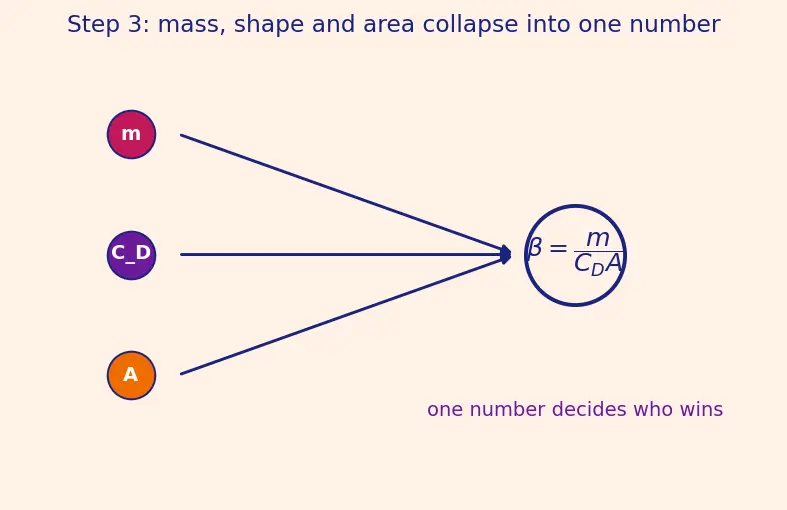

PICTURE. The three input dials ($m$, $C_D$, $A$) feed into one output dial $\beta$. Big mass on top, big drag-stuff on the bottom.

Step 4 — Bring in altitude: the exponential atmosphere

WHAT. So far $\frac{dv}{dt}$ mixes time and density. But density itself depends on height. Real air thins out as you climb, and it does so exponentially:

$\rho (h)={\rho }_0{e}^{-h/H}$

• ${\rho }_0$ — density at sea level ($\approx 1.2{\text{kg/m}}^3$).
• $H$ — the scale height, the vertical distance over which density drops by a factor $e\approx 2.718$. For Earth $H\approx 7$–$8$ km. See Exponential atmosphere and scale height H.

WHY exponential? Each thin layer of air is squeezed by the weight of all the air above it; that self-stacking produces the $e^{-h/H}$ shape. It is the single most important fact about the sky for reentry.

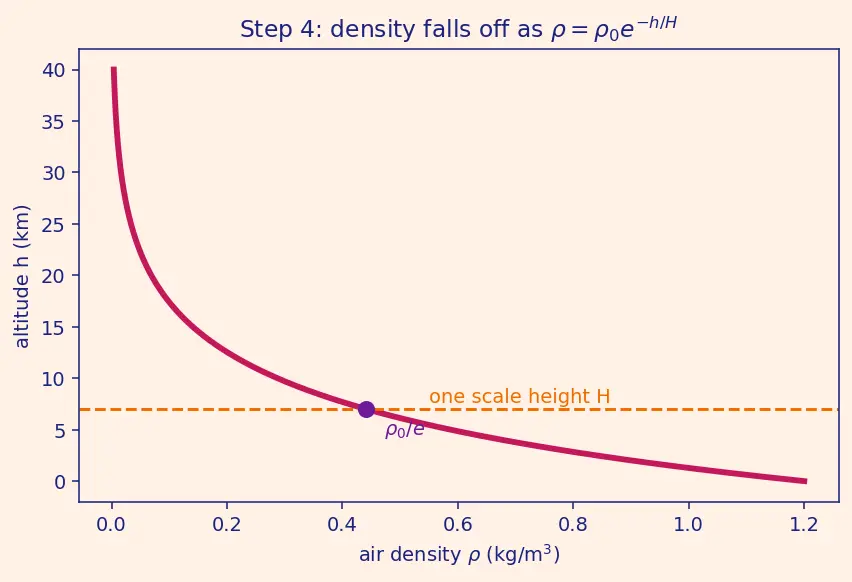

PICTURE. The curve plunges: near the ground density is huge; a few scale heights up it is almost nothing. The dashed line marks one scale height $H$, where $\rho$ has fallen to ${\rho }_0/e$.

Step 5 — Swap "per second" for "per metre of height" (the chain rule)

WHAT. We want speed as a function of altitude, $v(h)$, not of time. We convert using the chain rule — a way to change what a rate is measured against:

$\frac{dv}{dh}=\frac{dv/dt}{dh/dt}$

WHY. As the body descends, its height falls at a rate set by the vertical part of its velocity. From the triangle in Step 1, the downward speed is $v\sin \gamma$, so height decreases:

$\frac{dh}{dt}=-v\sin \gamma$

Now substitute the two rates:

$\frac{dv}{dh}=\frac{-\rho v^2/(2\beta )}{-v\sin \gamma }=\frac{\rho v}{2\beta \sin \gamma }$

Both minus signs cancel — but note $v$ decreases as $h$ decreases (we descend), consistent below.

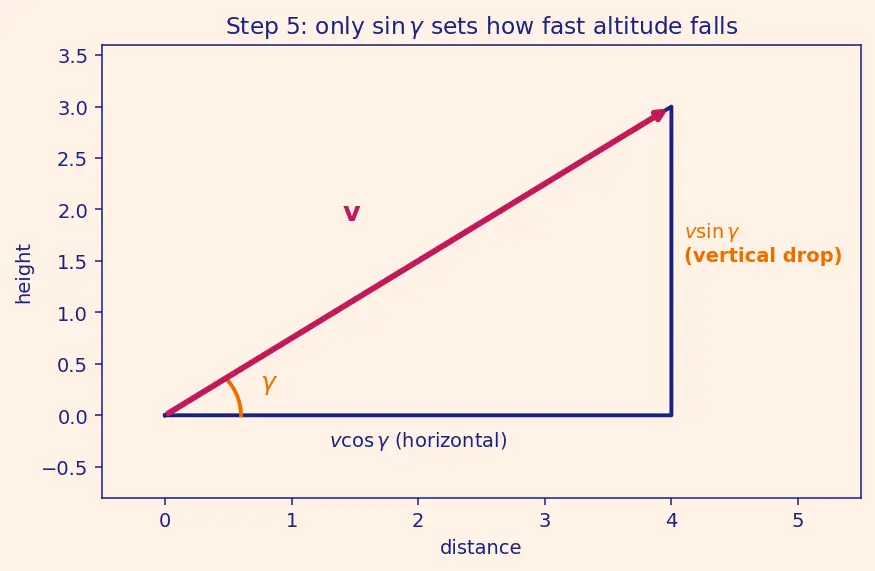

PICTURE. The velocity triangle: the horizontal leg is $v\cos \gamma$, the vertical leg $v\sin \gamma$ (this is the "how fast we drop" part). $\sin \gamma$ = opposite over hypotenuse picks out the downward share of the speed.

Step 6 — Integrate to get the velocity profile

WHAT. We separate the two variables (speed on one side, height on the other) so each can be summed up:

$\frac{dv}{v}=\frac{\rho dh}{2\beta \sin \gamma }$

WHY. The left side sums to $\ln v$ (the natural logarithm — the function that undoes the exponential), and on the right we add up all the density along the path. The key integral of an exponential atmosphere is:

${\int }_h^{\infty }\rho dh=\rho (h)H$

(the total "column" of air above height $h$ equals the local density times one scale height). Carrying this through:

See Allen–Eggers approximation.

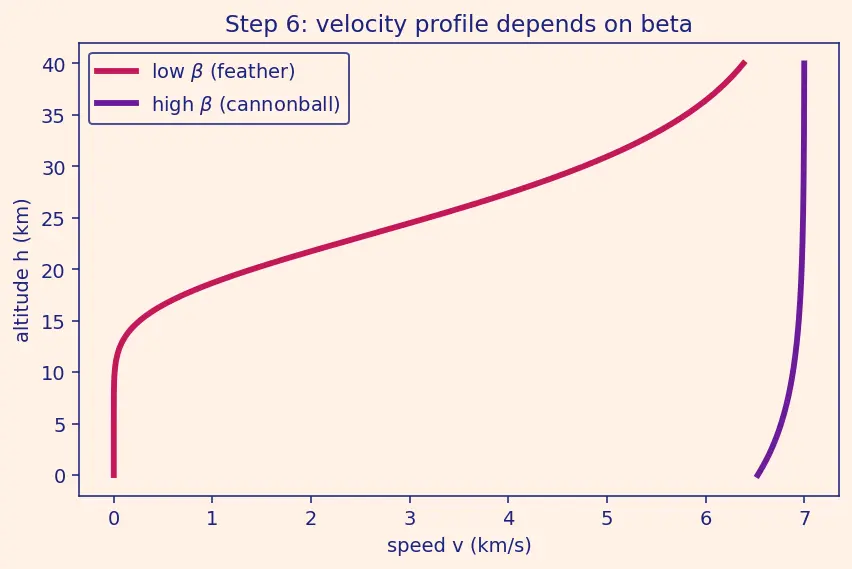

PICTURE. Two curves of $v$ vs altitude (descending left-to-right): the low-$\beta$ "feather" brakes high and stops; the high-$\beta$ "cannonball" stays fast all the way down.

Step 7 — Find the peak deceleration (and why it forgets $\beta$)

WHAT. Deceleration magnitude from Step 3 is $a=\frac{\rho v^2}{2\beta }$. Plug in $v(h)$:

$a(\rho )=\frac{\rho v_e^2}{2\beta }\exp \left(-\frac{\rho H}{\beta \sin \gamma }\right)$

WHY a maximum exists. Two effects fight: going down, $\rho$ rises (more braking) but $v$ falls (less braking). Their product peaks somewhere. We find it by setting the rate of change to zero, $\frac{da}{d\rho }=0$, which gives the density at peak:

${\rho }^{\star }=\frac{\beta \sin \gamma }{H}$

Substitute ${\rho }^{\star }$ back in — the $\beta$'s cancel:

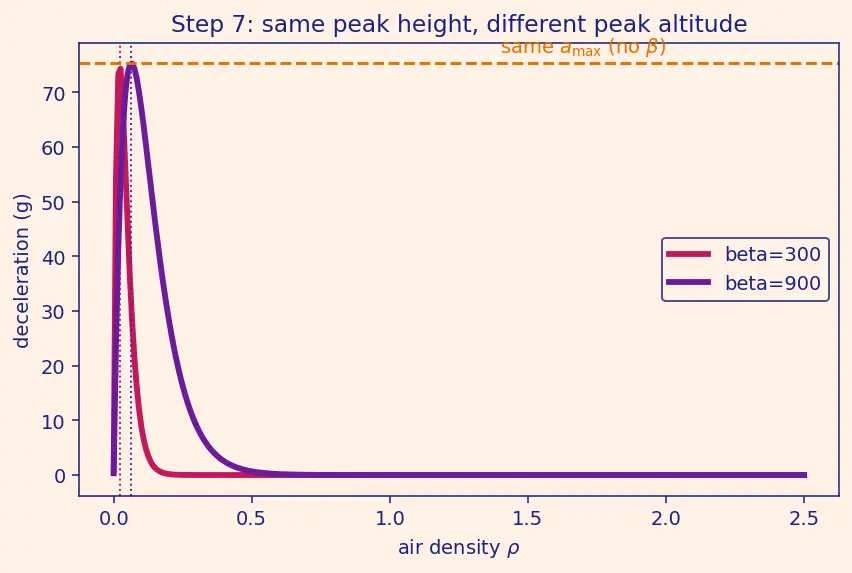

PICTURE. The deceleration curve rises, peaks at ${\rho }^{\star }$, then falls. Two different $\beta$'s give the same peak height but shift the peak left/right (to different altitudes).

Step 8 — The degenerate cases (never leave a gap)

WHAT / WHY / PICTURE for the limits:

• $\gamma \to 0^{\circ }$ (grazing entry). $\sin \gamma \to 0$: the exponent in $v(h)$ shrinks toward zero, so the body barely slows — and $a_{\max }\to 0$. Physically it skims along, spreading braking over a huge path. This is the doorway to skip and lifting reentry.
• $\gamma =90^{\circ }$ (vertical dive). $\sin \gamma =1$: maximum $a_{\max }$, sharpest braking — the harshest case.
• $\beta \to \infty$ (dense needle). Exponent $\to 0$: $v(h)\to v_e$ everywhere; it reaches the ground almost undecelerated (the warhead).
• $\beta \to 0$ (feather). Exponent $\to -\infty$ very high up: stopped near the top of the atmosphere; think terminal-velocity balance.
• $\rho \to 0$ (top of atmosphere). Exponent $=0$, so $v=v_e$: the boundary condition that pins the whole curve.

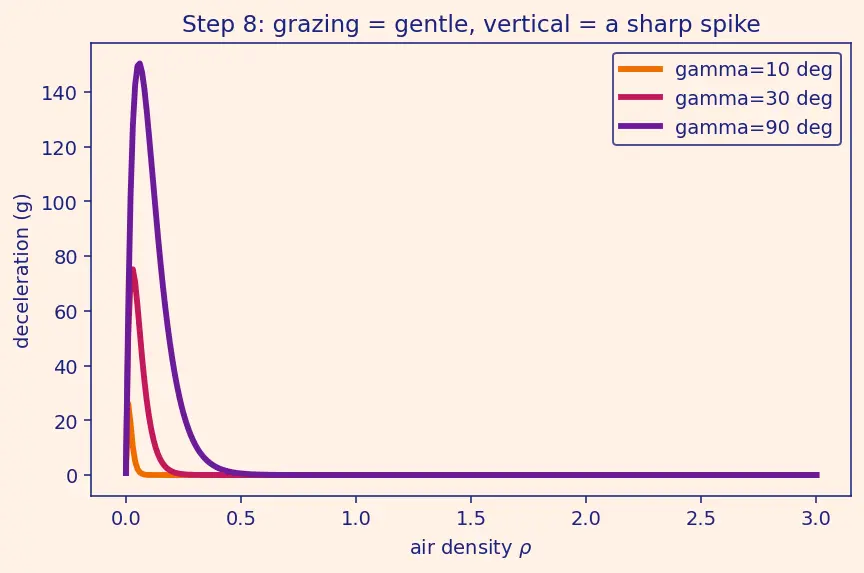

PICTURE. One panel sweeping $\gamma$ from grazing to vertical: flat feeble braking morphs into a tall sharp spike.

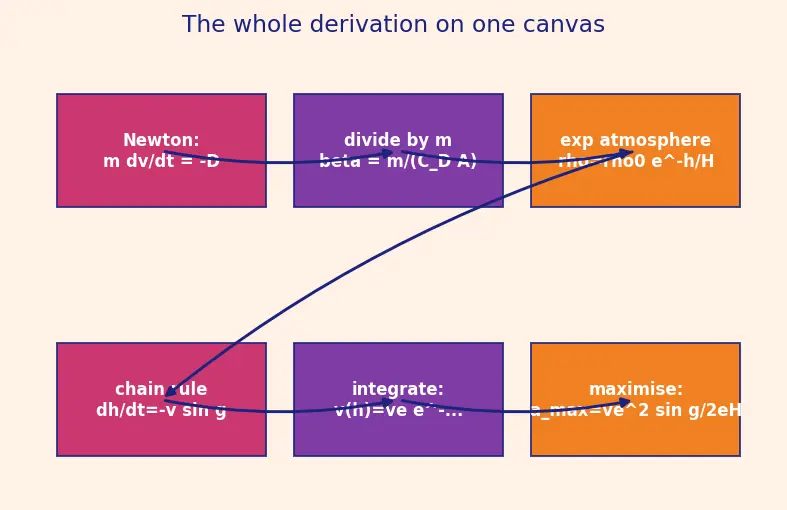

The one-picture summary

The whole journey on one canvas: Newton's law $\to$ divide by mass ($\beta$ born) $\to$ exponential air $\to$ chain rule $\to$ integrate ($v(h)$) $\to$ maximise ($a_{\max }$, no $\beta$).
