Intuition The big pictureWhen a fast vehicle slams into air, the air right at its surface gets brought to rest (no-slip).
All that kinetic energy of the flow turns into heat . So the surface "feels" a temperature much
hotter than the free-stream air — this is the recovery temperature . The wall then either heats
up or, if you cool it, sheds heat by convective heat flux .
WHY it matters: at Mach 6 the air "stagnation" temperature is ~1600 K — enough to melt aluminium.
Re-entry capsules, missiles and SR-71-class jets all live or die by managing this.
Definition Stagnation (total) temperatureIf you decelerate a moving gas adiabatically to rest, all its directed kinetic energy converts
to internal energy, raising temperature to the stagnation temperature T 0 T_0 T 0
Derivation — from the energy equation. Steady adiabatic flow with no work conserves total enthalpy:
h + u 2 2 = h 0 = const h + \frac{u^2}{2} = h_0 = \text{const} h + 2 u 2 = h 0 = const
Why this step? The first law for a streamtube with no heat added & no shaft work says enthalpy
plus kinetic energy is conserved. For a perfect gas h = c p T h = c_p T h = c p T
c p T + u 2 2 = c p T 0 ⇒ T 0 = T ( 1 + u 2 2 c p T ) c_p T + \frac{u^2}{2} = c_p T_0 \;\Rightarrow\; \boxed{T_0 = T\left(1 + \frac{u^2}{2 c_p T}\right)} c p T + 2 u 2 = c p T 0 ⇒ T 0 = T ( 1 + 2 c p T u 2 )
Now use c p = γ R γ − 1 c_p = \frac{\gamma R}{\gamma-1} c p = γ − 1 γ R a 2 = γ R T a^2 = \gamma R T a 2 = γ R T M = u / a M = u/a M = u / a
u 2 2 c p T = u 2 ( γ − 1 ) 2 γ R T = ( γ − 1 ) 2 u 2 a 2 = γ − 1 2 M 2 \frac{u^2}{2 c_p T} = \frac{u^2 (\gamma-1)}{2\gamma R T} = \frac{(\gamma-1)}{2}\frac{u^2}{a^2} = \frac{\gamma-1}{2}M^2 2 c p T u 2 = 2 γ R T u 2 ( γ − 1 ) = 2 ( γ − 1 ) a 2 u 2 = 2 γ − 1 M 2
Why this step? We want everything in terms of Mach number, the natural variable of compressible flow.
T 0 T = 1 + γ − 1 2 M 2 \boxed{\dfrac{T_0}{T} = 1 + \dfrac{\gamma-1}{2}M^2} T T 0 = 1 + 2 γ − 1 M 2
Intuition Two competing effects in the boundary layerInside the thin boundary layer the gas is slowed (→ heating by viscous dissipation ), but heat
also conducts away sideways. These don't balance perfectly. So the wall (adiabatic, no heat
drawn out) settles at a temperature between T T T T 0 T_0 T 0 recovery temperature T r T_r T r
Definition Recovery factorr r r r ≡ T r − T e T 0 − T e r \equiv \frac{T_r - T_e}{T_0 - T_e} r ≡ T 0 − T e T r − T e T e T_e T e r r r what fraction of the kinetic energy is "recovered" as wall heating .
Combining with the stagnation relation gives the adiabatic wall (recovery) temperature :
T r = T e ( 1 + r γ − 1 2 M e 2 ) \boxed{T_r = T_e\left(1 + r\,\frac{\gamma-1}{2}M_e^2\right)} T r = T e ( 1 + r 2 γ − 1 M e 2 )
Why this form? From T 0 − T e = T e γ − 1 2 M e 2 T_0 - T_e = T_e\frac{\gamma-1}{2}M_e^2 T 0 − T e = T e 2 γ − 1 M e 2 r r r T e T_e T e
WHY r < 1 r<1 r < 1 P r < 1 Pr<1 P r < 1 faster than momentum, so some dissipated heat escapes the
near-wall region before it can be fully "recovered."
Intuition Heat flows from hot to cold — but which "hot"?The driving temperature difference is not T 0 − T w a l l T_0 - T_{wall} T 0 − T w a l l not T e − T w a l l T_e - T_{wall} T e − T w a l l T r − T w a l l T_r - T_{wall} T r − T w a l l T r T_r T r uncooled wall would reach — the true thermal
potential the gas pushes the wall toward.
Definition Convective heat flux (Newton's law of cooling)q ˙ w = h ( T r − T w ) \boxed{\dot q_w = h\,(T_r - T_w)} q ˙ w = h ( T r − T w ) h h h [ W m − 2 K − 1 ] [\mathrm{W\,m^{-2}K^{-1}}] [ W m − 2 K − 1 ] T w T_w T w
If T w < T r T_w < T_r T w < T r into the wall (q ˙ w > 0 \dot q_w>0 q ˙ w > 0
If T w = T r T_w = T_r T w = T r adiabatic wall, zero net flux (this defines T r T_r T r
If T w > T r T_w > T_r T w > T r
Worked example (a) Recovery temperature of a Mach 3 jet at altitudeGiven M e = 3 M_e=3 M e = 3 T e = 223 T_e=223 T e = 223 γ = 1.4 \gamma=1.4 γ = 1.4 r = P r 1 / 3 = 0.71 1 / 3 = 0.892 r=Pr^{1/3}=0.71^{1/3}=0.892 r = P r 1/3 = 0.7 1 1/3 = 0.892
Step 1 — stagnation factor. γ − 1 2 M 2 = 0.2 × 9 = 1.8 \frac{\gamma-1}{2}M^2 = 0.2\times 9 = 1.8 2 γ − 1 M 2 = 0.2 × 9 = 1.8 Why? This is the full kinetic-energy heating fraction.
Step 2 — apply recovery. T r = 223 ( 1 + 0.892 × 1.8 ) = 223 ( 1 + 1.606 ) = 581 K T_r = 223(1 + 0.892\times1.8) = 223(1+1.606) = 581\ \text{K} T r = 223 ( 1 + 0.892 × 1.8 ) = 223 ( 1 + 1.606 ) = 581 K Why use r r r The wall recovers only ~89 % of the dynamic temperature rise.
For comparison T 0 = 223 ( 1 + 1.8 ) = 624 T_0 = 223(1+1.8)=624 T 0 = 223 ( 1 + 1.8 ) = 624 T r T_r T r T 0 T_0 T 0
Worked example (b) Heat flux into a cooled wallT r = 581 T_r=581 T r = 581 T w = 350 T_w=350 T w = 350 h = 900 W m − 2 K − 1 h=900\ \mathrm{W\,m^{-2}K^{-1}} h = 900 W m − 2 K − 1
Step 1. q ˙ w = h ( T r − T w ) = 900 × ( 581 − 350 ) = 900 × 231 \dot q_w = h(T_r-T_w) = 900\times(581-350) = 900\times231 q ˙ w = h ( T r − T w ) = 900 × ( 581 − 350 ) = 900 × 231 Why T r − T w T_r-T_w T r − T w The adiabatic-wall temperature is the true thermal driving potential.
Step 2. q ˙ w = 2.08 × 10 5 W / m 2 = 208 k W / m 2 \dot q_w = 2.08\times10^5\ \mathrm{W/m^2} = 208\ \mathrm{kW/m^2} q ˙ w = 2.08 × 1 0 5 W/ m 2 = 208 kW/ m 2

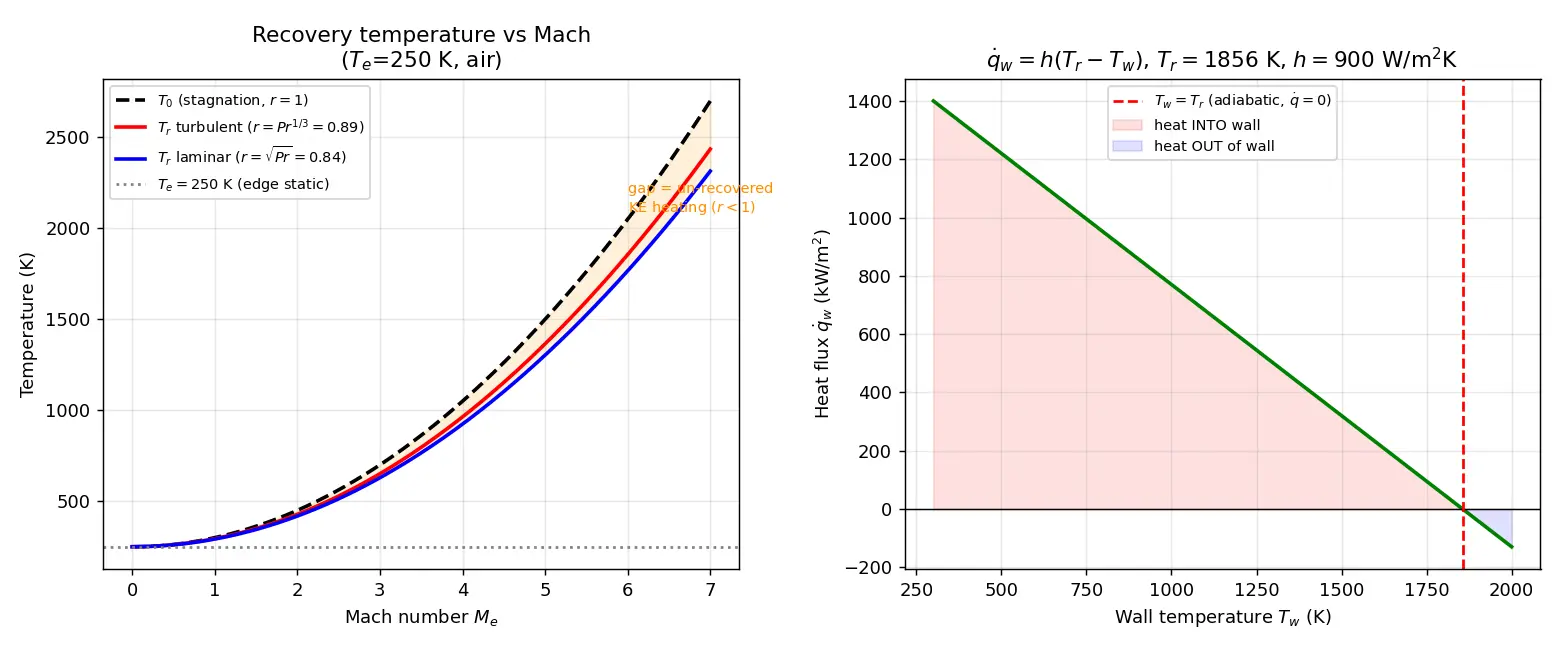

Worked example (c) Laminar vs turbulent recovery,M = 6 M=6 M = 6 T e = 250 T_e=250 T e = 250 γ − 1 2 M 2 = 0.2 × 36 = 7.2 \frac{\gamma-1}{2}M^2 = 0.2\times36 = 7.2 2 γ − 1 M 2 = 0.2 × 36 = 7.2 r = 0.71 = 0.843 r=\sqrt{0.71}=0.843 r = 0.71 = 0.843 T r = 250 ( 1 + 6.07 ) = 1768 T_r=250(1+6.07)=1768 T r = 250 ( 1 + 6.07 ) = 1768 r = 0.892 r=0.892 r = 0.892 T r = 250 ( 1 + 6.42 ) = 1856 T_r=250(1+6.42)=1856 T r = 250 ( 1 + 6.42 ) = 1856 Why turbulent hotter? Higher r r r h h h Why this step matters: transition location dominates TPS design.
Common mistake "The wall reaches the stagnation temperatureT 0 T_0 T 0 Why it feels right: the gas is brought to rest at the wall (no-slip), so surely T = T 0 T=T_0 T = T 0 The fix: no-slip stops bulk motion, but conduction leaks dissipated heat sideways
(P r < 1 Pr<1 P r < 1 T r = T e ( 1 + r γ − 1 2 M 2 ) T_r = T_e(1+r\frac{\gamma-1}{2}M^2) T r = T e ( 1 + r 2 γ − 1 M 2 ) r < 1 r<1 r < 1 below T 0 T_0 T 0
Common mistake "Heat flux driver isT 0 − T w T_0 - T_w T 0 − T w Why it feels right: T 0 T_0 T 0 The fix: the correct potential is T r − T w T_r - T_w T r − T w T 0 T_0 T 0 T w = T r T_w=T_r T w = T r T r T_r T r
Common mistake "Cooling the wall lowers the recovery temperature."Why it feels right: cooling should reduce all temperatures.
The fix: T r T_r T r M e , T e , r M_e, T_e, r M e , T e , r not T w T_w T w T w T_w T w increases the flux h ( T r − T w ) h(T_r-T_w) h ( T r − T w ) T r T_r T r
Recall Feynman: explain to a 12-year-oldImagine running with your hand out the car window. Slow speed: cool breeze. Really fast: your palm
feels warm because you're squashing and rubbing the air to a stop, and rubbing makes heat. A rocket
goes SO fast it squashes the air so hard the air gets red-hot. The "recovery temperature" is just
how hot your palm would get if you never cooled it. If your palm is colder than that, heat keeps
flowing into it — that flow is the "heat flux." Spaceships put a special shield in front so the
shield gets hot instead of the people inside.
Mnemonic Remember the chain"STAR-FLUX": ST agnation → A pply R ecovery factor → drive FLUX by T r − T w T_r-T_w T r − T w "Lam = root, Turb = cube" (r = P r r=\sqrt{Pr} r = P r r = P r 1 / 3 r=Pr^{1/3} r = P r 1/3
Stagnation properties & isentropic relations — source of T 0 / T = 1 + γ − 1 2 M 2 T_0/T = 1+\frac{\gamma-1}{2}M^2 T 0 / T = 1 + 2 γ − 1 M 2 Boundary layers & viscous dissipation — origin of the recovery factorPrandtl number & thermal boundary layer — why r r r P r Pr P r Reynolds analogy & Stanton number — links q ˙ w \dot q_w q ˙ w Hypersonic re-entry & thermal protection systems — engineering applicationNormal & oblique shock heating — post-shock T e T_e T e
What converts to heat at a high-speed surface, raising its temperature? The directed kinetic energy of the flow, dissipated as the gas is brought to rest at the wall (no-slip + viscous dissipation).
Stagnation temperature ratio formula? T 0 / T = 1 + γ − 1 2 M 2 T_0/T = 1 + \frac{\gamma-1}{2}M^2 T 0 / T = 1 + 2 γ − 1 M 2 , derived from
c p T + u 2 / 2 = c p T 0 c_pT + u^2/2 = c_pT_0 c p T + u 2 /2 = c p T 0 .
Definition of recovery factor r r r r = ( T r − T e ) / ( T 0 − T e ) r = (T_r - T_e)/(T_0 - T_e) r = ( T r − T e ) / ( T 0 − T e ) — fraction of dynamic temperature rise recovered at an adiabatic wall.
Recovery factor for laminar vs turbulent air flow? Laminar
r = P r ≈ 0.84 r=\sqrt{Pr}\approx0.84 r = P r ≈ 0.84 ; turbulent
r = P r 1 / 3 ≈ 0.89 r=Pr^{1/3}\approx0.89 r = P r 1/3 ≈ 0.89 (air,
P r = 0.71 Pr=0.71 P r = 0.71 ).
Recovery temperature formula? T r = T e ( 1 + r γ − 1 2 M e 2 ) T_r = T_e\left(1 + r\frac{\gamma-1}{2}M_e^2\right) T r = T e ( 1 + r 2 γ − 1 M e 2 ) .
Why is T r T_r T r T 0 T_0 T 0 Because
P r < 1 Pr<1 P r < 1 : heat conducts away faster than momentum, so
r < 1 r<1 r < 1 and not all KE is recovered.
Convective heat-flux law and its driving potential? q ˙ w = h ( T r − T w ) \dot q_w = h(T_r - T_w) q ˙ w = h ( T r − T w ) ; the driver is
T r − T w T_r - T_w T r − T w , NOT
T 0 − T w T_0-T_w T 0 − T w or
T e − T w T_e-T_w T e − T w .
What defines an adiabatic wall? T w = T r T_w = T_r T w = T r , giving zero net heat flux
q ˙ w = 0 \dot q_w=0 q ˙ w = 0 .
Effect of cooling the wall on T r T_r T r T r T_r T r unchanged (set by flow); flux
h ( T r − T w ) h(T_r-T_w) h ( T r − T w ) increases as
T w T_w T w drops.
Stanton-number form of heat flux? q ˙ w = ρ e u e c p S t ( T r − T w ) \dot q_w = \rho_e u_e c_p\,St\,(T_r-T_w) q ˙ w = ρ e u e c p S t ( T r − T w ) , with
S t ≈ C f / 2 St\approx C_f/2 S t ≈ C f /2 by Reynolds analogy.
Pr < 1 so heat diffuses faster
Air brought to rest at wall
Energy equation: h + u2/2 const
T0/T = 1 + half gamma-1 M2
