This page is the drill floor for the parent topic . The parent built three tools:
the stagnation ratio T T 0 = 1 + 2 γ − 1 M 2 (how hot a stopped gas gets),
the recovery temperature T r = T e ( 1 + r 2 γ − 1 M e 2 ) (how hot an uncooled wall actually gets — always a bit below T 0 because the recovery factor r < 1 ),
the heat flux q ˙ w = h ( T r − T w ) (how fast heat pours into a wall colder than T r ).
Here we throw every case class at those three formulas — every sign of the flux, the zero/degenerate inputs, the low- and high-Mach limits, a real word problem, and an exam twist — so you never meet a scenario you haven't already seen worked.
Symbols used below, in plain words:
Definition Cast of characters
M e = Mach number at the boundary-layer edge = flow speed ÷ local speed of sound. Dimensionless.
T e = edge static temperature (the cold free-stream air the vehicle flies through), in kelvin (K).
T 0 = stagnation temperature = temperature if you stop the flow with no heat loss.
T r = recovery temperature = temperature an insulated (adiabatic) wall settles at.
T w = wall temperature = the actual surface temperature (you may control it by cooling).
r = recovery factor , between 0 and 1 — the fraction of the stopping-heat the wall keeps.
γ = ratio of specific heats (for air γ = 1.4 ).
h = heat-transfer coefficient [ W m − 2 K − 1 ] — how good the flow is at pushing heat into the wall.
q ˙ w = wall heat flux [ W m − 2 ] = heat energy crossing one square metre of wall per second.
Everything this topic can ask lands in one of these cells. Each example below is tagged with its cell.
#
Cell (case class)
What's special
Example
A
Sign of flux > 0 (T w < T r )
wall absorbs heat — cooling needed
Ex 1
B
Sign of flux = 0 (T w = T r )
adiabatic wall — flux vanishes
Ex 2
C
Sign of flux < 0 (T w > T r )
hot wall dumps heat back to gas
Ex 3
D
Zero / degenerate input (M e → 0 )
no speed → no heating
Ex 4
E
Low-Mach limit (small M e )
T r − T e scales as M e 2
Ex 4
F
High-Mach limit (hypersonic)
huge T r , laminar vs turbulent split
Ex 5
G
Real-world word problem
pick out M e , T e , T w yourself
Ex 6
H
Exam twist (find h or T w from flux)
invert the flux law
Ex 7
I
Stanton-number route
h = ρ e u e c p S t
Ex 8

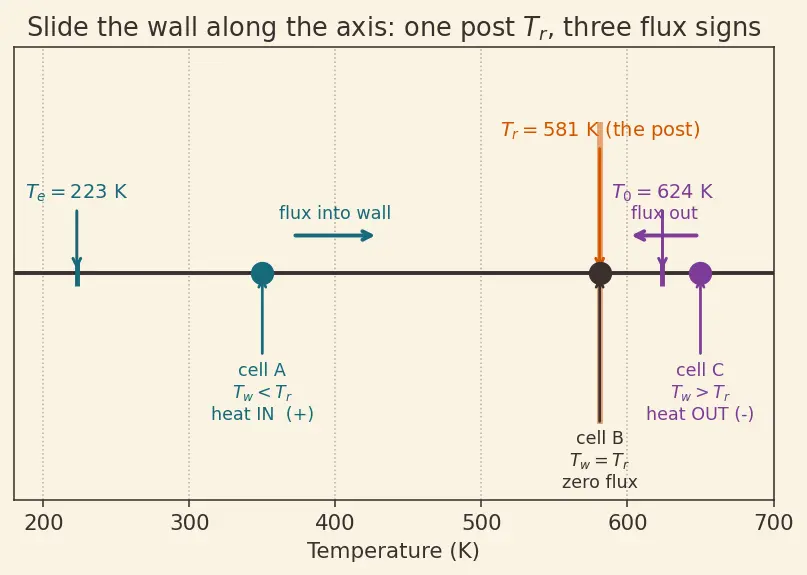

Intuition Read the matrix as one number line
Fix the flow, and T r is a fixed post planted on the temperature axis. Slide the wall temperature T w along that axis:
left of the post → heat flows in (cell A), at the post → zero flux (cell B), right of the post → heat flows out (cell C). One picture, three signs.
Worked example A cooled fin on a Mach 3 jet
M e = 3 , T e = 223 K, γ = 1.4 , turbulent so r = P r 1/3 = 0.7 1 1/3 = 0.892 . Wall held at T w = 350 K, h = 900 W m − 2 K − 1 . Find T r and q ˙ w .
Forecast: guess — is T r closer to 224 K or to 600 K? And will q ˙ w be positive or negative?
Step 1 — the stopping-heat fraction. 2 γ − 1 M e 2 = 0.2 × 3 2 = 0.2 × 9 = 1.8 .
Why this step? This dimensionless number is how many times over the static temperature would rise if we stopped the flow with no losses. It's the engine of every heating formula.
Step 2 — apply the recovery factor. T r = T e ( 1 + r ⋅ 1.8 ) = 223 ( 1 + 0.892 × 1.8 ) = 223 ( 1 + 1.606 ) = 223 × 2.606 = 581 K .
Why this step? The wall keeps only fraction r of that stopping-heat, so we multiply the 1.8 by r before adding back the base 1 .
Step 3 — the flux. q ˙ w = h ( T r − T w ) = 900 ( 581 − 350 ) = 900 × 231 = 2.08 × 1 0 5 W/ m 2 ≈ 208 kW/ m 2 .
Why this step? The wall (350 K) is colder than the post T r (581 K), so heat pours in — positive flux, cell A.
Verify: T r = 581 K sits just below T 0 = 223 ( 1 + 1.8 ) = 624 K, exactly as expected for r < 1 . Units: [ W m − 2 K − 1 ] × [ K ] = [ W m − 2 ] ✔. Flux positive ⇒ into wall ⇒ cooling justified. ✔
Worked example Let the fin float (no cooling)
Same flow as Ex 1 (T r = 581 K). Now stop cooling and let the wall reach steady state. What is T w and q ˙ w ?
Forecast: if nothing draws heat away, where does the wall settle?
Step 1 — impose steady state, no heat drawn out. "Adiabatic wall" means zero net heat crosses the surface: q ˙ w = 0 .
Why this step? At equilibrium an insulated wall neither gains nor loses heat — that's the definition of the recovery temperature.
Step 2 — solve h ( T r − T w ) = 0 . With h = 0 , this forces T w = T r = 581 K.
Why this step? The only way the driving difference T r − T w can vanish is for the wall to sit exactly on the post.
Verify: plug back: q ˙ w = 900 ( 581 − 581 ) = 0 ✔. This is why T r is called the recovery / adiabatic-wall temperature — it's the unique wall temperature giving zero flux.
Worked example A soak-heated wall on the ground, engine idling
After landing, a surface sits at T w = 650 K (heat-soaked from flight) while the local flow is nearly still but warm: take T r = 581 K, h = 900 W m − 2 K − 1 . Find q ˙ w and its direction.
Forecast: wall is hotter than the recovery post now — sign of flux?
Step 1 — same law, new numbers. q ˙ w = h ( T r − T w ) = 900 ( 581 − 650 ) = 900 × ( − 69 ) .
Why this step? Newton's cooling law is signed: T r − T w is now negative because T w > T r .
Step 2 — read the sign. q ˙ w = − 6.21 × 1 0 4 W/ m 2 = − 62.1 kW/ m 2 .
Why this step? Negative flux means heat leaves the wall into the gas — the wall is cooling itself down toward T r .
Verify: magnitude sanity: same h , temperature gap 69 K vs 231 K in Ex 1, so flux should be 231/69 ≈ 3.35 × smaller in size: 208/3.35 ≈ 62 kW/m² ✔. Sign negative ⇒ wall loses heat ⇒ it drifts back down to the T r = 581 K post. ✔
Worked example Standing still, then crawling
Air at T e = 288 K, γ = 1.4 , laminar r = 0.71 = 0.843 .
(i) M e = 0 . (ii) M e = 0.3 . Find T r each time and the rise T r − T e .
Forecast: at zero speed should the wall feel any extra heating at all?
Step 1 — degenerate case M e = 0 . 2 γ − 1 M e 2 = 0.2 × 0 = 0 , so T r = 288 ( 1 + 0 ) = 288 K.
Why this step? No motion ⇒ no kinetic energy to dissipate ⇒ the wall just sits at the air temperature. The formula must (and does) collapse to T r = T e . This is the sanity anchor for the whole topic.
Step 2 — low speed M e = 0.3 . 2 γ − 1 M e 2 = 0.2 × 0.09 = 0.018 ; T r = 288 ( 1 + 0.843 × 0.018 ) = 288 ( 1.01517 ) = 292.4 K. Rise ≈ 4.4 K.
Why this step? Shows the quadratic growth: heating rise scales as M e 2 . At M = 0.3 the rise is tiny — this is why low-speed aircraft ignore aerodynamic heating.
Verify: rise ratio between the two Mach numbers should be ( 0.3/0 ) … undefined at zero, so instead compare M e = 0.3 vs M e = 0.6 : rise scales as M 2 , i.e. × 4 . Rise at 0.3 is 4.4 K ⇒ predict ≈ 17.5 K at 0.6. Direct: 0.2 × 0.36 × 0.843 × 288 = 17.5 K ✔. Limit M e → 0 ⇒ T r → T e ✔.
Worked example Re-entry heating at Mach 6
M e = 6 , T e = 250 K, γ = 1.4 . Compare laminar (r = 0.71 = 0.843 ) with turbulent (r = 0.7 1 1/3 = 0.892 ). See Hypersonic re-entry & thermal protection systems .
Forecast: which flow gives the hotter wall — laminar or turbulent — and by how much?
Step 1 — stopping-heat fraction. 2 γ − 1 M e 2 = 0.2 × 36 = 7.2 .
Why this step? At high Mach this dominates the "1 + ", so T r is roughly 7 × T e — the source of thousands-of-kelvin walls.
Step 2 — laminar. T r = 250 ( 1 + 0.843 × 7.2 ) = 250 ( 1 + 6.07 ) = 250 × 7.07 = 1768 K.
Step 2b — turbulent. T r = 250 ( 1 + 0.892 × 7.2 ) = 250 ( 1 + 6.42 ) = 250 × 7.42 = 1856 K.
Why this step? Turbulent r is larger, so more of the huge stopping-heat is recovered — the turbulent wall runs hotter , here by ~88 K.
Step 3 — compare to T 0 . T 0 = 250 ( 1 + 7.2 ) = 2050 K. Both T r values sit below it, turbulent nearer.
Why this step? Confirms r < 1 ⇒ T r < T 0 always, in the extreme regime too.
Verify: T r , turb − T r , lam = 250 × 7.2 × ( 0.892 − 0.843 ) = 250 × 7.2 × 0.049 = 88.2 K ✔. Both below T 0 = 2050 K ✔. Aluminium melts ~933 K ⇒ both would melt it ⇒ TPS mandatory. ✔
Worked example The SR-71's leading edge
"A reconnaissance jet cruises where the outside air is − 56. 5 ∘ C at Mach 3.2. Its titanium leading edge is actively kept at 30 0 ∘ C . Turbulent boundary layer, r = 0.89 , γ = 1.4 , h = 1100 W m − 2 K − 1 . How hard is the edge being heated?"
Forecast: first job — convert everything to kelvin before touching a formula.
Step 1 — extract and convert. T e = − 56.5 + 273.15 = 216.65 ≈ 216.7 K; T w = 300 + 273.15 = 573.15 ≈ 573.2 K; M e = 3.2 .
Why this step? The stagnation/recovery formulas are ratios of absolute temperatures — Celsius would give nonsense. Always kelvin.
Step 2 — stopping-heat fraction. 2 γ − 1 M e 2 = 0.2 × 3. 2 2 = 0.2 × 10.24 = 2.048 .
Step 3 — recovery temperature. T r = 216.7 ( 1 + 0.89 × 2.048 ) = 216.7 ( 1 + 1.8227 ) = 216.7 × 2.8227 = 611.7 K.
Why this step? This is the temperature the edge would reach uncooled — the post we drive the flux from.
Step 4 — flux. q ˙ w = h ( T r − T w ) = 1100 ( 611.7 − 573.2 ) = 1100 × 38.5 = 4.24 × 1 0 4 W/ m 2 ≈ 42.4 kW/ m 2 .
Why this step? Wall (573.2 K) is just below the post (611.7 K), so a modest positive flux — cell A, but a mild one.
Verify: T r = 611.7 K is below T 0 = 216.7 ( 1 + 2.048 ) = 660.6 K ✔. Gap T r − T w = 38.5 K is small ⇒ this edge is being held close to its natural recovery temperature, so cooling load is light — matches the SR-71 running its skin genuinely hot. Units ✔.
Worked example Back-solve for the required wall temperature
"For the Mach 3 jet of Ex 1 (T r = 581 K), the material can only survive a flux of q ˙ w = 150 kW/ m 2 . With h = 900 W m − 2 K − 1 , how cold must you keep the wall?"
Forecast: to lower the flux from 208 to 150 kW/m², do you make T w higher or lower?
Step 1 — rearrange Newton's law. From q ˙ w = h ( T r − T w ) , solve for T w : T w = T r − h q ˙ w .
Why this step? The exam gives flux and asks for wall temperature — invert the one formula. Everything is known except T w .
Step 2 — plug numbers. T w = 581 − 900 150000 = 581 − 166.7 = 414.3 K.
Why this step? The allowable temperature gap is 150000/900 = 166.7 K; subtract from the fixed post T r .
Step 3 — interpret the direction. To reduce flux you need a smaller gap T r − T w , i.e. a warmer wall (414 K here vs 350 K in Ex 1). Cooling harder would raise the flux, not lower it.
Why this step? This is the classic counter-intuitive result — flagged as a mistake in the parent note. Verify it numerically here.
Verify: plug back: q ˙ w = 900 ( 581 − 414.3 ) = 900 × 166.7 = 1.50 × 1 0 5 W/ m 2 = 150 kW/m² ✔. And 414.3 > 350 K confirms "warmer wall ⇒ less flux". ✔
h from skin friction
Using Reynolds analogy & Stanton number : at the edge ρ e = 0.4 kg/ m 3 , u e = 900 m/s , c p = 1005 J k g − 1 K − 1 , skin-friction coefficient C f = 0.0020 . Reynolds analogy gives S t ≈ C f /2 . Find h and then q ˙ w for T r = 581 K, T w = 350 K.
Forecast: will this h land in the same ballpark as the 900 used in Ex 1?
Step 1 — Stanton from friction. S t ≈ C f /2 = 0.0020/2 = 0.0010 .
Why this step? Reynolds analogy links heat transfer to momentum transfer — measuring drag lets you predict heating without a separate thermal experiment.
Step 2 — build h . h = ρ e u e c p S t = 0.4 × 900 × 1005 × 0.0010 = 361.8 W m − 2 K − 1 .
Why this step? The group ρ e u e c p (units W m − 2 K − 1 ) is the maximum possible heat-transfer scale; S t is the fraction of it actually realised.
Step 3 — flux. q ˙ w = ρ e u e c p S t ( T r − T w ) = 361.8 × ( 581 − 350 ) = 361.8 × 231 = 8.36 × 1 0 4 W/ m 2 ≈ 83.6 kW/ m 2 .
Why this step? Confirms the two flux formulas (q ˙ w = h Δ T and the Stanton form) are the same statement, just with h expanded.
Verify: units of ρ u c p S t : kg m − 3 ⋅ m s − 1 ⋅ J k g − 1 K − 1 = J s − 1 m − 2 K − 1 = W m − 2 K − 1 ✔. h = 361.8 is a plausible convective coefficient. Direct flux check: h Δ T = 361.8 × 231 = 83 , 576 W/ m 2 ✔.
Recall Quick self-test across the matrix
Flux sign when T w < T r ? ::: Positive — heat flows into the wall (cell A).
Flux when T w = T r ? ::: Zero — adiabatic wall (cell B); this defines T r .
What happens to T r as M e → 0 ? ::: T r → T e ; no motion, no heating (cell D).
To lower the heat flux, warm or cool the wall? ::: Warm it — a smaller gap T r − T w means less flux (cell H).
Which flow gives the hotter recovery temperature, laminar or turbulent? ::: Turbulent, because r = P r 1/3 > P r (cell F).
Mnemonic Read the sign off the post
Plant T r as a post on the temperature line. Wall left of post → heat in; wall on post → nothing; wall right of post → heat out. One picture answers every sign question.
Parent: recovery temperature & heat flux — the three formulas drilled here
Stagnation properties & isentropic relations — source of the stopping-heat fraction 2 γ − 1 M 2
Prandtl number & thermal boundary layer — sets r = P r vs P r 1/3 (Ex 4–5)
Reynolds analogy & Stanton number — the S t route of Ex 8
Hypersonic re-entry & thermal protection systems — the Mach 6 wall of Ex 5
Boundary layers & viscous dissipation — why r < 1
Normal & oblique shock heating — supplies the post-shock T e used as input
