Aerodynamic coefficients — CN, CA, CL, CD, Cm as functions of angle of attack, Mach

1. WHAT are the two coordinate frames?

There are two natural directions to resolve the resultant aerodynamic force $R$ :

Body frame: along the body axis (chord) and perpendicular to it.
- $N$ = normal force (perpendicular to chord)
- $A$ = axial force (along chord, pointing aft)
Wind frame: relative to the freestream velocity $V_\infty$ $V_{\infty}$ .
- $L$ = lift (perpendicular to $V_\infty$ )
- $D$ = drag (parallel to $V_\infty$ )

The two frames are rotated by the angle of attack $\alpha$ (angle between chord and $V_\infty$ ).

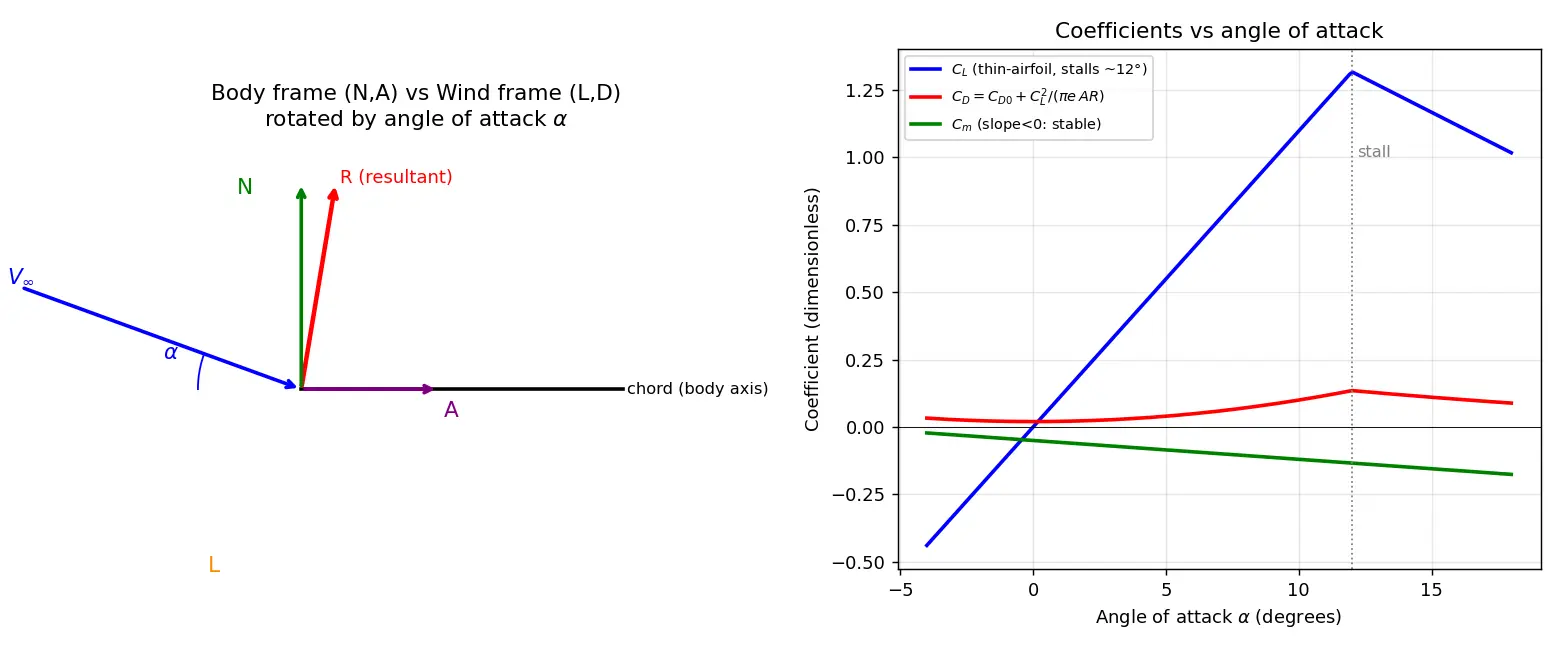

Figure — Aerodynamic coefficients — CN, CA, CL, CD, Cm as functions of angle of attack, Mach

2. Definitions (the non-dimensional numbers)

WHY the extra $c$ in $C_m$ ? A moment is force×length, so to make it dimensionless we need an extra length. That's why only the moment coefficient carries the chord $c$ .

3. DERIVATION: relating body frame ↔ wind frame

Place the resultant force $R$ . In the body frame its components are $(A, N)$ (along chord, normal to chord). The wind axes are the body axes rotated by $\alpha$ . Standard 2D rotation gives:

$L = N\cos\alpha - A\sin\alpha$ $D = N\sin\alpha + A\cos\alpha$

Why this step? $L$ is the component of $R$ perpendicular to $V_\infty$ . The normal force $N$ projects onto that perpendicular as $N\cos\alpha$ ; the axial force $A$ (pointing aft along chord) has a backward-tilted component $-A\sin\alpha$ in the lift direction. Drag is the orthogonal combination.

Dividing every term by $q_\infty S$ (same denominator!) gives the coefficient form:

4. HOW the coefficients depend on $\alpha$

5. HOW Mach number enters (compressibility)

6. Worked examples

7. Common mistakes (Steel-man + fix)

8. Active recall

Why divide force by

q_\infty S

To non-dimensionalize so the coefficient depends on shape/attitude, not on size, speed, or density.

Define

q_\infty

Dynamic pressure

q_\infty=\tfrac12\rho_\infty V_\infty^2

Relation

C_L

in terms of

C_N,C_A,\alpha

C_L=C_N\cos\alpha-C_A\sin\alpha

Relation

C_D

in terms of

C_N,C_A,\alpha

C_D=C_N\sin\alpha+C_A\cos\alpha

Why does

C_m

carry an extra length

c

A moment has units force×length, so an extra reference length is needed to make it dimensionless.

Thin-airfoil lift-curve slope per radian.

2\pi

(so

C_L=2\pi(\alpha-\alpha_{L=0})

Prandtl–Glauert subsonic correction.

C_L=C_{L,\text{incomp}}/\sqrt{1-M_\infty^2}

Supersonic flat-plate

C_L

C_L=4\alpha/\sqrt{M_\infty^2-1}

Supersonic flat-plate wave drag.

C_{D}=4\alpha^2/\sqrt{M_\infty^2-1}

Drag polar equation.

C_D=C_{D0}+C_L^2/(\pi e\,AR)

Condition for static pitch stability.

dC_m/d\alpha<0

What is special about

C_m

at the aerodynamic center?

It is independent of angle of attack.

What new drag appears supersonically that's absent in subsonic inviscid flow?

Wave drag,

\propto\alpha^2

, from shock losses.

Recall Feynman: explain to a 12-year-old

Air pushing on a wing makes one big shove. We split that shove two ways: up-and-down compared to the wing's flat surface ( $N$ and $A$ ), or up-and-back compared to how the wing is flying ( $L$ = lift that holds you up, $D$ = drag that slows you down). These two ways are the same shove, just measured turned by a little angle $\alpha$ — like measuring your height standing straight vs leaning. We turn the numbers into "coefficients" so a tiny model plane and a giant jet can share the same number. Going faster (high Mach) makes air act springy: it gives more lift per tilt until it gets too fast and makes shock-wave drag.

Connections

Thin Airfoil Theory — source of $dC_L/d\alpha=2\pi$ and $\alpha_{L=0}$ .
Prandtl-Glauert Compressibility Correction — subsonic Mach scaling.
Supersonic Linearized (Ackeret) Theory — $1/\sqrt{M^2-1}$ and wave drag.
Induced Drag and Wingtip Vortices — the $C_L^2$ term in the drag polar.
Static Longitudinal Stability — why $dC_m/d\alpha<0$ .
Aerodynamic Center vs Center of Pressure — where $C_m$ is constant.
Dynamic Pressure and Non-dimensionalization — foundation of all coefficients.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab air kisi wing pe takkarti hai to ek poora messy pressure aur friction ka force banta hai. Usko hum ek single resultant force $R$ maan lete hai. Ab is force ko measure karne ke do tareeke hai: body frame mein — chord ke perpendicular wala $N$ (normal) aur chord ke along wala $A$ (axial); aur wind frame mein — flight direction ke perpendicular wala $L$ (lift) aur uske along wala $D$ (drag). Dono same force hai, bas $\alpha$ (angle of attack) se rotate ho gaye. Isliye $C_L=C_N\cos\alpha-C_A\sin\alpha$ aur $C_D=C_N\sin\alpha+C_A\cos\alpha$ — yeh sirf trigonometry hai, naya physics nahi.

Force ko Newton mein rakhne se faayda nahi, kyunki wo size, speed aur density pe depend karta hai. Isliye hum usko $q_\infty S$ (dynamic pressure × reference area) se divide karke coefficient bana dete hai — ek pure number jo sirf shape aur attitude batata hai. Moment ke liye extra length $c$ chahiye, isliye $C_m$ mein chord aata hai.

$\alpha$ ke saath kya hota hai? Thin-airfoil theory kehta hai $C_L=2\pi\alpha$ — yaani lift seedhi line mein badhta hai jab tak stall nahi aata. Drag parabola jaisa hai kyunki induced drag $C_L^2$ ke proportional hai. Aur $C_m$ ka slope negative hona chahiye, tabhi plane stable udega.

Mach number ka role: subsonic mein air thodi springy ho jaati hai, to lift $1/\sqrt{1-M^2}$ se badh jaata hai (Prandtl–Glauert). Lekin $M=1$ ke paas yeh formula fat jaata hai. Supersonic mein factor $\sqrt{M^2-1}$ ban jaata hai aur ek nayi cheez aati hai — wave drag ( $\propto\alpha^2$ ) shock waves ki wajah se. Yaad rakhne ka mantra: "sub mein $\sqrt{1-M^2}$ se divide, super mein $\sqrt{M^2-1}
