Intuition The big picture (WHY this exists)When a fuel–oxidizer mixture burns, the reaction front can travel through the unburnt gas in two fundamentally different ways:
Deflagration subsonic flame that creeps forward by heat conduction + diffusion of radicals. Pressure barely changes (it even drops slightly).Detonation supersonic shock wave that compresses and ignites the gas mechanically. Pressure jumps by a factor of ~15–40.
Both release the same chemical energy, but the mechanism of propagation (diffusion vs shock) is opposite. The Chapman–Jouguet (CJ) condition is the rule that selects the unique stable detonation speed out of infinitely many mathematically allowed solutions. This is the bridge to propulsion : rotating detonation engines (RDEs) want detonation because it approaches constant-volume (more efficient) heat release.
Treat the front as a thin discontinuity. Sit in the frame moving with the front , so gas flows into it at speed u 1 u_1 u 1 out at u 2 u_2 u 2
Definition Rankine–Hugoniot jump conditionsMass, momentum, and energy must be conserved across the front:
ρ 1 u 1 = ρ 2 u 2 ( mass ) \rho_1 u_1 = \rho_2 u_2 \quad (\text{mass}) ρ 1 u 1 = ρ 2 u 2 ( mass ) p 1 + ρ 1 u 1 2 = p 2 + ρ 2 u 2 2 ( momentum ) p_1 + \rho_1 u_1^2 = p_2 + \rho_2 u_2^2 \quad (\text{momentum}) p 1 + ρ 1 u 1 2 = p 2 + ρ 2 u 2 2 ( momentum ) h 1 + 1 2 u 1 2 + q = h 2 + 1 2 u 2 2 ( energy ) h_1 + \tfrac12 u_1^2 + q = h_2 + \tfrac12 u_2^2 \quad (\text{energy}) h 1 + 2 1 u 1 2 + q = h 2 + 2 1 u 2 2 ( energy ) q q q h = c p T h = c_p T h = c p T
Why these three? A reaction front is just a control volume. Nothing magic — same bookkeeping as a shock tube, plus the source term q q q
Let v = 1 / ρ v = 1/\rho v = 1/ ρ specific volume . From mass: u 1 = ρ 2 u 2 / ρ 1 u_1 = \rho_2 u_2/\rho_1 u 1 = ρ 2 u 2 / ρ 1 m ˙ = ρ 1 u 1 = ρ 2 u 2 \dot m = \rho_1 u_1 = \rho_2 u_2 m ˙ = ρ 1 u 1 = ρ 2 u 2 u 1 = m ˙ v 1 u_1 = \dot m v_1 u 1 = m ˙ v 1 u 2 = m ˙ v 2 u_2 = \dot m v_2 u 2 = m ˙ v 2
Substitute into momentum p 1 + m ˙ 2 v 1 = p 2 + m ˙ 2 v 2 p_1 + \dot m^2 v_1 = p_2 + \dot m^2 v_2 p 1 + m ˙ 2 v 1 = p 2 + m ˙ 2 v 2
p 2 − p 1 = − m ˙ 2 ( v 2 − v 1 ) (Rayleigh line) \boxed{\;p_2 - p_1 = -\dot m^2 (v_2 - v_1)\;}\quad\text{(Rayleigh line)} p 2 − p 1 = − m ˙ 2 ( v 2 − v 1 ) (Rayleigh line)
Intuition What the Rayleigh line tells youIn the ( v , p ) (v,\,p) ( v , p ) straight line through the initial state ( v 1 , p 1 ) (v_1,p_1) ( v 1 , p 1 ) − m ˙ 2 ≤ 0 -\dot m^2 \le 0 − m ˙ 2 ≤ 0 negative , any real solution must have:
p 2 > p 1 p_2 > p_1 p 2 > p 1 and v 2 < v 1 v_2 < v_1 v 2 < v 1 detonation (compression, top-left), orp 2 < p 1 p_2 < p_1 p 2 < p 1 and v 2 > v 1 v_2 > v_1 v 2 > v 1 deflagration (expansion, bottom-right).
A steeper line (larger m ˙ \dot m m ˙
Take the energy equation and eliminate velocities. Use 1 2 u 1 2 − 1 2 u 2 2 = 1 2 m ˙ 2 ( v 1 2 − v 2 2 ) \tfrac12 u_1^2 - \tfrac12 u_2^2 = \tfrac12 \dot m^2 (v_1^2 - v_2^2) 2 1 u 1 2 − 2 1 u 2 2 = 2 1 m ˙ 2 ( v 1 2 − v 2 2 ) m ˙ 2 = − ( p 2 − p 1 ) / ( v 2 − v 1 ) \dot m^2 = -(p_2-p_1)/(v_2-v_1) m ˙ 2 = − ( p 2 − p 1 ) / ( v 2 − v 1 )
1 2 u 1 2 − 1 2 u 2 2 = 1 2 ( p 2 − p 1 ) ( v 1 + v 2 ) \tfrac12 u_1^2 - \tfrac12 u_2^2 = \tfrac12 (p_2 - p_1)(v_1 + v_2) 2 1 u 1 2 − 2 1 u 2 2 = 2 1 ( p 2 − p 1 ) ( v 1 + v 2 )
Plug into energy (h 2 − h 1 = q + 1 2 u 1 2 − 1 2 u 2 2 h_2 - h_1 = q + \tfrac12 u_1^2 - \tfrac12 u_2^2 h 2 − h 1 = q + 2 1 u 1 2 − 2 1 u 2 2

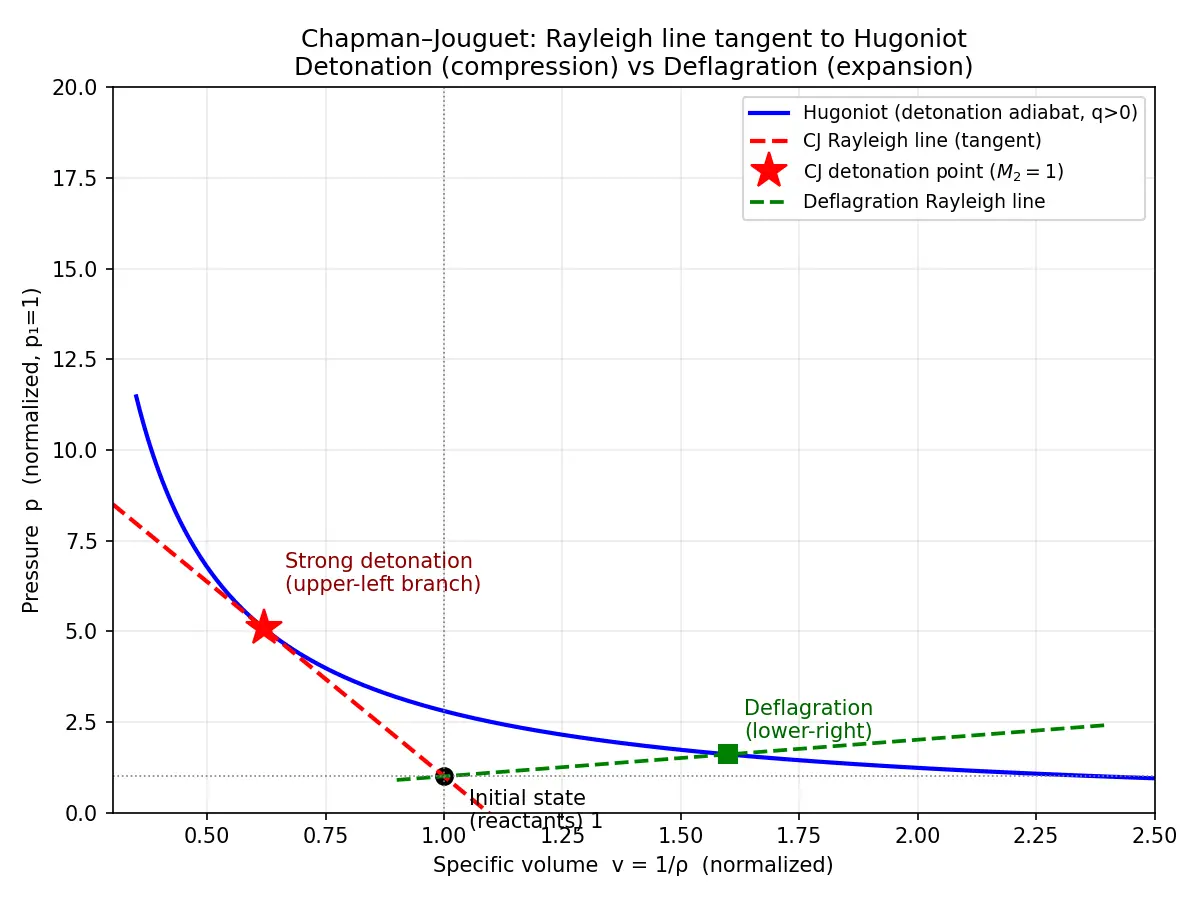

The actual final state must satisfy BOTH lines: it is the intersection of the Rayleigh line and the Hugoniot curve .
For a given m ˙ \dot m m ˙ two points (strong & weak), one point (tangent), or none . The CJ point is special:
Definition Chapman–Jouguet conditionThe CJ state is where the Rayleigh line is tangent u 2 = a 2 \boxed{u_2 = a_2} u 2 = a 2 exactly at the local speed of sound (Mach number M 2 = 1 M_2 = 1 M 2 = 1
Intuition WHY tangency = sonic = the chosen speed
Two intersections would mean the front could run at many speeds. Nature picks the one that is self-sustaining and stable .
If u 2 < a 2 u_2 < a_2 u 2 < a 2 weaken the front until u 2 = a 2 u_2 = a_2 u 2 = a 2
At u 2 = a 2 u_2 = a_2 u 2 = a 2 choked : rearward disturbances can no longer overtake the front, so it propagates steadily and autonomously . That's the minimum-speed self-sustaining detonation.
Mathematically, the Rayleigh line just grazing the Hugoniot is precisely the smallest m ˙ \dot m m ˙
Typical numbers: stoichiometric H₂–O₂ gives D C J ≈ 2840 D_{CJ}\approx 2840 D C J ≈ 2840 p 2 / p 1 ≈ 18 p_2/p_1 \approx 18 p 2 / p 1 ≈ 18
Property
Deflagration
Detonation
Propagation mechanism
heat conduction + radical diffusion shock compression
Speed
subsonic (∼ \sim ∼
supersonic (∼ \sim ∼
p 2 p_2 p 2 p 1 p_1 p 1 slightly lower (p 2 < p 1 p_2 < p_1 p 2 < p 1
strongly higher (p 2 ≫ p 1 p_2 \gg p_1 p 2 ≫ p 1
v 2 v_2 v 2 v 1 v_1 v 1 gas expands (v 2 > v 1 v_2>v_1 v 2 > v 1
gas compressed (v 2 < v 1 v_2<v_1 v 2 < v 1
Flow leaving front
accelerates, M 2 < 1 M_2<1 M 2 < 1
M 2 = 1 M_2 = 1 M 2 = 1
Hugoniot branch
lower-right
upper-left
Propulsion relevance
normal flames, ramjets
RDE, PDE — near constant-volume, higher efficiency
Worked example (a) EstimateD C J D_{CJ} D C J q = 3.0 × 10 6 q = 3.0\times10^{6} q = 3.0 × 1 0 6 γ = 1.3 \gamma = 1.3 γ = 1.3 D C J = 2 ( γ 2 − 1 ) q = 2 ( 1.69 − 1 ) ( 3.0 × 10 6 ) D_{CJ}=\sqrt{2(\gamma^2-1)q}=\sqrt{2(1.69-1)(3.0\times10^6)} D C J = 2 ( γ 2 − 1 ) q = 2 ( 1.69 − 1 ) ( 3.0 × 1 0 6 ) Why this step? We use the strong-detonation estimate because the question gives only q q q γ \gamma γ = 2 ( 0.69 ) ( 3.0 × 10 6 ) = 4.14 × 10 6 ≈ 2035 m/s =\sqrt{2(0.69)(3.0\times10^6)}=\sqrt{4.14\times10^6}\approx 2035\ \text{m/s} = 2 ( 0.69 ) ( 3.0 × 1 0 6 ) = 4.14 × 1 0 6 ≈ 2035 m/s Sanity check: supersonic, of order km/s — consistent with a real detonation. ✓
Worked example (b) Which branch? A front givesp 2 / p 1 = 12 p_2/p_1 = 12 p 2 / p 1 = 12 v 2 / v 1 = 0.55 v_2/v_1 = 0.55 v 2 / v 1 = 0.55 Why this step? Pressure rose and volume fell, both signatures of compression.
→ This sits on the upper-left Hugoniot branch ⇒ detonation . ✓
Worked example (c) Rayleigh slope sanity checkGiven p 1 = 1 p_1 = 1 p 1 = 1 v 1 = 1 v_1 = 1 v 1 = 1 p 2 = 15 p_2 = 15 p 2 = 15 v 2 = 0.6 v_2 = 0.6 v 2 = 0.6 = p 2 − p 1 v 2 − v 1 = 15 − 1 0.6 − 1 = 14 − 0.4 = − 35 = \dfrac{p_2-p_1}{v_2-v_1} = \dfrac{15-1}{0.6-1} = \dfrac{14}{-0.4} = -35 = v 2 − v 1 p 2 − p 1 = 0.6 − 1 15 − 1 = − 0.4 14 = − 35 Why this step? The Rayleigh slope is − m ˙ 2 -\dot m^2 − m ˙ 2 m ˙ 2 = 35 \dot m^2 = 35 m ˙ 2 = 35 m ˙ = 5.9 \dot m = 5.9 m ˙ = 5.9 fast (detonation) front . ✓
Common mistake "Detonation is just a really fast deflagration."Why it feels right: both burn the same fuel and release the same chemical energy, so it seems like a continuum of speed.
The fix: the mechanism is categorically different . Deflagration is driven by diffusion of heat/radicals (subsonic, pressure drops); detonation is driven by a shock that ignites gas by compression (supersonic, pressure spikes). They live on different branches of the Hugoniot — you cannot smoothly slide from one to the other.
Common mistake "The CJ point is where energy release is maximum."Why it feels right: "special point" sounds like an energy extremum.
The fix: CJ is a tangency / sonic (M 2 = 1 M_2=1 M 2 = 1 , the minimum self-sustaining detonation speed , not an energy max. The heat q q q
Common mistake "Pressure always rises across a reacting front."Why it feels right: explosions = high pressure.
The fix: only detonations raise pressure. Deflagrations show p 2 ≲ p 1 p_2 \lesssim p_1 p 2 ≲ p 1
Recall Feynman: explain it to a 12-year-oldImagine a line of people passing a "burn" down a corridor.
Deflagration: each person taps the next on the shoulder to start burning. Slow, gentle, the corridor stays calm.Detonation: someone fires a cannonball down the corridor so hard it sets each person alight by smashing into them. It's faster than sound, and it leaves a wall of high pressure behind.
Chapman–Jouguet is the rule that says: the cannonball settles into one exact speed — the speed at which the people behind can no longer shout instructions forward (their sound can't catch up). That self-running speed is the detonation speed.
"DEFLAGRATION = DIFFUSE & DEFLATE; DETONATION = SHOCK & SPIKE."
And for CJ: "CJ = Choked Junction" — burnt gas leaves at Mach 1.
What distinguishes deflagration from detonation by mechanism ? Deflagration propagates by heat conduction + radical diffusion (subsonic); detonation propagates by shock compression (supersonic).
What happens to pressure across a deflagration vs a detonation? Deflagration:
p 2 p_2 p 2 slightly
lower than
p 1 p_1 p 1 (gas expands). Detonation:
p 2 ≫ p 1 p_2 \gg p_1 p 2 ≫ p 1 (gas compressed).
State the three Rankine–Hugoniot jump conditions. Mass
ρ 1 u 1 = ρ 2 u 2 \rho_1u_1=\rho_2u_2 ρ 1 u 1 = ρ 2 u 2 ; momentum
p 1 + ρ 1 u 1 2 = p 2 + ρ 2 u 2 2 p_1+\rho_1u_1^2=p_2+\rho_2u_2^2 p 1 + ρ 1 u 1 2 = p 2 + ρ 2 u 2 2 ; energy
h 1 + 1 2 u 1 2 + q = h 2 + 1 2 u 2 2 h_1+\tfrac12u_1^2+q=h_2+\tfrac12u_2^2 h 1 + 2 1 u 1 2 + q = h 2 + 2 1 u 2 2 .
What is the Rayleigh line and its slope? p 2 − p 1 = − m ˙ 2 ( v 2 − v 1 ) p_2-p_1=-\dot m^2(v_2-v_1) p 2 − p 1 = − m ˙ 2 ( v 2 − v 1 ) ; a straight line through
( v 1 , p 1 ) (v_1,p_1) ( v 1 , p 1 ) with slope
− m ˙ 2 -\dot m^2 − m ˙ 2 (always negative).
Define the Chapman–Jouguet condition. The Rayleigh line is
tangent to the Hugoniot curve; equivalently the burnt gas leaves the front at exactly the local sound speed,
u 2 = a 2 u_2=a_2 u 2 = a 2 (
M 2 = 1 M_2=1 M 2 = 1 ).
Why does the detonation settle to the CJ speed? At
M 2 = 1 M_2=1 M 2 = 1 the flow is choked, so rearward rarefaction waves can't overtake and weaken the front — it becomes self-sustaining at the minimum detonation speed.
Give the ideal-gas estimate for CJ velocity. D C J ≈ 2 ( γ 2 − 1 ) q D_{CJ}\approx\sqrt{2(\gamma^2-1)q} D C J ≈ 2 ( γ 2 − 1 ) q (strong-detonation limit); larger heat release
q q q → faster detonation.
Which Hugoniot branch is detonation? Which is deflagration? Detonation = upper-left (
p 2 > p 1 p_2>p_1 p 2 > p 1 ,
v 2 < v 1 v_2<v_1 v 2 < v 1 ); deflagration = lower-right (
p 2 < p 1 p_2<p_1 p 2 < p 1 ,
v 2 > v 1 v_2>v_1 v 2 > v 1 ).
Why is detonation attractive for propulsion (RDE/PDE)? It approximates constant-volume heat release, giving higher thermodynamic efficiency than constant-pressure deflagration cycles.
What does a steeper Rayleigh line physically mean? Larger
m ˙ \dot m m ˙ , hence a faster front — characteristic of detonation rather than deflagration.
approaches constant volume
Rankine-Hugoniot jump conditions
Chapman-Jouguet condition
Detonation supersonic shock
Deflagration subsonic flame
Rotating Detonation Engines
Intuition Hinglish mein samjhoDekho, jab koi fuel-oxidizer mixture jalta hai, to reaction ka front do bilkul alag tareeke se aage badh sakta hai. Pehla hai deflagration — yeh normal flame jaisa hota hai, subsonic, jisme garmi aur radicals diffuse hoke aage wale gas ko jalate hain. Ismein pressure thoda kam hi hota hai aur gas phailti (expand) hai. Doosra hai detonation — yeh ek supersonic shock wave hai jo gas ko mechanically dabakar (compress karke) ignite kar deta hai. Ismein pressure 15–40 guna tak jump kar jata hai. Same energy release hoti hai dono mein, par mechanism opposite hai: ek diffusion-driven, doosra shock-driven.
Ab maths ki baat: front ke aar-paar mass, momentum aur energy conserve hote hain (Rankine–Hugoniot conditions). Inse do cheezein nikalti hain — Rayleigh line (ek seedhi line jiska slope − m ˙ 2 -\dot m^2 − m ˙ 2 Hugoniot curve (heat release q q q
Chapman–Jouguet condition yahan ka hero hai. Jab Rayleigh line Hugoniot ko tangent (sirf chhuti hai) karti hai, tab burnt gas exactly sound speed pe nikalta hai (M 2 = 1 M_2 = 1 M 2 = 1
