Shock waves — Mach number, Mach cone — - CRITICAL for rockets -: Question bank

Intuition How to use this page

These are the thinking traps the Mach-cone story sets for you — not number crunching (that lives in the worked-example pages), but the "wait, is that actually true?" moments. Cover the answer, commit to a reason out loud, then reveal. If your reason differs from mine even when your yes/no matches, you got lucky, not right. Every answer below is a reason, never a bare verdict.

This deep dive leans on the parent Mach number & Mach cone note; if a symbol here feels unfamiliar, that note builds it from zero. Recall the two anchors you need for everything: the Mach number $M = v_{obj} / v_{s}$ (your speed measured in "sound speeds") and the Mach angle $θ$ where $sin θ = 1/ M$ (the half-angle of the trailing cone). Here $v_{obj}$ is the object's speed and $v_{s}$ the local speed of sound — see Speed of sound in a medium.

The picture behind every trap

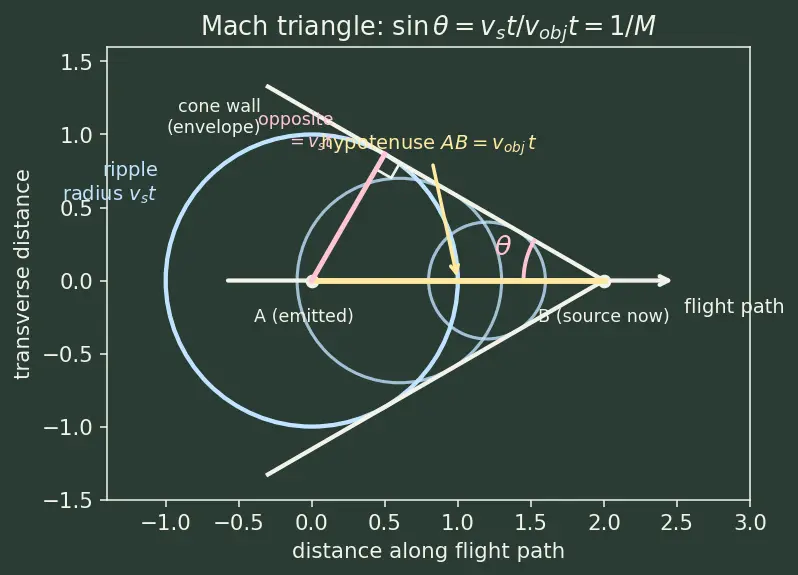

Before you attempt the questions, burn this one diagram into memory — nearly every trap below is just a misreading of it.

Figure — Shock waves — Mach number, Mach cone — - CRITICAL for rockets -

True or false — justify

Each item: decide, then give the physical reason. "True/False" alone scores zero.

A sonic boom is a single bang that happens the instant the plane crosses

M = 1

False. The boom is the Mach cone's pressure wall sweeping over you; it drags behind the plane the entire time it stays supersonic, so any listener hears it whenever the cone reaches them — usually well after the plane was overhead.

At exactly

M = 1

the Mach cone has half-angle

θ = 9 0^{\circ}

True.

sin θ = 1/ M = 1

gives

θ = 9 0^{\circ}

, meaning the "cone" has opened out into a flat plane perpendicular to the flight path — the wavefronts pile into a single wall right at the nose (the sound barrier).

A faster supersonic object produces a wider (fatter) Mach cone.

False. Faster means larger

M

, so

sin θ = 1/ M

is smaller, so

θ

is smaller — the cone gets thinner and more swept back. Speed pulls the V tight.

If the object flies below the speed of sound, its wavefronts still form a shock cone, just a shallow one.

False. For

M < 1

sin θ = 1/ M > 1

, which has no real angle. The source sits inside its own expanding wavefronts (the

B

-inside-the-blue-circle case), so they never pile into an envelope — no cone, no shock.

The Mach angle depends on how long the source has been travelling.

False. Both the wavefront radius (

v_{s} t

) and the source's displacement (

v_{obj} t

) grow linearly with

t

, so their ratio — and hence

θ

— is fixed the moment

v_{obj}

and

v_{s}

are fixed. Time cancels.

The Mach number is just the object's speed in metres per second, rescaled.

False.

M

is a ratio against the local sound speed

v_{s}

, which itself varies with temperature and altitude. The same 340 m/s can be

M < 1

at hot sea level and

M > 1

up high — raw speed doesn't tell you if a shock forms; the ratio does.

Wave drag is largest at very high Mach numbers, so hypersonic flight is where drag peaks.

False (misleading). Correction: the wave-drag coefficient spikes sharply right around

M \approx 1

(the transonic barrier, where air can't clear out of the way), then eases off and levels down into the supersonic range — it does not keep climbing to a maximum at high Mach. That transonic spike is exactly why nose shaping targets

M \approx 1

— see Wave drag and aerodynamic heating.

The sonic-boom cone and the Doppler bunching of wavefronts are two unrelated phenomena.

False. They're the same wavefront geometry at different speed ratios. Doppler effect is the

M < 1

bunching of fronts ahead of a mover; the shock cone is the

M \geq 1

limiting case where that bunching collapses onto a single envelope surface.

Spot the error

Each statement contains one flaw. Name it and correct it.

sin θ = M

, so at

M = 2

the angle is

sin^{- 1} 2

The relation is inverted: it's

sin θ = 1/ M

, not

M

sin^{- 1} 2

has no solution anyway, which should have flagged the mistake. Correct:

sin θ = 1/2

θ = 3 0^{\circ}

"The wavefront is the hypotenuse of the Mach triangle and the source's path is the opposite side."

Swapped. The source travels the longer distance

v_{obj} t

(hypotenuse, since

v_{obj} > v_{s}

), and the wavefront radius

v_{s} t

is the opposite side. That's exactly why

sin θ = v_{s} t / (v_{obj} t) = 1/ M < 1

— read it straight off the figure above.

"Since

M > 1

means supersonic,

M = 0.99

is close enough to make a weak shock cone."

There is no partial cone below

M = 1

sin θ = 1/0.99 > 1

has no real angle; the geometric Mach cone requires

M \geq 1

strictly. Transonic flow does have local supersonic pockets, but no global trailing cone.

"As

M \to \infty

the cone angle grows without bound."

Backwards.

sin θ = 1/ M \to 0

, so

θ \to 0

— the cone becomes infinitely thin and swept back, not large. This limit is the sanity check that

sin θ = 1/ M

(not

= M

) is correct.

"The wavefronts pile up on the cone because they interfere destructively there."

It's constructive build-up. The cone is the tangent envelope where every emitted sphere touches, so their pressure contributions add coherently into one steep wall — see Superposition & constructive interference.

"Rocket exhaust is subsonic, so nozzle shocks aren't a Mach-cone concern."

The exhaust in a properly run De Laval nozzle is supersonic; engineers use Mach number precisely to shape the diverging section for that regime. Shock structure inside and downstream of the nozzle is a live design issue.

Why questions

Answer with the mechanism, not a restatement.

Why does the factor

t

cancel in the Mach-angle derivation, and why is that physically satisfying?

Both legs of the triangle scale with

t

(

v_{s} t

and

v_{obj} t

), so their ratio is time-independent. Physically it means the cone is a fixed shape the object drags along — it doesn't fatten or thin as flight continues.

Why is the Mach number (a ratio) the right variable rather than the object's speed?

Because whether a shock forms depends only on beating your own ripples, i.e. on

v_{obj}

compared to

v_{s}

. Since

v_{s}

shifts with the medium's temperature/density, only the ratio

M

carries the shock-or-no-shock physics cleanly.

Why do rockets and supersonic jets have pointed noses?

A sharp nose keeps the shock attached and weak, spreading compression gradually instead of forcing a strong detached bow shock that spikes wave drag and heating. Blunt bodies get a strong stand-off shock — deliberately used on re-entry capsules for cooling, the opposite trade-off.

Why does air crossing the shock heat up, and why does this matter at hypersonic re-entry?

The shock compresses the air almost instantaneously, converting bulk kinetic energy into internal energy (temperature). At high

M

this compression is violent, making shock heating the dominant thermal load — hence heat shields, per Wave drag and aerodynamic heating.

Why can't we use incompressible Bernoulli reasoning near

M = 1

Near sonic speed density changes are large and non-negligible, so the incompressible assumption fails and pressure–velocity relations must account for compression — see Compressible flow / Bernoulli limits. Shocks are inherently compressible events.

Why does a listener on the ground hear the boom after the jet has already passed overhead?

The cone trails behind the jet, meeting the ground some horizontal distance back from the aircraft's current position. The jet must fly on past you before its trailing cone surface catches up to your spot, giving the characteristic delay.

Why is

θ = 9 0^{\circ}

the boundary case rather than

θ = 0^{\circ}

θ = 9 0^{\circ}

occurs at

M = 1

(cone flattened to a plane — the onset of shock).

θ \to 0^{\circ}

is the

M \to \infty

extreme (infinitely thin cone). The existence boundary is the

9 0^{\circ}

end, where

sin θ

first reaches its maximum possible value of 1.

Edge cases

Push each parameter to its limit and say what happens.

What is the Mach cone at exactly

M = 1

A degenerate cone:

θ = 9 0^{\circ}

, so the "cone" is a flat wall perpendicular to motion sitting at the nose. All wavefronts stack there — this is the transonic sound-barrier pile-up.

What happens to the cone as

M \to \infty

(hypersonic limit)?

sin θ = 1/ M \to 0

, so

θ \to 0^{\circ}

: an infinitely thin, fully swept-back cone hugging the flight path. The shock lies essentially along the trajectory.

What if

M < 1

(subsonic) — what does the "would-be cone" look like?

There is none.

sin θ = 1/ M > 1

is unphysical; the source stays enclosed by its own spherical wavefronts, which simply bunch ahead (ordinary Doppler compression) without forming an envelope surface.

What if the object is momentarily at rest,

v_{obj} = 0

M = 0

, and

sin θ = 1/ M

is undefined (division by zero). Physically the wavefronts are concentric spheres centred on the fixed source — perfectly symmetric, no cone, no preferred direction.

What if

v_{s}

changes along the path (climbing to colder, thinner air)?

M = v_{obj} / v_{s}

changes even at constant

v_{obj}

, so the local Mach angle changes too. A rocket can be subsonic low down and supersonic higher up at the same speed, because

v_{s}

dropped — see Speed of sound in a medium.

What happens to the boom's ground timing as the flight altitude

h \to 0

The cone wall meets the ground at a horizontal lag distance

x = h / tan θ

behind the aircraft — here

x

is simply how far back along the ground the cone touches when the jet flies at height

h

. As

h \to 0

that lag

x \to 0

, so the boom arrives essentially the moment the jet is overhead — very little delay for a low pass.

Recall One-line self-test

Cone existence condition? ::: $M \geq 1$ , because $sin θ = 1/ M$ needs $1/ M \leq 1$ . Direction of the speed–angle trade? ::: Faster ⇒ smaller $θ$ ⇒ thinner cone. Is the boom an event or a sweep? ::: A sweep — the cone wall passing over you while the object stays supersonic.

Connections

Parent: Mach number & Mach cone
Speed of sound in a medium — sets $v_{s}$ , so it sets $M$ at each altitude.
Doppler effect — subsonic wavefront bunching; shock is its $M \geq 1$ limit.
Superposition & constructive interference — the cone is coherent pile-up.
Wave drag and aerodynamic heating — the engineering payoff of these traps.
De Laval nozzle — supersonic exhaust design.
Compressible flow / Bernoulli limits — why incompressible reasoning dies near $M = 1$ .
