Wave drag — transonic and supersonic — Physics notes

1. What is wave drag? (WHAT)

2. Why does crossing $M=1$ cost energy? (WHY — derivation from first principles)

HOW we build the idea:

A sound wave is a tiny pressure pulse moving at $a$ . A body moving at $u$ sends pressure pulses outward. The Mach number is

$M = \frac{u}{a}.$

Consider pulses emitted every instant. In time $t$ :

A pulse has spread to radius $a t$ .
The body has moved $u t$ .

If $u < a$ ( $M<1$ ): the body stays inside its own pulse spheres → air ahead is warned → smooth subsonic deflection.

If $u > a$ ( $M>1$ ): the body outruns its pulses. The envelope of these infinitesimal pulses is the Mach cone, whose half-angle $\mu$ satisfies

$\sin\mu = \frac{a t}{u t} = \frac{a}{u} = \frac{1}{M}.$

Formula Mach angle

$\boxed{\sin\mu = \frac{1}{M}}\qquad \mu = \arcsin\!\left(\tfrac1M\right)$ Why this step? It is pure geometry of "pulse front radius $at$ " vs "distance travelled $ut$ ". As $M\to1$ , $\mu\to90°$ . As $M\to\infty$ , $\mu\to0$ (cone wraps tight to the body).

CAUTION (important): The Mach angle $\mu$ describes the envelope of infinitesimally weak disturbances ("Mach waves") in a $M>1$ flow. It is NOT the angle of an actual shock on a body. A real shock is a finite-strength disturbance and is always steeper than the Mach cone:

For a slender wedge/cone with half-angle $\theta$ , the attached oblique shock angle $\beta$ comes from the full == $\theta$ – $\beta$ – $M$ relation== and satisfies $\beta>\mu$ .
For a blunt body (or $\theta$ above the maximum deflection), the shock detaches and stands off as a curved bow shock; near the centreline it is locally a normal shock, nowhere equal to $\mu$ . So: Mach cone = weak-signal geometry; bow/oblique shock = finite compression governed by shock relations, not by $\sin\mu=1/M$ .

The $\theta$ – $\beta$ – $M$ relation (why a real shock angle is not $\mu$ )

For an oblique shock turning the flow by angle $\theta$ at upstream Mach $M_1$ , mass/momentum/energy across the shock give

$\tan\theta = 2\cot\beta\,\frac{M_1^2\sin^2\beta - 1}{M_1^2(\gamma+\cos 2\beta)+2}.$

Why a shock = drag (entropy argument)

Across an oblique/normal shock the flow is adiabatic but irreversible, so total enthalpy $h_0$ is conserved but entropy rises: $s_2 > s_1$ . By Gibbs for an adiabatic compressible flow,

$\frac{p_{0,2}}{p_{0,1}} = e^{-\Delta s / R}.$

So the stagnation pressure drops across every shock. A momentum balance on a control volume shows that a stagnation-pressure deficit in the wake equals a net rearward force on the body. That force is wave drag. No viscosity required — it is a purely compressible, shock-born loss.

3. The transonic regime — why drag spikes near $M=1$

The drag coefficient bump is huge in transonic, then falls again in pure supersonic because shocks become attached, oblique and weaker per unit length.

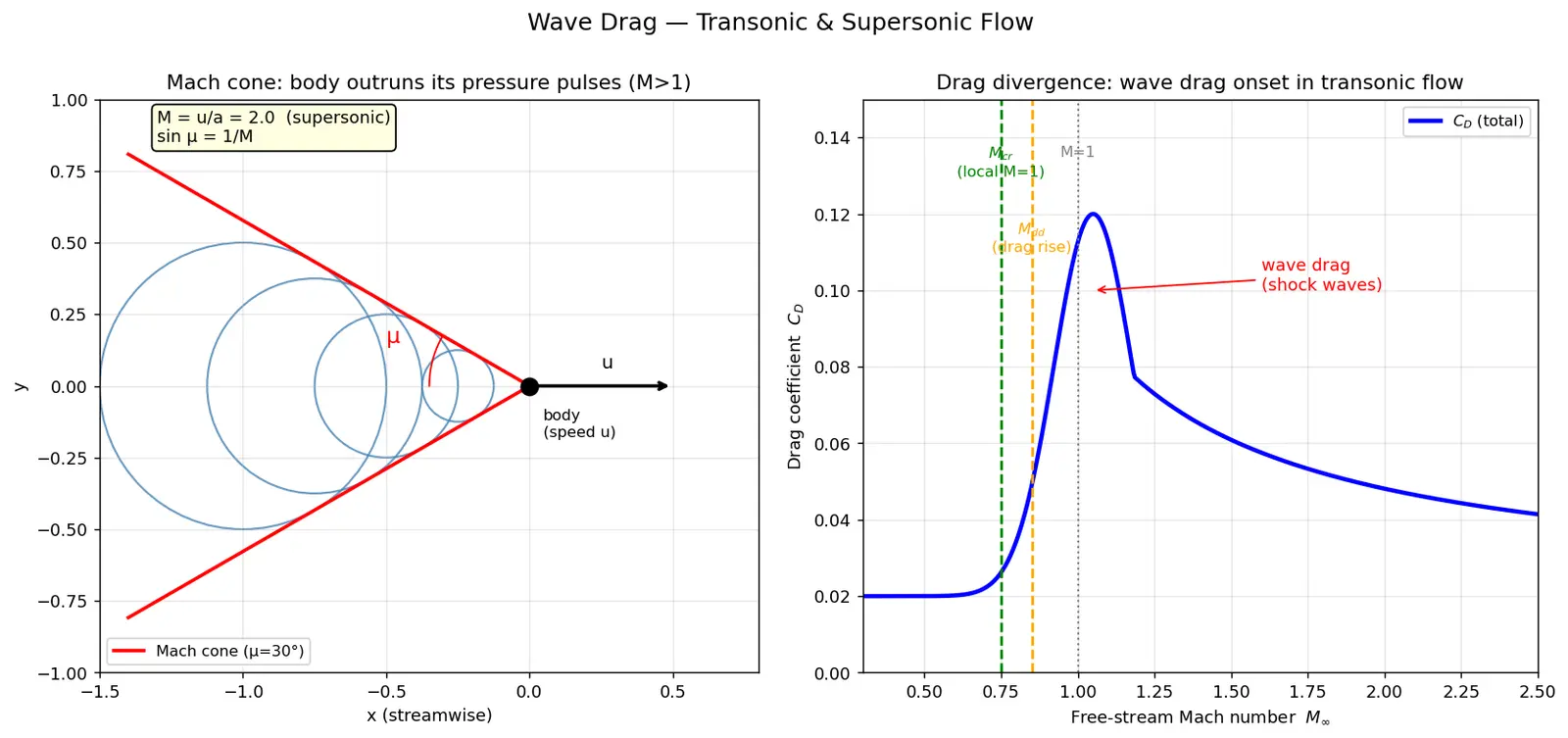

Figure — Wave drag — transonic and supersonic

4. The supersonic regime — quantitative wave drag

For a thin 2-D airfoil at small angle of attack in supersonic flow, linearized (Ackeret) theory gives the surface pressure coefficient from a single oblique-wave relation:

$C_p = \frac{2\theta}{\sqrt{M_\infty^2 - 1}},$

where $\theta$ is the local surface inclination to the flow. (Note: this linearized result is the weak-disturbance limit, where local wave angles approach $\mu$ ; it is the small- $\theta$ approximation of the full $\theta$ – $\beta$ – $M$ shock/expansion physics.)

Formula Ackeret thin-airfoil results (derivation sketch)

Integrating $C_p$ over the surface for a thin airfoil at angle of attack $\alpha$ , with thickness and camber contributions, yields: $\boxed{c_l = \frac{4\alpha}{\sqrt{M_\infty^2-1}}}$ $\boxed{c_{d,wave} = \frac{4}{\sqrt{M_\infty^2-1}}\Big(\alpha^2 + \overline{(dy_c/dx)^2} + \overline{(dy_t/dx)^2}\Big)}$ Why each term?

$\alpha^2$ : wave drag due to lift (you tilt the airfoil ⇒ stronger shocks).
$\overline{(dy_c/dx)^2}$ : from camber slope (mean line).
$\overline{(dy_t/dx)^2}$ : from thickness distribution — this is the "volume" wave drag that exists even at zero lift.

Key insight: $c_{d,wave}\propto 1/\sqrt{M^2-1}$ ⇒ it decreases with increasing supersonic $M$ , AND every term is a square ⇒ wave drag never goes negative and is minimized by thin, low-camber sections.

Worked example Worked: lift-to-wave-drag scaling

A flat plate ( $c_l = \tfrac{4\alpha}{\sqrt{M^2-1}}$ , $c_{d}=\tfrac{4\alpha^2}{\sqrt{M^2-1}}$ ) at $M=2$ , $\alpha=3°=0.0524$ rad. Why use $\beta=\sqrt{M^2-1}=\sqrt{3}=1.732$ ? It's the compressibility factor from the oblique-wave denominator. (Here $\beta=\sqrt{M^2-1}$ is the Prandtl–Glauert factor, a different quantity from the shock angle $\beta$ above — same letter, different meaning.) $c_l = \frac{4(0.0524)}{1.732}=0.121$ . $c_{d,wave}=\frac{4(0.0524)^2}{1.732}=0.00634$ . $L/D_{wave}=c_l/c_d = 1/\alpha = 19.1$ . Why? For a flat plate $L/D_{wave}=\cot\alpha\approx1/\alpha$ — tells you small $\alpha$ is efficient, but lift then is also small.

5. The Area Rule (the 80/20 design win)

6. Common mistakes

7. Active recall

Recall Test yourself (hide answers)

Why does wave drag exist with no friction? → shock entropy rise ⇒ stagnation-pressure loss ⇒ net rearward force.
Formula for Mach angle? → $\sin\mu=1/M$ (weak-disturbance envelope only).
Is a real shock at angle $\mu$ ? → No; attached shock $\beta>\mu$ via $\theta$ – $\beta$ – $M$ ; blunt body ⇒ detached bow shock.
Why does supersonic wave drag decrease with $M$ ? → $\propto 1/\sqrt{M^2-1}$ .
Why thin swept wings? → raise $M_{cr}$ & cut thickness wave drag; $M_n=M\cos\Lambda$ .

Recall Feynman: explain to a 12-year-old

Imagine running in a swimming pool. Slowly, water moves aside before you reach it. But if you run faster than the ripples can travel, the water can't get out of your way — it slams into a sharp wall in front of you. Pushing that wall of water is hard work, and you never get that energy back. A jet faster than sound makes a "wall of air" called a shock wave, and shoving it forward is wave drag. There's also a faint, gentle cone of tiny ripples (the Mach cone) — that's not the strong wall; the real wall (shock) leans more steeply and is much harder to push. Make the plane thin and pointy and the wall gets weaker, so it's easier to push.

Connections

Speed of sound and Mach number
Normal and oblique shock waves
Theta-beta-M relation and detached bow shocks
Entropy and stagnation pressure loss
Critical and drag-divergence Mach number
Prandtl-Glauert compressibility correction
Whitcomb Area Rule and supercritical airfoils
Sonic boom and the Mach cone

What is wave drag physically?

Drag from shock-wave formation; entropy rises across shocks ⇒ stagnation-pressure loss ⇒ net rearward force (inviscid in origin).

Mach angle formula?

\sin\mu = 1/M

, so

\mu=\arcsin(1/M)

— envelope of infinitesimal disturbances only.

Mach angle at M=2?

30^\circ

Is a body's shock at the Mach angle?

No. Attached oblique shock angle

\beta>\mu

via the

\theta

–

\beta

–

M

relation; blunt bodies (or

\theta>\theta_{max}

) give a detached, curved bow shock (locally normal at the nose).

When does shock angle

\beta

equal Mach angle

\mu

Only in the limit of vanishing turning,

\theta\to0

(zero-strength weak shock).

What causes a shock to detach into a bow shock?

Required flow turning exceeds

\theta_{max}(M)

(e.g. blunt nose) — no attached oblique-shock solution exists.

Critical Mach number

M_{cr}

Free-stream

M

at which local flow first reaches

M=1

Drag-divergence Mach

M_{dd}

M_{cr}

M_{dd}>M_{cr}

; it's where

C_D

begins to rise steeply.

How does supersonic wave drag scale with Mach?

c_{d,wave}\propto 1/\sqrt{M^2-1}

— it decreases as

M

rises.

Ackeret

C_p

for thin supersonic airfoil?

C_p = 2\theta/\sqrt{M^2-1}

(linearized weak-disturbance limit).

Ackeret lift coefficient (flat plate)?

c_l = 4\alpha/\sqrt{M^2-1}

Ackeret wave-drag coefficient?

c_d = \frac{4}{\sqrt{M^2-1}}(\alpha^2+\overline{(dy_c/dx)^2}+\overline{(dy_t/dx)^2})

Flat-plate supersonic L/D from wave drag?

c_l/c_d = 1/\alpha = \cot\alpha

Effect of wing sweep on critical Mach?

Raises it; effective normal Mach

M_n=M\cos\Lambda

is smaller, delaying shocks.

Why thin wings at high speed?

Thickness term dominates zero-lift wave drag and lowers

M_{cr}

What is the Area Rule?

Smooth the axial cross-section area

A(x)

to minimize transonic wave drag (waisted "coke-bottle" fuselage).

Is wave drag viscous?

No — inviscid in origin; arises even in frictionless gas via shocks.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, is note ka core intuition ye hai ki jab koi body air mein sound ki speed se tez chalti hai, toh air ko aage warning hi nahi milti ki koi aa raha hai. Kyunki pressure signals sirf sound ki speed $a$ pe travel karte hain, aur agar body us se zyada tez ( $M = u/a > 1$ ) chal rahi hai, toh woh apne hi pressure pulses ko peeche chhod deti hai. Result? Air smoothly hat nahi paati, balki achanak se shock wave mein pile up ho jaati hai. In shocks ko push karne mein jo energy lagti hai woh wapas nahi milti — aur wahi lost energy hi hai wave drag. Iski khaas baat ye hai ki ye friction ke bina hoti hai; iska asli source shock ke across entropy ka increase hai, jo stagnation pressure loss aur momentum deficit ke roop mein ek rearward force banata hai.

Ab ek important cheez samajhna — jab body supersonic hoti hai, toh saare weak pulses milkar ek Mach cone banate hain jiska half-angle $\sin\mu = 1/M$ formula se aata hai. Lekin yahan students aksar confuse ho jaate hain: ye Mach angle sirf bahut hi weak disturbances ki geometry batata hai, ye actual shock ka angle nahi hai. Real shock hamesha Mach cone se steeper hota hai kyunki woh finite strength ka compression hota hai. Ek wedge ke liye attached oblique shock ka angle $\beta$ full $\theta$ - $\beta$ - $M$ relation se milta hai, aur blunt body pe toh shock detach hokar ek curved bow shock ban jaata hai.

Ye samajhna kyun matter karta hai? Kyunki jab aap high-speed aircraft, rockets ya missiles design karte ho, toh critical Mach number ( $M_{cr}$ , jahan pe flow pehli baar $M=1$ touch karta hai) aur drag-divergence Mach number ( $M_{dd}$ , jahan drag suddenly bhagne lagta hai) ko jaanna crucial hota hai. Ye milestones batate hain ki kab wave drag serious problem ban jaayega. Toh aap dekh sakte ho ki simple geometry se lekar shock relations tak, ye pura concept practical engineering — jaise wing shape aur nose design — mein directly kaam aata hai.
