Area rule — Whitcomb's rule for transonic drag reduction

WHAT is the Area Rule?

$x$ = distance along the flight (streamwise) axis.
$A(x)$ = area of the body cut by a plane perpendicular to the flow (for $M\approx 1$ ).
For supersonic $M>1$ the cutting plane is the Mach plane, tilted at the Mach angle $\mu=\arcsin(1/M)$ — this is the Supersonic Area Rule (Jones).

WHY does only the area distribution matter?

The key physical chain:

\text{Sudden change in } A(x)\;\Rightarrow\; \text{large } \frac{d^2A}{dx^2} \;\Rightarrow\; \text{strong flow acceleration} \;\Rightarrow\; \text{shock waves} \;\Rightarrow\; \text{wave drag.}

HOW: Deriving the wave-drag formula from first principles

We use linearized supersonic slender-body theory. A slender body's disturbance can be built from a line of sources of strength $f(x)$ along the axis. The local source strength that produces a body of cross-section $A(x)$ is

f(x) = U_\infty \frac{dA}{dx},

The drag is the streamwise momentum lost to the waves. Carrying through the linearized supersonic Green's function (von Kármán, 1935), the wave drag of a slender body of length $\ell$ is the von Kármán–Sears integral:

\boxed{\,D_w = -\frac{\rho_\infty U_\infty^2}{4\pi}\int_0^\ell\!\!\int_0^\ell A''(x_1)\,A''(x_2)\,\ln|x_1-x_2|\;dx_1\,dx_2\,}

where $A''=\dfrac{d^2A}{dx^2}$ .

Why slender bodies → smooth curve is optimal: the Sears–Haack body

Minimizing $D_w$ over all $A(x)$ with fixed length $\ell$ and fixed maximum area (or fixed volume) is a calculus-of-variations problem. The minimizer is the Sears–Haack body, whose area distribution is

A(x) = A_{\max}\,\big[\,4\xi(1-\xi)\,\big]^{3/2}, \qquad \xi=\frac{x}{\ell}\in[0,1],

with minimum wave drag (for fixed volume $V$ )

\boxed{\,D_w = \frac{9\pi^2}{2}\,\frac{\rho_\infty U_\infty^2}{\ell^2}\left(\frac{V}{\ell}\right)^{?}\;\sim\;\frac{128\,q_\infty V^2}{\pi \ell^4}\,}

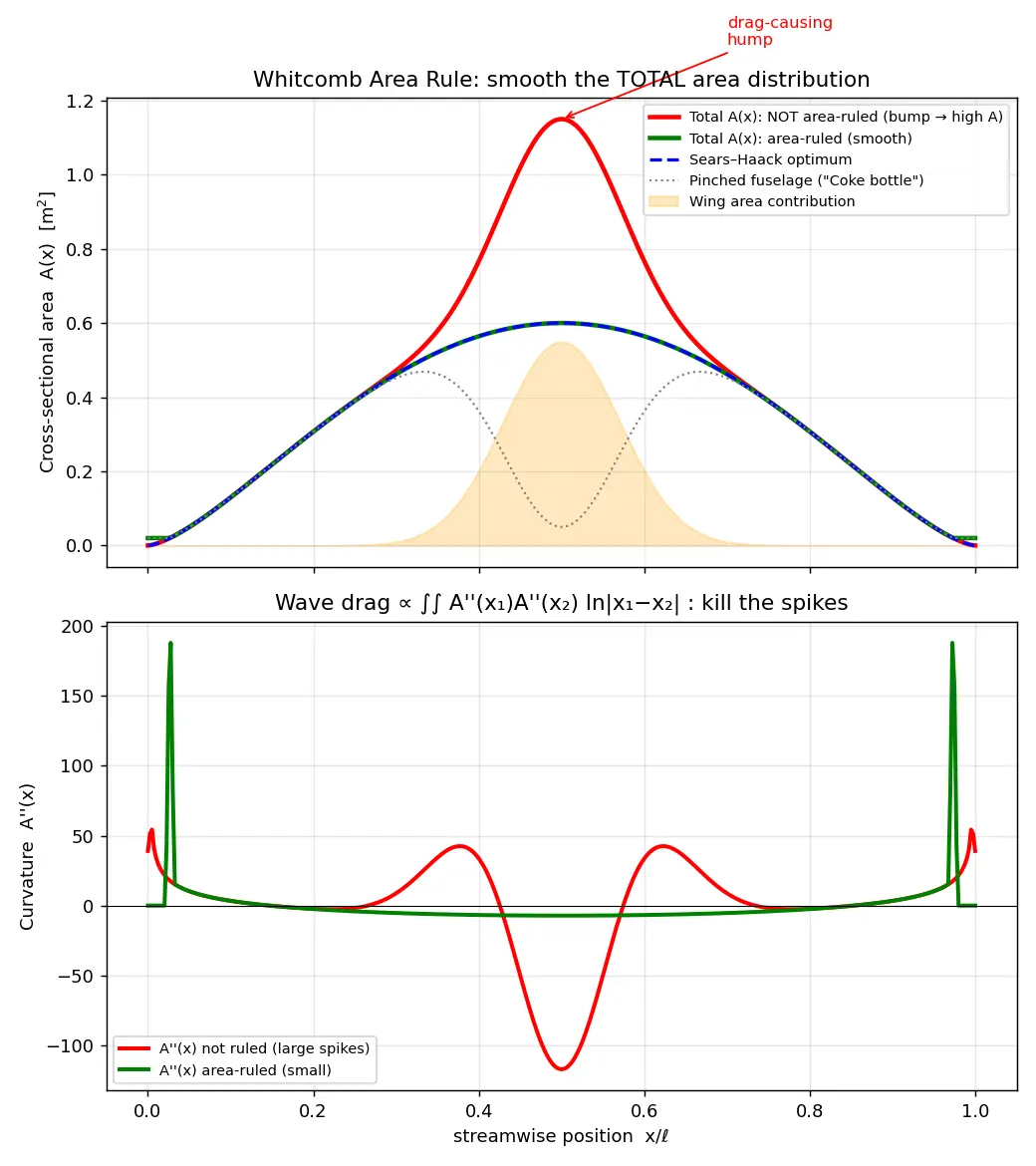

Figure — Area rule — Whitcomb's rule for transonic drag reduction

Worked Examples

Worked example Example 1 — Why the "Coke bottle" fuselage

A straight fuselage gives a smooth $A_{\text{fus}}(x)$ . Adding a wing at mid-body adds a bump $A_{\text{wing}}(x)$ peaking where the wing is widest. The total $A_{\text{tot}}=A_{\text{fus}}+A_{\text{wing}}$ now has a hump → large $A''$ at the wing → large wave drag.

Fix: narrow the fuselage exactly where the wing area peaks, so $A_{\text{fus}}$ dips and cancels the wing's hump → $A_{\text{tot}}$ becomes smooth again.

Why this step? Because $D_w$ depends only on $A_{\text{tot}}(x)$ ; flattening its curvature directly kills the drag-driving $A''$ .

Result: Whitcomb's wind-tunnel tests showed ~25–30% transonic drag reduction; the YF-102 could not exceed Mach 1 until "area-ruled" into the F-102A, which then could.

Common Mistakes (Steel-manned)

Flashcards

What quantity does transonic wave drag primarily depend on, per the area rule?

The longitudinal distribution of total cross-sectional area

A(x)

, regardless of how it's split between components.

Why is the fuselage pinched ("Coke-bottle") near the wings?

So the fuselage area dips to cancel the wing's area bump, keeping total

A(x)

smooth and

A''

small.

What drives wave drag in the von Kármán–Sears integral?

The second derivative (curvature)

A''(x)

— abrupt area changes/kinks give huge

A''

→ strong shocks → drag.

State the von Kármán–Sears wave-drag integral.

D_w=-\frac{\rho U^2}{4\pi}\iint A''(x_1)A''(x_2)\ln|x_1-x_2|\,dx_1dx_2

What is the minimum-wave-drag area distribution for fixed length?

The Sears–Haack body:

A(x)=A_{\max}[4\xi(1-\xi)]^{3/2}

\xi=x/\ell

How does Sears–Haack wave drag scale with length at fixed volume?

D_w\propto V^2/\ell^4

— doubling length cuts wave drag to 1/16.

What changes for the supersonic (Jones) area rule vs

M\approx1

Cut the body with Mach planes tilted at

\mu=\arcsin(1/M)

(averaged over roll), not perpendicular planes.

What real aircraft proved the area rule?

The F-102A — re-shaped (area-ruled) it broke Mach 1, which the un-ruled YF-102 could not.

Does area ruling reduce skin-friction drag?

No — only wave drag near and above Mach 1; friction and induced drag are unaffected.

Why is source strength

f(x)=U_\infty\,A'(x)

A growing cross-section must displace volume at rate

U_\infty\,dA

per length, equal to a line source of that strength.

Recall Feynman: explain to a 12-year-old

Imagine air flowing past a plane like water sliding around a smooth stick. If the stick suddenly gets fat in the middle (because of the wings), the water has to shove out of the way really fast and splashes — that splash near the speed of sound is a shock wave that drags the plane back. Whitcomb said: just squeeze the middle of the body in where the wings stick out, so the whole thing looks like a smooth, gently-fattening stick again. The air slides by calmly, the "splash" almost disappears, and the plane goes faster on the same engine. That pinched-waist shape is why some fast jets look like a Coke bottle!

Connections

Sears–Haack body — the minimum-wave-drag shape that the area rule targets.
Transonic flow — the Mach ≈ 1 regime where shock-induced wave drag spikes (transonic drag rise).
Shock waves and wave drag — the physical loss mechanism the area rule minimizes.
Slender-body theory — the source-distribution model underlying the von Kármán integral.
Mach angle and Mach cone — sets the tilted cutting planes for the supersonic area rule.
Prandtl–Glauert and compressibility corrections — neighboring compressible-flow tools.
Drag breakdown: friction, induced, wave — situates wave drag among other drag types.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, transonic speed (Mach ≈ 1) par jab hawa plane ke around flow karti hai, to woh poore plane ko alag-alag pieces (fuselage, wing, tail) ke roop mein nahi dekhti — woh sirf yeh feel karti hai ki total cross-sectional area $A(x)$ distance ke saath kaise badal rahi hai. Agar yeh area curve mein achanak bump aa jaaye (jaise wing ke jagah area suddenly badh jaaye), to hawa ko bahut tezi se idhar-udhar hatna padta hai, aur isse strong shock waves banti hain — jo wave drag create karti hain. Yahi transonic drag rise ka main reason hai.

Whitcomb ka jabardast idea: fuselage ko wahin patla (pinch) kar do jahan wing apni area add kar rahi hai, taaki total area curve smooth rahe. Yahi reason hai ki kuch fast jets "Coke-bottle" ya "wasp-waist" jaise dikhte hain — beech mein patle. Mathematically, wave drag $A''(x)$ (area ki curvature) par depend karta hai (von Kármán–Sears integral). Smooth curve ⇒ chhota $A''$ ⇒ kam drag. Yeh F-102 ki real story hai: pehle woh Mach 1 cross nahi kar paaya, lekin area-ruled karne ke baad easily cross kar gaya.

Ek aur important baat — yeh sirf wave drag kam karta hai, friction ya induced drag nahi. Aur fixed volume ke liye Sears–Haack body sabse kam wave drag deti hai, jismein $D_w \propto V^2/\ell^4$ . Matlab body jitni lambi aur smooth, drag utna kam — isiliye supersonic missiles aur jets long aur slender hote hain. Bas yaad rakho: "Smooth the SUM, not the part!"
