Foundations — Area rule — Whitcomb's rule for transonic drag reduction

This page is the toolbox. Before you can read the parent note, you need every symbol it silently assumes. We build each one from a picture, from zero. Nothing is used before it is earned.

1. The flight axis $x$ — measuring "how far along"

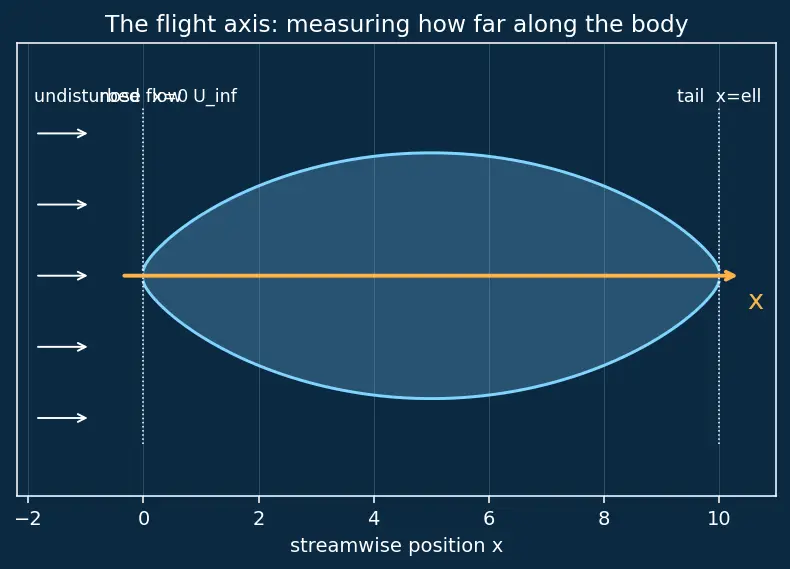

Picture the aircraft lying flat, nose pointing left, tail pointing right. Air flows past it from nose to tail. We lay a ruler along the flight direction.

• Picture: a ruler laid along the fuselage, ticks from nose to tail.
• Why we need it: everything in the area rule is a function of position along the body. Without an axis to measure "along," we cannot talk about "where the wing is" versus "where the nose is."

$\ell$ (the Greek letter "ell") is just the total length of the body — the last tick on the ruler.

2. Cross-sectional area $A(x)$ — "how much blocks the air here"

Now take a knife and slice straight down through the body, perpendicular to the flow, at some position $x$. Look at the cut face. It has an area. That area is $A(x)$.

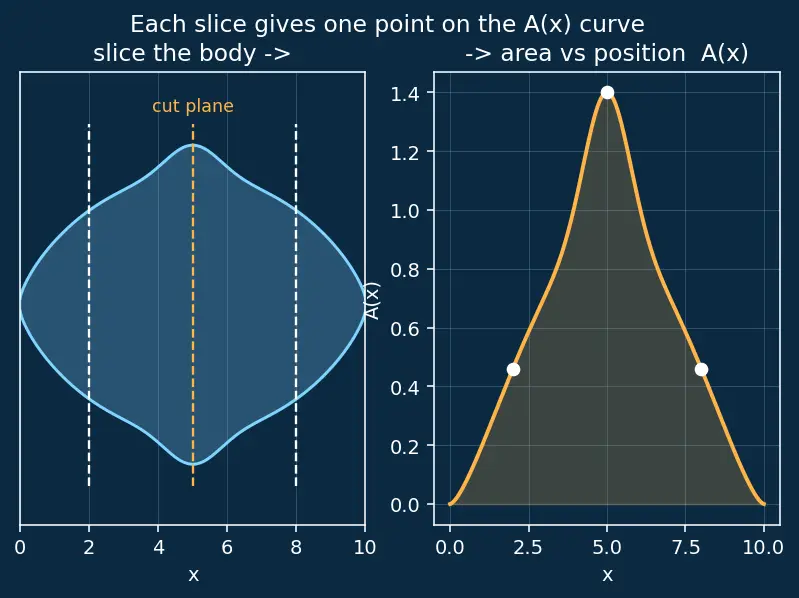

• Picture: slices through nose (tiny circle), through the middle-with-wings (big cross-shaped area), through the tail (small again). Plot each slice's area against $x$ → you get the area distribution curve.
• Why we need it: the parent note's central claim is that wave drag depends on this one curve $A(x)$, no matter whether the area came from fuselage or wing. It is the single most important object on the whole topic.

3. The apostrophe: $A^{\prime }(x)$ and $A^{\prime \prime }(x)$ — slope and bend

Two little marks do a lot of work in this topic. They are derivatives, the mathematics of "rate of change."

First derivative $A^{\prime }(x)=\frac{dA}{dx}$ — the slope of the area curve.

• Plain words: "if I move one small step $dx$ further along the body, by how much does the area change?"
• Picture: the steepness of the area curve at a point — flat where area is constant, steep where the body is fattening fast.

Second derivative $A^{\prime \prime }(x)=\frac{d^{2}A}{d{x}^2}$ — the curvature, the "bend" of the area curve.

• Plain words: "how fast is the slope itself changing?"

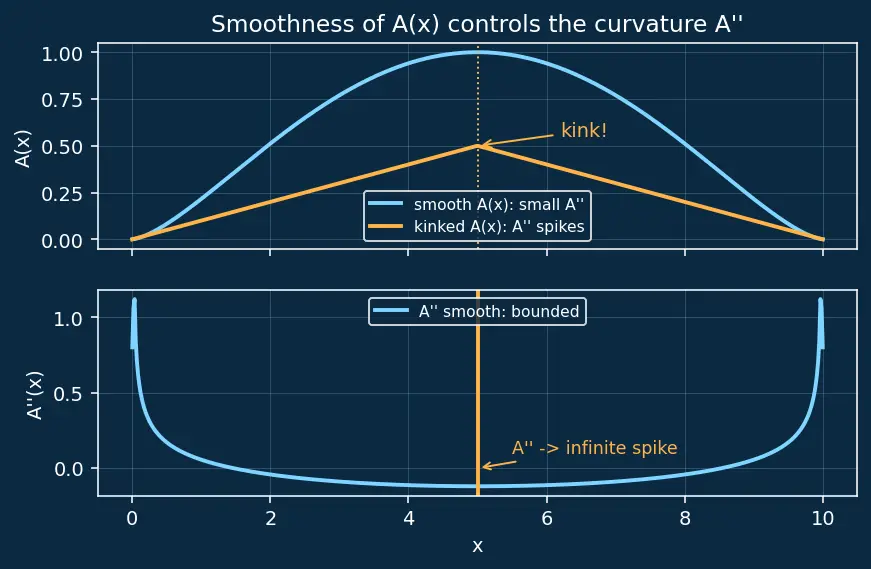

• Picture: a gentle rolling hill has small $A^{\prime \prime }$; a sharp kink or corner has enormous $A^{\prime \prime }$. A perfectly straight ramp has $A^{\prime \prime }=0$ even though it climbs.

4. The flow symbols: $U_{\infty }$, ${\rho }_{\infty }$, $q_{\infty }$

The subscript $\infty$ (infinity) means "far upstream, undisturbed" — the conditions of the air before it ever meets the aircraft, way out in front.

• Why $q_{\infty }$? Because forces on bodies in a flow almost always come out proportional to $\frac{1}{2}\rho U^2$. Bundling density and speed into one symbol $q_{\infty }$ keeps the drag formulas short and shows at a glance that drag grows with the square of speed.

5. Mach number $M$ and the Mach angle $\mu$

Why does this topic care? Because "wave drag" only exists once the flow is fast enough to make shock waves — that is the transonic/supersonic regime. See Transonic flow.

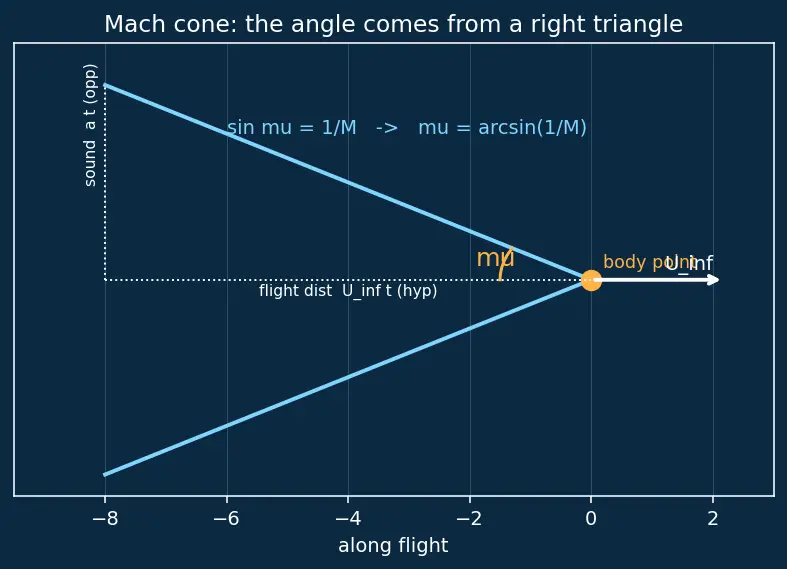

• Why $\arcsin$ and not something else? The cone's geometry is a right triangle whose "opposite" side is the sound-signal distance ($at$) and whose "hypotenuse" is the flight distance ($U_{\infty }t$). The ratio opposite/hypotenuse is $\sin \mu =a/U_{\infty }=1/M$. To recover the angle from that sine ratio we invert it — that inversion is exactly what $\arcsin$ ("which angle has this sine?") does. Full detail lives in Mach angle and Mach cone.

This is why the supersonic area rule cuts the body with tilted Mach planes at angle $\mu$ rather than perpendicular slices — a detail the parent note flags but does not derive here.

6. Sources, $f(x)$, and the slender-body idea

• Why $U_{\infty }dA/dx$? In one second the flow sweeps a length $U_{\infty }$. Over that length the body's area grows by $U_{\infty }{A}^{\prime }(x)$ worth of new blockage, so the streamtube must shed exactly that much volume — hence source strength $U_{\infty }dA/dx$.

This $f(x)$ is the bridge from geometry ($A(x)$) to the wave-drag integral. Because $f$ depends only on $A^{\prime }$, the drag ends up depending only on $A(x)$ — that is the area rule, in one line of logic.

7. The double integral and $\ln$ — reading the drag formula

The parent's headline result is the von Kármán–Sears integral:

Decode each new mark:

• ${\int }_0^{\ell }\cdots dx$ = an integral: "add up the contribution from every slice from nose ($0$) to tail ($\ell$)." Picture summing infinitely many thin strips.
• The double integral with $x_1$ and $x_2$ means we pair up every slice with every other slice — a self-comparison of the body with itself.
• $A^{\prime \prime }(x_1)A^{\prime \prime }(x_2)$ = the curvature at one station times the curvature at another. Big drag needs both stations to be strongly curved.
• $\ln |x_1-x_2|$ = the natural logarithm of the distance between the two stations. It is the "influence weight": nearby stations ($x_1$ close to $x_2$) interact differently from distant ones. This weighting is dictated by the supersonic Green's function — the mathematics of how one source's disturbance reaches another point.
• The vertical bars $|x_1-x_2|$ mean absolute value — distance is always positive, we don't care which slice is in front.

Prerequisite map

Each foundation flows into the wave-drag integral, and the integral — depending on $A(x)$ alone — is the area rule. For where this leads next, see Sears–Haack body, Shock waves and wave drag, Prandtl–Glauert and compressibility corrections and Drag breakdown: friction, induced, wave.

Equipment checklist

Test yourself — you should be able to say each answer aloud before reading the parent note.
