Unit vectors — î, ĵ, k̂; constructing unit vector

WHAT is a unit vector?

WHY do we need them? Because they let us write any vector as a simple bag of numbers: $\vec{A} = A_x\,\hat{i} + A_y\,\hat{j} + A_z\,\hat{k}$ Here $A_x, A_y, A_z$ are the components — how far the vector reaches along each axis. The hats carry the direction; the numbers carry the amount.

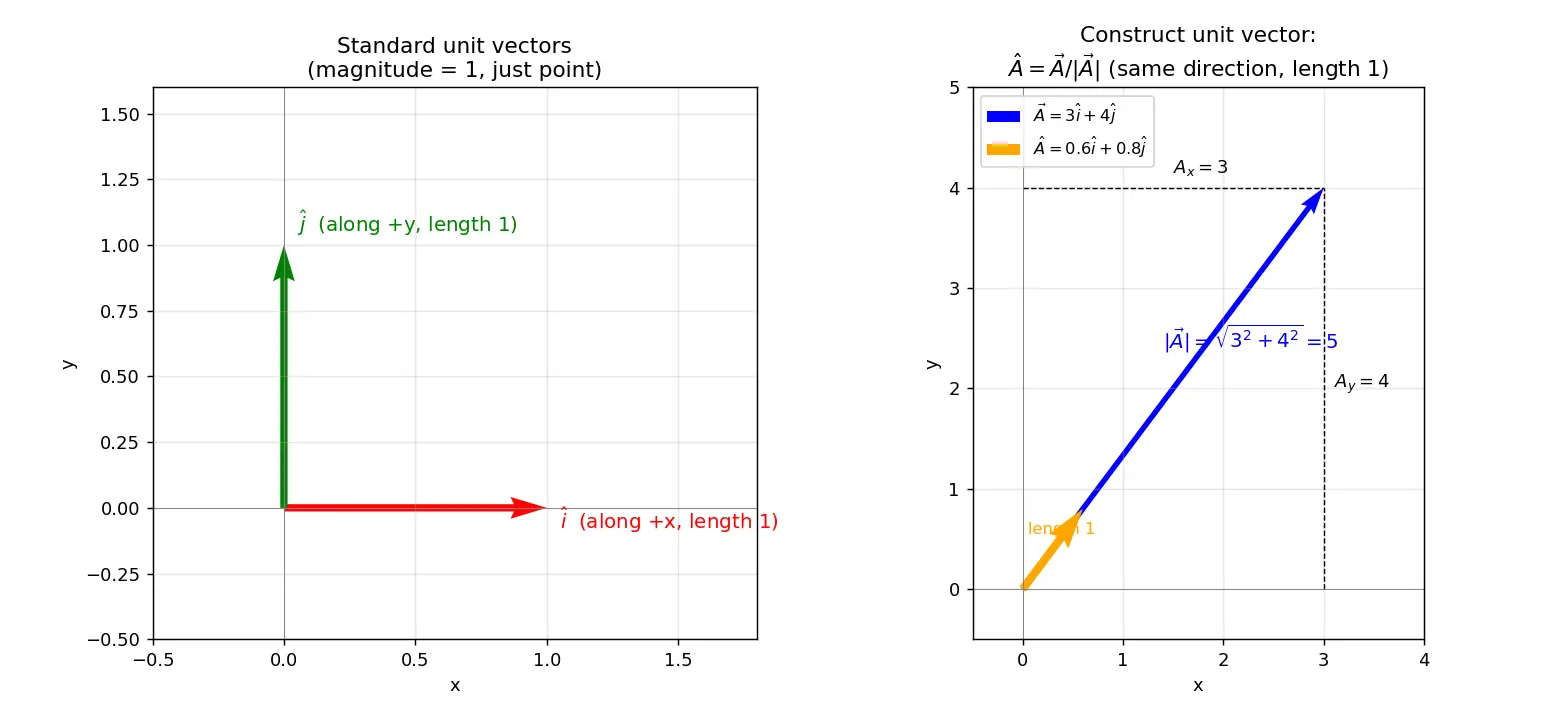

Figure — Unit vectors — î, ĵ, k̂; constructing unit vector

HOW to find the magnitude (derive it from scratch)

Derivation (2D first): In the $xy$ -plane $A_x$ and $A_y$ are two perpendicular sides of a right triangle with hypotenuse $\vec A$ . So $|\vec A|^2 = A_x^2 + A_y^2.$

Extend to 3D: Treat the diagonal in the base plane, $r=\sqrt{A_x^2+A_y^2}$ , as one side, and $A_z$ (perpendicular to the whole base) as the other. Pythagoras again: $|\vec A|^2 = r^2 + A_z^2 = A_x^2 + A_y^2 + A_z^2.$

HOW to construct a unit vector

Derivation: Let $\vec A$ have magnitude $|\vec A|$ . Define $\hat A = \frac{\vec A}{|\vec A|}.$ Its magnitude is $|\hat A| = \frac{|\vec A|}{|\vec A|} = 1. \checkmark$ Multiplying a vector by the positive scalar $1/|\vec A|$ does not rotate it, so direction is preserved. Done.

Worked Examples

Common Mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine an arrow that is always exactly 1 cm long. It's a tiny "pointing stick" — it can't tell you how far, only which way. That's a unit vector. Now if you want a real arrow that is 5 cm long pointing the same way, you just take the 1 cm pointer and stretch it 5 times. To make a pointer from any big arrow, measure the arrow's length and shrink the whole arrow by that length — now it's exactly 1 long but still aimed the same way!

Flashcards

What is the defining property of a unit vector?

Its magnitude is exactly 1 (it carries only direction).

How do you construct a unit vector from

\vec A

\hat A = \vec A / |\vec A|

— divide the vector by its own magnitude.

Write the magnitude of

\vec A = A_x\hat i+A_y\hat j+A_z\hat k

|\vec A|=\sqrt{A_x^2+A_y^2+A_z^2}

Why use Pythagoras (not addition) for magnitude?

Because

\hat i,\hat j,\hat k

are mutually perpendicular, so components are sides of a right-angled box.

What does "orthonormal" mean for

\hat i,\hat j,\hat k

Mutually perpendicular (ortho) AND each of unit length (normal).

Unit vector of

3\hat i+4\hat j

0.6\hat i+0.8\hat j

(since magnitude is 5).

How do you rebuild a vector from its magnitude and direction?

\vec A = |\vec A|\,\hat A

(magnitude × unit vector).

Does a unit vector have physical units?

No — it is dimensionless; the units live in the magnitude you multiply by.

A 10 N force along

3\hat i+4\hat j

: what is

\vec F

\vec F=10(0.6\hat i+0.8\hat j)=6\hat i+8\hat j

Connections

Vectors — components and resolution
Magnitude and direction of a vector
Vector addition — triangle and parallelogram laws
Dot product (uses $\hat i\cdot\hat i=1,\ \hat i\cdot\hat j=0$ )
Cross product (uses $\hat i\times\hat j=\hat k$ )
Position vector and displacement
Pythagoras theorem

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek vector do cheezein batata hai: kitna (magnitude) aur kis taraf (direction). Unit vector ka kaam sirf ek hai — direction batana. Iski length hamesha exactly $1$ hoti hai, isliye ise "pointer" samajho. $\hat i, \hat j, \hat k$ ye teen special unit vectors hain jo respectively $x$ , $y$ , $z$ axis ke along point karte hain, aur teeno ek dusre ke perpendicular hote hain.

Kisi bhi vector ko hum likh sakte hain $\vec A = A_x\hat i + A_y\hat j + A_z\hat k$ . Yahan numbers (components) batate hain "kitna", aur hats batate hain "kis taraf". Magnitude nikalne ke liye Pythagoras lagao: $|\vec A| = \sqrt{A_x^2 + A_y^2 + A_z^2}$ . Yaad rakhna — components ko seedha jod nahi sakte, kyunki wo perpendicular hote hain, isliye square karke jodo.

Unit vector banane ka formula bilkul simple hai: $\hat A = \vec A / |\vec A|$ . Matlab vector ko uski apni length se divide kar do — direction same rahega, par length $1$ ho jayegi. Jaise $3\hat i + 4\hat j$ ki length $5$ hai, to unit vector $= 0.6\hat i + 0.8\hat j$ . Aur reverse mein, agar direction $\hat A$ pata hai aur magnitude $10$ N chahiye, to bas $\vec F = 10\,\hat A$ kar do.

Ye concept bahut important hai kyunki aage forces, velocity, electric field — sabki direction unit vector se hi specify hoti hai. Ek galti se bachna: "unit" ka matlab dimensionless hai, lekin minus sign mat bhoolna — wo direction batata hai. Master kar lo, baaki vector chapter aasaan lagega.
