Relation between direction cosines - l² + m² + n² = 1

WHAT are direction cosines?

HOW to derive $l^2+m^2+n^2=1$ (from scratch)

Step 1 — Set up the unit vector. Take a unit vector $\hat{u}$ pointing along the line. Write it in components: $\hat{u} = (u_x, u_y, u_z).$

Why this step? A direction has no length of its own, so we standardise it to length $1$ . This removes the "how far" and keeps only "which way."

Step 2 — Identify each component as a direction cosine. The $x$ -component of $\hat u$ is its projection onto the $x$ -axis: $u_x = \hat{u}\cdot\hat{i} = \cos\alpha = l.$ Similarly $u_y = \cos\beta = m$ and $u_z = \cos\gamma = n$ .

Why this step? The projection of a unit vector onto an axis IS the cosine of the angle it makes with that axis — that's the geometric meaning of the dot product.

Step 3 — Use that $\hat u$ has length 1. $|\hat{u}|^2 = u_x^2 + u_y^2 + u_z^2 = 1.$

Why this step? This is just the 3D Pythagoras theorem (distance formula) applied to a unit vector.

Step 4 — Substitute. $\boxed{l^2 + m^2 + n^2 = 1}$

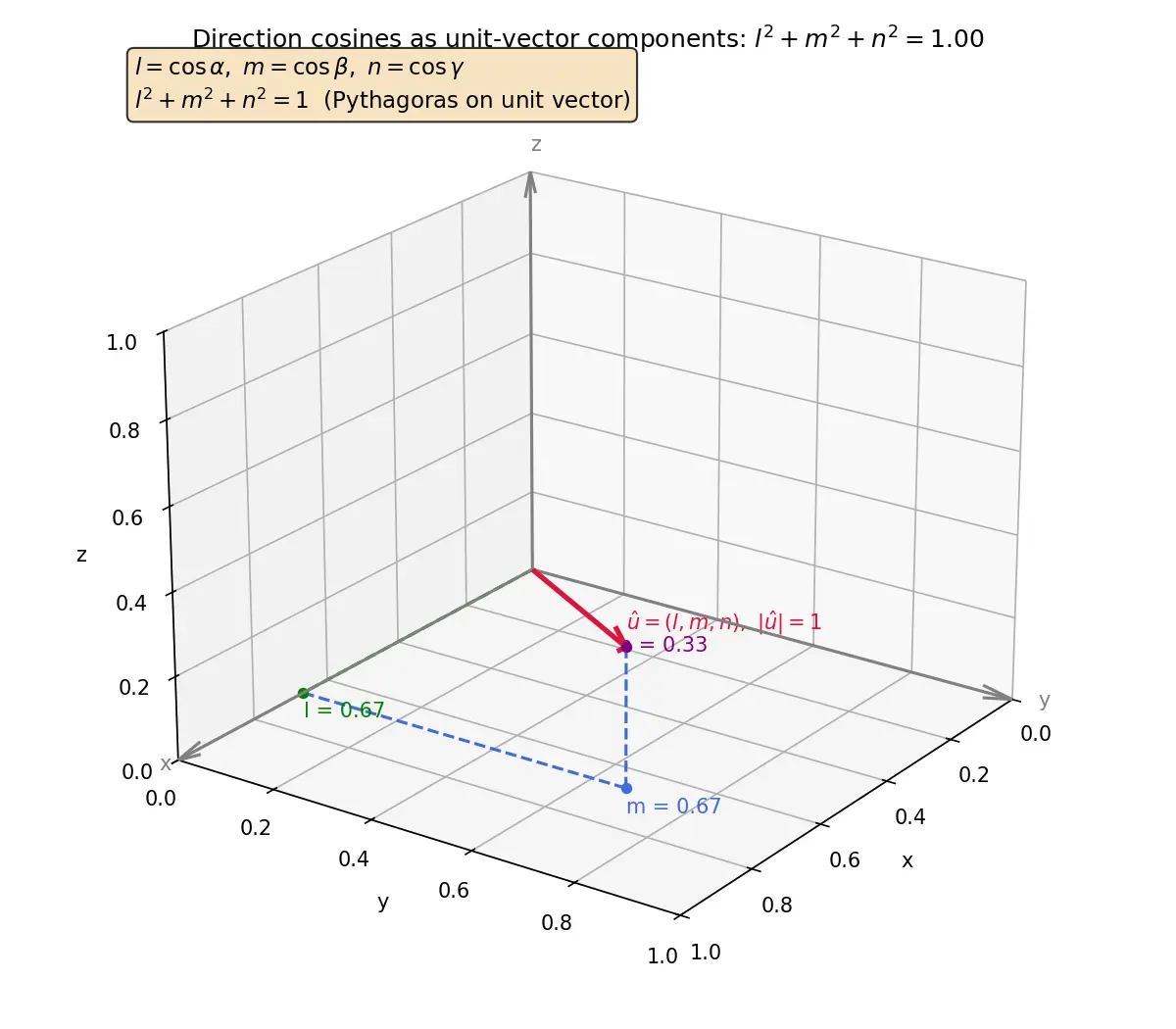

Figure — Relation between direction cosines - l² + m² + n² = 1

From Direction Ratios to Direction Cosines

If $\vec{r} = (a,b,c)$ with magnitude $\sqrt{a^2+b^2+c^2}$ , then $l = \frac{a}{\sqrt{a^2+b^2+c^2}}, \quad m = \frac{b}{\sqrt{a^2+b^2+c^2}}, \quad n = \frac{c}{\sqrt{a^2+b^2+c^2}}.$

Why? Dividing a vector by its length always produces a unit vector, whose components automatically obey $l^2+m^2+n^2=1$ .

Worked example Worked Example 2 — Forecast then verify

A line makes $45^\circ$ with the $x$ -axis and $60^\circ$ with the $y$ -axis. Forecast: can it also make $60^\circ$ with the $z$ -axis? Then verify.

Compute the constraint: $l=\cos45^\circ=\tfrac{1}{\sqrt2},\ m=\cos60^\circ=\tfrac12.$ $n^2 = 1 - l^2 - m^2 = 1 - \tfrac12 - \tfrac14 = \tfrac14 \Rightarrow n = \pm\tfrac12.$ So $\gamma = 60^\circ$ or $120^\circ$ . Verify: yes, $60^\circ$ is allowed (and so is $120^\circ$ , the opposite direction).

Why two answers? A line has two opposite directions; their direction cosines differ by sign.

Common Mistakes

Active Recall

Recall Quick self-test (hide and answer)

State the relation between direction cosines. → $l^2+m^2+n^2=1$ .
Why does it equal exactly 1? → They are components of a unit vector.
How do you get cosines from ratios $(a,b,c)$ ? → Divide each by $\sqrt{a^2+b^2+c^2}$ .
What is $\sin^2\alpha+\sin^2\beta+\sin^2\gamma$ ? → $2$ .
How many independent direction cosines are there? → Two.

Recall Feynman: explain to a 12-year-old

Imagine a single straight arrow floating in a room. To tell a friend exactly which way it points, you ask: "How much does it lean toward the wall on your right? Toward the front wall? Toward the ceiling?" Each "lean" is a number between $-1$ and $1$ . Here's the magic: if you square all three leans and add them, you ALWAYS get exactly $1$ — no matter which way the arrow points! That's because the arrow has a fixed length of "one step," and those three leans are just how much of that one step goes sideways, forward, and up. By the Pythagoras rule, the pieces must add back up to the whole step: $1$ .

80/20 — The 20% you must keep

Direction cosines = components of the unit direction vector.
$\Rightarrow l^2+m^2+n^2=1$ (Pythagoras on a unit vector).
Ratios → cosines: divide by magnitude.
Always include $\pm$ ; only 2 are independent.

Connections

Direction Ratios — the unnormalised cousins of direction cosines.
Unit Vectors — the geometric source of the identity.
Dot Product — why projection = cosine.
Distance Formula in 3D — supplies the Pythagoras step.
Angle Between Two Lines — uses $\cos\theta = l_1l_2+m_1m_2+n_1n_2$ .
Equation of a Line in 3D — direction cosines define the line's slope.

What is the relation between direction cosines of a line?

l^2 + m^2 + n^2 = 1

Why does the sum of squares of direction cosines equal 1?

Because

l,m,n

are the components of a unit vector along the line, and a unit vector has magnitude 1 (Pythagoras in 3D).

How do you convert direction ratios

(a,b,c)

to direction cosines?

Divide each by the magnitude:

l=\frac{a}{\sqrt{a^2+b^2+c^2}}

, similarly for

m,n

What is

\sin^2\alpha+\sin^2\beta+\sin^2\gamma

for direction angles?

2

(since

\cos^2\!\alpha+\cos^2\!\beta+\cos^2\!\gamma=1

and subtracting from 3).

How many of the three direction cosines are independent?

Two — the third is fixed up to sign by

n=\pm\sqrt{1-l^2-m^2}

l=\frac1{\sqrt2}, m=\frac12

, find

n

n^2 = 1-\frac12-\frac14=\frac14 \Rightarrow n=\pm\frac12

Can a line make

30^\circ

with all three axes?

No, since

3\cos^2 30^\circ = 2.25 \ne 1

Direction cosines of a line through

(1,2,3)

and

(4,6,3)

Ratios

(3,4,0)

, magnitude 5, so

(\frac35,\frac45,0)

Why do direction ratios NOT satisfy

a^2+b^2+c^2=1

generally?

They are not normalised; only after dividing by the length do components form a unit vector.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, 3D mein koi bhi line ek direction point karti hai. Us direction ko number mein batane ke liye hum dekhte hai ki line x-axis, y-axis aur z-axis ke saath kitna angle banati hai — ye angles hai $\alpha, \beta, \gamma$ . In angles ke cosine ko hum direction cosines kehte hai: $l=\cos\alpha$ , $m=\cos\beta$ , $n=\cos\gamma$ . Bas itni si baat hai.

Ab main secret formula: $l^2 + m^2 + n^2 = 1$ . Ye yaad rakhne ki cheez nahi, samajhne ki cheez hai. Socho ek unit vector (length exactly 1 wala arrow) line ke along. Us arrow ke x, y, z components hi to $l, m, n$ hai (kyunki projection on axis = cosine of angle). Aur unit vector ki length 1 hoti hai, to Pythagoras lagao: components ke squares ka sum = length ka square = $1$ . Isliye $l^2+m^2+n^2=1$ . Pure magic Pythagoras se aa gaya!

Ek important galti se bacho: agar tumhe direction ratios $(a,b,c)$ diye hai (jaise do points ka difference), to wo seedha identity satisfy nahi karte. Pehle unko length $\sqrt{a^2+b^2+c^2}$ se divide karo, tab true direction cosines milte hai jo identity follow karte hai. Aur jab $n^2 = 1 - l^2 - m^2$ se $n$ nikalo, to $\pm$ dono lena — kyunki line ke do opposite directions hote hai.

Practical fayda: agar koi tumhe teen angles de aur poochhe "aisi line possible hai kya?" — bas $\cos^2$ ka sum check karo. Agar 1 aaye to possible, warna impossible. Ye identity ek filter ki tarah kaam karta hai. Yahi 20% concept pure 3D geometry mein baar-baar use hota hai — angle between lines, equation of line, sab mein.
