Visual walkthrough — Relation between direction cosines - l² + m² + n² = 1

We assume you know only three everyday things: what an arrow is, what a right angle is, and that a shadow is shorter than the thing casting it. Everything else we earn.

Step 1 — An arrow floating in a room

WHAT. Picture a straight arrow floating in the corner of a room. The room has three walls meeting at a corner: the floor's two edges and the vertical edge going up. We name three directions from that corner: rightward ($x$), forward ($y$), upward ($z$).

WHY. A line in 3D has direction but no fixed home. To talk about "which way" cleanly, we anchor everything to these three reference directions — the axes. Any direction is described by how it relates to these three.

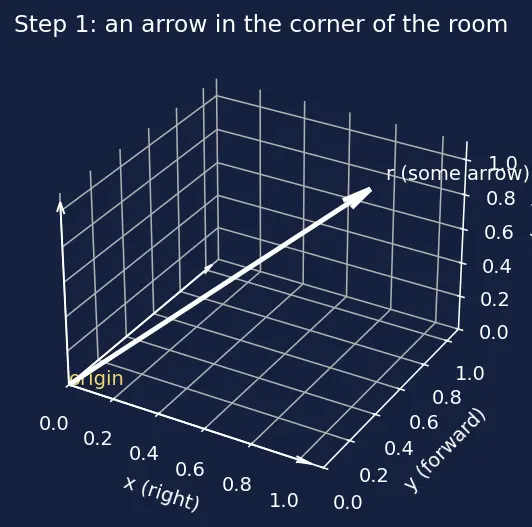

PICTURE. Below, the corner of the room is the origin. The three coloured edges are the $x$, $y$, $z$ directions. The white arrow $\vec{r}$ is our line's direction — right now it is just some arrow, any length, pointing some way.

Step 2 — Kill the length: shrink the arrow to one step

WHAT. We shrink (or stretch) the arrow so its length becomes exactly $1$, without turning it. Same direction, new length $=1$. We rename it $\hat{u}$ — the little hat means "length one."

WHY. A direction should not care how long the arrow is. Two arrows pointing the same way are the same direction. The cleanest way to strip out length is to force every direction-arrow to have the same length, and $1$ is the friendliest choice. This is exactly what a unit vector is.

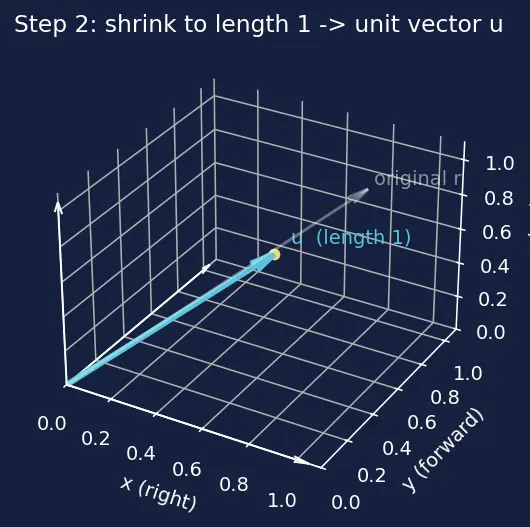

PICTURE. The faded long arrow is the original $\vec{r}$; the bright arrow $\hat{u}$ sits on top of it, same heading, but its tip lands exactly one unit from the corner (watch the dashed measuring tick).

$\underset{\text{our arrow}}{\underbrace{\hat{u}}}\text{with}\underset{\text{its length}}{\underbrace{|\hat{u}|}}=1$

• $\hat{u}$ — the direction arrow, hat = "I have been shrunk to length one."
• $|\hat{u}|$ — the length (magnitude) of that arrow. We chose it to be $1$.

Step 3 — The three angles the arrow leans

WHAT. Measure the angle between $\hat{u}$ and each axis:

• $\alpha$ = angle with the $x$-axis,
• $\beta$ = angle with the $y$-axis,
• $\gamma$ = angle with the $z$-axis.

WHY. These angles are the honest, coordinate-free way to say "how much does the arrow lean toward each wall." Everything about the direction is captured by this triple $(\alpha ,\beta ,\gamma )$.

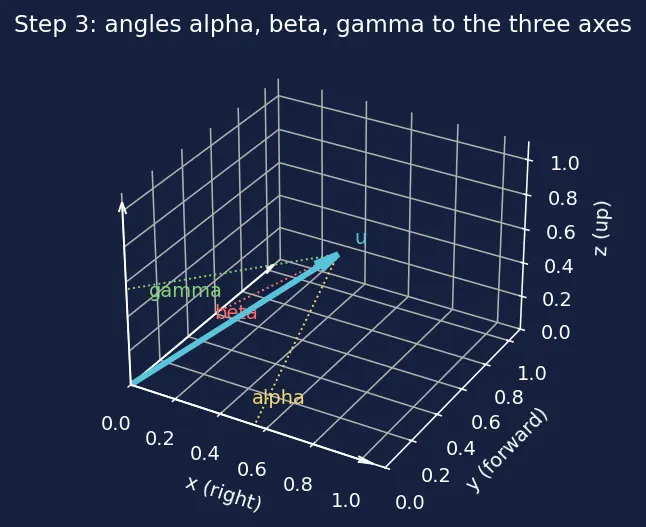

PICTURE. Three separate wedge-angles opening from each axis up to the same arrow $\hat{u}$.

Step 4 — Why cosine? The shadow answer

WHAT. We now turn each angle into a single number using $\cos$. Define $l=\cos \alpha ,m=\cos \beta ,n=\cos \gamma .$

WHY cosine and not the angle itself, or sine? Here is the key question: how much of the arrow points along a given axis? That "how much" is the shadow the arrow casts onto that axis. For a length-$1$ arrow, the shadow onto an axis has length $\cos (\text{angle to that axis})$ — because in the right triangle formed by the arrow, its shadow, and the perpendicular drop, the shadow is the side adjacent to the angle, and

$\cos =\frac{\text{adjacent}}{\text{hypotenuse}}=\frac{\text{shadow}}{1}=\text{shadow}.$

So cosine is chosen precisely because cosine = the length of the shadow on that axis. (Sine would give the perpendicular drop, which is not what "how much points along the axis" means.) This is the same statement the Dot Product makes: $\hat{u}\cdot \hat{i}=\cos \alpha$.

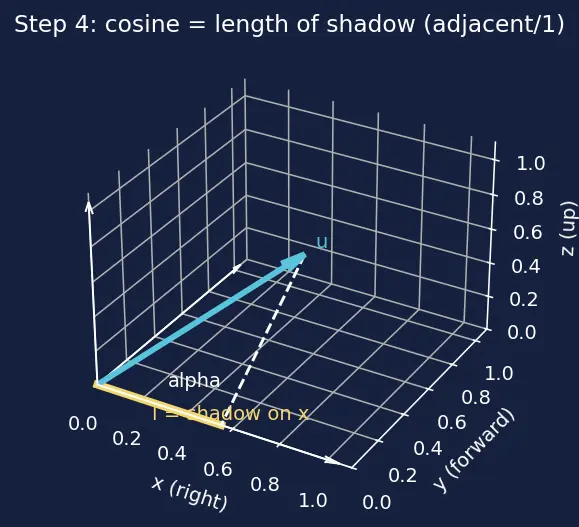

PICTURE. The arrow $\hat{u}$ and its shadow dropping straight down onto the $x$-axis; the right triangle is shaded, the angle $\alpha$ marked, the adjacent side (the shadow, length $l$) in yellow.

$l=\underset{\begin{array}{c}\text{cosine of}\\ \text{the lean}\end{array}}{\underbrace{\cos \alpha }}=\underset{\begin{array}{c}\text{shadow of }\hat{u}\\ \text{on }x\text{-axis}\end{array}}{\underbrace{\hat{u}\cdot \hat{i}}}$

• $l$ — the $x$-shadow of the unit arrow (a number in $[-1,1]$).
• $\cos \alpha$ — turns the lean-angle into that shadow length.
• $\hat{u}\cdot \hat{i}$ — the dot product, the machine that measures a shadow.

Step 5 — Reassemble the arrow from its three shadows

WHAT. Because $l,m,n$ are the shadows on the three perpendicular axes, they are literally the coordinates of the arrow's tip: $\hat{u}=(l,m,n).$

WHY. Perpendicular axes let you rebuild any arrow by stacking its three shadows head-to-tail: go $l$ right, then $m$ forward, then $n$ up, and you arrive exactly at the arrow's tip. No information is lost, because the axes don't overlap.

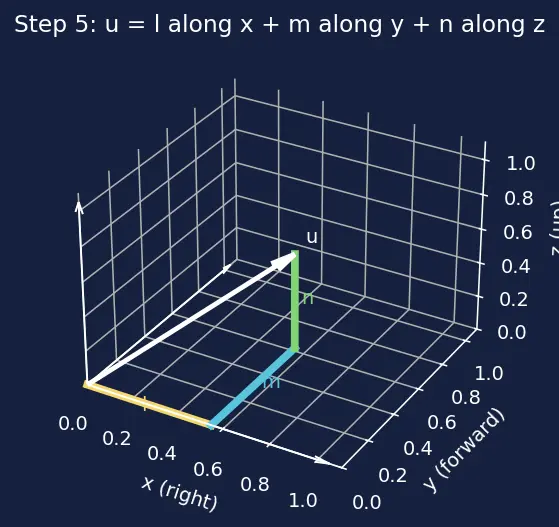

PICTURE. A staircase path: from the origin travel $l$ along $x$ (yellow), then $m$ along $y$ (blue), then $n$ along $z$ (green) — landing exactly on the tip of $\hat{u}$.

$\hat{u}=\underset{\text{right}}{\underbrace{l\hat{i}}}+\underset{\text{forward}}{\underbrace{m\hat{j}}}+\underset{\text{up}}{\underbrace{n\hat{k}}}$

Step 6 — Pythagoras closes the box

WHAT. Apply the 3D distance formula to the staircase. The straight arrow is the diagonal of a box with side lengths $l,m,n$, so its length squared is $|\hat{u}{|}^2=l^2+m^2+n^2.$

WHY. Pythagoras in 3D says the diagonal of a rectangular box relates to its edges exactly this way — first combine two edges into a floor diagonal ($l^2+m^2$), then combine that with the vertical edge ($+n^2$). The three shadows are the three edges.

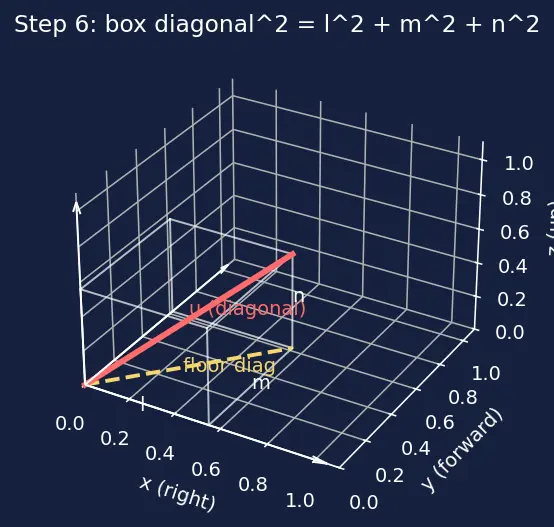

PICTURE. The box whose three edges are $l,m,n$; the red main diagonal is $\hat{u}$; a faint floor-diagonal shows the two-step Pythagoras.

$\underset{{\text{diagonal}}^2}{\underbrace{|\hat{u}{|}^2}}=\underset{x{\text{-edge}}^2}{\underbrace{l^2}}+\underset{y{\text{-edge}}^2}{\underbrace{m^2}}+\underset{z{\text{-edge}}^2}{\underbrace{n^2}}$

Step 7 — Substitute the one thing we forced: length $=1$

WHAT. Back in Step 2 we chose $|\hat{u}|=1$, so $|\hat{u}{|}^2=1$. Put that into Step 6: $\boxed{l^2+m^2+n^2=1}$

WHY. This is the payoff of shrinking to length one. The diagonal's squared length is forced to be $1$, so the three squared shadows must add to $1$ — they are not free. This is the whole theorem, and it is nothing but Pythagoras on a one-unit arrow.

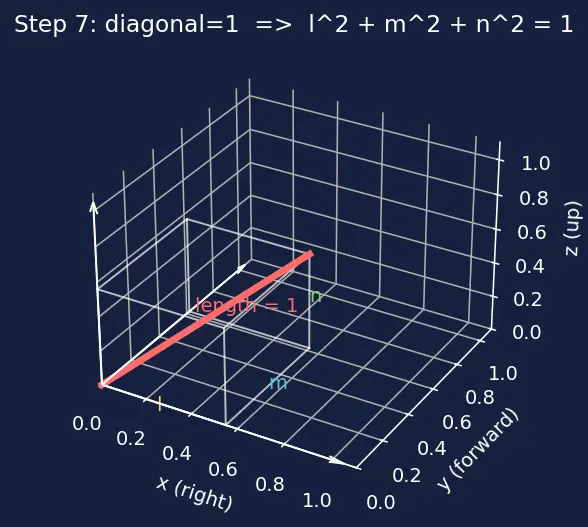

PICTURE. Same box as Step 6, now with the diagonal labelled $1$ and the equation collapsing to $=1$, a bright glow on the boxed result.

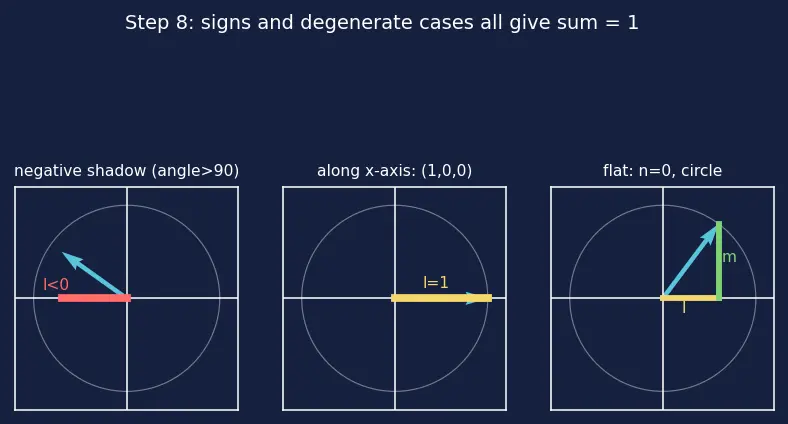

Step 8 — Every sign and every degenerate case

The derivation never assumed the arrow points into the "nice" corner. Let's check it survives everywhere.

WHAT / WHY / PICTURE.

• Negative shadows. If the arrow leans away from an axis, its angle exceeds $90^{\circ }$ and its cosine goes negative — that shadow points backward. But we square it, so $(-l{)}^2=l^2$: the identity doesn't care about the sign. This is why a line has two opposite direction-cosine triples $(l,m,n)$ and $(-l,-m,-n)$; both satisfy the box.
• Arrow along one axis (degenerate). If $\hat{u}$ points straight along $x$, then $\alpha =0^{\circ }$, so $l=\cos 0^{\circ }=1$, while $\beta =\gamma =90^{\circ }$ give $m=n=0$. Check: $1^2+0+0=1$. ✓ The box has collapsed into a single edge.
• Arrow in the floor plane. If $\hat{u}$ lies flat (no upward reach), $\gamma =90^{\circ }$, $n=0$, and we recover the 2D Pythagoras $l^2+m^2=1$ — a circle, as it should be.
• The impossible triple. Any angle-triple whose cosines fail the box (e.g. $30^{\circ }$ with all three axes: $3{\cos }^{2}30^{\circ }=2.25\ne 1$) describes no line at all. The identity is a gatekeeper.

The one-picture summary

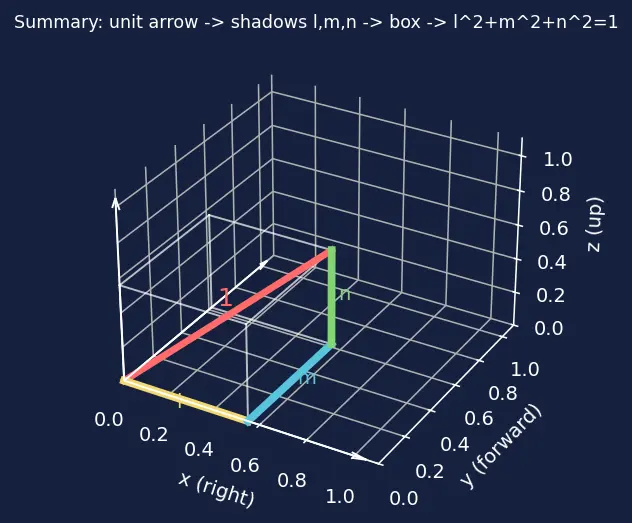

Everything above, compressed: an arrow of length $1$, its three shadows $l,m,n$ as the edges of a box, and the diagonal being $1$ forcing $l^2+m^2+n^2=1$.

Connections

• Unit Vectors — Step 2: shrinking to length $1$ is exactly making a unit vector.
• Dot Product — Step 4: shadow onto an axis $=\hat{u}\cdot \hat{i}=\cos \alpha$.
• Distance Formula in 3D — Steps 6–7: the box diagonal, i.e. Pythagoras in 3D.
• Direction Ratios — the un-shrunk arrow $\vec{r}$ from Step 1 before normalising.
• Angle Between Two Lines — direction cosines feed straight into $\cos \theta =l_1{l}_2+m_1{m}_2+n_1{n}_2$.
• Equation of a Line in 3D — $(l,m,n)$ is the slope-direction of the line.
