Angle between two lines

WHAT are we even measuring?

WHY take the acute angle? Two intersecting lines actually form two pairs of angles ( $\theta$ and $180^\circ-\theta$ ). A line points "both ways", so flipping a direction vector $\vec b$ to $-\vec b$ describes the same line but gives the supplementary angle. To get a single, unambiguous answer we force it to be acute by putting a modulus $|\,\cdot\,|$ in the formula.

HOW: deriving the formula from scratch

We start from the ONLY thing we need — the dot product definition.

Step 1 — Dot product definition. $\vec{b_1}\cdot\vec{b_2} = |\vec{b_1}|\,|\vec{b_2}|\cos\theta$ Why this step? This is the first-principles bridge between an algebraic operation (components) and a geometric quantity (angle).

Step 2 — Solve for $\cos\theta$ . $\cos\theta = \frac{\vec{b_1}\cdot\vec{b_2}}{|\vec{b_1}|\,|\vec{b_2}|}$ Why this step? We want the angle, so isolate $\cos\theta$ .

Step 3 — Force the acute angle. Because $\vec b$ and $-\vec b$ give the same line, we take absolute value of the numerator: $\boxed{\;\cos\theta = \frac{|\vec{b_1}\cdot\vec{b_2}|}{|\vec{b_1}|\,|\vec{b_2}|}\;}$ Why this step? $|\cos\theta|$ guarantees $\theta\in[0^\circ,90^\circ]$ .

There's also a clean $\sin$ form using the cross product: $\sin\theta = \frac{|\vec{b_1}\times\vec{b_2}|}{|\vec{b_1}|\,|\vec{b_2}|}$ Why useful? Sometimes you have the cross product handy; also lets you find $\tan\theta$ safely.

Worked examples

Worked example Example 2 — lines given in symmetric form

$\dfrac{x-1}{2}=\dfrac{y}{3}=\dfrac{z+1}{4}$ and $\dfrac{x}{1}=\dfrac{y-2}{-1}=\dfrac{z}{2}$ .

Read off directions: denominators ARE the direction ratios: $\vec{b_1}=(2,3,4)$ , $\vec{b_2}=(1,-1,2)$ . Why? In symmetric form $\frac{x-x_0}{a}=\dots$ , the $(a,b,c)$ are exactly the direction ratios.

Numerator: $2(1)+3(-1)+4(2)=2-3+8=7$ .

Magnitudes: $\sqrt{4+9+16}=\sqrt{29}$ , $\sqrt{1+1+4}=\sqrt6$ .

$\cos\theta=\frac{|7|}{\sqrt{29}\sqrt6}=\frac{7}{\sqrt{174}}\approx 0.531\Rightarrow\theta\approx 57.9^\circ$

Common mistakes (Steel-man + fix)

Recall Feynman: explain to a 12-year-old

Imagine two pencils lying on a table, both passing through the same spot. The corner where they meet makes an angle — and that angle doesn't care where on the table the pencils are, only which way they point. A "direction arrow" tells us which way a pencil points. To find the angle between two arrows we use a magic recipe called the dot product: multiply matching parts, add them up, then divide by the arrows' lengths. The result is the cosine of the angle. We also keep the answer "small" (always less than a right angle) because a pencil pointing left is the same line as one pointing right.

Active-recall flashcards

What determines the angle between two lines in 3D?

Only their direction vectors (orientation), not their position.

Formula for angle between lines with direction ratios?

\cos\theta=\dfrac{|a_1a_2+b_1b_2+c_1c_2|}{\sqrt{a_1^2+b_1^2+c_1^2}\sqrt{a_2^2+b_2^2+c_2^2}}

Why is there a modulus in the formula?

Because the angle between lines is defined as acute; a line points both ways, so

-\vec b

would give the supplement.

Condition for two lines to be perpendicular?

a_1a_2+b_1b_2+c_1c_2=0

(dot product zero).

Condition for two lines to be parallel?

Direction ratios proportional:

\frac{a_1}{a_2}=\frac{b_1}{b_2}=\frac{c_1}{c_2}

With direction cosines, what is

\cos\theta

|l_1l_2+m_1m_2+n_1n_2|

(denominator is 1, since they're unit vectors).

In symmetric form

\frac{x-x_0}{a}=\dots

, which numbers are the direction ratios?

The denominators

(a,b,c)

— not the point

(x_0,y_0,z_0)

Cross-product form for the angle?

\sin\theta=\dfrac{|\vec{b_1}\times\vec{b_2}|}{|\vec{b_1}||\vec{b_2}|}

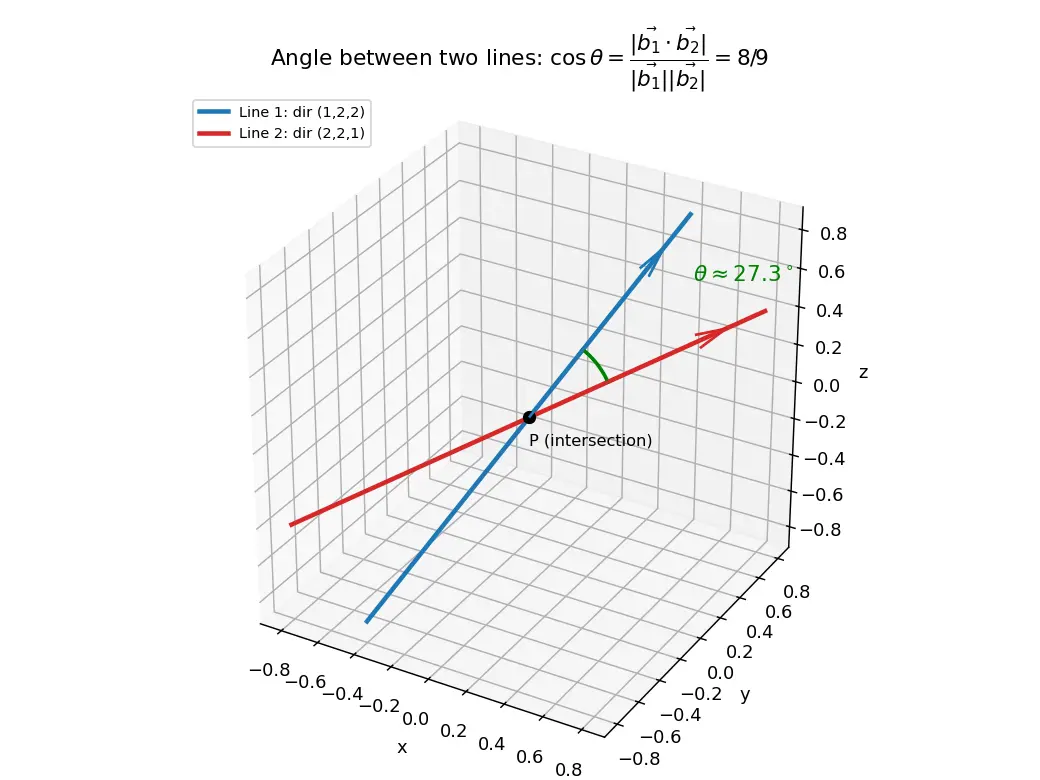

Angle between

(1,2,2)

and

(2,2,1)

\cos^{-1}(8/9)\approx 27.3^\circ

Connections

Direction cosines and direction ratios — the inputs to this formula.
Dot product of vectors — the engine behind the derivation.
Cross product of vectors — gives the $\sin\theta$ form.
Equation of a line in 3D — where we read off direction ratios.
Angle between two planes — uses normals instead of directions, same dot-product idea.
Angle between a line and a plane — uses $\sin\theta$ with the plane's normal.
Shortest distance between two lines — also direction-vector based.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, 3D mein ek line ka sirf direction important hota hai — woh kahan rakhi hai, isse angle pe koi farak nahi padta. Isliye do lines ke beech ka angle nikalne ke liye hum unke direction vectors $\vec{b_1}$ aur $\vec{b_2}$ ka angle nikaalte hain. Aur vectors ke beech angle? Wahi purana dot product wala funda: $\vec{b_1}\cdot\vec{b_2}=|\vec{b_1}||\vec{b_2}|\cos\theta$ . Bas isko $\cos\theta$ ke liye solve kar lo.

Ek choti si twist hai — line dono direction mein point karti hai, matlab $\vec b$ aur $-\vec b$ same line hai. Isliye answer kabhi obtuse na aaye, hum upar modulus $|\,\cdot\,|$ lagate hain. Toh final formula: $\cos\theta=\frac{|\vec{b_1}\cdot\vec{b_2}|}{|\vec{b_1}||\vec{b_2}|}$ , aur angle hamesha acute (0 se 90 degree) aata hai.

Do special cases yaad rakho, ratta mat maaro — derive karo. Perpendicular matlab $\cos 90^\circ=0$ , toh sirf numerator (dot product) zero: $a_1a_2+b_1b_2+c_1c_2=0$ . Parallel matlab dono same direction, toh ratios proportional: $\frac{a_1}{a_2}=\frac{b_1}{b_2}=\frac{c_1}{c_2}$ .

Sabse common galti: jab line symmetric form $\frac{x-1}{2}=\frac{y}{3}=\frac{z+1}{4}$ mein di ho, toh denominators $(2,3,4)$ direction ratios hain — point $(1,0,-1)$ ko mat use karna. Aur direction ratios unit nahi hote, isliye magnitude se divide karna mat bhoolna. Bas itna dhyaan rakho, exam mein ye topic free marks hai!
