Equation of a plane — normal form, intercept form, general form

WHY a plane needs a normal

Derivation 1 — General (point–normal) form

WHAT we want: an equation satisfied by point $\vec r=(x,y,z)$ iff it lies on the plane through a known point $\vec r_0=(x_0,y_0,z_0)$ with normal $\vec n=(a,b,c)$ .

HOW (first principles): The vector from $\vec r_0$ to $\vec r$ lies in the plane, so it must be perpendicular to $\vec n$ : $\vec n\cdot(\vec r-\vec r_0)=0.$ Why this step? Perpendicular ⇒ dot product zero — that's the definition of normal.

Expanding with $\vec n=(a,b,c)$ : $a(x-x_0)+b(y-y_0)+c(z-z_0)=0.$ Collect the constants $d=-(ax_0+by_0+cz_0)$ : $\boxed{ax+by+cz+d=0}\quad\text{(general form)}$

Derivation 2 — Normal form (foot of perpendicular)

WHAT: write the plane using the unit normal $\hat n$ and the perpendicular distance $p\ge0$ from the origin.

HOW: Drop a perpendicular from origin $O$ to the plane; it hits the plane at foot $N$ with $\vec{ON}=p\,\hat n$ (length $p$ , direction $\hat n$ ). For any point $\vec r$ on the plane, $\vec r-p\hat n$ lies in the plane, hence ⟂ to $\hat n$ : $\hat n\cdot(\vec r-p\hat n)=0 \;\Rightarrow\; \hat n\cdot\vec r - p\,\underbrace{(\hat n\cdot\hat n)}_{=1}=0.$ Why $\hat n\cdot\hat n=1$ ? Because $\hat n$ is a unit vector.

Converting general → normal: divide $ax+by+cz=-d$ by $\pm|\vec n|=\pm\sqrt{a^2+b^2+c^2}$ , choosing the sign so the right side $p$ is non-negative: $\frac{ax+by+cz}{\sqrt{a^2+b^2+c^2}}=\frac{-d}{\sqrt{a^2+b^2+c^2}}=p.$

Derivation 3 — Intercept form

WHAT: if a plane cuts the axes at $(a,0,0)$ , $(0,b,0)$ , $(0,0,c)$ — these are the intercepts $a,b,c$ .

HOW: Start from general $Ax+By+Cz=k$ (use $k\ne0$ , else it passes through origin and has no finite intercepts). Plug each axis point:

$(a,0,0)$ : $Aa=k\Rightarrow A=k/a$ .
$(0,b,0)$ : $Bb=k\Rightarrow B=k/b$ .
$(0,0,c)$ : $Cc=k\Rightarrow C=k/c$ .

Substitute and divide by $k$ : $\frac{x}{a}+\frac{y}{b}+\frac{z}{c}=1.$ Why divide by $k$ ? To normalise the right side to 1, making intercepts read off directly.

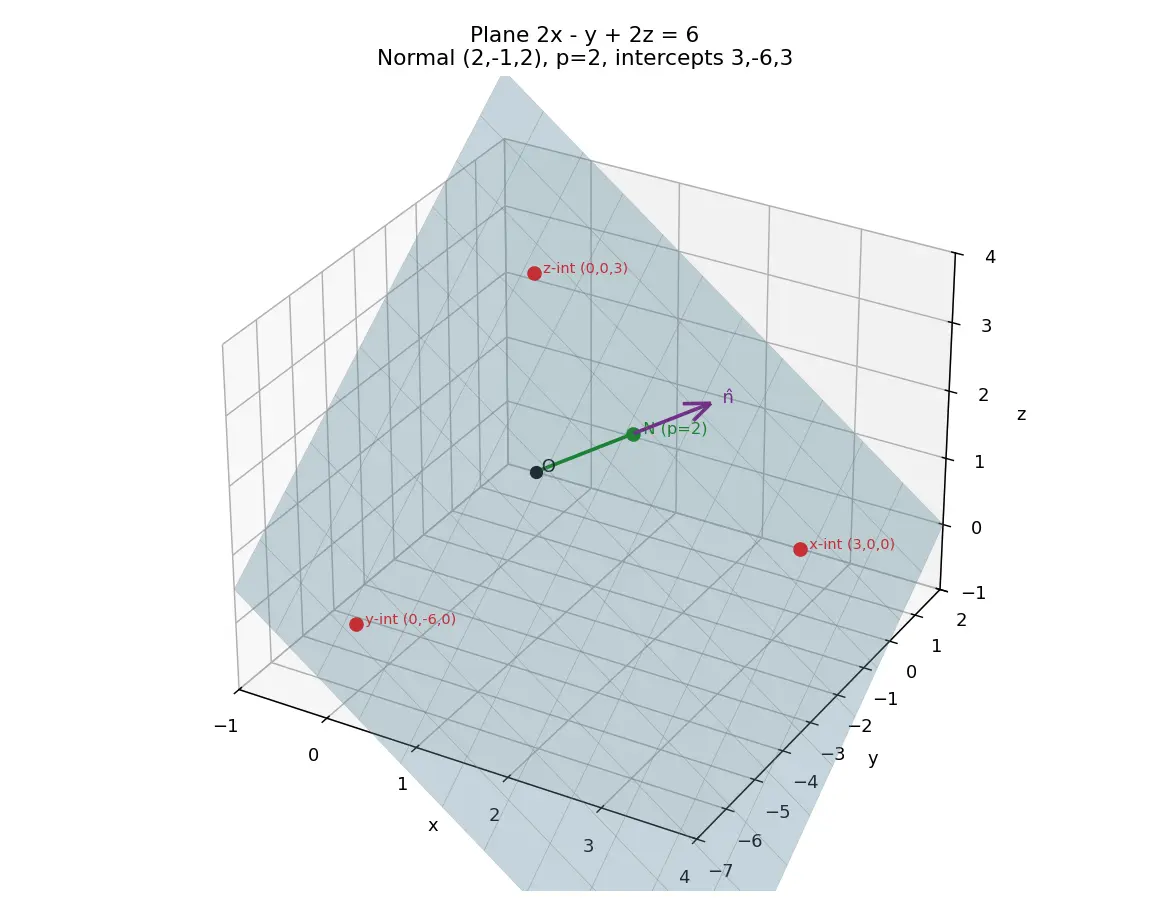

Figure — Equation of a plane — normal form, intercept form, general form

Worked examples

Common mistake Steel-manning the classic traps

Trap A: "Normal form just means $ax+by+cz=d$ ." Why it feels right: it looks tidy. The fix: normal form requires a unit normal — $l^2+m^2+n^2=1$ — and $p\ge0$ . Always divide by $\pm\sqrt{a^2+b^2+c^2}$ first.

Trap B: choosing the wrong sign so $p<0$ . Why it feels right: you just divide and move on. The fix: $p$ is a distance, must be $\ge 0$ . If $-d$ is negative, divide by $-\sqrt{a^2+b^2+c^2}$ instead so both $p$ and the direction flip consistently.

Trap C: forcing intercept form on a plane through the origin. Why it feels right: every plane "should" have intercepts. The fix: if $d=0$ the plane passes through $O$ ; an intercept of $0$ makes $\frac{x}{0}$ undefined. Intercept form needs $d\ne0$ .

Trap D: thinking $(a,b,c)$ in $ax+by+cz+d=0$ are intercepts. The fix: there they're the normal components; intercepts only appear after rewriting as $\frac{x}{p}+\frac{y}{q}+\frac{z}{r}=1$ .

Recall Feynman: explain to a 12-year-old

Imagine a flat sheet of cardboard floating in a room. Stick a single pencil straight out of the cardboard — that pencil is the "normal." The cardboard is exactly all the points the pencil points across, never along. To say where the cardboard is, you only need: which way the pencil points, and how far the cardboard sits from the corner of the room. The equation $ax+by+cz=d$ just writes " $(a,b,c)$ is the pencil, and $d$ tells how far." The "intercept" version instead says where the cardboard pokes through the three walls. Same cardboard, different ways of describing it.

Connections

Flashcards

What does the equation

ax+by+cz+d=0

tell you immediately about the plane?

The vector

(a,b,c)

is normal (perpendicular) to the plane.

How do you convert general form to normal form?

Divide

ax+by+cz=-d

\pm\sqrt{a^2+b^2+c^2}

, sign chosen so RHS

p\ge0

; then LHS coefficients are direction cosines.

In normal form

lx+my+nz=p

, what condition do

l,m,n

satisfy?

l^2+m^2+n^2=1

(they are direction cosines of the unit normal).

What does

p

represent in normal form?

The perpendicular distance from the origin to the plane (

p\ge0

Write intercept form and state what

a,b,c

mean.

\frac{x}{a}+\frac{y}{b}+\frac{z}{c}=1

;

a,b,c

are the

x,y,z

-axis intercepts.

When does a plane have NO intercept form?

When it passes through the origin (

d=0

How do you find the normal from three points

A,B,C

on the plane?

\vec n=\vec{AB}\times\vec{AC}

Point–normal form of a plane through

\vec r_0

with normal

\vec n

\vec n\cdot(\vec r-\vec r_0)=0

Find intercepts of

2x-y+2z=6

3,\ -6,\ 3

(divide by 6).

Why are the coefficients of

x,y,z

not the intercepts in general form?

They are normal components; intercepts only appear after normalising RHS to 1.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, plane ka pura funda ek hi cheez par tika hai — normal vector. Normal matlab woh teer (arrow) jo plane se bilkul seedha bahar nikalta hai, plane ke andar kahin nahi jhukta. Jab tum likhte ho $ax+by+cz+d=0$ , toh $(a,b,c)$ hi tumhara normal hai — yeh sabse kaam ki baat hai, ratt lo. Coefficients = normal.

Ab teen "roop" (forms) sirf same plane ko alag-alag style mein likhne ke tareeke hain. General form $ax+by+cz+d=0$ — direct point aur normal se banta hai: $\vec n\cdot(\vec r-\vec r_0)=0$ . Normal form $lx+my+nz=p$ tab milta hai jab tum normal ko unit bana do (poore equation ko $\sqrt{a^2+b^2+c^2}$ se divide karke), aur yahan $p$ matlab origin se plane ki seedhi doori, jo hamesha $\ge0$ honi chahiye. Intercept form $\frac{x}{a}+\frac{y}{b}+\frac{z}{c}=1$ tab banao jab RHS ko 1 bana do; yahan $a,b,c$ woh points hain jahan plane teen axes ko kaatta hai.

Do galtiyan sabse zyada hoti hain. Pehli — normal form mein unit normal lena bhool jaana; bina divide kiye $p$ galat aayega. Doosri — agar plane origin se guzarta hai ( $d=0$ ) toh uska intercept form banta hi nahi, kyunki $\frac{x}{0}$ undefined hota hai. Yeh dono yaad rakho aur 80% questions seedha nikal jayenge: pehle normal pehchaano, phir zaroorat ke hisaab se normalize ya RHS=1 karo. Bas itna hi khel hai.
