Angle between line and plane

Setup

Line: $\vec r = \vec a + \lambda \vec b$ , direction $\vec b$ .
Plane: $\vec r \cdot \vec n = d$ (or $ax+by+cz+d=0$ , so $\vec n=(a,b,c)$ ).

Deriving the formula from scratch

WHAT we want: $\theta$ between line (dir $\vec b$ ) and plane (normal $\vec n$ ).

Step 1 — Use the normal as a reference. The normal is perpendicular to the entire plane. The angle $\gamma$ between $\vec b$ and $\vec n$ is found by the dot product: $\cos\gamma = \frac{\vec b \cdot \vec n}{|\vec b|\,|\vec n|}.$ Why this step? The dot product is our only tool that converts two directions into an angle.

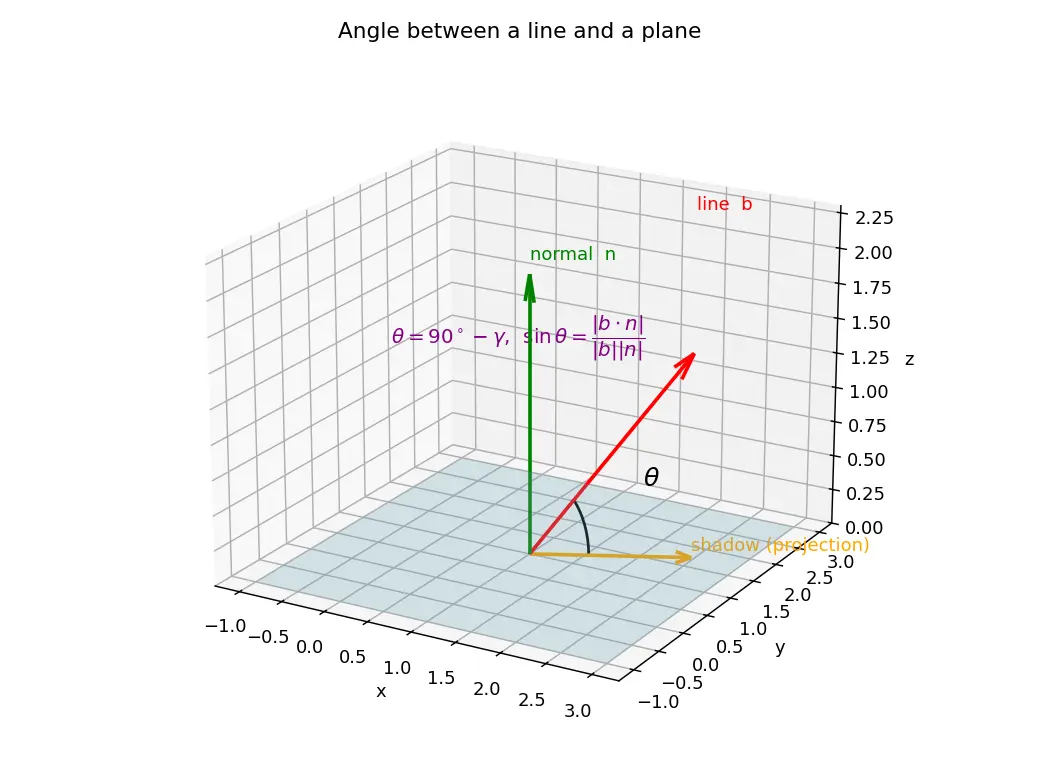

Step 2 — Relate $\gamma$ to $\theta$ . Picture the line, its shadow on the plane, and the normal. The normal stands at $90^\circ$ to the shadow. So the line, the normal and the shadow form a right triangle. $\theta + \gamma = 90^\circ \quad\Rightarrow\quad \gamma = 90^\circ - \theta.$ Why this step? Line-to-plane and line-to-normal are complementary by geometry.

Step 3 — Substitute. $\cos\gamma = \cos(90^\circ-\theta) = \sin\theta.$ Therefore $\boxed{\ \sin\theta = \frac{|\vec b \cdot \vec n|}{|\vec b|\,|\vec n|}\ }$

Why the absolute value? The line direction $\vec b$ could point either way, and $\theta$ must stay in $[0^\circ,90^\circ]$ , so we take the magnitude to keep $\sin\theta \ge 0$ .

Special cases (forecast-then-verify these!)

Situation	Condition	Reason
Line parallel to plane	$\vec b\cdot\vec n=0$	$\theta=0^\circ$ , line ⟂ normal
Line lies in plane	$\vec b\cdot\vec n=0$ and a point of line satisfies plane	parallel + touching
Line perpendicular to plane	$\vec b \parallel \vec n$	$\theta=90^\circ$ , $\sin\theta=1$

Worked examples

Worked example Example 1 — basic

Line $\vec r=(\hat i+\hat j)+\lambda(2\hat i-\hat j+2\hat k)$ , plane $\vec r\cdot(3\hat i+4\hat j+12\hat k)=5$ . Find $\theta$ .

$\vec b=(2,-1,2)$ , $\vec n=(3,4,12)$ . $\vec b\cdot\vec n = 6-4+24 = 26$ . Why? Multiply matching components, add. $|\vec b|=\sqrt{4+1+4}=3$ , $|\vec n|=\sqrt{9+16+144}=13$ . $\sin\theta = \dfrac{26}{3\cdot13}=\dfrac{26}{39}=\dfrac{2}{3}$ . $\theta=\sin^{-1}\!\left(\tfrac23\right)\approx 41.8^\circ$ . Why $\sin$ ? Plane given by its normal.

Common mistake Steel-manned common errors

Mistake A: Using $\cos\theta=\dfrac{|\vec b\cdot\vec n|}{|\vec b||\vec n|}$ . Why it feels right: every other "angle between" formula uses $\cos$ . The fix: the plane is encoded by its normal, which is perpendicular to the plane, adding a $90^\circ$ twist → use $\sin$ .

Mistake B: Forgetting the absolute value. A negative dot product gives a "negative angle." Fix: line directions are unsigned; keep $\sin\theta\in[0,1]$ with $|\cdot|$ .

Mistake C: Thinking $\vec b\cdot\vec n=0$ means perpendicular line. Why it feels right: dot product $=0$ usually means perpendicular vectors. Fix: here $\vec b\perp\vec n$ means $\vec b$ is along the plane, so the line is parallel to the plane, not perpendicular.

Recall Feynman: explain to a 12-year-old

Imagine sunlight shining straight down onto a slanted stick poking out of the ground. The stick is the line, the ground is the plane. The angle between the stick and its shadow on the ground is the "line–plane angle." Now there's also a flagpole standing perfectly straight up (the normal). The stick leans away from the pole by some amount. Because the pole and the ground make a perfect square corner, whatever angle the stick makes with the pole, it makes the leftover angle with the ground. The two always add to a right angle. That swap of "leftover angle" is exactly why we use $\sin$ instead of $\cos$ .

Formula for angle between line (dir b) and plane (normal n)

\sin\theta=\dfrac{|\vec b\cdot\vec n|}{|\vec b||\vec n|}

Why

\sin

not

\cos

for line-and-plane?

Plane is represented by its normal, which is

90^\circ

off the plane, so

\cos\gamma=\cos(90-\theta)=\sin\theta

Condition for a line to be parallel to a plane

\vec b\cdot\vec n=0

(direction perpendicular to normal).

Condition for a line to lie in a plane

\vec b\cdot\vec n=0

AND a point of the line satisfies the plane equation.

Condition for a line perpendicular to a plane

\vec b\parallel\vec n

(so

\sin\theta=1,\ \theta=90^\circ

Range of the line–plane angle

\theta

0^\circ\le\theta\le90^\circ

Why take absolute value in the formula?

Line direction is unsigned;

|\cdot|

keeps

\sin\theta\in[0,1]

Line b=(2,-1,2), plane n=(3,4,12): find

\sin\theta

26/39=2/3

, so

\theta=\sin^{-1}(2/3)

Connections

Angle between two lines — uses $\cos$ , contrast with this $\sin$ .
Angle between two planes — $\cos$ via the two normals.
Equation of a plane — source of the normal $\vec n$ .
Direction ratios and direction cosines — gives $\vec b$ .
Dot product — engine behind every angle formula.
Coplanarity of lines — relies on the same $\vec b\cdot\vec n=0$ test.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, line aur plane ke beech ka angle nikalne ka ek simple jugaad hai. Plane ko hum uske normal (woh arrow jo plane se seedha bahar nikalta hai) se represent karte hain, aur line ko uske direction vector $\vec b$ se. Ab dhyaan do: hum jo asli angle chahte hain woh line aur uske plane par padi hui "parchhaai" (shadow/projection) ke beech ka hai, line aur normal ke beech ka nahi.

Trick yeh hai ki line aur normal ke beech ka angle $\gamma$ , aur line aur plane ka angle $\theta$ — dono milke $90^\circ$ banate hain, kyunki normal plane ke bilkul perpendicular hota hai. Isliye $\gamma = 90^\circ - \theta$ . Jab hum $\cos\gamma$ likhte hain (dot product se), woh ban jaata hai $\cos(90-\theta)=\sin\theta$ . Bas yahi reason hai ki line-plane mein sin aata hai, jabki do lines ya do planes mein cos aata hai.

Final formula: $\sin\theta=\dfrac{|\vec b\cdot\vec n|}{|\vec b|\,|\vec n|}$ . Absolute value isliye lagta hai kyunki line ka direction kisi bhi taraf ho sakta hai, par angle hamesha $0$ se $90$ degree ke beech rakhna hai. Agar $\vec b\cdot\vec n=0$ aa jaaye to ghabrao mat — iska matlab line plane ke parallel hai (perpendicular nahi!), kyunki $\vec b$ normal ke perpendicular hai matlab plane ke andar lying direction. Yaad rakho: "Normal makes it SINful" — N wala plane, siN wala formula.
