Angle between line and plane: Worked examples

This page is the practice ground for Angle between line and plane. Below we hunt down every kind of situation the line–plane angle can be thrown into and work each one fully — so nothing on an exam can surprise you. First we fix notation and re-derive the master formula on this page, then we run the scenarios.

Definition Notation used on this page (all the same objects)

$b$ (arrow) = the direction vector of the line, from Direction ratios and direction cosines — the way the line points. We write it as a tuple $b = (b_{1}, b_{2}, b_{3})$ .
$n$ (arrow) = the normal of the plane, from Equation of a plane — the arrow sticking straight out of the plane, written $n = (n_{1}, n_{2}, n_{3})$ .
$γ$ = the angle between $b$ and $n$ (line to normal), NOT the line-to-plane angle. It is the complement of $θ$ : $γ = 9 0^{\circ} - θ$ . We use it only in the derivation below.
$\hat{i}, \hat{j}, \hat{k}$ (hats) are the unit steps along $x, y, z$ . So $2 \hat{i} - \hat{j} + 2 \hat{k}$ and the tuple $(2, - 1, 2)$ are the same vector written two ways — we switch to tuples the moment we start arithmetic.
$b \cdot n$ = the dot product (from Dot product): multiply matching components, add them up. It is the single engine that turns two arrows into an angle.

Building the master formula on this page (why $sin$ ?)

WHAT we want: the angle $θ$ between the line (direction $b$ ) and the plane (normal $n$ ).

Step A — measure the line against the normal first. The dot product is the only tool we have that turns two arrows into an angle, so we point it at $b$ and $n$ : $cos γ = \frac{b \cdot n}{∣ b ∣ ∣ n ∣} .$ Why the normal and not the plane's surface? Because a plane has no single "direction," but its normal does — that arrow is the plane's fingerprint.

Step B — swap $γ$ for $θ$ . The normal stands at $9 0^{\circ}$ to the plane, hence to the line's shadow inside it. So the line, its shadow, and the normal form a right angle: the line splits that $9 0^{\circ}$ into $θ$ (down to the shadow) and $γ$ (up to the normal). Therefore $θ + γ = 9 0^{\circ}$ , i.e. $γ = 9 0^{\circ} - θ$ , and $cos γ = cos (9 0^{\circ} - θ) = sin θ .$ Why does $cos$ turn into $sin$ ? Because we measured against the normal, which is $9 0^{\circ}$ off the plane — that extra right angle is exactly the co-relation $cos (9 0^{\circ} - θ) = sin θ$ . This is the whole reason the line–plane angle uses $sin$ while Angle between two lines and Angle between two planes use $cos$ .

Step C — take the size. A line has no arrowhead, so $b$ may point either way and flip the sign of the dot product; we take the magnitude to keep $sin θ \geq 0$ : $sin θ = \frac{∣ b \cdot n ∣}{∣ b ∣ ∣ n ∣}$ This is the formula every example below uses.

The scenario matrix

Every problem this topic can throw is one of these cells. Each row is covered by at least one worked example below.

#	Cell (scenario class)	What makes it special	Example
1	Clean positive dot product	$b \cdot n > 0$ , ordinary angle	Ex 1
2	Negative dot product	must apply $∣ \cdot ∣$ or you get a "negative angle"	Ex 2
3	Zero dot product → parallel	$b \cdot n = 0$ , so $θ = 0^{\circ}$	Ex 3
4	Line lies IN plane	zero dot product and a point fits the plane	Ex 4
5	Perpendicular line ( $b ∥ n$ )	$sin θ = 1$ , $θ = 9 0^{\circ}$ (limiting value)	Ex 5
6	Cartesian form with mixed signs	reading $b, n$ off equations correctly	Ex 6
7	Real-world word problem	a ramp / sunbeam, units and interpretation	Ex 7
8	Exam twist: solve for an unknown	angle given, find a missing coefficient	Ex 8

Worked examples

Worked example Example 1 — Cell 1: clean positive dot product

Line $r = (\hat{i} + 2 \hat{k}) + λ (1, 2, 2)$ , plane $r \cdot (2, 1, 2) = 6$ . Find $θ$ .

Forecast: all components are positive, so the dot product will be positive and we'll get a middling angle (not $0$ , not $9 0^{\circ}$ ). Guess before reading.

Read off the arrows. $b = (1, 2, 2)$ , $n = (2, 1, 2)$ . Why this step? The formula only ever needs these two direction arrows.
Dot product. $b \cdot n = (1) (2) + (2) (1) + (2) (2) = 2 + 2 + 4 = 8$ . Why this step? This is the only tool that converts two arrows into an angle.
Lengths. $∣ b ∣ = 1 + 4 + 4 = 3$ , $∣ n ∣ = 4 + 1 + 4 = 3$ . Why this step? Dividing by the lengths strips out "how long" and keeps only "which way," which is all an angle cares about.
Plug in. $sin θ = \frac{∣8∣}{3 \cdot 3} = \frac{8}{9}$ . Why this step? This IS the master formula from Step C above — the dot product measures alignment with the normal, and dividing by the lengths turns that alignment into $sin θ$ (because the plane is encoded by its normal, $9 0^{\circ}$ off itself).
Angle. $θ = sin^{- 1} (\frac{8}{9}) \approx 62. 7^{\circ}$ . Why this step? We know $sin θ$ but want $θ$ ; $sin^{- 1}$ is the tool that undoes sine, i.e. asks "which acute angle has this sine?"

Verify: $\frac{8}{9} \approx 0.889 \in [0, 1]$ ✓ (a valid sine). It's between $0^{\circ}$ and $9 0^{\circ}$ ✓, and closer to $9 0^{\circ}$ because $b$ leans strongly toward the normal.

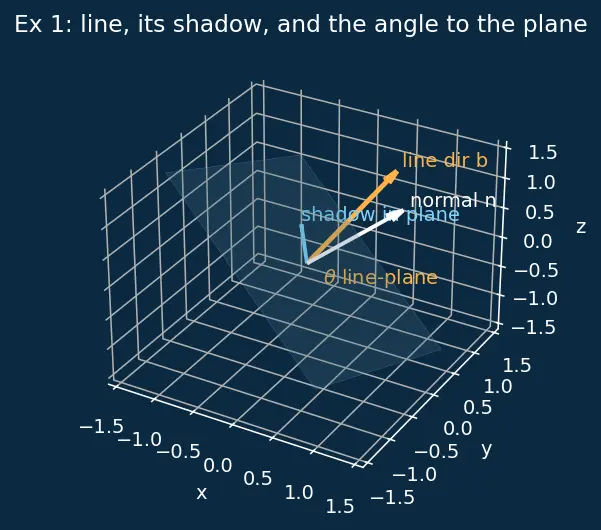

Read the figure below: the amber arrow is $b$ (the line's direction), the white arrow is the normal $n$ , and the cyan arrow is the line's shadow inside the plane. The angle $θ$ we just computed is the small gap between the amber arrow and the cyan shadow — NOT the gap between amber and white. Seeing those three arrows makes the " $sin$ , not $cos$ " swap obvious: the shadow and the normal make a perfect right angle, so the line splits that $9 0^{\circ}$ into $θ$ (to shadow) and $γ$ (to normal).

Worked example Example 2 — Cell 2: negative dot product (the

$∣ \cdot ∣$ matters) Line $\frac{x - 1}{2} = \frac{y}{3} = \frac{z + 1}{6}$ , plane $2 x + y - 2 z + 5 = 0$ . Find $θ$ .

Forecast: the plane's $z$ -coefficient is $- 2$ while the line climbs in $z$ by $6$ . That clash will make the dot product negative. What does a negative dot product mean for the angle? (Answer: nothing scary — we just take its size.)

Read off arrows. $b = (2, 3, 6)$ , $n = (2, 1, - 2)$ . Why: denominators of the symmetric line form ARE the direction ratios; coefficients of $x, y, z$ ARE the normal.
Dot product. $b \cdot n = (2) (2) + (3) (1) + (6) (- 2) = 4 + 3 - 12 = - 5$ . Why: the sign just tells us $b$ leans away from $n$ ; the line vs plane angle can't tell the difference, so...
Absolute value. Use $∣ - 5∣ = 5$ . Why this step? A line has no arrowhead — pointing it backward flips the sign of the dot product but is the same line. $∣ \cdot ∣$ keeps $sin θ \geq 0$ so $θ \in [0^{\circ}, 9 0^{\circ}]$ .
Lengths. $∣ b ∣ = 4 + 9 + 36 = 7$ , $∣ n ∣ = 4 + 1 + 4 = 3$ . Why this step? Same reason as always — divide out the lengths so only direction survives; the answer must not depend on how long we happened to draw the arrows.
Plug in and find the angle. $sin θ = \frac{5}{21} \approx 0.238 \Rightarrow θ = sin^{- 1} (0.238) \approx 13. 8^{\circ}$ . Why $sin^{- 1}$ ? It undoes the sine to hand back the acute angle.

Verify: had we skipped the $∣ \cdot ∣$ we'd get $sin θ = - \frac{5}{21}$ , a "negative angle" — geometric nonsense for $θ \in [0^{\circ}, 9 0^{\circ}]$ . The $∣ \cdot ∣$ fixed it. ✓

Worked example Example 3 — Cell 3: zero dot product → line parallel

Line dir $b = (1, 2, 2)$ , plane $r \cdot (2, 1, - 2) = 7$ . Find $θ$ .

Forecast: $2 + 2 - 4$ ... watch for it collapsing to zero. If it does, is the line perpendicular or parallel to the plane? (This is the classic trap — decide now.)

Dot product. $b \cdot n = (1) (2) + (2) (1) + (2) (- 2) = 2 + 2 - 4 = 0$ . Why: zero dot product means $b ⊥ n$ .
Interpret. $b ⊥ n$ means the line's direction lies flat inside the plane's surface (perpendicular to the outward arrow). Why this step? The normal sticks out; anything perpendicular to it runs along the surface.
Angle. $sin θ = \frac{∣0∣}{∣ b ∣∣ n ∣} = 0 \Rightarrow θ = 0^{\circ}$ . Why this step? $sin^{- 1} (0) = 0^{\circ}$ — the smallest the line-plane angle can be, meaning "no lean at all into the plane."

Verify: $θ = 0^{\circ}$ means the line is parallel to the plane, NOT perpendicular. If someone says "dot product zero ⇒ perpendicular line" — wrong: here it means parallel. ✓

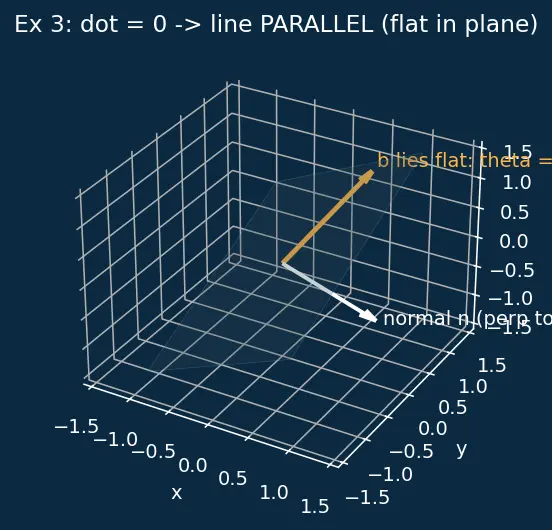

Read the figure below: the amber arrow $b$ now lies flat on the cyan plane — its own shadow, so the gap between them is zero. The white normal $n$ sits at a clean right angle to $b$ . This is the picture that stops the classic mistake: perpendicular vectors ( $b ⊥ n$ ) mean a line that is parallel to the plane.

Worked example Example 4 — Cell 4: line actually LIES in the plane

Line $r = (1, 1, 1) + λ (1, 2, 2)$ , plane $2 x + y - 2 z = 1$ . Parallel or contained?

Forecast: same $b$ and $n$ as Ex 3, so it's parallel. But is the line floating above the plane, or sitting in it? We need one extra test.

Parallel check. $b \cdot n = (1) (2) + (2) (1) + (2) (- 2) = 0$ → parallel. ✓ Why: same reasoning as Ex 3.
Point test. Plug the line's point $(1, 1, 1)$ into the plane: $2 (1) + 1 - 2 (1) = 2 + 1 - 2 = 1$ . Why this step? Parallel lines either miss the plane entirely or lie inside it. The only way to tell is: does one point of the line satisfy the plane equation?
Compare. Plane requires $= 1$ ; we got $1$ . Match → the point is on the plane.
Conclude. Line is parallel AND touches → the line lies in the plane. $θ = 0^{\circ}$ .

Verify: every point of the line has the form $(1 + λ, 1 + 2 λ, 1 + 2 λ)$ . Plug in: $2 (1 + λ) + (1 + 2 λ) - 2 (1 + 2 λ) = 2 + 2 λ + 1 + 2 λ - 2 - 4 λ = 1$ for all $λ$ . Whole line satisfies the plane. ✓

Worked example Example 5 — Cell 5: perpendicular line (limiting value

$θ = 9 0^{\circ}$ ) Line dir $b = (4, 2, - 8)$ , plane normal $n = (2, 1, - 4)$ . Find $θ$ .

Forecast: notice $b = 2 n$ . When $b$ is a scalar multiple of $n$ , the line points straight along the normal. What angle does that make with the plane? (The extreme case.)

Check parallelism of $b, n$ . $(4, 2, - 8) = 2 \cdot (2, 1, - 4)$ → $b ∥ n$ . Why this step? If the line's direction equals the outward arrow, the line pierces the plane like a nail — perpendicular.
Dot product. $b \cdot n = 8 + 2 + 32 = 42$ .
Lengths. $∣ b ∣ = 16 + 4 + 64 = 84 = 221$ , $∣ n ∣ = 4 + 1 + 16 = 21$ .
Plug in. $sin θ = \frac{42}{2 21 \cdot 21} = \frac{42}{2 \cdot 21} = \frac{42}{42} = 1$ . Why this step? Full alignment with the normal makes the numerator equal the product of lengths, so $sin θ$ hits its ceiling of $1$ .
Angle. $θ = sin^{- 1} (1) = 9 0^{\circ}$ . Why this step? $sin^{- 1} (1)$ is the largest acute angle, $9 0^{\circ}$ — the line stands perpendicular to the plane.

Verify: $sin θ = 1$ is the biggest a sine can be — the limiting value. Matches " $b ∥ n$ ⇒ line ⟂ plane." ✓

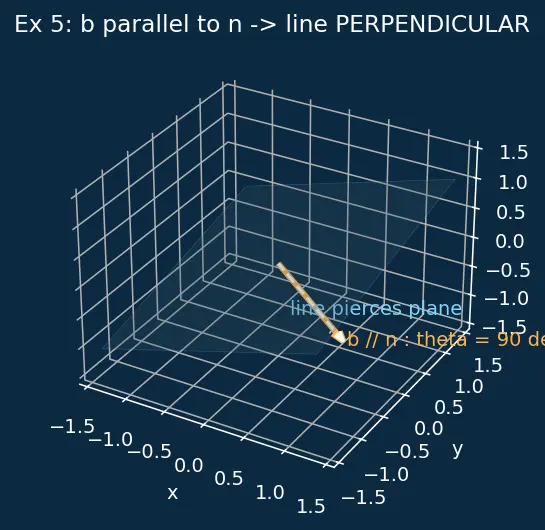

Read the figure below: the amber arrow $b$ now coincides with the dashed white normal $n$ — they point the same way. The line drives straight through the cyan plane like a nail. There is no shadow to lean toward (the shadow shrinks to a point), so the line-plane angle maxes out at $9 0^{\circ}$ .

Worked example Example 6 — Cell 6: Cartesian form, mixed signs

Line $\frac{x + 2}{3} = \frac{y - 1}{- 2} = \frac{z}{6}$ , plane $x - 2 y + 2 z = 9$ . Find $θ$ .

Forecast: a negative direction ratio and a negative plane coefficient — careful bookkeeping. Predict whether the answer is small or large.

Read arrows. $b = (3, - 2, 6)$ (denominators), $n = (1, - 2, 2)$ (coefficients). Why: the constant $9$ never enters the angle — only directions matter.
Dot product. $b \cdot n = (3) (1) + (- 2) (- 2) + (6) (2) = 3 + 4 + 12 = 19$ . Why: two negatives multiply to a positive here — that's why the total is large.
Lengths. $∣ b ∣ = 9 + 4 + 36 = 7$ , $∣ n ∣ = 1 + 4 + 4 = 3$ .
Plug in. $sin θ = \frac{∣19∣}{7 \cdot 3} = \frac{19}{21} \approx 0.905$ . Why this step? Master formula again; the large numerator relative to the lengths signals a steep line.
Angle. $θ = sin^{- 1} (\frac{19}{21}) \approx 64. 9^{\circ}$ . Why $sin^{- 1}$ ? Undo the sine to recover the acute angle.

Verify: $\frac{19}{21} < 1$ ✓ valid. Large sine → large angle → the line dives steeply toward the plane, consistent with $b$ leaning heavily along $n$ . ✓

Worked example Example 7 — Cell 7: real-world word problem (a beam in a roof)

A straight support beam runs in direction $b = (1, 0, 1)$ (it rises at $4 5^{\circ}$ over flat ground). It is bolted into a sloped roof whose plane is $z = x$ , i.e. $x - z = 0$ . At what angle does the beam meet the roof surface?

Forecast: the beam direction and the roof slope both involve $x$ and $z$ equally — smells like they might be parallel. Guess the angle before computing.

Normal of the roof. Plane $x - z = 0$ has normal $n = (1, 0, - 1)$ . Why this step? The coefficients of $x, y, z$ are exactly the normal — this is where Equation of a plane feeds us $n$ .
Dot product. $b \cdot n = (1) (1) + (0) (0) + (1) (- 1) = 1 + 0 - 1 = 0$ . Why: zero means the beam runs flat along the roof, not into it.
Angle. $sin θ = 0 \Rightarrow θ = 0^{\circ}$ . Why this step? $sin^{- 1} (0) = 0^{\circ}$ — no lean into the surface.
Point test (does it sit in the roof or hover?). If the beam passes through $(0, 0, 0)$ : check $x - z = 0 - 0 = 0$ ✓ — it lies in the roof plane.

Verify: interpretation — the beam and its shadow on the roof are the same line, so the "line–plane angle" is $0^{\circ}$ . A support running exactly along a surface makes no angle with it, which matches everyday intuition. Units: angles are dimensionless (ratio of lengths), so no unit worries. ✓

Worked example Example 8 — Cell 8: exam twist, solve for an unknown coefficient

The line with direction $b = (1, 1, 0)$ makes an angle of $3 0^{\circ}$ with the plane $x + k y + z = 4$ . Find $k > 0$ .

Forecast: we're running the formula backwards — the angle is given, the plane is partly unknown. Expect to solve an equation for $k$ .

Set up the formula. $n = (1, k, 1)$ , so $sin 3 0^{\circ} = \frac{∣ b \cdot n ∣}{∣ b ∣ ∣ n ∣} = \frac{∣1 + k + 0∣}{2 2 + k ^{2}} = \frac{∣1 + k ∣}{2 2 + k ^{2}} .$ Why this step? Same master formula; now the unknown lives inside it.
Insert $sin 3 0^{\circ} = \frac{1}{2}$ and square both sides. $\frac{1}{4} = \frac{∣1 + k ∣ ^{2}}{2 ( 2 + k ^{2} )} = \frac{( 1 + k ) ^{2}}{2 ( 2 + k ^{2} )} .$ Why square? Squaring removes the radicals; and since $∣1 + k ∣^{2} = (1 + k)^{2}$ regardless of the sign of $1 + k$ , squaring also legitimately drops the absolute value with no information lost. This is the safe way to handle $∣ \cdot ∣$ .
Cross-multiply. $2 (2 + k^{2}) = 4 (1 + k)^{2} \Rightarrow 4 + 2 k^{2} = 4 + 8 k + 4 k^{2}$ .
Simplify to a quadratic. $0 = 8 k + 2 k^{2} \Rightarrow 2 k (k + 4) = 0 \Rightarrow k = 0$ or $k = - 4$ . Why this step? Solve the quadratic — both are genuine candidate roots of the squared equation.
Check BOTH branches against the original (unsquared) equation. Squaring can invent false roots, so test each:
- $k = 0$ : $\frac{∣1 + 0∣}{2 2} = \frac{1}{2} = sin 3 0^{\circ}$ ✓ — genuine.
- $k = - 4$ : $\frac{∣1 - 4∣}{2 18} = \frac{3}{6} = \frac{1}{2} = sin 3 0^{\circ}$ ✓ — also genuine (the $∣ \cdot ∣$ turned $1 + k = - 3$ into $3$ , so this branch survives too). Why this step? Never trust a squared equation until both signs of $1 + k$ are checked back in the original.
Apply the constraint $k > 0$ . The two valid roots are $k = 0$ and $k = - 4$ ; neither is positive. So there is no positive $k$ that produces a $3 0^{\circ}$ angle — the honest answer is an empty solution.

Verify: sanity-check the reachable range. At $k = 0$ , $θ = 3 0^{\circ}$ (shown above). As $k \to + \infty$ , $n \to (0, 1, 0)$ and $sin θ \to \frac{1}{2}$ , i.e. $θ \to 4 5^{\circ}$ ; the sine only grows as $k$ moves positive past $0$ , so $3 0^{\circ}$ is reached only at the excluded value $k = 0$ . Honest answer: no valid positive $k$ (an exam twist rewards spotting the empty solution). ✓
