Foundations — Angle between two lines

Before you touch the formula $\cos \theta =\frac{|\overrightarrow{b_1}\cdot \overrightarrow{b_2}|}{|\overrightarrow{b_1}||\overrightarrow{b_2}|}$, you must be able to read every mark in it. Let's build them one at a time, each on top of the last, each anchored to a picture. Nothing here is assumed — if the parent note used it, we define it.

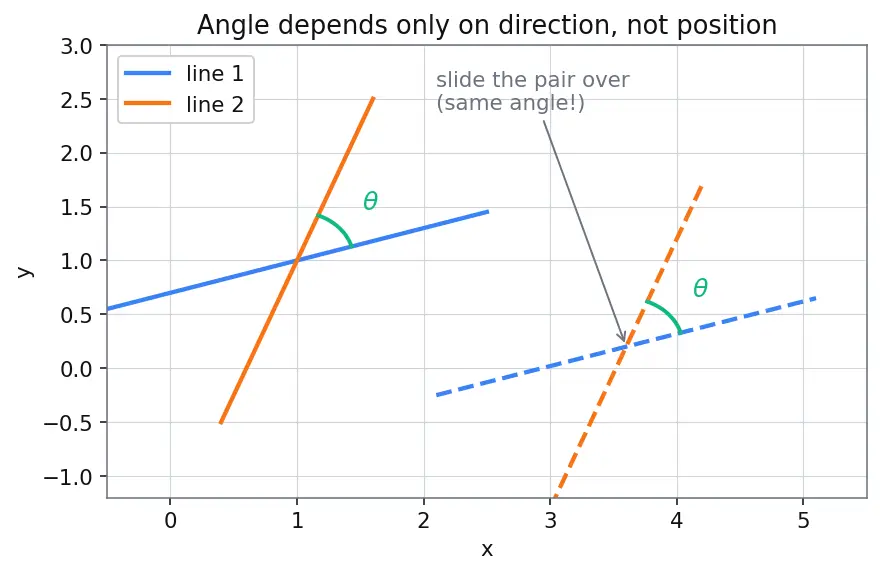

1. What a "line in 3D" is, and why only its direction matters

A line is a perfectly straight path that runs forever in both directions. In 3D we live in a room: three independent ways to move — left/right, forward/back, up/down. We name these the $x$, $y$, $z$ axes (labelled ruled arrows meeting at one corner).

Because position doesn't matter, we throw the location away and keep just an arrow that shows the direction. That arrow is our next symbol.

2. Vector $\vec{b}$ — the "direction arrow"

The picture: an arrow starting at a dot (the tail) and ending in a sharp point (the head/tip). The direction of the line = the direction the arrowhead points.

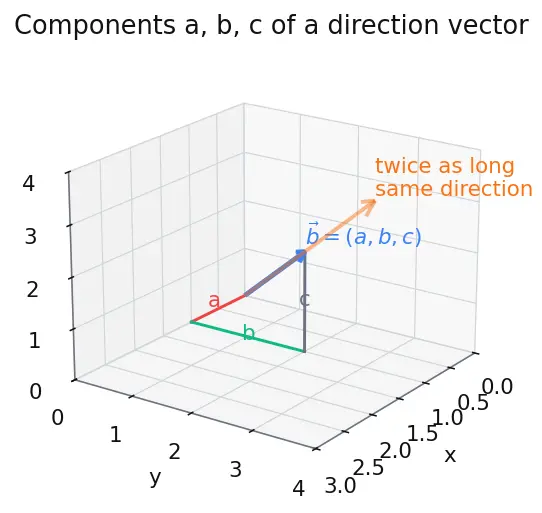

3. Components $(a,b,c)$ — the arrow written as three numbers

• $a$ = how far the arrow reaches along $x$ (right is positive, left is negative).
• $b$ = how far along $y$.
• $c$ = how far along $z$.

Cloze check: A line's direction is fixed by its direction ratios $(a,b,c)$, not by any point on it.

4. Magnitude $|\vec{b}|$ — the length of the arrow

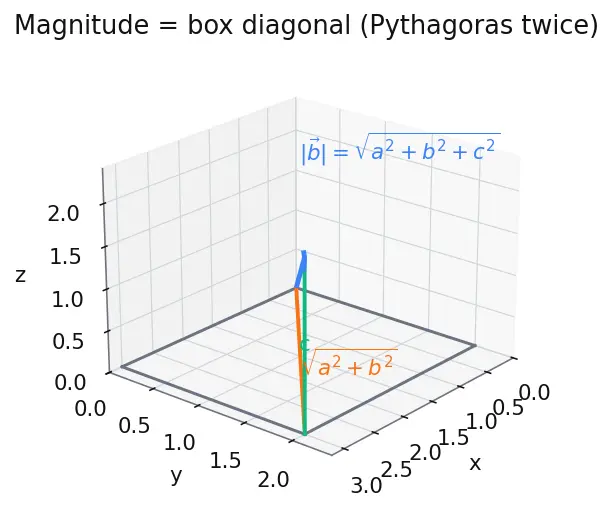

How do we compute it? The arrow from the origin to $(a,b,c)$ is the long diagonal of a box whose sides are $a$, $b$, $c$. Pythagoras in 3D gives:

$|\vec{b}|=\sqrt{a^2+b^2+c^2}$

Notice $|\vec{b}|$ appears twice on the bottom of the angle formula — once for each arrow — precisely to cancel out length so only direction survives.

5. The dot product $\overrightarrow{b_1}\cdot \overrightarrow{b_2}$ — the engine

This is the star of the whole topic, so we build it carefully.

The magic is that this same number also equals a piece of geometry:

6. $\cos \theta$ and $\theta$ — reading the angle back out

To get $\theta$ itself we undo cosine with ${\cos }^{-1}$ (also written $\arccos$): it answers "which angle has this cosine?". Example: ${\cos }^{-1}(8/9)\approx 27.3^{\circ }$.

7. The modulus $|\cdot |$ on the numerator — forcing "acute"

We met $|\cdot |$ as "length." On a single number it means something plainer:

8. Two shortcut vocabularies the parent leans on

Prerequisite map

Equipment checklist

State the plain-words meaning of each — reveal to self-test.

Connections

• Angle between two lines — the parent; every symbol here feeds its formula.
• Direction cosines and direction ratios — the direction inputs $(a,b,c)$ and $(l,m,n)$.
• Dot product of vectors — the engine that produces $\cos \theta$.
• Cross product of vectors — gives the $\sin \theta$ form.
• Equation of a line in 3D — where you read direction ratios off a line.
• Angle between two planes — same dot-product idea, with normals.
• Angle between a line and a plane — uses $\sin \theta$ with the plane's normal.
• Shortest distance between two lines — also direction-vector based.
