Foundations — Relation between direction cosines - l² + m² + n² = 1

Before you can feel why $l^2+m^2+n^2=1$ is inevitable, you need every piece of notation the parent note quietly assumed. We build them one at a time, each on a picture, each earning the next.

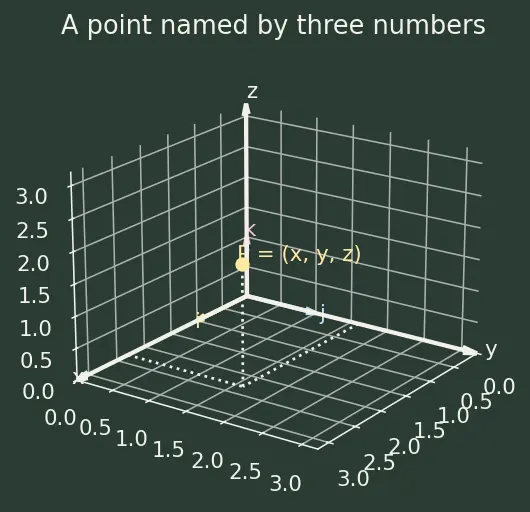

1. A point in 3D: the ordered triple $(x,y,z)$

Why the topic needs it. Direction cosines describe a line, and a line is pinned down by points and by the arrow between them. Without the triple $(x,y,z)$ we cannot even write down a direction.

The little arrows with hats ($\hat{i},\hat{j},\hat{k}$) sitting on the three axes are the unit steps along each axis — one full step of length $1$ in the $x$, $y$, $z$ directions. We define them properly in section 4.

2. A vector $\vec{r}$: an arrow with length and direction

The three numbers $(a,b,c)$ built this way are the Direction Ratios — an unnormalised direction. They say which way, but their length is still arbitrary.

3. Length of a vector: the Distance Formula in 3D

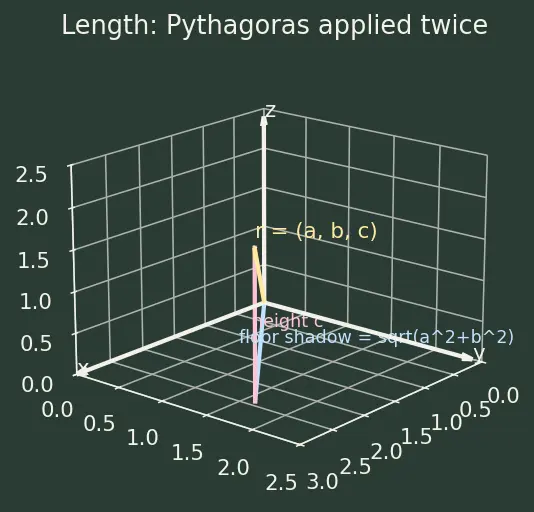

What it looks like (see figure). First flatten the arrow onto the floor: the floor-shadow has length $\sqrt{a^2+b^2}$ by ordinary 2D Pythagoras. Then stand the height $c$ up as a second right triangle: the full arrow is the hypotenuse, so its length squared is $(\sqrt{a^2+b^2}{)}^2+c^2=a^2+b^2+c^2$. Square-root it and you have $|\vec{r}|$.

Why the topic needs it. Step 3 of the parent derivation — "$\hat{u}$ has length 1" — is literally this formula with the length set to $1$. And converting ratios to cosines means dividing by this length.

4. Unit vector $\hat{u}$: an arrow of length exactly 1

The special unit vectors $\hat{i}=(1,0,0)$, $\hat{j}=(0,1,0)$, $\hat{k}=(0,0,1)$ are the pure one-step arrows along each axis. They are the rulers everything is measured against.

Why the topic needs it. Direction cosines are the components of $\hat{u}$. Once the arrow has length $1$, the identity $l^2+m^2+n^2=1$ is unavoidable — it just says "a length-1 arrow has length 1."

5. Angle $\theta$ and its cosine $\cos \theta$

The Greek letters $\alpha$ (alpha), $\beta$ (beta), $\gamma$ (gamma) are just names for the three angles the line makes with the $x$-, $y$-, $z$-axes. Nothing mysterious — they are labels, like $A$, $B$, $C$.

6. The Dot Product: why "projection = cosine"

Why the topic needs it. This is the bridge between the geometric picture (angles) and the algebra (components). It justifies Step 2 of the parent derivation in one line.

7. Putting it together — the whole chain

Now every symbol in $l^2+m^2+n^2=1$ is defined:

and since $\hat{u}$ has length $1$, the Distance Formula in 3D gives $u_x^2+u_y^2+u_z^2=|\hat{u}{|}^2=1⟹l^2+m^2+n^2=1.$

Every arrow used here you can now read symbol by symbol.

Prerequisite map

Read it top-down: points build arrows; arrows split into "which way" (ratios) and "how long" (length); dividing which-way by how-long makes a unit vector; the dot product turns that unit vector's tilt into cosines; and Pythagoras on the unit vector forces the identity.

Equipment checklist

Cover the right-hand side and answer aloud.

Connections

• Direction Ratios — the raw $(a,b,c)$ before dividing by length.
• Unit Vectors — the length-one arrow whose components are $l,m,n$.
• Dot Product — turns tilt into cosine; the projection = cosine bridge.
• Distance Formula in 3D — supplies the Pythagoras length step.
• Angle Between Two Lines — next stop, uses these cosines directly.
• Equation of a Line in 3D — where the direction finally lives.
