1.1.11Measurement, Vectors & Kinematics

Dot product — formula, geometric meaning, work calculation

2,033 words9 min readdifficulty · medium6 backlinks
🇮🇳 Yeh note Hinglish mein padho →

1. What is it? (Definition)

WHAT each piece means:

  • ∣A⃗∣,∣B⃗∣|\vec A|,|\vec B| = the lengths (magnitudes).
  • cos⁡θ\cos\theta = the "alignment factor": 11 when parallel, 00 when perpendicular, −1-1 when opposite.

2. WHY does cos⁡θ\cos\theta appear? (Derivation from scratch)

So define the dot product as (projection of A onto B) × (length of B): A⃗⋅B⃗=(∣A⃗∣cos⁡θ) ∣B⃗∣=∣A⃗∣∣B⃗∣cos⁡θ.\vec A \cdot \vec B = \big(|\vec A|\cos\theta\big)\,|\vec B| = |\vec A||\vec B|\cos\theta.

Now derive the component form — proving the two definitions agree.

Use the basis unit vectors i^,j^,k^\hat i,\hat j,\hat k. They are mutually perpendicular and unit length: i^⋅i^=∣i^∣∣i^∣cos⁡0=1,i^⋅j^=(1)(1)cos⁡90∘=0.\hat i\cdot\hat i = |\hat i||\hat i|\cos 0 = 1,\qquad \hat i\cdot\hat j = (1)(1)\cos 90^\circ = 0. Why this step? These come straight from the geometric definition with θ=0\theta=0 or 90∘90^\circ.

Write A⃗=Axi^+Ayj^+Azk^\vec A = A_x\hat i + A_y\hat j + A_z\hat k and similarly for B⃗\vec B. Expand using distributivity (which the dot product obeys — see properties): A⃗⋅B⃗=AxBx(i^⋅i^)+AxBy(i^⋅j^)+…\vec A\cdot\vec B = A_xB_x(\hat i\cdot\hat i) + A_xB_y(\hat i\cdot\hat j) + \dots Why this step? Multiply every term of A by every term of B, like expanding brackets.

All "mixed" terms (i^⋅j^\hat i\cdot\hat j etc.) are 00; the "matched" terms (i^⋅i^\hat i\cdot\hat i) are 11: A⃗⋅B⃗=AxBx+AyBy+AzBz\boxed{\vec A\cdot\vec B = A_xB_x + A_yB_y + A_zB_z} Why this step? Only the like-with-like products survive — that's the whole trick.

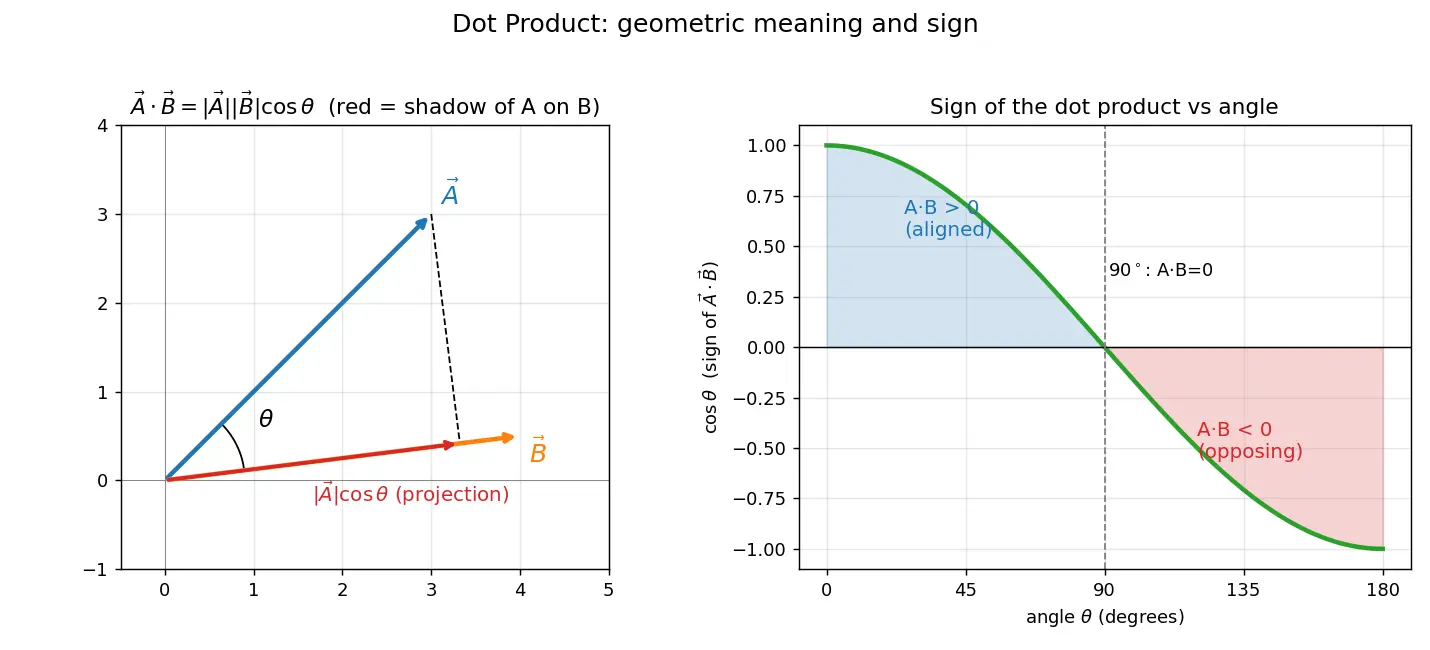

3. Geometric meaning — read the sign!

Figure — Dot product — formula, geometric meaning, work calculation

4. Properties (each justified)

5. WHY work uses the dot product

  • θ=0\theta = 0: force along motion → W=FdW = Fd (maximum, e.g. dragging forward).
  • θ=90∘\theta = 90^\circ: force ⟂ motion → W=0W = 0 (e.g. gravity on a horizontally moving puck; centripetal force on circular motion).
  • θ=180∘\theta = 180^\circ: force opposes motion → W<0W < 0 (e.g. friction).

6. Worked examples

7. Common mistakes (Steel-man + fix)

Recall Feynman: explain to a 12-year-old

Imagine pushing a toy car. If you push straight forward, all your push helps it go. If you push a little sideways, only part of your push helps — the sideways bit is wasted. The dot product is a machine: you put in two arrows and it tells you "how much of the first arrow goes the same way as the second." When that 'helping' amount is multiplied by how far the car moves, you get the work — the real effort that moved the car. If you push straight down while the car rolls forward, you help it zero — and the dot product gives exactly 00. Smart machine!

Connections

Flashcards

What does the dot product return — scalar or vector?
A scalar (single number); that's why it's called the scalar product.
Geometric formula for the dot product?
A⃗⋅B⃗=∣A⃗∣∣B⃗∣cos⁡θ\vec A\cdot\vec B = |\vec A||\vec B|\cos\theta.
Component formula for the dot product?
A⃗⋅B⃗=AxBx+AyBy+AzBz\vec A\cdot\vec B = A_xB_x + A_yB_y + A_zB_z.
What does A⃗⋅B⃗=0\vec A\cdot\vec B = 0 imply (non-zero vectors)?
They are perpendicular (θ=90∘\theta = 90^\circ).
Why does cos⁡θ\cos\theta appear in the dot product?
It picks out the projection (shadow) of one vector along the other.
Formula for the angle between two vectors?
cos⁡θ=A⃗⋅B⃗∣A⃗∣∣B⃗∣\cos\theta = \dfrac{\vec A\cdot\vec B}{|\vec A||\vec B|}.
What is A⃗⋅A⃗\vec A\cdot\vec A?
∣A⃗∣2|\vec A|^2 (since θ=0\theta=0).
Work done by a constant force?
W=F⃗⋅d⃗=Fdcos⁡θW = \vec F\cdot\vec d = Fd\cos\theta, unit joule.
When is work done by a force zero?
When force is perpendicular to displacement (θ=90∘\theta=90^\circ).
Why is centripetal force's work zero?
It is perpendicular to velocity/displacement at every instant.
What does negative work mean physically?
The force removes energy from the object (e.g. friction).
Compute (3,4,0)⋅(2,−1,2)(3,4,0)\cdot(2,-1,2).
6−4+0=26-4+0 = 2.

Concept Map

answered by

defined as

defined as

gives

expand with distributivity

perpendicular unit vectors

rearranged to

used in

reveals

plus means aligned, zero means perpendicular

models

How much of A points along B?

Dot product scalar

Geometric form A B cos theta

Component form AxBx+AyBy+AzBz

Projection shadow of A on B

Basis vectors i j k

Sign of result

Find angle theta

Work power flux

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dot product ka ek hi simple kaam hai: yeh batata hai ki ek vector dusre vector ke direction mein "kitna" jaa raha hai. Do arrows daalo, aur answer milta hai ek single number (scalar) — koi direction nahi. Formula do tarah likh sakte ho: geometric form A⃗⋅B⃗=∣A⃗∣∣B⃗∣cos⁡θ\vec A\cdot\vec B = |\vec A||\vec B|\cos\theta, aur component form AxBx+AyBy+AzBzA_xB_x + A_yB_y + A_zB_z. Dono same answer dete hain, isliye angle nikalna ho to geometric use karo, aur agar components diye hain to seedha multiply-add kar do.

Yeh cos⁡θ\cos\theta kahan se aaya? Socho ek vector ki "parchhai" (shadow/projection) doosre vector par — woh hoti hai ∣A⃗∣cos⁡θ|\vec A|\cos\theta. Isi shadow ko doosre ki length se multiply kiya, bas dot product ban gaya. Sign bahut important hai: agar dono same side (θ<90∘\theta<90^\circ) → positive; perpendicular (90∘90^\circ) → exactly zero; opposite side → negative. Yaad rakho: dot product zero matlab dono vectors perpendicular hain.

Physics mein iska sabse bada use work hai: W=F⃗⋅d⃗=Fdcos⁡θW = \vec F\cdot\vec d = Fd\cos\theta. Reason simple hai — sirf force ka woh part kaam karta hai jo motion ke along ho. Agar tum box ko upar push karte ho lekin woh aage chal raha hai, toh tumhara push zero work karta hai. Friction motion ke opposite hota hai isliye uska work negative aata hai (energy nikaalta hai). Exam tip: "WW hamesha FdFd hota hai" — yeh galat hai, cos⁡θ\cos\theta mat bhoolo. Aur angle nikalte waqt ∣A⃗∣∣B⃗∣|\vec A||\vec B| se divide karna kabhi mat chhodo, warna cos⁡θ>1\cos\theta>1 aa jayega jo impossible hai.
