0. What we are building toward

The parent note throws around symbols like $\vec{A}$, $|\vec{A}|$, $\theta$, $\cos \theta$, $\hat{i}$, $A_x$, and the strange dot in $\vec{A}\cdot \vec{B}$. If any of those made you pause, this page is your ground floor. We define each one in plain words, tie it to a picture, and say why the topic needs it. Read top to bottom — every symbol is earned before it is used again.

1. An arrow (vector) — the very first object

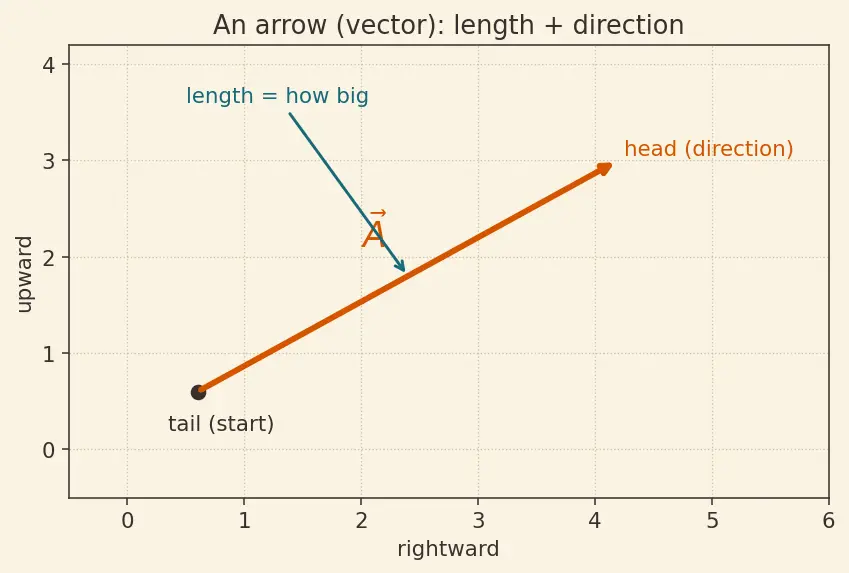

The picture. Start at a point, draw a straight arrow to another point. The pointy end (the head) shows the direction; the flat end (the tail) is where it starts.

Why the topic needs it. The dot product is an operation on two arrows. If we don't know what an arrow is, nothing else makes sense. Force is an arrow (a push has a strength and a way it pushes). Displacement is an arrow (you move a certain distance in a certain direction). Work multiplies these two arrows — so arrows come first.

2. Writing an arrow with numbers — components

You can't do arithmetic on a drawing. So we pin the arrow onto a grid and read off how far right and how far up it goes.

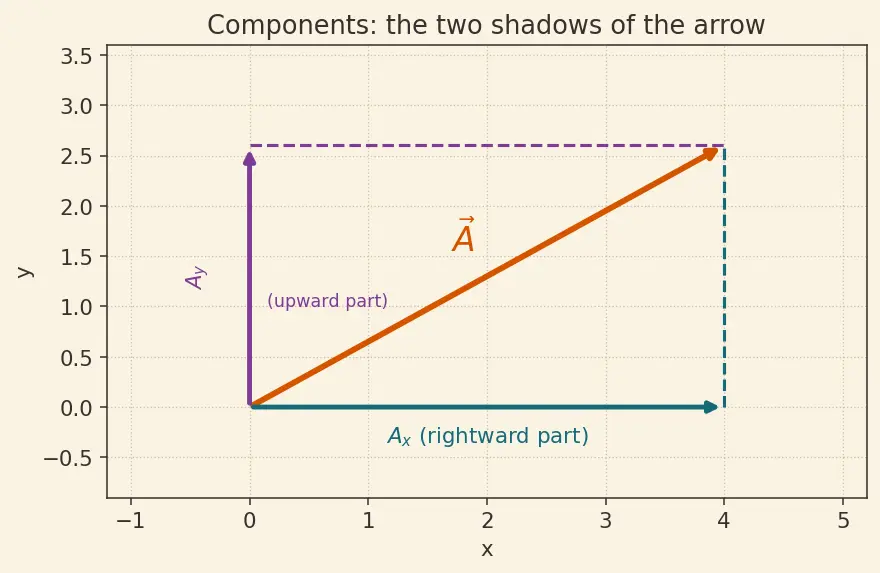

The picture. Drop a vertical line from the arrowhead to the horizontal axis — the shadow along the bottom is $A_x$. Drop a horizontal line to the vertical axis — that shadow is $A_y$. The arrow is the diagonal of the rectangle those two make.

Why the topic needs it. The parent's component form $\vec{A}\cdot \vec{B}=A_x{B}_x+A_y{B}_y+A_z{B}_z$ is built entirely out of these numbers. Components let us compute the dot product with pure arithmetic — no protractor required. (More in Vectors — components and unit vectors.)

3. How long is the arrow? — magnitude $|\vec{A}|$

Why this exact formula. The components $A_x$ and $A_y$ meet at a right angle (rightward and upward are perpendicular). The arrow is the slanted side of that right-angled triangle. Pythagoras — the tool for the long side of a right triangle — gives the length:

$|\vec{A}|=\sqrt{A_x^2+A_y^2}(\text{3-D: }\sqrt{A_x^2+A_y^2+A_z^2})$

The picture. In the rectangle from §2, the diagonal (the arrow) is the hypotenuse; its length is the square root of (base² + height²).

Why the topic needs it. The geometric formula $\vec{A}\cdot \vec{B}=|\vec{A}||\vec{B}|\cos \theta$ literally multiplies two magnitudes. And to find an angle you divide by $|\vec{A}||\vec{B}|$. No magnitudes, no dot product.

4. The angle between two arrows — $\theta$

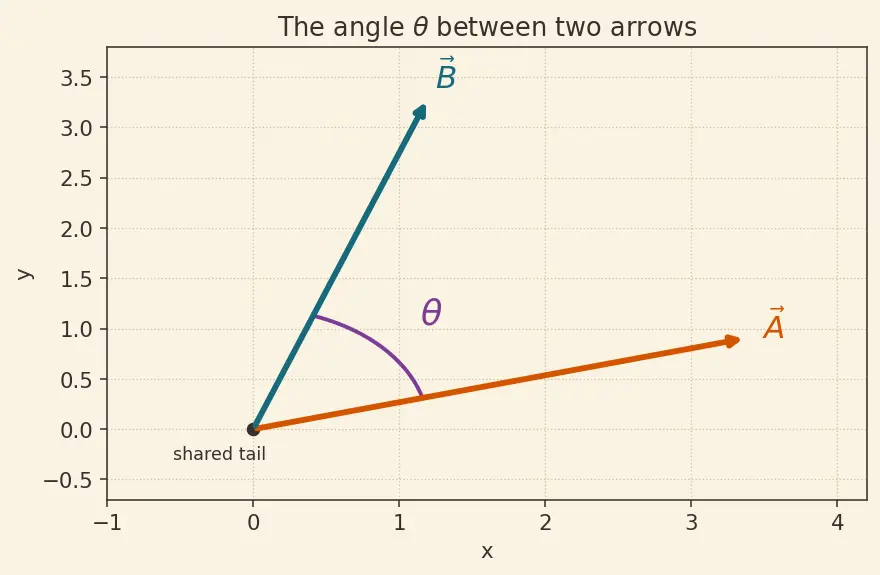

The picture. Two arrows sharing a tail, with a little wedge marking the gap between them.

Why the topic needs it. "How much do they point the same way?" is a question about this angle. Small $\theta$ → very aligned. $\theta =90^{\circ }$ → perpendicular, no alignment. Big $\theta$ → they fight each other. The dot product must read this angle, and it reads it through cosine.

5. Cosine — the alignment dial

Now we meet $\cos \theta$, the single most important symbol in the whole topic. Where does it come from?

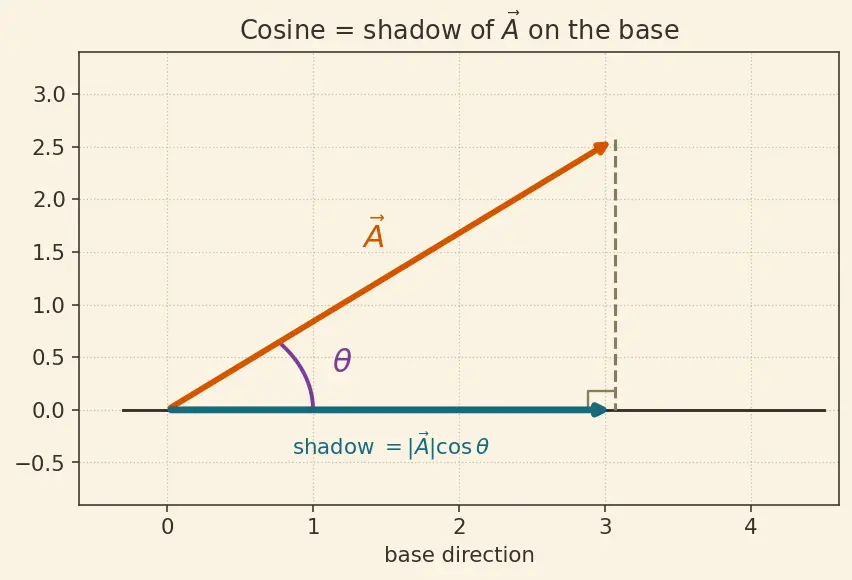

The picture — this is the shadow idea. Lay arrow $\vec{A}$ (length = hypotenuse) at angle $\theta$ above a base line. Shine a light straight down. The shadow on the base line has length $|\vec{A}|\cos \theta$. That shadow is how much of $\vec{A}$ points along the base — precisely the "alignment" we wanted.

Reading the dial (all cases).

Why the sign flips. Past $90^{\circ }$ the arrow leans behind the base direction, so its shadow falls on the negative side of the base line. That is why $\cos \theta$ (and therefore the dot product) goes negative — and why friction, which opposes motion, does negative work. (See Trigonometry — cosine and components for the full cosine curve.)

6. Unit vectors $\hat{i},\hat{j},\hat{k}$ — arrows of length one

The picture. Three tiny arrows of length 1, at right angles to each other, planted at the origin — the corner of the room where two walls and the floor meet.

Why the topic needs it. Any arrow is a stack of these: $\vec{A}=A_x\hat{i}+A_y\hat{j}+A_z\hat{k}$ just means "$A_x$ steps right, $A_y$ steps up, $A_z$ steps out." The parent uses their dot products ($\hat{i}\cdot \hat{i}=1$, $\hat{i}\cdot \hat{j}=0$) to prove the component formula. Those two facts are just cosine at $0^{\circ }$ and $90^{\circ }$ — everything loops back to §5.

7. The dot symbol $\cdot$ — the operation itself

Why a new symbol. Multiplying two arrows could mean several different things (the cross product is another). The dot picks out the alignment-and-size meaning. A special symbol warns you: the answer is a scalar, not an arrow.

8. How it all fits together

Read it upward from the bottom: Work and finding an angle both need the dot product; the dot product needs magnitudes, cosine, and unit vectors; those in turn need components, the angle, and the plain arrow we started with.

Equipment checklist

Test yourself — cover the right side and answer each before revealing.
