Photonic and optical interconnects

WHAT is a photonic interconnect?

The chain is: electrons → (modulator) → photons → (waveguide) → photons → (photodetector) → electrons. This is called an E-O-E (Electrical-Optical-Electrical) link.

WHY bother? The physics of why copper loses

Let's derive why the delay scales as $L^2$ from scratch.

HOW do we send MANY bits at once? Wavelength Division Multiplexing

HOW is a bit put onto light? The modulator

Formula Mach–Zehnder output — derived from interference

Two arms with field amplitudes $\tfrac{1}{2}E_0$ each. Give arm 2 an extra phase $\Delta\phi$ . Output field: $E_{out} = \tfrac{1}{2}E_0 + \tfrac{1}{2}E_0 e^{i\Delta\phi}$ . Detectors measure power $\propto |E_{out}|^2$ : $|E_{out}|^2 = \tfrac{1}{4}E_0^2\,|1+e^{i\Delta\phi}|^2 = \tfrac{1}{4}E_0^2 \cdot 2(1+\cos\Delta\phi) = \tfrac{1}{2}E_0^2(1+\cos\Delta\phi)$ Using $1+\cos\theta = 2\cos^2(\theta/2)$ : $P_{out} = P_{in}\cos^2\!\left(\frac{\Delta\phi}{2}\right)$ Why this step? Power is field-squared, and adding two phasors gives the $\cos$ interference term. At $\Delta\phi=0$ : full power (bit 1). At $\Delta\phi=\pi$ : zero power (bit 0). So an electrical voltage that produces $\pi$ phase shift flips the bit.

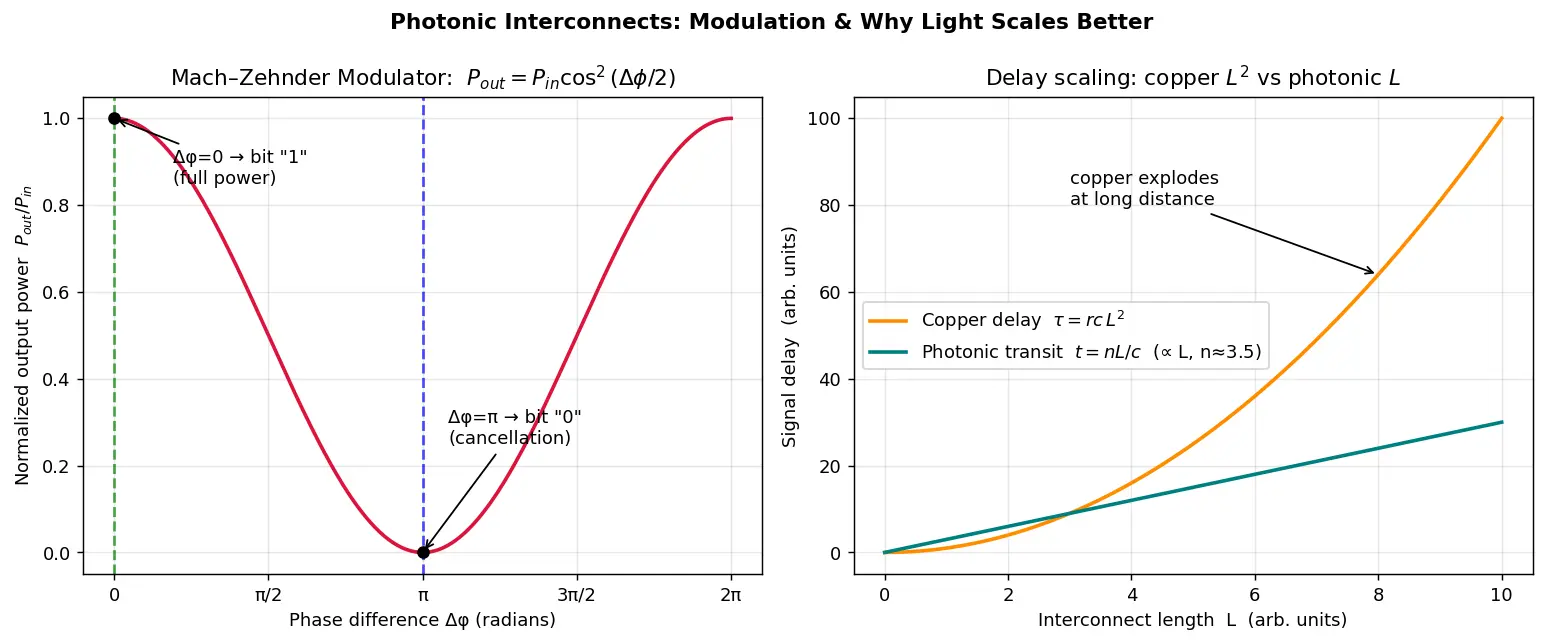

Figure — Photonic and optical interconnects

HOW much energy? The efficiency metric

Where it's used (the 80/20 that matters)

Long-haul & datacenter fiber: already dominant; the "known" success.
Chip-to-chip / co-packaged optics: put the laser+modulator next to the CPU/GPU package → escape the pin/bandwidth wall.
On-chip photonic NoC (Network-on-Chip): waveguides routing between cores; still emerging (laser integration + thermal tuning are hard).

Common mistakes

Active recall

Recall Quick self-test (hide and answer)

Why does copper delay scale as $L^2$ but photonic transit as $L$ ?
Write $P_{out}$ of a Mach–Zehnder and say which $\Delta\phi$ gives a "0".
Why can't the laser be natively fabricated in silicon CMOS?
What is the real advantage of photonics — latency or bandwidth/energy?

Recall Feynman: explain to a 12-year-old

Imagine a long garden hose. To send a message by pushing water, the longer the hose, the slower and harder it gets, and the pipe gets warm. Now instead send the message by shining a torch down a clear pipe — the light zips through and barely warms it. Even cooler: you can shine red, green, and blue torches at the same time, and a friend with color glasses reads each color as a separate message. That's optical interconnect: send info as light, and send many colors at once so tons of messages travel in one pipe.

Connections

Copper interconnects and RC delay
Wavelength Division Multiplexing (WDM)
Mach-Zehnder Modulator · Micro-ring resonators
Silicon Photonics · Co-packaged optics
Network-on-Chip (NoC)
Refractive index and speed of light in media
Transimpedance Amplifier (TIA)
Energy per bit as an efficiency metric

What four components form a basic E-O-E optical link?

Laser source, modulator, waveguide/fiber, and photodetector.

Why does copper wire delay scale as L²?

Delay τ = RC, and both R = rL and C = cL are linear in length, so their product scales as L².

Why is photonic transit time only linear in L?

t = L/v with v = c/n constant, so time grows proportionally with length, not as its square.

What is the refractive index of a silicon waveguide at telecom wavelengths?

Silicon's bulk index is ≈3.5; the effective group index of a real waveguide is often ≈4, so light travels at ≈c/3.5 or slower.

What is Wavelength Division Multiplexing (WDM)?

Sending N independent data streams on N different wavelengths (colors) in one waveguide; total rate = N × B.

Formula for Mach–Zehnder modulator output power?

P_out = P_in · cos²(Δφ/2); Δφ=0 → full power (1), Δφ=π → zero (0).

What is energy-per-bit and why does photonics win on it?

E_bit = P_total / B_total (J/bit); photonic energy is roughly distance-independent and can be sub-pJ/bit.

Biggest real advantage of photonics — latency or bandwidth/energy?

Bandwidth density and energy efficiency; raw per-meter latency is not much better (light in Si is ~c/3.5).

Why can't a laser be natively built in standard silicon CMOS?

Silicon has an indirect bandgap, making it a poor light emitter; lasers use III–V materials and are bonded/co-packaged.

What does a photodetector actually output and what's needed next?

A small photocurrent (I = responsivity × optical power); a transimpedance amplifier (TIA) converts it to voltage.

Two common on-chip modulator types?

Mach–Zehnder modulator (interference of two arms) and micro-ring resonator (per-wavelength resonant filter).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, normal chips mein data copper wires ke through electrons push karke bhejte hain. Problem ye hai ki jaise-jaise wire lambi hoti hai, delay L² ke hisaab se badhti hai — kyunki delay τ = RC hai aur R bhi length ke saath badhta hai aur C bhi, toh dono multiply hoke square ban jaata hai. Upar se wire garam hoti hai aur crosstalk aata hai. Photonic interconnect iska jugaad hai: data ko light (photons) pe bithaake, ek clear waveguide ya fiber ke through bhejte hain. Light ka transit time sirf L ke proportional hai, square nahi — aur heat/crosstalk bhi kam.

Sabse mast cheez hai WDM (Wavelength Division Multiplexing): ek hi pipe mein alag-alag colors (wavelengths) bhej sakte ho, aur har color ek alag data stream carry karta hai. Toh total bandwidth B_total = N × B — matlab 40 colors × 25 Gb/s = 1 Tb/s ek hi fiber pe! Ye copper se kai guna zyada hai.

Bit ko light pe kaise dalte hain? Modulator se. Mach–Zehnder modulator light ko do raaston mein baant deta hai, ek raaste ko electrically phase-shift karta hai, phir wapas jodta hai. Agar dono in-phase → full brightness (bit 1), agar π phase shift → cancel ho jaate hain (bit 0). Formula: P_out = P_in·cos²(Δφ/2). End mein photodetector light ko wapas current mein badalta hai (aur TIA usko voltage banata hai).

Ek important galatfehmi door kar lo: log sochte hain "light fast hai toh latency kam hogi" — par silicon mein light c/3.5 pe chalti hai (index n≈3.5), copper signal bhi kaafi fast hota hai. Asli fayda bandwidth density aur energy-per-bit hai, sirf speed nahi. Isiliye datacenters aur upcoming CPU/GPU packages photonics ki taraf shift kar rahe hain.
