The parent note dropped a beautiful result on you: a Mach–Zehnder Modulator turns an electrical voltage into a bright/dark light pulse, and its output power obeys P o u t = P in cos 2 ( Δ ϕ /2 ) . That formula looks like it fell from the sky. Here we build it from nothing — from "what is a light wave?" all the way to that cosine — one picture at a time. By the end you will see why interference does logic.
This page zooms into one machine from the parent topic : the Mach-Zehnder Modulator .
Light in a silicon waveguide is an oscillating electric field. At a fixed point it goes up, down, up, down forever. The cleanest way to picture "something that oscillates smoothly forever" is a little arrow spinning in a circle at constant speed . Its shadow on the vertical axis traces the wave.
Definition The imaginary unit
i and the phasor arrow
The letter i is just a name for a 90° turn : it is defined by i 2 = − 1 , i.e. "turn 90°, then 90° again, and you're pointing backwards." That is all i means geometrically — a quarter-turn operator.
A phasor is an arrow of fixed length that rotates. Two numbers describe it:
its length (the amplitude — how strong the field is), and
its angle (the phase — how far around the circle it has turned right now).
We write the arrow as E 0 e i ϕ . Read this out loud: "an arrow of length E 0 , pointed at angle ϕ ." That is all e i ϕ means here — a unit arrow at angle ϕ ; the E 0 scales its length.
Definition What the detector actually measures — real part and average power
The physical field you could measure at an instant is the real part (the vertical shadow) of the spinning arrow. But the arrow spins at ~200 THz, far too fast to watch, so a detector reports the cycle-averaged power — the average of (field)2 over one full spin. That average is proportional to the arrow's length squared , written ∣ E ∣ 2 . So throughout this page, ∣ E ∣ 2 is shorthand for "time-averaged power", and it drops all the fast e i ⋅ 200 THz ⋅ t wiggle — leaving only the relative phases we care about.
Intuition WHY use an arrow and not just
cos ?
Because we are about to add two waves , and adding two spinning arrows is just tip-to-tail arrow addition — geometry you can draw. Adding two cos functions with a phase difference is algebra you'd have to grind. The arrow is the derivation tool. This is why the complex exponential e i ϕ enters: it is the shortest notation for "arrow at angle ϕ ", and it answers the question "how do I add two out-of-step waves without trigonometry?"

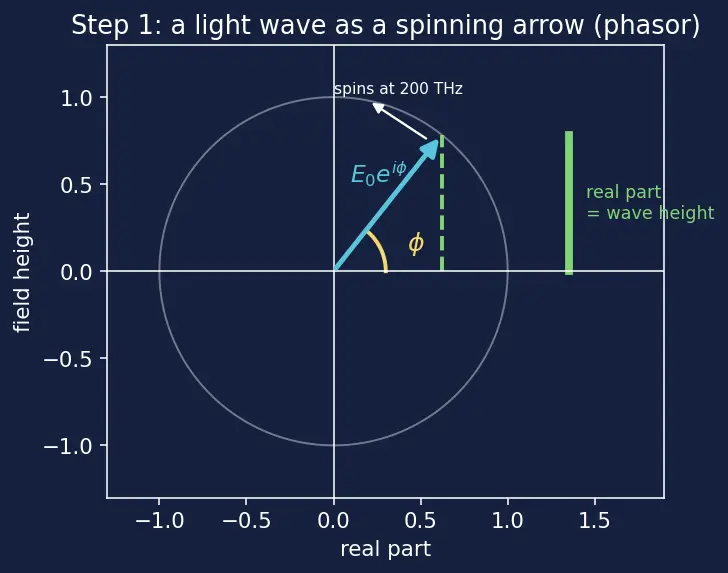

The arrow of length E 0 sits at some angle ϕ . Its height (green shadow) is the real wave you'd measure. Turn the arrow, the shadow rides up and down — that's the light oscillating.
An MZM takes the one incoming light arrow and splits it down two separate waveguide paths ("arms"). A fair, lossless split (a 50/50 coupler) splits the power equally between the two arms.
Intuition WHY split at all?
Because the trick is comparison . We will delay one arm's arrow relative to the other, then bring them back together. Interference between "delayed" and "not delayed" is what lets a tiny voltage decide bright-or-dark. You can't interfere one beam with itself unless you first make two copies — so we split.

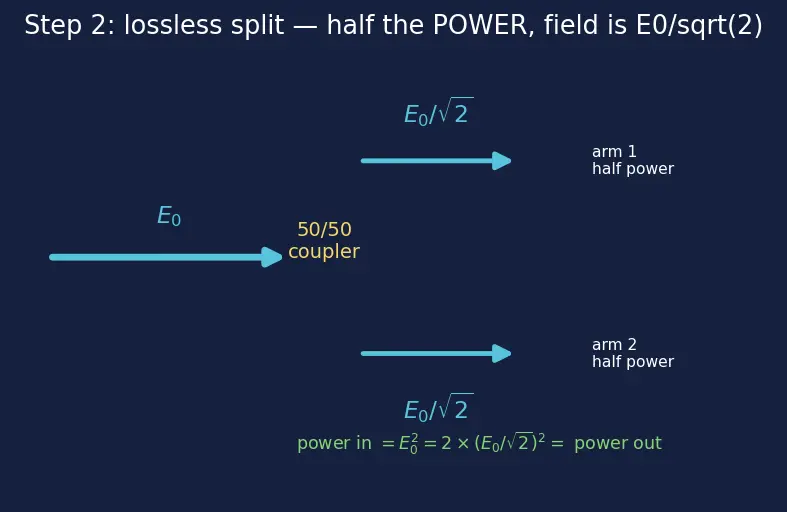

One long blue arrow of length E 0 enters, and out come two shorter blue arrows, each of length E 0 / 2 ≈ 0.71 E 0 (not half!), heading down the top and bottom arms.
We apply a voltage to arm 2. That voltage nudges the refractive index of that arm, which slows its light a hair, which means its arrow arrives having turned an extra amount. We call that voltage-controlled turn Δ ϕ ("delta phi" = the change in phase we impose).
Δ ϕ — the electrically controlled twist, plus ϕ 0 the built-in bias
Δ ϕ is the extra angle the arm-2 arrow rotates due to the applied voltage. But a real interferometer also has a static bias phase ϕ 0 baked in — a fixed offset between the arms from manufacturing tolerances, arm-length mismatch, or a deliberate heater. So the total twist between the arms is ϕ 0 + Δ ϕ . Engineers set ϕ 0 (usually with a small DC heater) to park the device at a convenient point, then swing Δ ϕ with the fast data voltage. ϕ 0 is the slow DC dial; Δ ϕ is the fast bit-flipping knob.

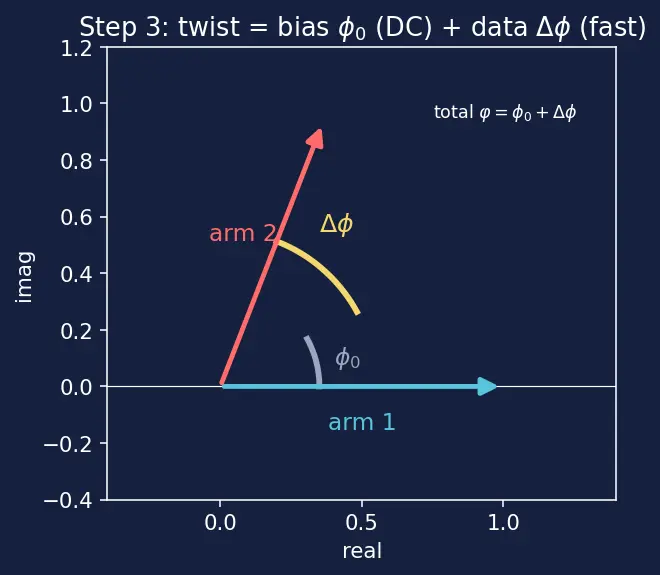

Arm 1's arrow points along the reference direction. Arm 2's arrow is the same length but rotated forward by the total angle φ = ϕ 0 + Δ ϕ (the fixed part ϕ 0 shown grey, the data part Δ ϕ shown yellow).
The two arms merge back into one waveguide. Fields add, so the output arrow is the vector sum of the two arm arrows.
Intuition WHY this is the crux
Look at the sum arrow's length . When the two arm arrows point the same way (φ = 0 ) the sum is long — bright. When they point opposite ways (φ = π ) they cancel — dark. The length of the output arrow is the brightness, and the twist controls it. That is interference doing logic.

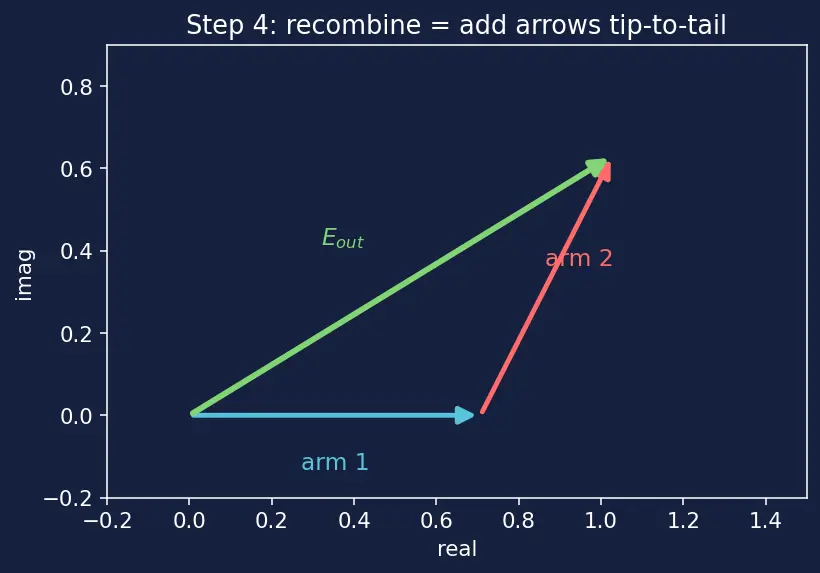

Arm-1 arrow drawn, then arm-2 arrow started from its tip. The green resultant runs from the start of arm 1 to the tip of arm 2 — that green length is what the detector will feel.
A photodetector does not feel the field — it feels cycle-averaged power (see Step 1), which is proportional to the square of the field's length , ∣ E o u t ∣ 2 . So we compute that length-squared.
Intuition WHY square, and why does the detector see power not field?
The light carrier wiggles at ~200 THz — a hundred thousand times faster than any detector can follow. The detector cannot track the arrow spinning; it only responds to the energy flow , and energy in a wave goes as amplitude squared (double the field ⇒ four times the energy). So the honest quantity is the time-averaged ∣ E o u t ∣ 2 . The tool we need is "length-squared of a sum of arrows," which is why the cosine is about to appear.
Definition Length-squared via the complex conjugate
For any arrow z = a + ib , its complex conjugate z ˉ = a − ib is its mirror image across the real axis (flip the sign of the imaginary part / reverse the spin). The length-squared is ∣ z ∣ 2 = z z ˉ = a 2 + b 2 — a real, non-negative number. In particular e i θ = e − i θ : mirroring an arrow at angle θ gives the arrow at angle − θ . This is the machine that turns arrows into powers.
The green resultant arrow of Step 4, redrawn with its length highlighted, and a bracket showing "power = this length, squared." As φ grows the arrow shrinks; its square shrinks faster.
Common mistake Don't lose the factor of 2 in the algebra
The tidy result of Step 5 is simply
∣ E o u t ∣ 2 = 2 1 E 0 2 ⋅ 2 ( 1 + cos φ ) = E 0 2 ( 1 + cos φ ) .
The prefactor 2 1 E 0 2 (from the 1/ 2 splits) times the interference factor 2 ( 1 + cos φ ) gives E 0 2 ( 1 + cos φ ) . We use exactly this on the next line.
( 1 + cos φ ) is correct but clumsy. One trig identity turns it into a perfect squared cosine, the form everyone quotes.
Intuition Choosing the bias
ϕ 0 in practice
If you set ϕ 0 = 0 , then Δ ϕ = 0 is fully bright and Δ ϕ = π is fully dark — a clean on/off switch. If instead you set ϕ 0 = π /2 (the quadrature bias), you sit on the steepest part of the hill, where a small Δ ϕ gives the biggest change in power — ideal for analog/linear modulation. The heater that holds ϕ 0 is exactly the "thermal tuning" the parent note mentions.

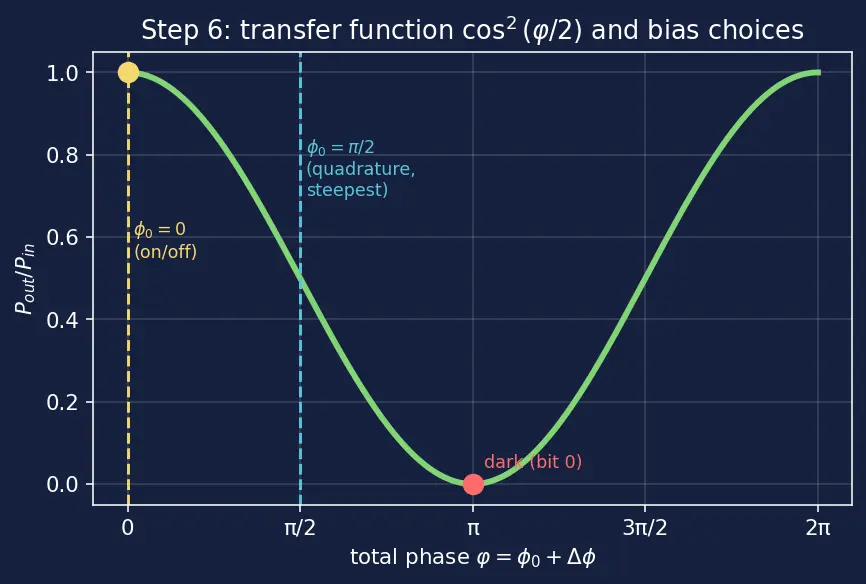

The cos 2 ( φ /2 ) curve plotted against φ : a smooth hill peaking at 1 when φ = 0 , sliding to 0 at φ = π . Two vertical markers show the two common bias choices ϕ 0 = 0 and ϕ 0 = π /2 .
A formula is only trustworthy if you check all its inputs. Walk the full range of the total phase φ (take ϕ 0 = 0 so φ = Δ ϕ ).
φ
arm-2 arrow points
arrows...
cos 2 ( φ /2 )
P o u t
meaning
0
same as arm 1
reinforce fully
1
P in
bit 1 (bright)
π /2
90° ahead
partial add
cos 2 ( 45° ) = 2 1
2 1 P in
half-bright (quadrature)
π
opposite
cancel exactly
0
0
bit 0 (dark)
3 π /2
270° ahead
partial add again
2 1
2 1 P in
half-bright
2 π
full turn, back to start
reinforce fully
1
P in
bright again (periodic )
2 π — the degenerate/limiting case
φ = 2 π is a full extra turn: arm 2's arrow is back exactly where it started, indistinguishable from φ = 0 . The output is periodic with period 2 π , and because cos 2 is also even (cos ( − x ) = cos x ), a − π twist is as dark as a + π twist. This is why the device only needs to swing Δ ϕ over a range of π (bright → dark) to encode a bit; that swing defines the drive voltage V π , the "voltage for a π shift." Every real voltage — big, small, or negative — lands on a valid point of the same repeating hill.

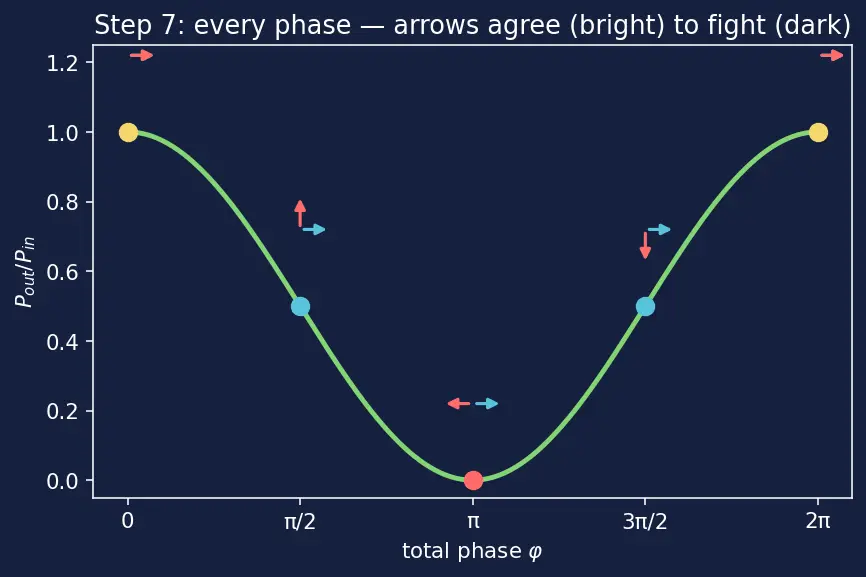

The same cos 2 curve, now with five labelled dots (the table rows) and, above each dot, the little pair of arrows showing how much they reinforce or cancel.
Intuition The whole story in one frame
Light in → split so each arm carries half the power (field E 0 / 2 ) → bias ϕ 0 plus data voltage twist arm 2 by φ = ϕ 0 + Δ ϕ → recombine (tip-to-tail) → detector reports the cycle-averaged length-squared → out comes P in cos 2 ( φ /2 ) . Bright when the arrows agree, dark when they fight.
Recall Feynman retelling — explain the walkthrough to a friend
Imagine light as a little arrow spinning on a clock face; how long the arrow is, that's how bright the light is. We take the incoming arrow and split it into two channels — but here's a subtlety: we split the energy in half, and since energy is length-squared, each arm's arrow is 1/ 2 as long (about 0.71), not half. On one channel we push a knob (a voltage) that makes that arrow spin further ahead by an angle Δ ϕ ; there's also a slow background dial ϕ 0 we set once with a tiny heater to decide where we start on the hill. Then we bring the two arrows back together and stick them tip to tail. If the twisted arrow points the same way as its partner, the two stack into one long arrow: bright, a 1 . If it points the exact opposite way, they cancel and you're left with nothing: dark, a 0 . The detector can't watch the arrows spin (way too fast — 200 trillion times a second), so it only feels the average energy , which is the arrow's length squared — and doing that squaring on "one arrow plus a twisted arrow" is exactly where the cos 2 comes from. Turn the knob past a full circle and you loop back to bright, so the device really only needs to swing the twist from "same direction" to "opposite direction" to flip a bit on and off.
Recall Self-test
Field in each arm after a lossless 50/50 split? ::: E 0 / 2 (each arm carries half the power , so the field is E 0 / 2 , not E 0 /2 ).
What does the imaginary unit i mean geometrically? ::: A 90° turn; defined by i 2 = − 1 .
What does multiplying by e i φ do to an arrow? ::: Rotates it by angle φ without changing its length.
What does the conjugate z ˉ do, and why use it? ::: Mirrors the arrow (e i θ → e − i θ ); z z ˉ = ∣ z ∣ 2 gives the real length-squared, i.e. the power.
What is ϕ 0 and how is it set? ::: The static DC bias phase; set once by a heater to park the device at a chosen point on the cos 2 hill (e.g. π /2 quadrature).
Which total phase φ gives a "0"? ::: φ = π (arrows opposite, they cancel).
Why is P o u t periodic in φ ? ::: A phase is an angle; adding 2 π returns the arrow to the same place, so the output repeats.
