Intuition The one core idea
A transistor is a tap for electrons, and the gate is the hand that opens or closes it. This whole topic is about how many sides of the electron channel that hand can grip — and every symbol below exists to measure that grip or to describe the sheet being gripped .
Definition GAA — Gate-All-Around (the acronym itself)
GAA stands for Gate-All-Around : a transistor in which the gate conductor completely surrounds the channel's cross-section, so the channel is controlled from all sides at once. Read the three words literally — "gate" (the controlling hand), "all-around" (it wraps the whole way round). Every time you see "GAA" below, mentally expand it to "the gate wraps all four sides."
Before we can read a single formula from the parent note, we must earn every symbol in it. This page is a dictionary where each entry has three parts: what it means in plain words , the picture it draws , and why the topic needs it . Read top to bottom — each one leans on the one above.
Definition Units convention (read this first)
Every length on this page — L g , W n s , T n s , t s i , d s i , t o x , λ — is measured in nanometres (nm , where 1 nm = 1 0 − 9 m ), because modern transistors are only tens of nanometres across. Every permittivity ε is measured in farads per metre (F/m ). Counts (N , "number of gate sides") are plain dimensionless integers. Note that permittivities always enter the λ formulas as a ratio (ε s i / ε o x ), so the F/m units cancel there and leave λ as a pure length — this is a feature of the specific λ formula, not a general rule about mixing units.
Let's first agree on the physical scene, because every symbol is a measurement on this scene .
Intuition The scene in words
A channel is a thin bridge of silicon that electrons cross from one side (source ) to the other (drain ). Sitting on/around the bridge is the gate — a conductor separated from the silicon by a thin insulator. Put voltage on the gate and it either invites electrons into the bridge (tap open) or repels them (tap closed).
Everything below is a number describing either the bridge's shape or how tightly the gate holds it .
L g (gate length), in nm
The distance the electrons travel under the gate , measured along the source-to-drain direction.
Picture: in figure s01, the horizontal span of silicon that the gate covers — the length of the bridge the hand is holding.
Why the topic needs it: when L g shrinks, the source and drain get close enough to "shout across" the channel. That is the entire problem GAA solves. Small L g = dense, fast chip, but hard to control.
W n s , T n s , in nm
Cut the channel across (perpendicular to electron flow) and you see a rectangle. Its width is W n s (the wide, flat dimension) and its thickness is T n s (the thin dimension).
Picture: figure s02 shows this single cross-section rectangle with the gate wrapping it on all four sides.
Why the topic needs it: these two numbers set how much channel surface the gate can touch, and how much current the sheet can carry. They are the tunable "knobs" the parent note keeps mentioning.
d s i , t s i , in nm
d s i is the diameter of the silicon body when it is a round wire (nanowire). t s i is the thickness of the silicon body when we think of it as a single flat slab.
Picture: d s i = the diameter of the circle in a nanowire cross-section; t s i = the height of the slab in a planar/single-gate cross-section.
Why the topic needs it: the screening-length formula λ needs one number for how thick the body is , because the fatter the body, the deeper the drain field can sneak through its middle. A round wire uses d s i ; a flat slab uses t s i — the shape decides which one appears.
W n s , T n s , d s i , t s i are all the same thing."
Why it feels right: they all describe "how big the silicon is." The fix: W n s × T n s describes a rectangular sheet (two different dimensions); d s i describes a round wire (one dimension); t s i describes a flat slab seen edge-on (one dimension). Which one appears depends on which device shape a formula was derived for.
Look at the cross-section rectangle. The gate can touch:
1 side (top only) → planar.
3 sides (top + two walls) → FinFET ; the bottom is anchored to the substrate, so the hand can't reach it.
4 sides (all the way around) → GAA. The sheet is suspended so the hand slides underneath too.
This count is the single most important idea of the whole topic — everything else is a way to quantify the benefit of going from 3 to 4.
N (dimensionless count)
How many nanosheets are stacked one above another, all controlled by the same gate weaving between them.
Picture: figure s03 shows a stack of N = 3 rectangles, gate metal filling the gaps.
Why the topic needs it: total current adds up sheet by sheet, so N is a straight multiplier on drive current without using more floor area.
W e f f (effective width), in nm
The total perimeter of channel that the gate controls . Not a single length — it's how much "gripped edge" adds up along however many sides the gate reaches.
Picture: trace the outline of the cross-section rectangle with your finger, but only along the sides the gate actually touches ; the total distance travelled is W e f f for one sheet.
Why the topic needs it: current a transistor can push is roughly proportional to W e f f . It is the payoff metric: more wrapped perimeter → more on-current.
W e f f depends on how many sides the gate reaches — so every case has its own formula:
Case
Sides gripped
Which edges add up
W e f f per sheet
Planar (1-side)
top only
one long side
W n s
Tri-gate / FinFET (3-side)
top + two walls
one long + two short
W n s + 2 T n s
GAA (4-side)
all around
two long + two short
2 ( W n s + T n s )
Worked example Sanity check across cases (
W n s = 30 , T n s = 6 , all in nm)
Planar: W e f f = 30 .
Tri-gate: W e f f = 30 + 2 ( 6 ) = 42 .
GAA (1 sheet): W e f f = 2 ( 30 + 6 ) = 72 .
Each extra gripped edge adds perimeter — that is the whole story of the "sides ladder" made numerical.
λ (natural length), in nm
The distance the drain's electric field can reach into the channel before the gate screens it out. Small λ = good (drain can't reach across), large λ = bad . Because the amount of wrapping changes the screening, λ is device-specific : we write λ s in g l e , λ t r i , λ G AA , etc. — the bare λ just means "the natural length of whichever device we're discussing."
Picture: figure s04 shows the drain field as arrows leaking in from the right; λ is how far the arrows penetrate before the gate shuts them down.
Why the topic needs it: it turns the vague idea "the gate controls the channel well" into a number you can compare . The rule of thumb L g ≳ 5 λ tells you how short you're allowed to make the transistor.
Mnemonic Which way is good?
λ = leak length. You want leaks short . So small λ = good. (See Short-channel effects and DIBL for what happens when λ is too big.)
Now the ingredients that appear inside the λ formula.
Definition Permittivity: absolute vs relative
Permittivity measures a material's willingness to let an electric field pass through it.
ε 0 = vacuum permittivity , a fixed constant of nature, ε 0 ≈ 8.85 × 1 0 − 12 F/m . It is the "baseline" for empty space.
ε r = relative permittivity : a plain dimensionless number saying "how many times more than vacuum." In fabrication circles this same number is written k (the "k " in high-$k$ ) — so k ≡ ε r , they are two names for one quantity. Silicon has ε r , s i = k s i ≈ 11.7 ; silicon dioxide ε r , o x = k o x ≈ 3.9 .
ε = absolute permittivity of the material = ε r ε 0 = k ε 0 , measured in F/m .
A subscript names the material: ε s i = k s i ε 0 = silicon, ε o x = k o x ε 0 = the gate oxide.
Picture: think of ε (equivalently k ) as how "soft" a material is to field lines — a high-k material lets field lines pass easily.
Why the topic needs it: the fight is "gate field vs drain field." How well each side wins depends on the permittivities of the layers the fields cross. That's why λ contains a ratio ε s i / ε o x = k s i / k o x — and because it's a ratio, the ε 0 cancels, leaving just the pure k ratio.
t o x (oxide thickness), in nm
The thickness of the thin insulator separating the gate metal from the silicon.
Picture: the razor-thin gap between the hand and the tap in figure s01.
Why the topic needs it: thinner oxide = the gate sits closer = tighter grip = smaller λ . It appears in the λ formula for exactly this reason. Making this layer both thin and high-k is the job of the High-k metal gate stack .
The parent note promises a device-specific λ . Here is the whole family, one member per number-of-gate-sides, so no case is left to guess. Each comes from the same recipe (below), differing only in how many sides fix the potential.
Recall Where does the square root and the parabolic-potential recipe come from?
All three formulas are found the same way . The steps, from zero:
Write the field law inside the silicon. The 2-D Poisson equation says the potential ϕ ( x , y ) curves in proportion to charge; in the lightly-doped channel we can use its charge-free cousin (Laplace's equation) as the leading approximation. In plain words: "how the potential bends left-to-right plus how it bends top-to-bottom must balance."
Guess the shape across the body (the "ansatz"). Across the thin body direction we assume ϕ is a parabola — flat where the gate grips, dipping in the middle. Why a parabola: it is the simplest curve that is symmetric and can match a fixed value at the gripped surface(s); the gate pins the two (or all-around) edges, and a parabola is what you get between two pinned edges.
Apply the boundary condition — this is where "how many sides" enters. The gate fixes the potential on each surface it touches . One touched face (single-gate) vs opposite faces (double) vs the entire perimeter (GAA) changes how much curvature the parabola must supply — and that is precisely the 1 vs 2 vs 16 factor in the denominators.
Collapse to one equation for the along-channel potential. Averaging the parabola turns the 2-D problem into a 1-D equation of the form d x 2 d 2 ψ = λ 2 ψ . The constant λ 2 that pops out is a product of two lengths (across the oxide t o x and across the body t s i or d s i ) weighted by the permittivity ratio.
Take the root. Because λ 2 came out as (length × length), the distance λ is its square root — just as the side of a square is the root of its area. That is the whole origin of the .
Why does the double-gate get a factor 2 vs single-gate? ::: The gate grips two opposite faces instead of one, so the parabola is pinned at both ends and needs half the penetration — the extra pinned face divides λ 2 by 2.
Why does the GAA (round-wire) formula look different, with d s i 2 ? ::: It is derived in cylindrical coordinates (a round wire of diameter d s i ), not a flat slab, so the geometry produces a d s i and a d s i 2 term and the surrounding-gate factor 16 in the denominator.
Source drain channel picture

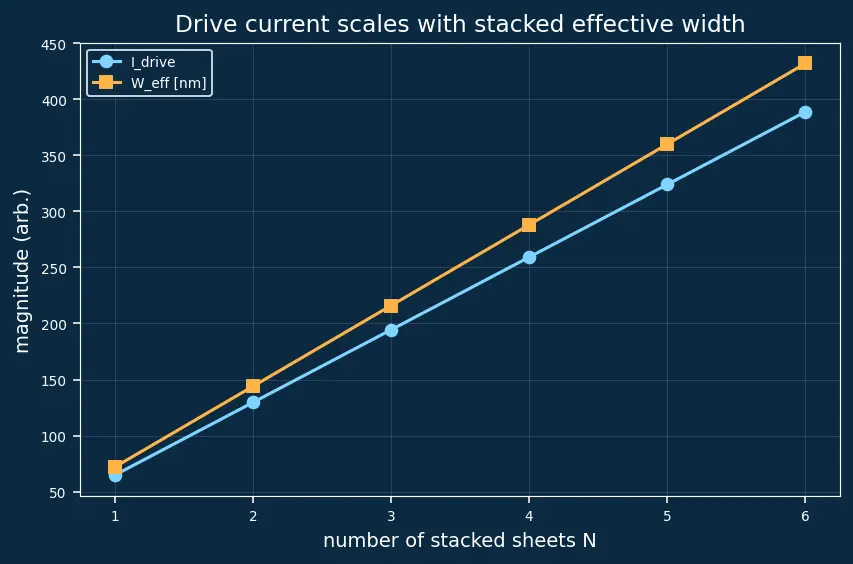

N stacked sheets multiply current
epsilon si and epsilon ox as k ratio
L_g at least 5 lambda scaling rule
ALD fills gate all around
The left branch is geometry and grip (what we measure); the right branch is process (how we physically make the 4-side grip possible). They meet at the finished GAA device.
These aren't in a formula, but the parent note uses them as if defined. Here they are.
Definition Superlattice (Si / SiGe)
A stack of alternating thin layers grown by epitaxy : one layer silicon (Si , the keeper — becomes the channel), the next silicon-germanium (SiGe , the sacrifice — will be etched away).
Picture: a striped sandwich, Si–SiGe–Si–SiGe.
Why the topic needs it: you cannot float a sheet in mid-air. You build a solid stack, then dissolve the SiGe stripes, leaving Si stripes suspended.
Definition Channel release
The etch step that removes SiGe and keeps Si , leaving the Si sheets hanging on their ends.
Picture: the gaps where SiGe used to be are now empty air, ready for gate material.
Why the topic needs it: this empty gap under each sheet is the only reason the gate can reach the 4th side. No release, no "all-around."
Definition ALD — Atomic Layer Deposition
A way to lay down material one atomic layer at a time , coating every surface it can reach — top, bottom, sides — evenly.
Picture: paint that seeps into the narrowest gap and coats it uniformly, not just the parts facing the sprayer.
Why the topic needs it: the released gaps are tiny and hidden. Only ALD can fill the gate stack conformally around a suspended sheet. See Subthreshold slope and gate electrostatics for why a clean, thin, uniform gate matters for switching.
Cover the right side and test yourself — you're ready for the parent note when every one is instant.
What does the acronym GAA expand to? Gate-All-Around — the gate conductor wraps the channel on all sides.
Units of L g , W n s , T n s , t o x , λ Nanometres (nm), since 1 nm = 1 0 − 9 m .
L g in one sentenceThe channel length under the gate, measured source-to-drain; small L g is dense but leaky.
W n s vs T n s Width and thickness of the sheet's cross-section rectangle — the wide dimension vs the thin dimension.
W e f f for planar / tri-gate / GAA (1 sheet)W n s / W n s + 2 T n s / 2 ( W n s + T n s ) — add only the edges the gate actually touches.
Effect of stacking N GAA sheets on W e f f Multiplies it: W e f f , t o t a l = N ⋅ 2 ( W n s + T n s ) in the same footprint.
What λ measures and whether small is good How far the drain field leaks into the channel; small λ is good; it is device-specific (λ s in g l e , λ d o u b l e , λ G AA ).
Which body dimension does λ G AA use, and which does λ s in g l e use? λ G AA uses d s i (round wire); λ s in g l e uses t s i (flat slab).
The rule linking L g and λ L g ≳ 5 λ for good short-channel control.
k and ε r — how are they related?They are the same quantity; k ≡ ε r , the relative permittivity (dielectric constant), and ε = k ε 0 .
Absolute vs vacuum permittivity ε = k ε 0 ; ε 0 ≈ 8.85 × 1 0 − 12 F/m is vacuum permittivity.
Why thin t o x helps The gate sits closer to the channel, tighter grip, smaller λ .
Which material is sacrificial in the superlattice SiGe is etched away; Si sheets are kept.
Why ALD (not any deposition) fills the gate It coats one atomic layer at a time, conformally reaching the hidden top/bottom/sides of a released sheet.
Number of gate sides: planar / FinFET / GAA 1 / 3 / 4.
