Intuition The one-sentence ideaCMP makes a wafer surface atomically flat by simultaneously chemically softening the top material and mechanically abrading it away — like sanding a wall you've first sprayed with a softening solvent, so only the high bumps get removed.
need planarization at all
Modern chips are built layer-on-layer (metal, oxide, metal, oxide...). Each new layer inherits the bumps of the one below. Two things break if the surface is not flat:
Photolithography uses a lens with a tiny depth of focus (DOF). If the surface has hills and valleys, part of the pattern is out of focus → blurry features.Metal filling (damascene) requires you to remove the overburden metal cleanly so that copper only remains inside the trenches. If you don't planarize, metal lines short together.
So CMP is the "reset to flat" step between build layers. It enables global planarity (flat across the whole wafer), which older methods (spin-on glass, etch-back) could only do locally .
A subtractive process that removes surface material by pressing a rotating wafer (face-down) against a rotating polishing pad flooded with a slurry — a suspension of abrasive nanoparticles (e.g. silica, ceria, alumina) in a reactive chemistry (oxidizers, pH buffers). The combined chemical + mechanical action yields a flat surface.
The three actors:
Actor
Role
WHY it matters
Slurry chemistry Reacts with top surface to form a soft, thin layer
Soft layer is easy to abrade; controls selectivity
Abrasive particles Physically scratch off the softened layer
Provides the "cut rate"
Pad Carries slurry, contacts high points first
Its stiffness sets global vs local planarity
Intuition Why chemistry AND mechanics — neither alone works
Pure mechanical grinding scratches deeply and damages the crystal → defects.Pure chemical etching is isotropic — it etches valleys as fast as hills, so it can never planarize.Together : chemistry only creates a removable layer where the pad presses hardest = the high points . Valleys, not touched by the pad, keep their unreacted (hard, protected) surface. Result: hills vanish, valleys stay → flat.
We want a removal-rate law. Let's build it from scratch.
Intuition Reading the formula physically
R R ∝ P RR \propto P R R ∝ P R R ∝ v RR \propto v R R ∝ v k p k_p k p chemistry . A better oxidizer raises k p k_p k p
Definition Planarity terms
Dishing : over-polishing of a soft filled region (e.g. wide copper line) so its center sinks below the surrounding oxide. Caused by the pad bending into the wide feature.Erosion : thinning of oxide in a dense array of metal lines relative to open oxide areas.Selectivity : ratio of removal rates of two materials, e.g. R R C u / R R b a r r i e r RR_{Cu}/RR_{barrier} R R C u / R R ba r r i er Endpoint detection : sensing when to stop (via motor current/friction change, or optical reflectance) as you break through one layer into another.
Worked example Worked example 1 — Removal timeCopper CMP with k p = 2 × 10 − 13 Pa − 1 k_p = 2\times10^{-13}\ \text{Pa}^{-1} k p = 2 × 1 0 − 13 Pa − 1 P = 30 kPa P = 30\ \text{kPa} P = 30 kPa v = 0.6 m/s v = 0.6\ \text{m/s} v = 0.6 m/s
Step 1: R R = k p P v = ( 2 × 10 − 13 ) ( 3 × 10 4 ) ( 0.6 ) RR = k_p P v = (2\times10^{-13})(3\times10^4)(0.6) R R = k p P v = ( 2 × 1 0 − 13 ) ( 3 × 1 0 4 ) ( 0.6 ) Why? Preston directly.R R = 3.6 × 10 − 9 m/s = 3.6 nm/s RR = 3.6\times10^{-9}\ \text{m/s} = 3.6\ \text{nm/s} R R = 3.6 × 1 0 − 9 m/s = 3.6 nm/s Step 2: t = Δ h / R R = 800 nm / 3.6 nm/s ≈ = = 222 s = = t = \Delta h / RR = 800\ \text{nm} / 3.6\ \text{nm/s} \approx ==222\ \text{s}== t = Δ h / R R = 800 nm /3.6 nm/s ≈== 222 s == Why? Constant rate ⇒ time = distance/rate.
Worked example Worked example 2 — Velocity from geometryPlaten and carrier both at ω = 40 rpm \omega = 40\ \text{rpm} ω = 40 rpm d = 12 cm d = 12\ \text{cm} d = 12 cm v v v
Step 1: Convert: ω = 40 ⋅ 2 π 60 = 4.19 rad/s \omega = 40\cdot\frac{2\pi}{60} = 4.19\ \text{rad/s} ω = 40 ⋅ 60 2 π = 4.19 rad/s Why? Preston needs SI (m/s), and r p m rpm r p m Step 2: v = ω d = 4.19 × 0.12 = = = 0.50 m/s = = v = \omega d = 4.19 \times 0.12 = ==0.50\ \text{m/s}== v = ω d = 4.19 × 0.12 === 0.50 m/s == Why? Matched-speed result ∣ v ∣ = ω d |v|=\omega d ∣ v ∣ = ω d
Common mistake "CMP is just polishing/grinding."Why it feels right: it looks like sanding, and mechanics do remove material.
The fix: Without the chemistry , you'd only get scratches and could never planarize (etching alone is isotropic, grinding alone damages). Planarity comes from chemistry creating a removable layer only at pad-contacted high points . It's the combination that's essential.
Common mistake "More pressure always means better, faster flattening."Why it feels right: R R ∝ P RR \propto P R R ∝ P P P P The fix: Faster ≠ flatter. High P P P dishing/erosion , and causes scratches. Planarization efficiency drops. Optimum is moderate P P P
Common mistake "Relative velocity depends on where you are on the wafer."Why it feels right: On a spinning disk, outer points move faster (v = ω r v=\omega r v = ω r The fix: True for a single rotation, but with two matched rotations (ω p = ω w \omega_p=\omega_w ω p = ω w v = ω d v=\omega d v = ω d everywhere . That cancellation is exactly why tools do this — for uniformity.
Recall Feynman: explain to a 12-year-oldImagine a bumpy LEGO baseplate covered in soft clay. You want it perfectly flat. If you just rub sandpaper, you scratch and dent it. So instead you spray a magic mist that turns only the tops of the bumps into soft mush — then a spinning felt pad gently wipes the mush off. The low valleys never touch the pad, so they're safe. Do this until every bump is gone and the whole thing is mirror-flat. That "spray-then-wipe" combo is CMP, and chips need it so the next layer of circuits can be printed sharply.
Mnemonic Remember the recipe"Slurry Presses, Pad Velocities" → R R = k p ⋅ P ⋅ v RR = k_p \cdot P \cdot v R R = k p ⋅ P ⋅ v P ressure, v elocity, k hemistry-coefficient). And "CMP = Chemistry Melts the Peaks ."
Why can't pure chemical etching planarize a surface? It is isotropic — etches valleys as fast as hills, so bumps never disappear relative to valleys.
What two mechanisms combine in CMP? Chemical softening of the top layer + mechanical abrasion by slurry particles.

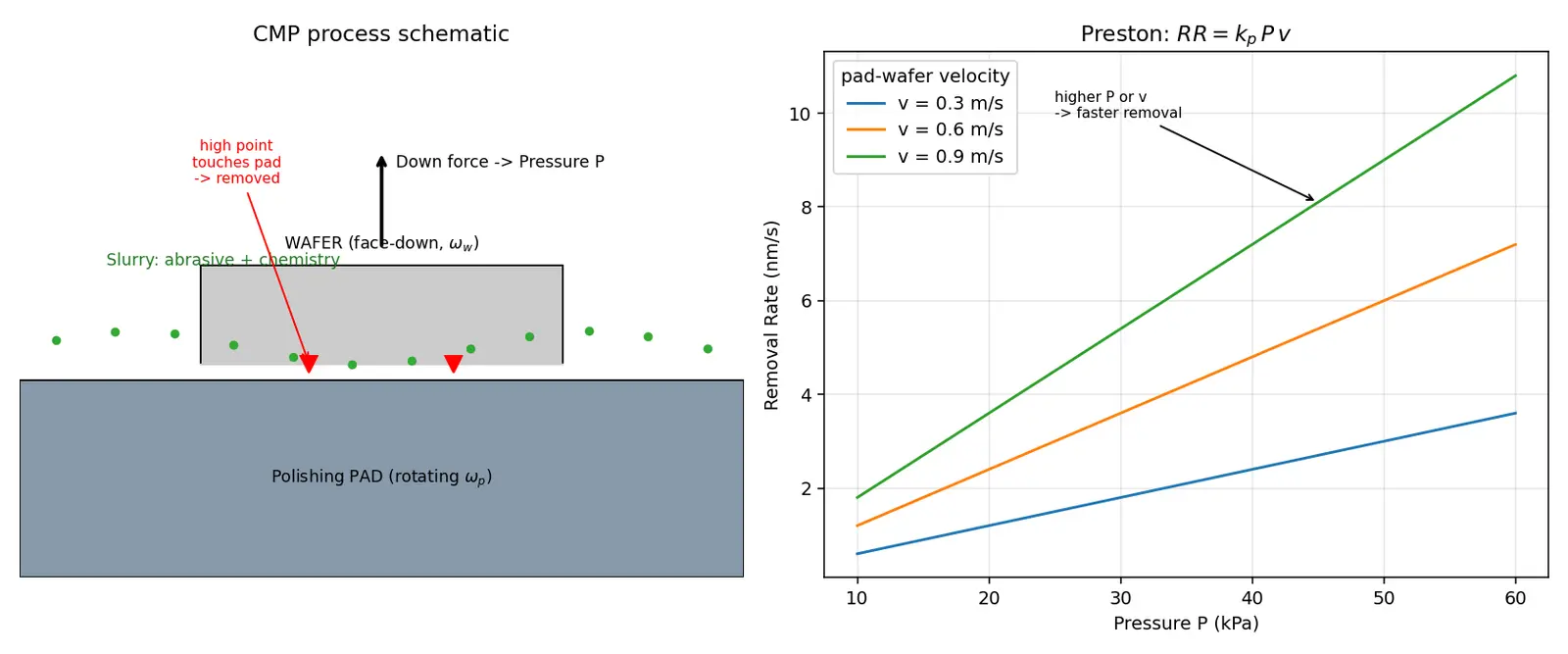

State Preston's equation and name each term. R R = k p P v RR = k_p P v R R = k p P v : removal rate = Preston coefficient × pressure × relative pad–wafer velocity.
Why is CMP needed before photolithography? Litho has tiny depth of focus; a flat (globally planar) surface keeps the whole pattern in focus.
What is "dishing" in CMP? Over-polishing of a soft wide filled region so its center sinks below the surrounding harder oxide.
What is "erosion" in CMP? Excess thinning of oxide in dense metal-line arrays compared to open areas.
Why set platen and carrier speeds equal (ω p = ω w \omega_p=\omega_w ω p = ω w The wafer-radius velocity terms cancel, giving uniform
v = ω d v=\omega d v = ω d everywhere → uniform removal.
What does the Preston coefficient k p k_p k p Chemistry, abrasive type/size, pad properties, temperature — everything not explicit in P and v.
What is endpoint detection? Sensing when to stop CMP (via friction/motor-current change or optical reflectance) as you cross into the next layer.
Why is cranking up pressure a bad way to speed CMP? It increases scratches and pad bending into features → dishing/erosion; flatness worsens even as rate rises.
What role does the pad's stiffness play? A stiffer pad contacts only high points → better global planarity; a soft pad conforms into features → more dishing.
