WHY it matters: A modern server has hundreds of GB of DRAM. Bit-flip rates are small per bit but there are ∼1012 bits, so silent corruption becomes a near-certainty over days of uptime. A flipped bit in a pointer or bank balance is catastrophic and silent — you never notice until it's too late. ECC converts silent corruption into either automatic correction or a loud crash, both far better than silence.
WHAT we want: given k data bits, add r parity bits so any single flip is located.
Key counting argument (this gives you the formula):
With r parity bits, the "syndrome" (result of the checks) is an r-bit number. It must encode:
n=k+r possible single-error positions, plus
1 "no error" case.
So we need:
2r≥n+1=(k+r)+1
HOW the syndrome points at the bit — the clever placement:

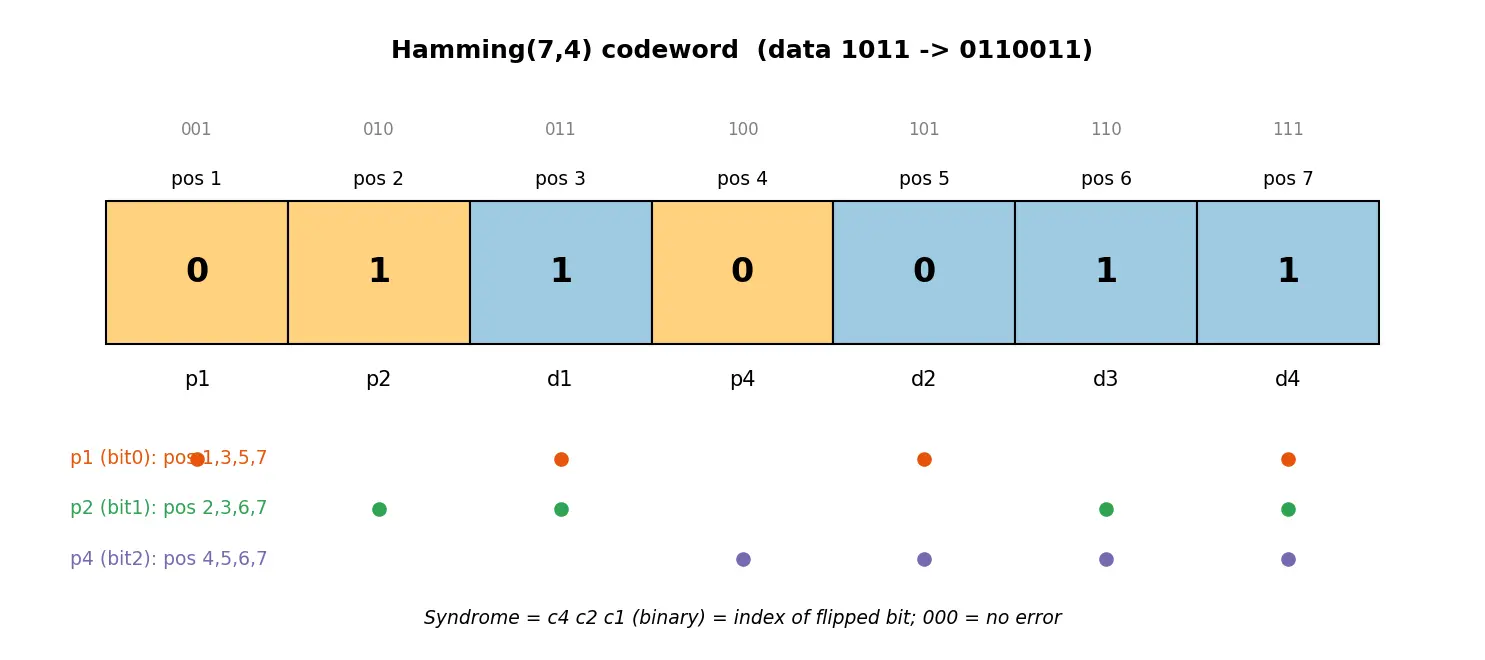

Number bit positions 1,2,3,… Put parity bits at positions that are powers of two (1,2,4,8,…); data bits fill the rest. Parity bit at position 2i checks every position whose binary index has bit i set.
Then the syndrome (recompute each parity, write down which failed as a binary number) equals the binary index of the flipped bit. Flip that bit → fixed.
Imagine you write a secret message and, next to it, you write a few "clue" numbers: like "sum of these letters," "sum of those letters." Now if a raindrop smudges one letter, you re-check the clues. The clues that come out wrong work like a treasure map — reading them together spells out the exact smudged letter. So you erase and rewrite just that one letter. The extra clues cost you a little paper, but they save the whole message.
A transient bit flip (from cosmic rays/alpha particles) that corrupts a stored value without damaging the hardware.
Define Hamming distance.
The number of bit positions in which two equal-length strings differ.
How many errors can a code with minimum distance d detect?
d−1.
How many errors can a code with minimum distance d correct?
⌊(d−1)/2⌋.
What minimum distance does SECDED require?
dmin=4.
State the Hamming bound relating parity bits r to data bits k.
2r≥k+r+1.
Why the "+1" in the Hamming bound?
The all-zero syndrome is reserved for "no error," so only 2r−1 nonzero syndromes remain to name error positions.
Where are parity bits placed in a Hamming code and why?
At positions that are powers of two (1,2,4,…) so each check covers positions whose index has a specific binary bit set, making the syndrome equal the error's binary address.
What does the syndrome value directly give you?
The binary index (1-based, over the whole codeword) of the flipped bit; zero means no error.
How does SECDED tell a single from a double error?
Dekho, memory ke andar bits kabhi-kabhi apne aap flip ho jaate hain — cosmic rays ya electrical noise ki wajah se. Isko soft error bolte hain, hardware kharaab nahi hota, bas value galat ho jaati hai. Problem yeh hai ki galti silent hoti hai, tumhe pata bhi nahi chalta. Isliye hum ECC lagate hain: data ke saath kuch extra parity bits store karte hain jo data ka clever function hote hain.
Core trick yeh hai: har valid pattern (data + check bits) ko ek "codeword" samjho. In codewords ko hum aapas mein door-door rakhte hain (Hamming distance zyada). Ab ek bit flip hone par tum kisi ek codeword ke paas aur baaki sabse door ho jaate ho — toh nearest codeword pe snap kar do, error theek. Detection ke liye distance d−1, correction ke liye ⌊(d−1)/2⌋ — yeh geometry se aata hai.
Hamming code mein trick simple hai: parity bits ko power-of-two positions (1,2,4,8...) pe rakho. Har parity bit un positions ko check karta hai jinke index ke binary mein ek particular bit set ho. Result: jab tum saare parity dobara compute karte ho, jo fail hote hain unko binary number mein likho — woh number seedha galat bit ka address hai! Bilkul treasure map. Formula bhi counting se: 2r≥k+r+1, kyunki all-zero syndrome "no error" ke liye reserved hai.
Real DRAM mein 64 data bits ke saath 8 ECC bits hote hain (72-bit DIMM) — yeh SECDED deta hai: single error correct, double error sirf detect. Yaad rakhna: SECDED double error ko correct nahi karta, sirf batata hai. Yeh important hai kyunki silent corruption se loud crash hamesha better hai.
