ECC and memory error correction: Visual walkthrough

This page goes deeper than the parent ECC topic note. We assume you have seen nothing — not parity, not binary addresses, not XOR. Everything is earned before it is used.

Step 1 — What is a "bit" and what does it mean to "flip" one?

WHAT. A bit is a single box that can hold only one of two marks: 0 or 1. A row of these boxes is a word of memory. To flip a bit is to secretly change one box's mark to the other — 1 becomes 0, or 0 becomes 1 — while every other box stays put.

WHY start here. Everything below is about finding the one box that changed without being told which one. So we first need to see, physically, what a flip looks like and why it is invisible on its own: a box holding 0 looks exactly as innocent as a box that should hold 1. Nothing about a lone box reveals it was tampered with.

PICTURE. Below, seven boxes hold a stored word. A stray particle (drawn as the coral spark) strikes one box and toggles it. The box does not glow or complain — it just silently now holds the wrong mark. That silence is the entire problem.

Figure — ECC and memory error correction

Related vault reading: DRAM (where these boxes physically live) and Cosmic Rays and Soft Errors (what throws the sparks).

Step 2 — One check box: parity, and why it can notice but not point

WHAT. Add one extra box, a parity bit, whose job is: "make the total number of 1s across all boxes even." We choose its mark so the whole row has an even count of 1s. This is our first check.

WHY this tool and not another. We want a quantity that changes the instant any single bit flips. The count of 1s is exactly such a quantity: flip any box and the count goes up by one or down by one — either way its evenness flips. "Even or odd" (called parity) is the cheapest possible alarm: one bit of memory, one yes/no answer. We pick it because a flip is guaranteed to toggle it.

The operation underneath is XOR. XOR (written $\oplus$ ) answers "are these two bits different?" — it gives 1 when the inputs differ and 0 when they match. Chaining XOR across many bits, $b_{1} \oplus b_{2} \oplus \dots \oplus b_{n}$ , returns the parity: 1 if an odd number of them are 1, else 0. (More in Boolean Algebra / XOR.)

p = b_{1} \oplus b_{2} \oplus b_{3} \oplus \dots \oplus b_{n}

$b_{1} \dots b_{n}$ — the data boxes we are protecting.
$\oplus$ — "different?" combiner; running it across the row extracts even-or-odd.
$p$ — the mark we drop into the parity box so the grand total of 1s is even.

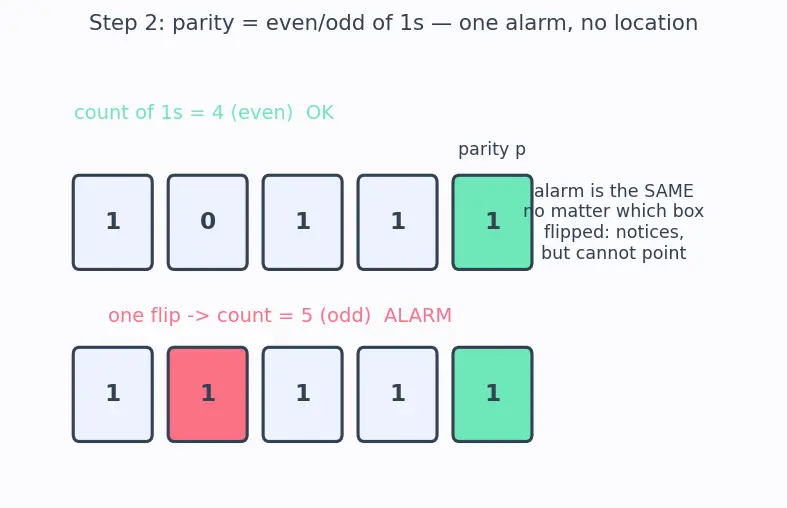

PICTURE. The mint box is the parity bit, chosen so the whole row is even. When any one data box flips (coral), the count becomes odd, and re-checking parity shouts "odd!" — an alarm. But notice: the alarm is the same no matter which box flipped. Parity can notice, but it cannot point.

Step 3 — Give every position a binary address

WHAT. Number the boxes $1, 2, 3, 4, 5, 6, 7$ from left to right. Now write each number in binary — as a sum of the powers $4, 2, 1$ using only 0/1 coefficients. Position $5$ , for instance, is $10 1_{2}$ meaning $4 + 0 + 1$ .

WHY. We are hunting for a scheme where the identity of the broken box drops out as a number. The natural language of "which box" is its address, and the natural way to slice addresses is by their binary digits — the "1s place," the "2s place," the "4s place." If we can build one check per binary place, then the pattern of failing checks will read off, digit by digit, the address of whatever flipped. This step just sets up the coordinate system; the magic uses it in Step 5.

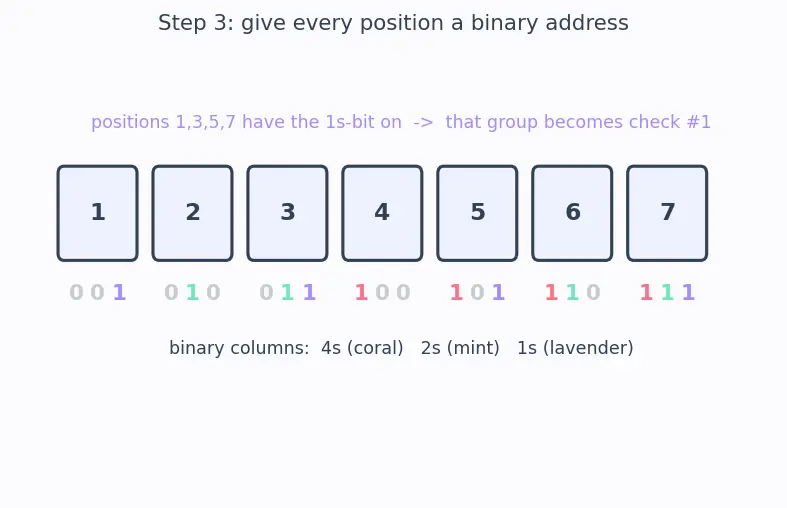

PICTURE. Each position's number is shown in binary below its box, with the three columns (4s, 2s, 1s) colour-coded. Watch which positions have a 1 in the 1s column (lavender): positions $1, 3, 5, 7$ . Those are exactly the odd numbers — and that group will become check #1.

Step 4 — One check per binary column, parity bits at the powers of two

WHAT. Build three checks, one for each binary column:

Check $c_{1}$ (the 1s column) covers every position whose address has $ϵ_{0} = 1$ : positions $1, 3, 5, 7$ .
Check $c_{2}$ (the 2s column) covers every position with $ϵ_{1} = 1$ : positions $2, 3, 6, 7$ .
Check $c_{4}$ (the 4s column) covers every position with $ϵ_{2} = 1$ : positions $4, 5, 6, 7$ .

Put a parity bit at positions $1, 2, 4$ — the powers of two. Data bits fill the leftover positions $3, 5, 6, 7$ .

WHY powers of two. Look at the address of position $1 = 00 1_{2}$ : it is the only covered position whose address has just the 1s-bit on — so the parity box at position $1$ belongs to check $c_{1}$ and to no other check. Likewise $2 = 01 0_{2}$ sits only in $c_{2}$ , and $4 = 10 0_{2}$ sits only in $c_{4}$ . Placing each parity bit where exactly one column is "on" lets us set that one check to even independently, without any parity bit disturbing another's balance. That independence is precisely why the powers-of-two slots are chosen and not any others.

c_{1} = ϵ_{0} = 1 ⨁ b, c_{2} = ϵ_{1} = 1 ⨁ b, c_{4} = ϵ_{2} = 1 ⨁ b

$⨁$ — XOR everything in the group; the result is that group's parity.
$ϵ_{i} = 1$ — "this position's address has column $i$ switched on," i.e. it is a member of check $2^{i}$ .
$c_{2^{i}}$ — the mark we place in parity box $2^{i}$ so its whole group is even.

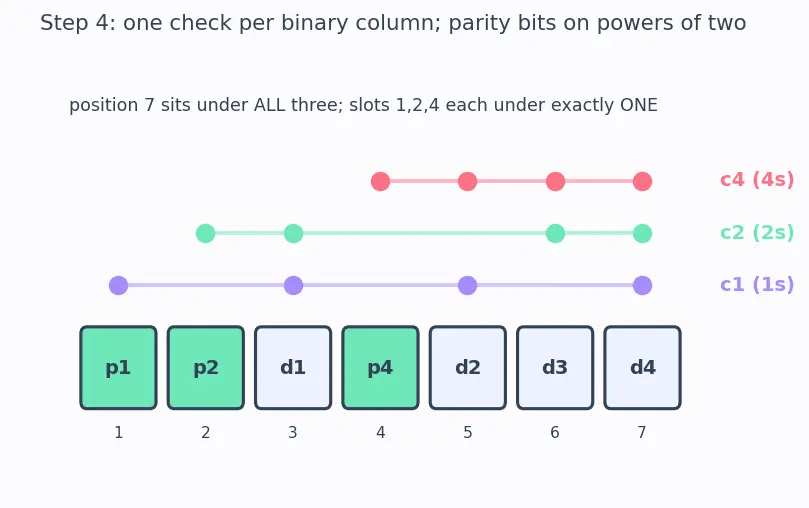

PICTURE. Three coloured "umbrellas" hang over the row — lavender, coral, mint — one per check, each shading the positions it watches. Notice how position $7 = 11 1_{2}$ sits under all three umbrellas, while each parity slot ( $1, 2, 4$ ) sits under exactly one. This is the Hamming Code layout.

Step 5 — The reveal: a flip lights up exactly its own address

WHAT. Suppose the box at position $5$ flips. Re-run all three checks and write down which ones now come out odd (fail). We read them as a binary number in the order $c_{4} c_{2} c_{1}$ .

WHY this ordering works — the heart of the whole idea. Position $5$ has address $10 1_{2}$ , meaning it lives under umbrellas $c_{4}$ (the 4s bit) and $c_{1}$ (the 1s bit), but not $c_{2}$ . Flipping it toggles the parity of exactly the checks that were watching it — so $c_{4}$ fails, $c_{1}$ fails, $c_{2}$ stays even. Line them up:

syndrome = 4 ’s digit c_{4} 2 ’s digit c_{2} 1 ’s digit c_{1} = 10 1_{2} = 5

$c_{4} = 1$ — the 4s digit of the culprit's address is on.
$c_{2} = 0$ — the 2s digit is off.
$c_{1} = 1$ — the 1s digit is on.
Read together: $10 1_{2} = 5$ — literally the address of the flipped box.

The failing checks are the binary digits of the broken position. That is not a coincidence we engineered — it is forced by "each check = one binary column" from Step 4.

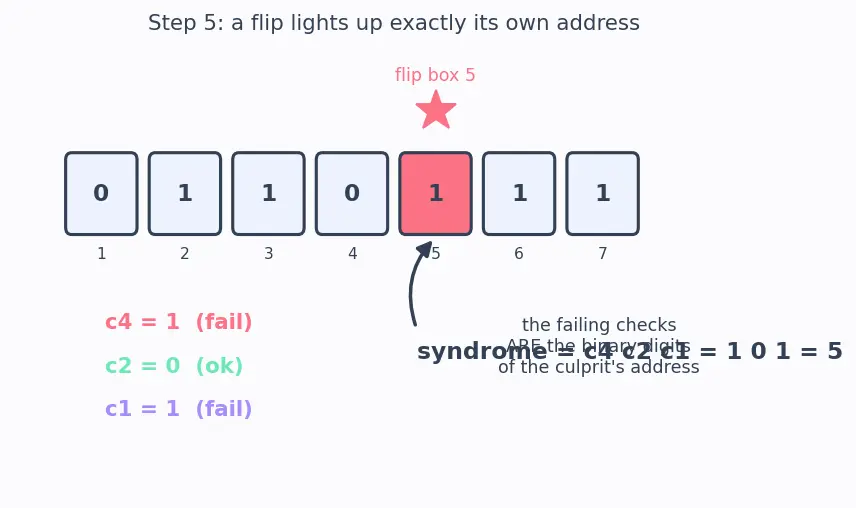

PICTURE. The coral spark hits box $5$ . Its two umbrellas ( $c_{4}, c_{1}$ ) turn red (failed); $c_{2}$ stays calm (green). The three check results, stacked as $101$ , are shown flowing into a little binary-to-decimal readout pointing straight back at box $5$ .

Step 6 — The degenerate & edge cases (nothing is left unshown)

WHAT & WHY. A safe reader must never meet a scenario we skipped. So we walk every regime:

No error. Every check even ⇒ syndrome $= 00 0_{2} = 0$ . This is why the address $0$ can never mean a real box: positions start at $1$ , so $0$ is free to mean "all fine." This is the reserved pattern the $+ 1$ in Step 4 bought us.
A parity box flips (say box $2$ ). Address $2 = 01 0_{2}$ lies only under $c_{2}$ . Syndrome $= 01 0_{2} = 2$ points at box $2$ itself. The code corrects its own check bits too — they are just positions like any other.
The highest box flips (box $7 = 11 1_{2}$ ). It sits under all three umbrellas, so all three fail, syndrome $= 11 1_{2} = 7$ . The largest address the 3-bit syndrome can name is exactly the last box — a tidy fit, not luck.
Two bits flip. The syndrome equals the XOR of the two addresses — a nonzero value that names some third, innocent position. Plain Hamming would "correct" the wrong box and make things worse.

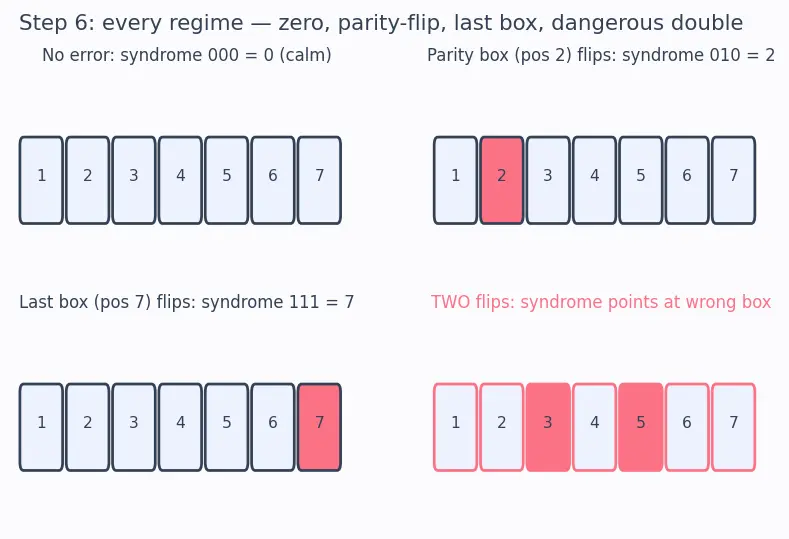

PICTURE. A 2×2 panel: the calm zero-syndrome case, the parity-bit-flip case, the last-box case, and the dangerous double-flip that mispoints. The double-flip panel is drawn in warning colours.

Step 7 — Closing the double-error hole: one grand parity bit (SECDED)

WHAT. Add a single overall parity bit $p_{0}$ covering all boxes, chosen to make the entire word even.

WHY it separates 1 flip from 2. A single flip changes the total count of 1s by one → overall parity becomes odd. A double flip changes it by two → overall parity stays even. So the overall bit reports "odd number of errors?" while the syndrome reports "some error's address." Combining them:

overall parity	syndrome	verdict
even	$0$	no error
odd	nonzero	single error → correct at that address
even	nonzero	double error → cannot locate → raise alarm

The impossible combination "even total yet nonzero syndrome" is the fingerprint of two flips — a signature no single flip can forge. This lifts the minimum distance to $4$ , giving Single-Error-Correct and Double-Error-Detect.

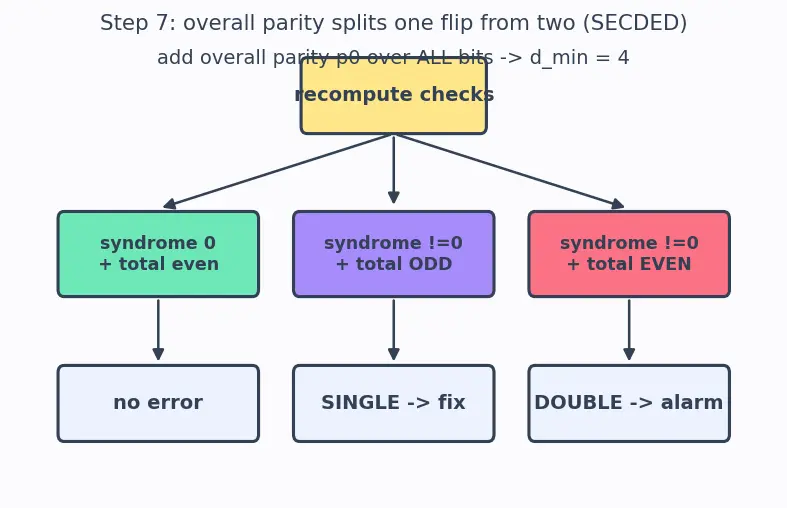

PICTURE. A decision fork: the two signals (overall-parity coin + syndrome address) feed a small flow that routes to "fine / fix / alarm."

For errors bigger than this — whole chips dying, bursts — you graduate to Reed-Solomon Codes and Chipkill. And once corrected words move between caches, Cache Coherence keeps every copy consistent.

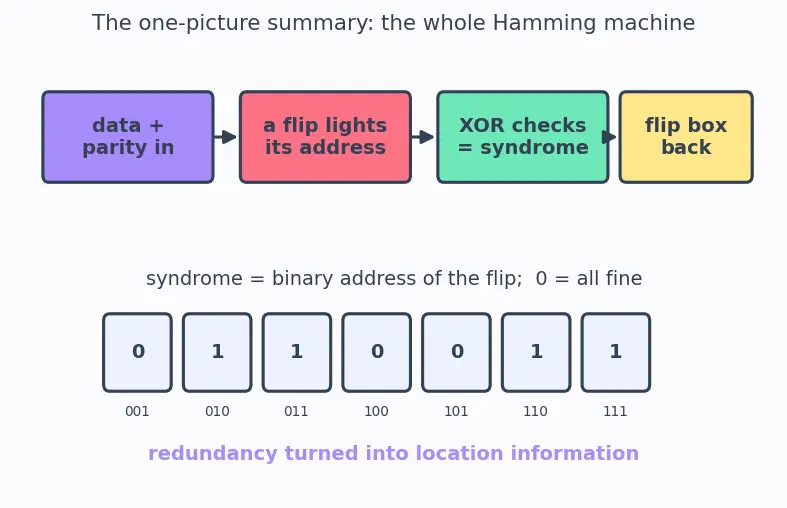

The one-picture summary

Everything above collapses into a single machine: data + power-of-two parity bits go in; a flip lights its own binary address; XOR the checks; read the address; flip that box back.

Recall Feynman retelling — the whole walkthrough in plain words

You have seven mailboxes in a row and you're afraid a raindrop might smudge one letter inside. So you assign each mailbox a house number and write those numbers in "on/off" digit language (binary). Now you hire three watchers. Watcher #1 keeps a tally of all mailboxes whose number has the 1s switch on; watcher #2 tallies the 2s switch; watcher #4 the 4s switch — each keeps their tally even. You seat one watcher's private mailbox (numbers 1, 2, 4) so it belongs to that watcher alone, so they can balance their own tally without stepping on the others. A raindrop smudges one letter. Each watcher whose tally now comes out odd raises a flag. Stack the flags in order — 4s, 2s, 1s — and you've spelled out the house number of the smudged mailbox, because the only mailbox that upsets exactly those watchers is the one sitting under exactly those switches. Erase and rewrite that one letter — done, and you never had to remember the original. Add one grand watcher over all mailboxes and you can even tell one smudge from two: one smudge tips the grand tally to odd, two smudges leave it even. Odd-and-a-flag means "fix it here"; even-yet-a-flag means "two raindrops, sound the alarm."

Active-recall

Why must parity bits sit at positions

1, 2, 4, 8, \dots

Those addresses have exactly one binary column switched on, so each parity bit belongs to a single check and can balance it without disturbing the others.

What does a zero syndrome mean, and why is that value free to use?

No error — positions are numbered from

1

, so address

0

never names a real box and is reserved for "all fine."

If box

7

flips in Hamming(7,4), what is the syndrome?

7 = 11 1_{2}

, so all three checks fail: syndrome

= 11 1_{2} = 7

Two bits flip. What does the syndrome equal and why is it dangerous?

The XOR of the two flipped positions' addresses — a nonzero value pointing at an innocent third box, so plain Hamming miscorrects.

How does the overall parity bit distinguish one flip from two?

One flip makes the total count odd; two flips keep it even — so nonzero syndrome with even total = double error (detect only).
