Half adder and full adder

WHY do we even need these?

WHAT we want: a circuit that, given input bits, outputs their arithmetic sum in binary.

The catch: $1 + 1 = 10_2$ — a two-bit answer. So any adder needs two outputs:

Sum (the current column's bit)
Carry (the bit that spills into the next column)

HOW we discover the logic: build the truth table, then read off the Boolean expression.

Half Adder

Deriving it from scratch

List every input combination and the arithmetic result:

$A$	$B$	$A+B$ (decimal)	Carry $C$	Sum $S$
0	0	0	0	0
0	1	1	0	1
1	0	1	0	1
1	1	2 = $10_2$	1	0

Why this step? The table is just "count the ones and write it in binary." No Boolean guessing yet — pure arithmetic truth.

Now read the columns:

$S$ is 1 exactly when $A$ and $B$ differ → that's XOR.
$C$ is 1 exactly when both are 1 → that's AND.

Full Adder

Deriving it from scratch

$A$	$B$	$C_{in}$	sum(dec)	$C_{out}$	$S$
0	0	0	0	0	0
0	0	1	1	0	1
0	1	0	1	0	1
0	1	1	2	1	0
1	0	0	1	0	1
1	0	1	2	1	0
1	1	0	2	1	0
1	1	1	3	1	1

Why this step? Again, just count the 1s among the three inputs and write the count in 2-bit binary $(C_{out}S)$ .

Reading Sum $S$ : $S=1$ when the number of 1s is odd (rows with count 1 or 3). "Odd number of 1s" is exactly the XOR of all three: $S = A \oplus B \oplus C_{in}$ Why? XOR flips output each time an input is 1; an odd count leaves it at 1.

Reading Carry $C_{out}$ : $C_{out}=1$ when at least two inputs are 1. Group the minterms: $C_{out} = AB + BC_{in} + AC_{in}$ This is the majority function — output the value held by the majority of the three inputs.

Why the second form is equivalent (steel-man the algebra): $(A\oplus B)C_{in} = (A\bar B + \bar A B)C_{in}$ . Add $AB$ . When $A=B=1$ , the $AB$ term already fires. When exactly one of $A,B$ is 1, then $A\oplus B=1$ so the second term fires iff $C_{in}=1$ . This reproduces "≥2 ones" exactly — matching $AB+AC_{in}+BC_{in}$ . ✓

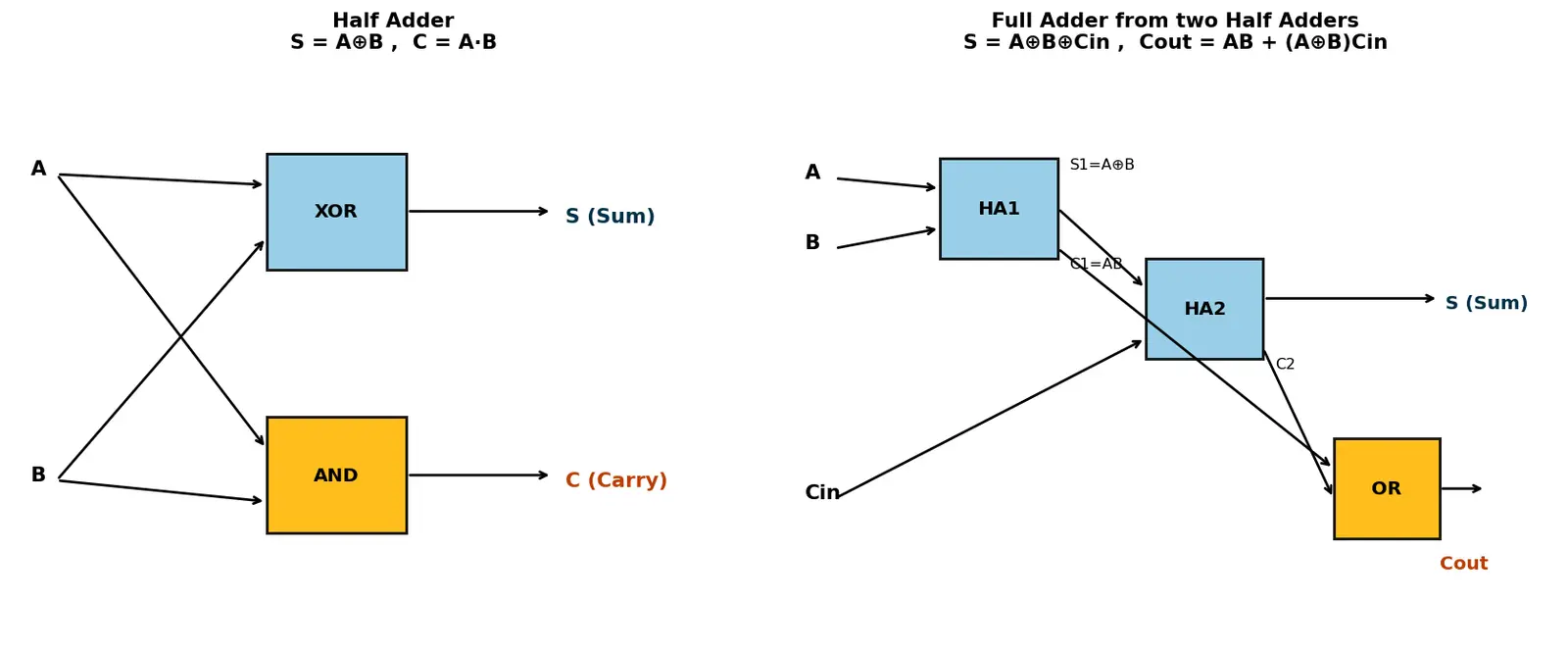

Full adder from two half adders

Worked examples

Common mistakes

Recall Feynman: explain to a 12-year-old

Imagine you're adding 1 + 1 with only the buttons 0 and 1. The answer is "two," but you can't write "2" — you only have 0 and 1! So you write a 0 here and carry a little 1 over to the next spot, like carrying in normal addition. The half adder is a tiny machine that does this for two buttons. But sometimes a carry arrives from the right, so you're really adding three things. The full adder is the bigger machine that can handle all three. Line up a row of full adders and they can add huge numbers, one column at a time — that's how computers add!

Flashcards

What are the two outputs of any binary adder cell?

Sum (this column's bit) and Carry (bit passed to the next column).

Half adder Sum equation?

S = A \oplus B

(XOR).

Half adder Carry equation?

C = A \cdot B

(AND).

Why is it called a "half" adder?

It adds only two bits and cannot accept a carry-in from a previous stage.

How many inputs does a full adder have?

Three:

A

B

, and

C_{in}

Full adder Sum equation?

S = A \oplus B \oplus C_{in}

(odd/parity of inputs).

Full adder Carry-out equation?

C_{out} = AB + AC_{in} + BC_{in}

(majority function).

Full adder from two half adders — final carry?

C_{out} = AB + (A\oplus B)C_{in}

, i.e. OR of the two half-adder carries.

Common mistake: is half-adder carry OR?

No — it's AND; carry only when BOTH bits are 1.

What multi-bit adder do you get by chaining full adders?

A ripple-carry adder (each

C_{out}

feeds next

C_{in}

For

A=1,B=1,C_{in}=1

, what is

(C_{out},S)

(1,1) = 3

Connections

XOR gate — the parity behavior powering the Sum output
AND gate and OR gate — build the carry logic
Ripple-carry adder — full adders chained
Carry-lookahead adder — faster carry, avoids ripple delay
Truth tables and minterms — the derivation method used here
Two's complement subtraction — adders reused for subtraction
Combinational circuits — the parent family (no memory, output = f(inputs))

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab hum do numbers add karte hain to har column me ek digit likhte hain aur kabhi-kabhi ek carry aage bhej dete hain. Binary me bhi bilkul yahi hota hai, bas digits sirf 0 aur 1 hote hain. Problem yeh hai ki $1+1 = 10_2$ , yani do-bit ka answer. Isliye kisi bhi adder ke do outputs chahiye — ek Sum (is column ka bit) aur ek Carry (agle column me jaane wala bit).

Half adder sirf do bits ( $A$ aur $B$ ) add karta hai. Truth table banao, dekho: Sum tab 1 hota hai jab dono bits alag hain — yeh to XOR hai. Aur Carry tab 1 jab dono 1 hain — yeh AND hai. Bas: $S=A\oplus B$ , $C=A\cdot B$ . Ise "half" kehte hain kyunki yeh pichle stage ka carry-in accept nahi kar sakta.

Full adder teen bits add karta hai — $A$ , $B$ , aur $C_{in}$ . Sum tab 1 hota hai jab 1's ki ginti odd ho — matlab teeno ka XOR: $S=A\oplus B\oplus C_{in}$ . Aur carry-out tab 1 jab kam se kam do inputs 1 hon — ise majority function kehte hain: $C_{out}=AB+AC_{in}+BC_{in}$ .

Sabse important baat: Boolean me $+$ ka matlab OR hota hai, arithmetic addition nahi. Isliye Sum kabhi bhi $A+B$ (OR) nahi hoga — woh hamesha XOR hai. Aur agar bahut saare full adders ko chain kar do (har ka $C_{out}$ agle ka $C_{in}$ ), to bade numbers add ho jaate hain — isi ko ripple-carry adder kehte hain, aur yahi CPU ke andar addition ka core hai.
