Intuition The one-sentence pictureA GPIO pin is a single wire that the CPU can either drive (push it HIGH/LOW = output) or sense (read whether it's HIGH/LOW = input) — and a pull resistor decides what "floating" means, while an interrupt lets the pin tell the CPU something changed instead of the CPU asking forever.
GPIO = General Purpose Input/Output . A microcontroller pin whose direction (in/out) and behaviour is set by software registers , not fixed in hardware. "General purpose" = the chip designer didn't reserve it for a special job (like UART), so you decide.
Each physical pin connects to internal registers. The three you always touch:
Register
WHAT it controls
Typical name
Direction
input or output
DDRx, MODER, TRIS
Output data
the HIGH/LOW you drive
PORTx, ODR
Input data
the level the pin reads
PINx, IDR
Intuition WHY separate read and write registers?When a pin is output , you write the value you want. When it's input , you read what the world put there. These are physically different paths (a driver transistor vs. a sense buffer), so most MCUs give them separate registers. Writing to the input register does nothing useful.
Inside the chip each output pin has two transistors stacked between V D D V_{DD} V D D G N D GND GN D
Drive HIGH → top transistor ON → pin connected to V D D V_{DD} V D D
Drive LOW → bottom transistor ON → pin connected to G N D GND GN D
This is called push-pull because it can actively push current out (source) and pull current in (sink).
An alternative output where only the bottom (pull-to-GND) transistor exists. The pin can pull LOW or go high-impedance (Hi-Z) , but can never drive HIGH on its own — you add an external pull-up. This is how shared buses like I²C work: many devices, any one can pull the line LOW.
Intuition The floating-pin disasterAn input pin is a tiny capacitor connected to a high-impedance sense buffer. If nothing drives it, its voltage floats — picking up noise from nearby wires, your finger, the mains hum. The read result is then random . This is the #1 beginner bug: "my button reads pressed when I don't touch it."
The fix: a weak pull resistor that gently ties the pin to a known level when nothing else drives it.

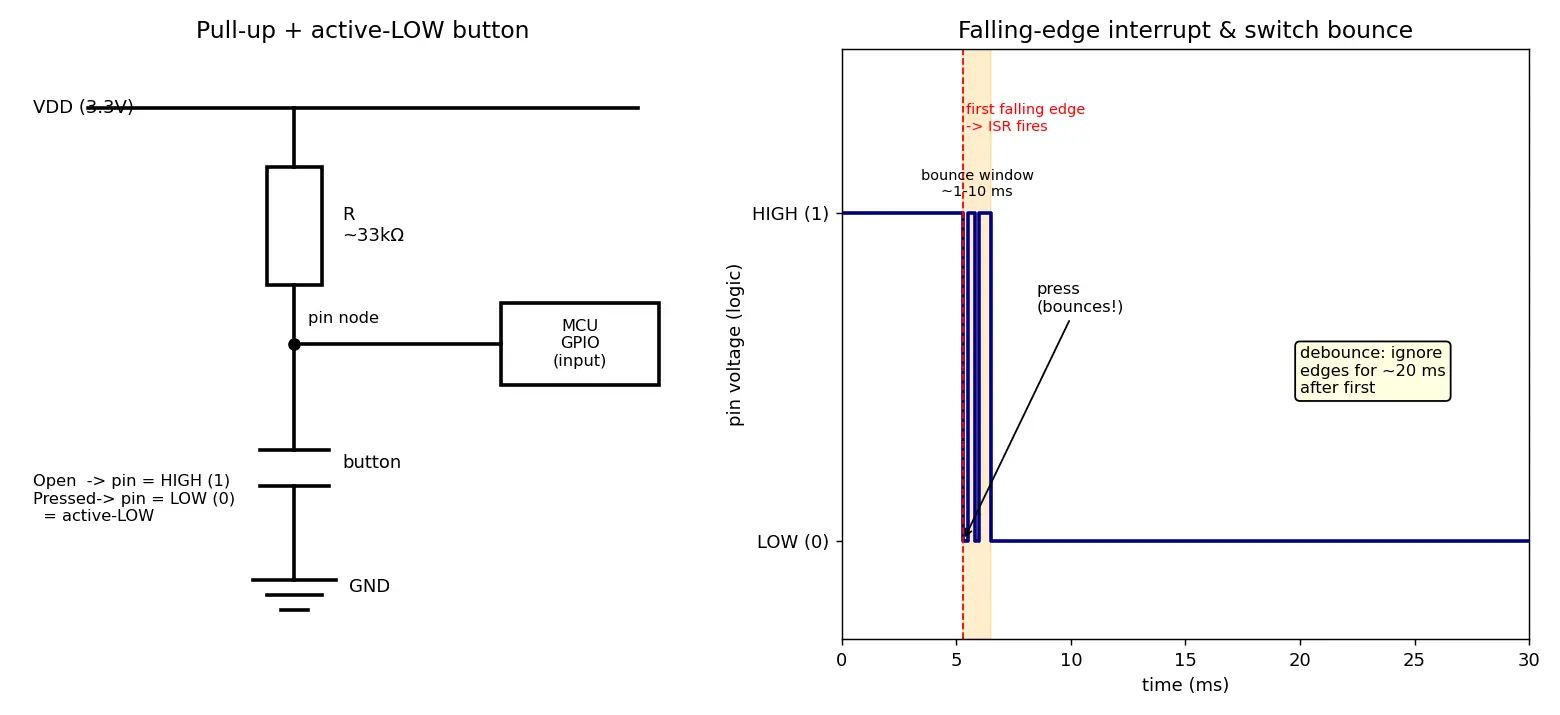

Picture a button between the pin and G N D GND GN D R R R V D D V_{DD} V D D
Button open : no current flows through R R R V D D V_{DD} V D D
Button pressed : pin is shorted to GND through the button. Current flows V D D → R → G N D V_{DD}\to R \to GND V D D → R → GN D
I = V D D R I = \frac{V_{DD}}{R} I = R V D D
Worked example Pick a pull-up to limit wasted currentV D D = 3.3 V V_{DD}=3.3\text{ V} V D D = 3.3 V ≤ 100 μ A \le 100\ \mu A ≤ 100 μ A Why this step? When pressed, R R R R ≥ V D D I = 3.3 100 × 10 − 6 = 33 000 Ω = 33 k Ω R \ge \frac{V_{DD}}{I} = \frac{3.3}{100\times10^{-6}} = 33\,000\ \Omega = 33\ \text{k}\Omega R ≥ I V D D = 100 × 1 0 − 6 3.3 = 33 000 Ω = 33 k Ω I = 15 I=15 I = 15
Intuition WHY "weak"? The override argumentIf a real output drives the pin LOW through its strong transistor (a few ohms), the pin voltage is a divider: V = V D D R d r i v e r R d r i v e r + R p u l l V = V_{DD}\frac{R_{driver}}{R_{driver}+R_{pull}} V = V D D R d r i v er + R p u l l R d r i v er R d r i v e r ≈ 5 Ω R_{driver}\approx 5\,\Omega R d r i v er ≈ 5 Ω R p u l l = 33 k Ω R_{pull}=33\text{k}\Omega R p u l l = 33 k Ω V ≈ 3.3 × 5 33005 ≈ 0.5 mV ≈ 0 V\approx 3.3\times\frac{5}{33005}\approx 0.5\text{ mV} \approx 0 V ≈ 3.3 × 33005 5 ≈ 0.5 mV ≈ 0
Intuition WHY buttons usually read 0 when pressedThe standard, robust wiring is: pull-up enabled, button connects pin to GND.
Not pressed → pull-up → HIGH (1)
Pressed → grounded → LOW (0)
So "pressed = 0". This is active-LOW . It feels backwards but it's preferred because pull-ups are built into most MCUs and grounding is electrically clean.
Two ways to know a pin changed:
Polling — loop forever reading the pin. Simple but wastes CPU and can miss fast pulses.Interrupt — hardware watches the pin and, on a chosen event, yanks the CPU into a special function (the ISR , Interrupt Service Routine).
Definition Edge vs. Level trigger
Rising edge : fire when pin goes 0 → 1 0\to1 0 → 1 Falling edge : fire when pin goes 1 → 0 1\to0 1 → 0 Change : fire on either edge.Level : fire while the pin is HIGH (or LOW) — keeps re-firing, used rarely.
The chip stores a one-bit flag when the event happens; the ISR runs, and you usually must clear the flag or it fires immediately again.
Intuition WHY edges, not levels, for buttonsA button press is an event (a transition). You want one ISR call per press, so you trigger on the falling edge (for active-LOW). Level-trigger would re-fire forever while you hold the button.
Worked example Pin-change interrupt skeleton (pseudo-C)volatile bool pressed = false ; // shared with ISR → MUST be volatile
void ISR_PIN2 () { // hardware jumps here on falling edge pressed = true ; // keep ISR tiny clear_interrupt_flag (PIN2); // else it re-triggers }
int main () { pin_mode ( 2 , INPUT_PULLUP); // weak pull-up: idle = HIGH attach_interrupt ( 2 , FALLING, ISR_PIN2); while ( 1 ) { if (pressed) { handle (); pressed = false ; } } } Why volatile? The compiler might cache pressed in a register and never re-read RAM, so the loop would never see the ISR's change. volatile forces a fresh memory read each time.
Why keep the ISR tiny? While in an ISR, other interrupts may be blocked; long work = missed events and jitter.
Intuition WHY one press = many interruptsMechanical contacts physically bounce for ~1–10 ms, producing a burst of edges. A naive edge ISR then fires 5–20 times per press. Fix = debounce : ignore further edges for, say, 20 ms (track a timestamp), or filter with an RC network.
Common mistake "Input pins don't need a resistor — they just read the wire."Why it feels right: an input "only listens", so surely it's passive.
The fix: listening to a floating wire returns noise. You need a pull-up/pull-down (internal or external) to define the idle level. Always enable one for any input that isn't actively driven.
Common mistake "I'll do the heavy work right inside the ISR."Why it feels right: the ISR is where the event 'arrives', seems natural to handle it there.
The fix: ISRs must be short. Set a flag (or push to a queue) and handle it in the main loop. Long ISRs cause missed interrupts and timing jitter.
Common mistake "Configured the pin as output, then tried to read the button."Why it feels right: "it's the same pin, surely I can both write and read."
The fix: a push-pull output is driving the line, so reading it just returns what you wrote, not the button. Set direction = INPUT (with pull) before sensing.
volatile on the ISR-shared flag — works in debug, breaks with -O2."
Why it feels right: unoptimized builds re-read RAM anyway, so it 'worked'.
The fix: mark any variable shared between ISR and main code volatile.
Recall Feynman: explain to a 12-year-oldImagine a doorbell wire to your brain. If you push electricity out the wire, that's output — you're telling a light to turn on. If you just feel whether the wire is hot or cold, that's input — you're listening for a button. But a wire with nothing connected is like a swing in the wind: it wobbles randomly. So you tie it with a soft rubber band — to the ceiling (pull-up = normally "on") or to the floor (pull-down = normally "off") — so it sits still until a real push moves it. An interrupt is a tap on your shoulder: instead of asking "did someone ring?" a thousand times a second, the wire taps you the instant it changes, so you can do other stuff meanwhile. Only catch: a real button shivers when pressed (bounces), so you ignore taps for a moment after the first.
Mnemonic Remember the pulls"Up = High, Down = Low, weak so the world can override."
And for buttons: PUG — P ull-U p → G rounded button → pressed reads 0 (active-LOW).
Pull-up Resistor Sizing & Ohm's Law Interrupts & ISR Design Polling vs Interrupt-Driven I/O Open-drain & I²C Bus Switch Debouncing volatile & Memory-Mapped Registers Push-Pull vs Open-Drain Outputs
What does GPIO stand for and why "general purpose"? General Purpose Input/Output; the pin isn't reserved for a fixed peripheral, software sets its direction/behaviour.
Why does a floating input pin give random reads? It's high-impedance with tiny capacitance, so it picks up ambient noise; nothing defines its voltage.
Pull-up vs pull-down: default read level of each? Pull-up → idle HIGH (1); pull-down → idle LOW (0).
Why must a pull resistor be "weak" (large)? So any real driver (low resistance) easily overrides it via the voltage divider, giving a clean signal.
Formula for current wasted through a pull-up when the input is grounded? I = V D D / R I = V_{DD}/R I = V D D / R .
Why is the classic button "active-LOW"? Pull-up keeps idle HIGH; pressing connects pin to GND → reads LOW, so pressed = 0.
Push-pull vs open-drain output? Push-pull can drive both HIGH and LOW; open-drain only pulls LOW or goes Hi-Z and needs an external pull-up.
Edge vs level interrupt trigger — which for a button and why? Edge (falling for active-LOW): one ISR per press; level would re-fire continuously while held.
Why must an ISR-shared flag be volatile? Forces re-read from memory each time; otherwise the compiler may cache it in a register and never see the ISR's update.
Why keep ISRs short? Other interrupts may be blocked; long ISRs cause missed events and timing jitter — just set a flag and handle in main loop.
What is switch bounce and how do you fix it? Mechanical contacts produce a burst of edges for ~1–10 ms; fix by debouncing (ignore further edges for ~20 ms) or RC filtering.
What current does a 33 kΩ pull-up waste at 3.3 V when pressed? 3.3 / 33000 = 100 μ A 3.3/33000 = 100\ \mu A 3.3/33000 = 100 μ A .
Push-pull two transistors
Open-drain pull LOW or Hi-Z
Floating noise random reads
Weak pull resistor 10-50k
Intuition Hinglish mein samjhoDekho, GPIO ka matlab hai ek aisa pin jise tum software se ya to output bana sakte ho (CPU pin pe HIGH/LOW push karta hai, jaise LED jalana) ya input (CPU bas sun raha hai ki pin HIGH hai ya LOW, jaise button check karna). Output me andar do transistor hote hain (push-pull) — ek upar VDD se jodta hai, ek niche GND se. Input me ek high-impedance sense buffer hota hai jo bas voltage padhta hai.
Sabse bada beginner bug: agar input pin pe kuch connected nahi hai to wo float karta hai — matlab random noise uthata hai aur button bina dabaye "pressed" dikhane lagta hai. Iska fix hai ek weak pull resistor : pull-up (pin ko VDD se, idle = HIGH) ya pull-down (pin ko GND se, idle = LOW). "Weak" yaani bada (~33kΩ) taaki jab koi real signal aaye to wo aaram se override kar de. Classic button wiring hoti hai pull-up + button GND se — isliye dabane par 0 milta hai (active-LOW). Current waste = V D D / R V_{DD}/R V D D / R
Ab interrupt ka jaadu: polling me CPU baar-baar pin padhta rehta hai (CPU time waste, tez pulse miss ho sakta hai). Interrupt me hardware khud pin ko watch karta hai aur jab edge aata hai (falling edge button ke liye), CPU ko tap karke ISR me le jaata hai. Do cheezein yaad rakhna: ISR ko chhota rakho (bas ek flag set karo, baaki kaam main loop me), aur ISR-shared variable ko volatile banao warna compiler use cache kar lega aur change dikhega hi nahi. Aur ek aur cheez — mechanical button dabate waqt bounce karta hai (1–10 ms ke andar kai edges), to ek press 10 baar trigger kar sakta hai; iska solution debounce (~20 ms tak agle edges ignore karo). Bas yahi GPIO ka pura khel hai.
