Hypergolic propellants — N2O4 - UDMH, MMH

WHAT are we talking about?

The classic storable pair:

WHY do they ignite on their own? (First principles)

Hydrazines are perfect fuels for this because the N–N bond is weak and the molecule is a strong reducing agent, while N₂O₄ is a strong oxidizer that readily hands over oxygen. The initial reaction is essentially a violent acid–base + redox event with near-zero effective activation energy.

Deriving the ignition-delay criterion

We want to see why a low $E_a$ gives a short delay. Reaction rate per unit volume:

$\dot{q} = \Delta H \cdot A\,[F][O]\,e^{-E_a/RT}$

• $\Delta H$ = heat released per reaction
• $A$ = pre-exponential (collision) factor
• $[F],[O]$ = fuel & oxidizer concentrations

Energy balance for a small mixed pocket (adiabatic, ignoring loss for the runaway estimate):

$\rho c_p \frac{dT}{dt} = \dot{q} = \Delta H\, A [F][O]\, e^{-E_a/RT}$

Why this step? Newton's cooling/heat capacity says temperature rise = heat in ÷ thermal mass. Set losses to zero to find the fastest possible runaway.

Separating variables and integrating from $T_0$ to a large "ignition" temperature gives an ignition delay

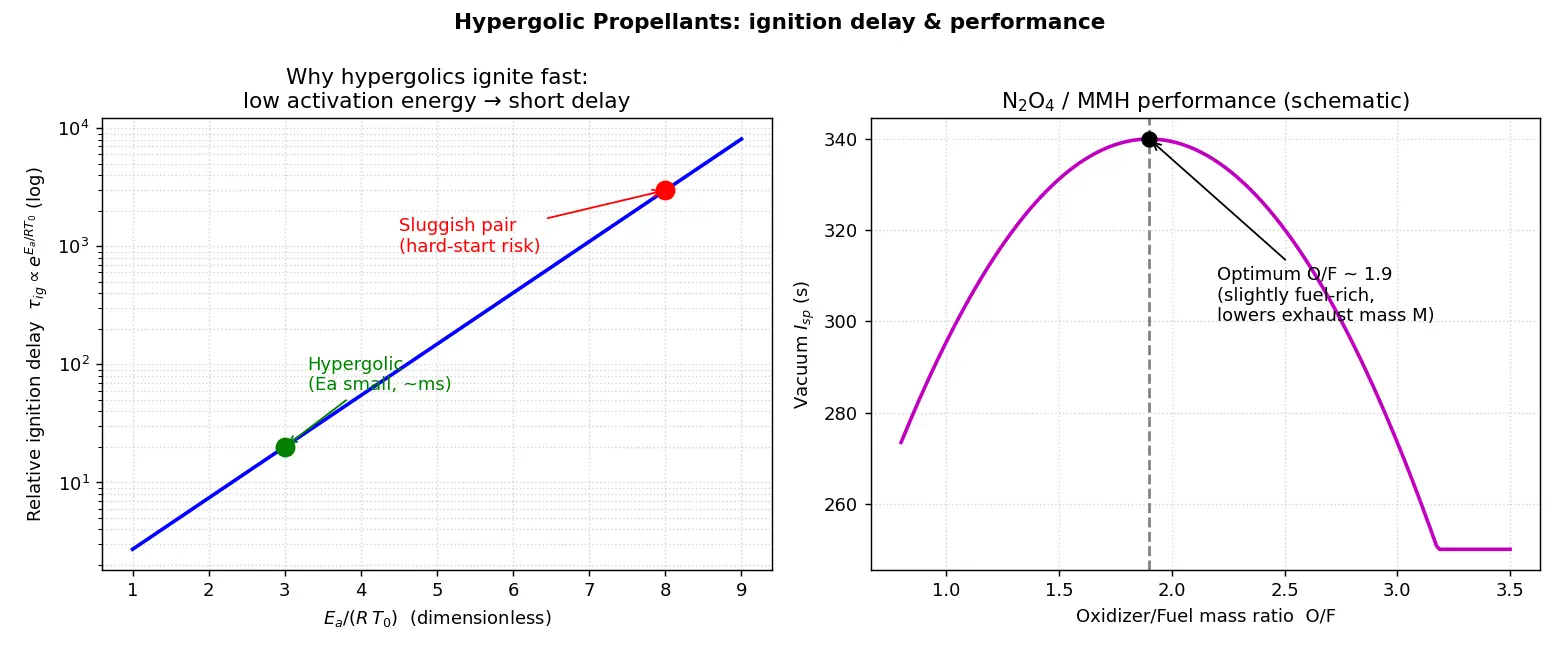

$\boxed{\;\tau_{ig} \sim \frac{\rho c_p\, R\, T_0^2}{\Delta H\, A[F][O]\, E_a}\, e^{+E_a/RT_0}\;}$

Why this form? The dominant factor is $e^{+E_a/RT_0}$. A small $E_a$ makes this exponential ≈ 1, so $\tau_{ig}$ is milliseconds. A large $E_a$ would blow the delay up exponentially — you'd get an ignition failure or a dangerous "hard start."

HOW much performance? (Rocket side)

The reaction (simplified, MMH):

$4\,\text{CH}_3\text{NHNH}_2 + 5\,\text{N}_2\text{O}_4 \rightarrow 12\,\text{H}_2\text{O} + 4\,\text{CO}_2 + 9\,\text{N}_2$

Why balanced this way? Carbon → CO₂, hydrogen → H₂O, and all nitrogen ends as harmless N₂ — the driving force is forming the very stable N≡N triple bond, which dumps enormous energy.

The exhaust feeds the rocket equation. Chamber energy sets exhaust speed $v_e$:

$\frac{1}{2}v_e^2 \approx c_p T_c\left[1-\left(\frac{p_e}{p_c}\right)^{\!(\gamma-1)/\gamma}\right]$

and thrust/Δv follow from Tsiolkovsky:

$\Delta v = v_e \ln\frac{m_0}{m_f},\qquad v_e = I_{sp}\,g_0$

Worked examples

Common mistakes

Flashcards

Connections

• Tsiolkovsky Rocket Equation — turns exhaust speed into Δv.
• Specific Impulse — $I_{sp}=v_e/g_0$, the efficiency metric.
• Cryogenic Propellants — LOX-LH2 — higher $I_{sp}$ but not storable.
• Solid Rocket Propellants — reliable but not throttleable/restartable.
• Combustion Thermodynamics — $v_e\propto\sqrt{T_c/M}$ and adiabatic flame temperature.
• Arrhenius Rate Law — $k\propto e^{-E_a/RT}$ underpins ignition delay.
• Reaction Control Systems (RCS) — where MMH/NTO thrusters actually fly.
