Foundations — Hypergolic propellants — N2O4 - UDMH, MMH

This page is the toolbox. Before you read the parent note, make sure you own every symbol and word it throws at you. We build each one from a picture, then say why the topic needs it.

---

0. How to read a formula at all

The parent note is full of little marks like $\dot{q}$, $\propto$, and $\Delta$. These are not maths content — they are just reading marks, like punctuation. Let us learn them first, using only symbols we will fully define later on this page. (We deliberately do not touch the big rate formula yet: every letter in it — $A$, $R$, $T$, $E_a$, and the exponential — is defined in its own section below, and only then do we assemble the whole line in §4.)

The figure below reads each of these three marks as a tiny picture. On the left, a straight blue line rising with $x$ shows what $y\propto x$ looks like — steady growth in step. In the middle, the orange arrow marks "how much per second" — the meaning of the dot on $\dot{q}$. On the right, the green bracket measures a gap between two levels — that gap is what $\Delta$ names.

Figure 1 — the three reading marks ($\propto$ steady growth, the dot as a per-second rate, $\Delta$ as a measured gap):

Why the topic needs these. The parent's central line is $\dot{q}=\Delta H\cdot A\cdot [F]\cdot [O]\cdot e^{-E_a/RT}$, where each dot ($\cdot$) simply means "multiply". Every letter in it gets its own section below. We will rebuild that line in §4 once — and only once — every symbol has been earned.

---

1. Concentration $[F]$, $[O]$ — how crowded the molecules are

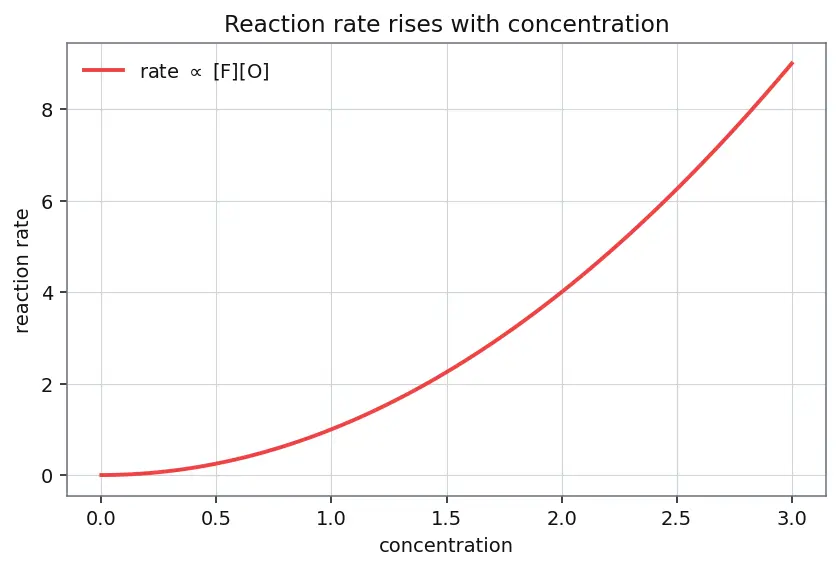

Figure 2 — concentration as crowding (a sparse box vs a crammed box; more dots means more collisions):

Look at the figure: the left box is nearly empty (low $[F]$), the right box is crammed (high $[F]$). In the crammed box, blue and orange dots bump into each other far more often. Reaction rate depends on both partners meeting, so it goes like $[F]\times [O]$ — double either one and collisions double.

Why the topic needs this. The reaction-rate formula has $[F]\times [O]$ inside it. This is where "how crowded" enters the ignition story.

---

2. Temperature $T$ and the runaway idea

---

3. Activation energy $E_a$ — the hill before the reaction

Figure 3 — the energy hill (tall orange hill = slow, needs a spark; flat blue hill = self-ignites; both fall to the same released heat $\Delta H$):

The figure shows two paths. The orange curve has a tall hump ($E_a$ large): only very fast molecules make it over, so the reaction is slow. The blue curve barely has a bump ($E_a\to 0$): almost every collision reacts. Both fall to the same low valley on the right — that drop is the energy released, $\Delta H$.

---

4. Euler's number $e$, the exponential, and the Arrhenius factor

Everything so far avoided one tool on purpose: the exponential. We define it now, from zero, because the next factor needs it.

Now the rate factor. Here $R$ is the gas constant (a fixed number, $8.314\text{J/(mol⋅K)}$) that lets us compare the energy hill $E_a$ (per mole) against the jiggling energy the temperature $T$ supplies. The factor $e^{-E_a/RT}$ is the fraction of collisions energetic enough to clear the hill.

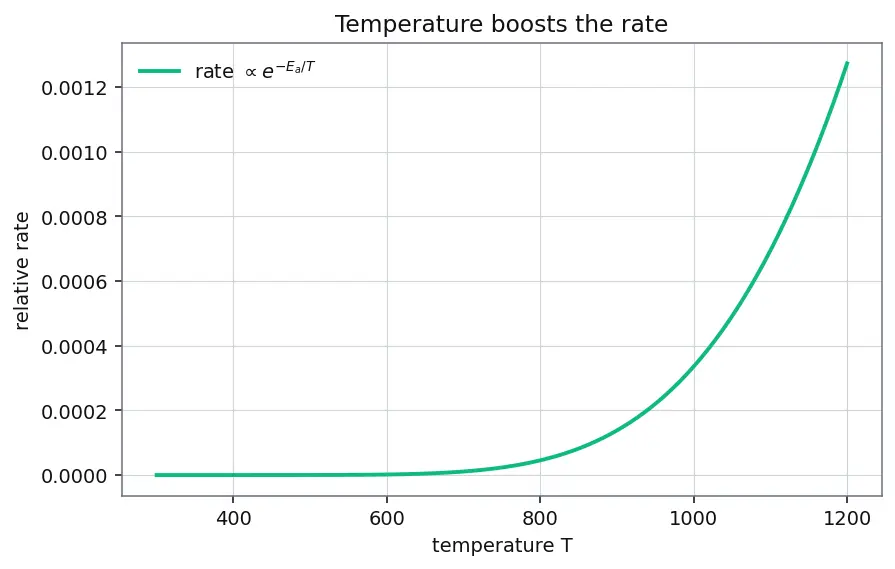

Figure 4 — the fraction over the hill ($e^{-E_a/RT}$ vs temperature; a small $E_a$ already reacts while cold, feeding a runaway):

Read the curve: as $T$ rises (move right), the fraction $e^{-E_a/RT}$ climbs steeply toward 1 — heat feeds itself. This self-feeding is the thermal runaway the parent describes.

Now every piece of the rate law is defined, so we can finally reassemble it. Two last labels:

• $q$ is the heat released per unit volume of mixture, units ${\text{J/m}}^3$ (joules of heat dumped into each cubic metre). Its rate $\dot{q}$ is therefore heat per cubic metre per second, units ${\text{J⋅s}}^{-1}{\text{m}}^{-3}$.
• $A$ (the pre-exponential factor) counts "how often fuel and oxidizer molecules collide at all", before we ask whether they are energetic enough — see Combustion Thermodynamics.

Recall Units check: what units must

$A$ carry so $\dot{q}$ lands in J·s⁻¹·m⁻³? Work backwards. We want $\dot{q}$ in ${\text{J⋅s}}^{-1}{\text{m}}^{-3}$. We already supply $\Delta H$ in $\text{J/mol}$, and $[F][O]$ in ${\text{mol}}^2{\text{/m}}^6$. So $A$ must carry exactly the leftover: $A$ has units ${\text{m}}^3{\text{mol}}^{-1}{\text{s}}^{-1}$. Multiply them out: $\frac{\text{J}}{\text{mol}}\times \frac{{\text{m}}^3}{\text{mol⋅s}}\times \frac{{\text{mol}}^2}{{\text{m}}^6}={\text{J⋅s}}^{-1}{\text{m}}^{-3}$. ✓ ::: $A$ has units ${\text{m}}^3{\text{mol}}^{-1}{\text{s}}^{-1}$ (the standard units of a two-body rate constant).

---

5. Ignition delay ${\tau }_{ig}$

Recall Why is the sign flipped to

$+E_a$ here? Rate has $e^{-E_a/RT}$ (bigger hill = slower). Delay is the inverse of rate, so it flips to $e^{+E_a/R{T}_0}$ (bigger hill = longer wait). ::: Delay is 1 ÷ rate, and dividing by $e^{-x}$ gives $e^{+x}$.

---

6. Heat capacity $c_p$, density $\rho$ — the "thermal mass"

That is why the delay formula has $\rho c_p$ on top: heavier, harder-to-heat mixtures take longer to run away.

---

7. From heat to speed: $v_e$, $\gamma$, $M$, pressures $p_c,p_e$

The parent's energy line $\frac{1}{2}{v}_e^2\approx c_p{T}_c[1-(p_e/p_c{)}^{(\gamma -1)/\gamma }]$ just says hot chamber energy turns into motion energy. New symbols:

• $p_c$ = chamber pressure (inside, high); $p_e$ = exit pressure (at the nozzle mouth, low). The gas expands from high to low and that expansion is what accelerates it. The bracketed factor is a pure number between 0 and 1 — the fraction of heat energy the nozzle manages to convert.
• $\gamma$ ("gamma") = heat-capacity ratio of the gas, a pure number near 1.2–1.4 that says how "springy" the gas is when it expands.

---

8. Specific impulse $I_{sp}$ and $g_0$

---

9. The natural logarithm $\ln$ — and the rocket equation symbols

Before the rocket equation we must own one more tool: the natural logarithm. It builds directly on the exponential $e^x$ from §4.

---

10. The mixture ratio $O/F$

---

The prerequisite map

Each lettered node below matches a numbered section above; the legend after the diagram maps them back.

Legend (node → section): A = §0 reading marks · B = §1 concentration · C/H = §2 temperature · D = §3 activation energy · E/F = §4 Euler's $e$, Arrhenius & rate · G = §5 ignition delay · I = §7 exhaust velocity · J = §8 specific impulse · N/K = §9 natural log & rocket equation · L = §10 mixture ratio · M = the parent topic.

The left branch (crowding + hill + Arrhenius) explains why they self-ignite. The right branch (temperature → speed → push) explains how much they perform. Both feed the topic.

---

Equipment checklist

Each line is a flip-card: cover the text after :::, answer, then check.

• What does $\propto$ mean? ::: “Is proportional to” — grows in step, hides the exact constant.
• What does a dot on top of a symbol ($\dot{q}$) mean? ::: A rate: how much per second.
• What is $q$, and what are its units? ::: Heat released per unit volume of mixture, in J/m³; its rate $\dot{q}$ is J·s⁻¹·m⁻³.
• What does $[F]\times [O]$ represent and why multiply? ::: Fuel and oxidizer crowding; both must meet, so we multiply.
• What are the units of $[F]$? ::: Moles per cubic metre, mol/m³.
• What is the activation energy $E_a$ and its units? ::: The energy hill before a reaction; joules per mole, J/mol.
• What is Euler's number $e$? ::: A fixed number ≈ 2.718; the base of the exponential $e^x$ that grows by a constant factor per equal step.
• Why does $e^{-E_a/RT}$ appear, and why is its exponent unitless? ::: It is the fraction of collisions over the hill; $E_a/(RT)$ is J/mol ÷ J/mol = a pure number.
• What is $R$? ::: The gas constant, $8.314\text{J/(mol⋅K)}$, comparing the energy hill to the temperature's jiggle energy.
• What units must the pre-exponential factor $A$ carry? ::: ${\text{m}}^3{\text{mol}}^{-1}{\text{s}}^{-1}$, so the rate product lands in J·s⁻¹·m⁻³.
• What is ${\tau }_{ig}$ and why $e^{+E_a/R{T}_0}$? ::: Ignition delay (seconds); it is 1 ÷ rate, so the exponential sign flips.
• What is $\rho c_p$ physically? ::: Thermal inertia — how slowly a gas pocket heats up.
• What is $M$ and how does it enter $v_e$? ::: Mass per mole of exhaust; $c_p=\frac{\gamma }{\gamma -1}\frac{R}{M}$, giving $v_e\propto \sqrt{T_c/M}$.
• What does $v_e\propto \sqrt{T_c/M}$ tell you? ::: Faster exhaust with hotter chamber, slower with heavier molecules.
• What is $I_{sp}$? ::: Fuel-economy score in seconds; $v_e=I_{sp}{g}_0$.
• What does $\ln$ do and why base $e$? ::: Undoes $e^x$, turns multiply into add; base $e$ because it matches continuous fractional change.
• Why does $\ln$ appear in $\Delta v$? ::: Each kg ejected pushes a lighter rocket, so the effect compounds into a logarithm.
• What is $O/F$? ::: Oxidizer mass divided by fuel mass loaded (pure number).

---
