Visual walkthrough — Hypergolic propellants — N2O4 - UDMH, MMH

This is the visual companion to the parent topic. If a word below feels new, it gets a picture before it gets used.

---

Step 1 — What is "reaction rate," really?

WHAT. We start with the plainest possible fact: things react faster when there are more molecules to collide, and when they collide harder (hotter).

WHY. Before we can talk about heat runaway, we need a number for "how fast is the chemistry going right now." Everything downstream is built on this one quantity.

PICTURE. Look at the two pockets below. Left pocket: few molecules, few collisions — slow. Right pocket: same box, more molecules and faster (hotter) motion — a storm of collisions.

The rate of heat production per unit volume is written:

$\dot{q}=\underset{\text{heat per reaction}}{\underbrace{\Delta H}}\cdot \underset{\text{how often molecules meet}}{\underbrace{A}}\cdot \underset{\text{how many are present}}{\underbrace{[F][O]}}\cdot \underset{\text{fraction hot enough to react}}{\underbrace{e^{-E_a/RT}}}$

• $\dot{q}$ — the dot means "per second"; this is heat released each second in one cubic metre.
• $\Delta H$ — energy dumped by one reaction event (joules).
• $A$ — the collision factor: how frequently molecules bump into each other at all.
• $[F],[O]$ — concentrations of fuel and oxidizer (molecules per volume).
• $e^{-E_a/RT}$ — the star of the show, unpacked in Step 3.

---

Step 2 — What is the activation energy $E_a$?

WHAT. We name the barrier that decides whether a collision "counts."

WHY. This is the single knob that separates a hypergolic (fires in milliseconds) from a sluggish pair (fails or hard-starts). We must picture the hill before we can see why its height matters.

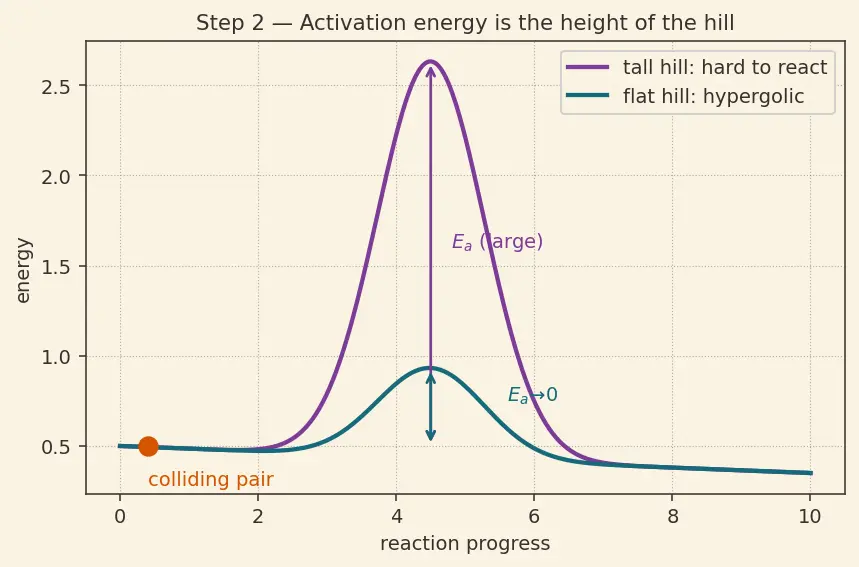

PICTURE. A ball rolling toward a hill. A tall hill (left) blocks almost every collision. A flat hill (right, the hypergolic case) lets nearly everyone through — reaction is almost free.

$E_a=\text{height of the hill};\text{small }{E}_a\Rightarrow \text{easy reaction}$

---

Step 3 — Why an exponential? The Boltzmann fraction

WHAT. We interpret the term $e^{-E_a/RT}$ as a probability between 0 and 1.

WHY. This single term is where temperature enters the rate — and it is the term that will "run away" in Step 5.

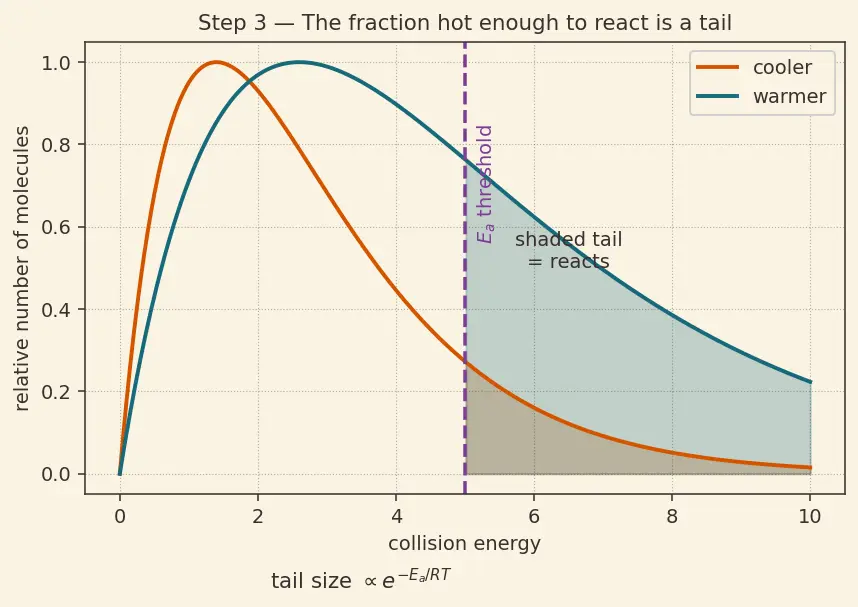

PICTURE. The energy-spread curve. The shaded tail past $E_a$ is the fraction that reacts. Warm it up (raise $T$) and the whole curve shifts right — the tail past the hill grows fast.

$e^{-E_a/RT}:\underset{\text{gas constant}}{\underbrace{R}}\underset{\text{temperature (K)}}{\underbrace{T}}$

• When $T$ is small → $E_a/RT$ is large → $e^{-\text{big}}$ ≈ 0 → almost no reactions.
• When $T$ grows → $E_a/RT$ shrinks → the exponential climbs toward 1 → reactions surge.

Recall Why does raising

$T$ speed things up so violently? Because $T$ sits in the exponent. Question ::: A small change in $T$ moves $E_a/RT$ a little, but $e^{\text{that}}$ can double or triple — feedback lives in exponents.

---

Step 4 — The energy balance: heat in raises temperature

WHAT. We equate the heat released each second ($\dot{q}$ from Step 1) to the heating of the pocket.

WHY. This links chemistry (Step 1) to temperature change, closing the feedback loop: chemistry heats the pocket, the hotter pocket reacts faster (Step 3), which heats it more…

PICTURE. A small pocket of mixed liquid, an arrow of heat entering, a thermometer climbing. No heat leaks out the walls.

$\underset{\text{density}}{\underbrace{\rho }}\underset{\text{heat capacity}}{\underbrace{c_p}}\underset{\text{temp change per second}}{\underbrace{\frac{dT}{dt}}}=\dot{q}=\Delta HA[F][O]e^{-E_a/RT}$

• $\rho c_p$ together = the thermal mass — how much heat it takes to warm the pocket by one degree.
• $\frac{dT}{dt}$ = the rate the thermometer climbs.
• Right side = the heat source we built in Step 1.

Read it as: temperature climb speed = heat produced ÷ thermal mass.

---

Step 5 — The runaway: temperature and rate chase each other

WHAT. We follow $T(t)$ forward in time using the loop.

WHY. The instant $T$ shoots to infinity (in this idealised model) is the ignition instant. The time to get there is our ignition delay ${\tau }_{ig}$.

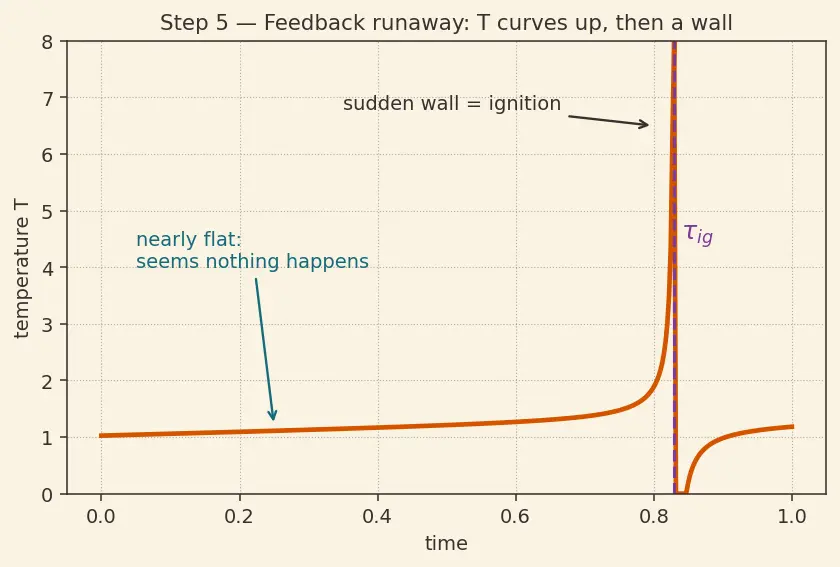

PICTURE. A spiral diagram of the loop, and beside it a curve of $T$ vs time: nearly flat, then a sudden near-vertical wall. The foot of that wall is ${\tau }_{ig}$.

The near-flat part is deceptive: almost nothing seems to happen for milliseconds, then everything happens at once.

---

Step 6 — Extract the delay: separate and integrate

WHAT. Move every $T$ to the left, integrate from the starting temperature $T_0$ up to a huge ignition temperature.

WHY. Adding up all the tiny time slices $dt$ gives the total delay ${\tau }_{ig}$.

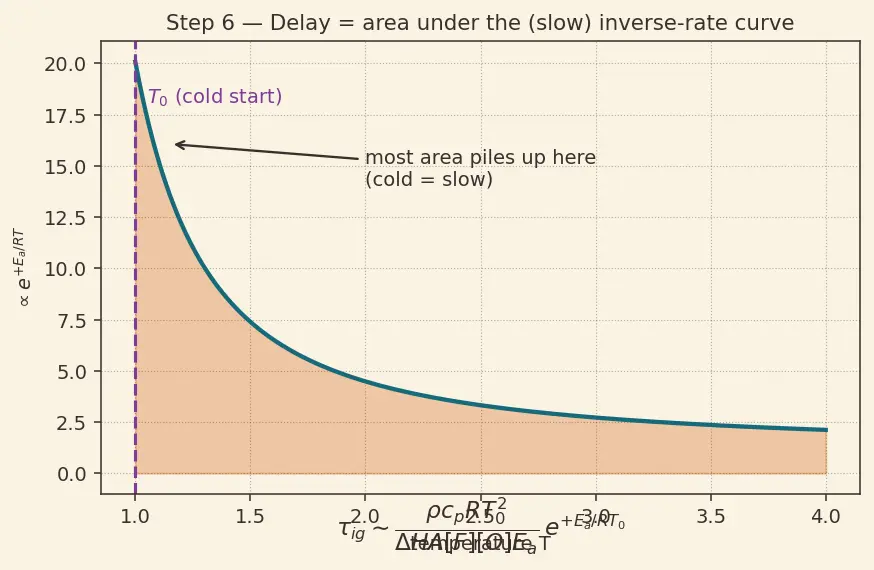

PICTURE. The area under the $\frac{1}{\text{rate}}$ curve between $T_0$ and ignition — that shaded area is the delay in seconds. Most of the area piles up near $T_0$, where the reaction is coldest and slowest.

$dt=\frac{\rho c_p}{\Delta HA[F][O]}{e}^{+E_a/RT}dT⟹{\tau }_{ig}={\int }_{T_0}^{T_{ig}}(\cdots )e^{+E_a/RT}dT$

Because the integrand is dominated by its value at the cold start $T_0$ (the exponential is largest there), the whole integral is set by that starting point:

$\boxed{{\tau }_{ig}\sim \frac{\rho c_{p}R{T}_0^2}{\Delta HA[F][O]E_a}{e}^{+E_a/R{T}_0}}$

• The messy prefactor (front fraction) barely changes between propellants.
• The exponential $e^{+E_a/R{T}_0}$ swings by factors of hundreds. It rules the delay.

$\Rightarrow {\tau }_{ig}\propto e^{E_a/R{T}_0}$

---

Step 7 — Every case: what if $E_a$ is tiny, large, or zero?

WHAT. We test the three regimes so no reader hits an unshown scenario.

WHY. A formula is only trustworthy once you've walked its extremes.

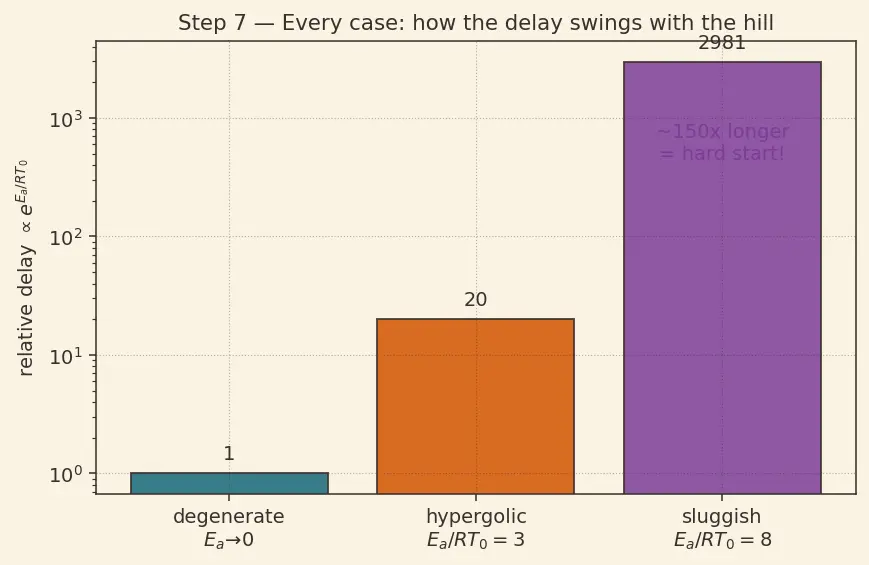

PICTURE. Three bars of delay: a flat hill (hypergolic, milliseconds), a modest hill (sluggish, huge delay → hard start), and the degenerate $E_a\to 0$ limit (delay collapses to the prefactor).

Case	$E_a/R{T}_0$	$e^{E_a/R{T}_0}$	Outcome
Ideal hypergolic	$\approx 3$	$\approx 20$	~milliseconds → clean light
Sluggish pair	$\approx 8$	$\approx 2981$	~150× longer → propellant pools → hard start
Degenerate $E_a\to 0$	$0$	$1$	delay = bare prefactor; ignition essentially instantaneous

---

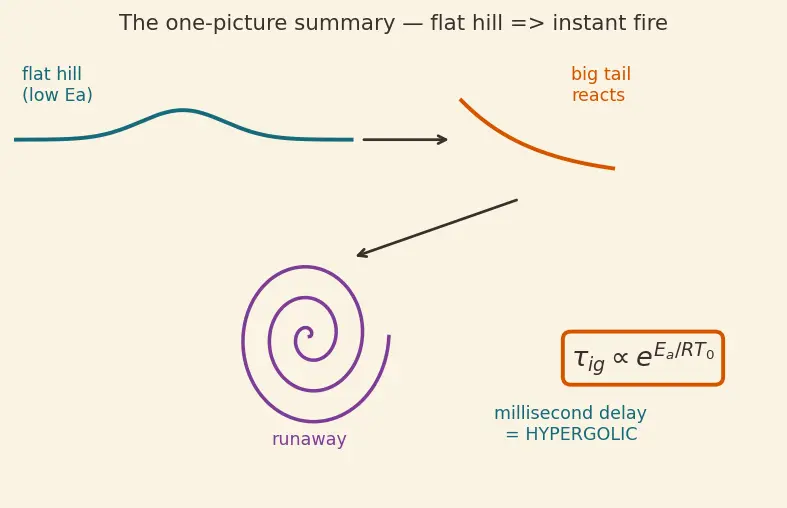

The one-picture summary

Everything on one canvas: the flat-hill barrier (Step 2) feeds the Boltzmann tail (Step 3), which drives the runaway spiral (Steps 4–5), whose foot is the delay whose only strong dependence is $e^{E_a/R{T}_0}$ (Step 6). Flat hill → tiny exponent → millisecond delay → hypergolic.

Recall Feynman: the walkthrough in plain words

Imagine two liquids that must climb a little hill before they can react. If the hill is tall, almost no molecule makes it over, so nothing burns for ages. If the hill is nearly flat — which is what we build hypergolics to be — nearly every molecule that touches its partner reacts right away. Each reaction dumps heat; heat makes the mix hotter; hotter means even more molecules clear the hill; that dumps more heat… a spiral that snaps into flame in a millisecond. When we do the honest bookkeeping (add up all the tiny time-slices), one term towers over everything else: $e$ raised to (hill height ÷ temperature). Make the hill low and that term is nearly 1 — the fire is basically instant. Make the hill a bit higher and the delay explodes a hundredfold, and instead of a clean light you get a pool of propellant that goes off all at once — a "hard start" that can burst the engine. That single exponent is the whole story of why these propellants light the instant they meet.

---
